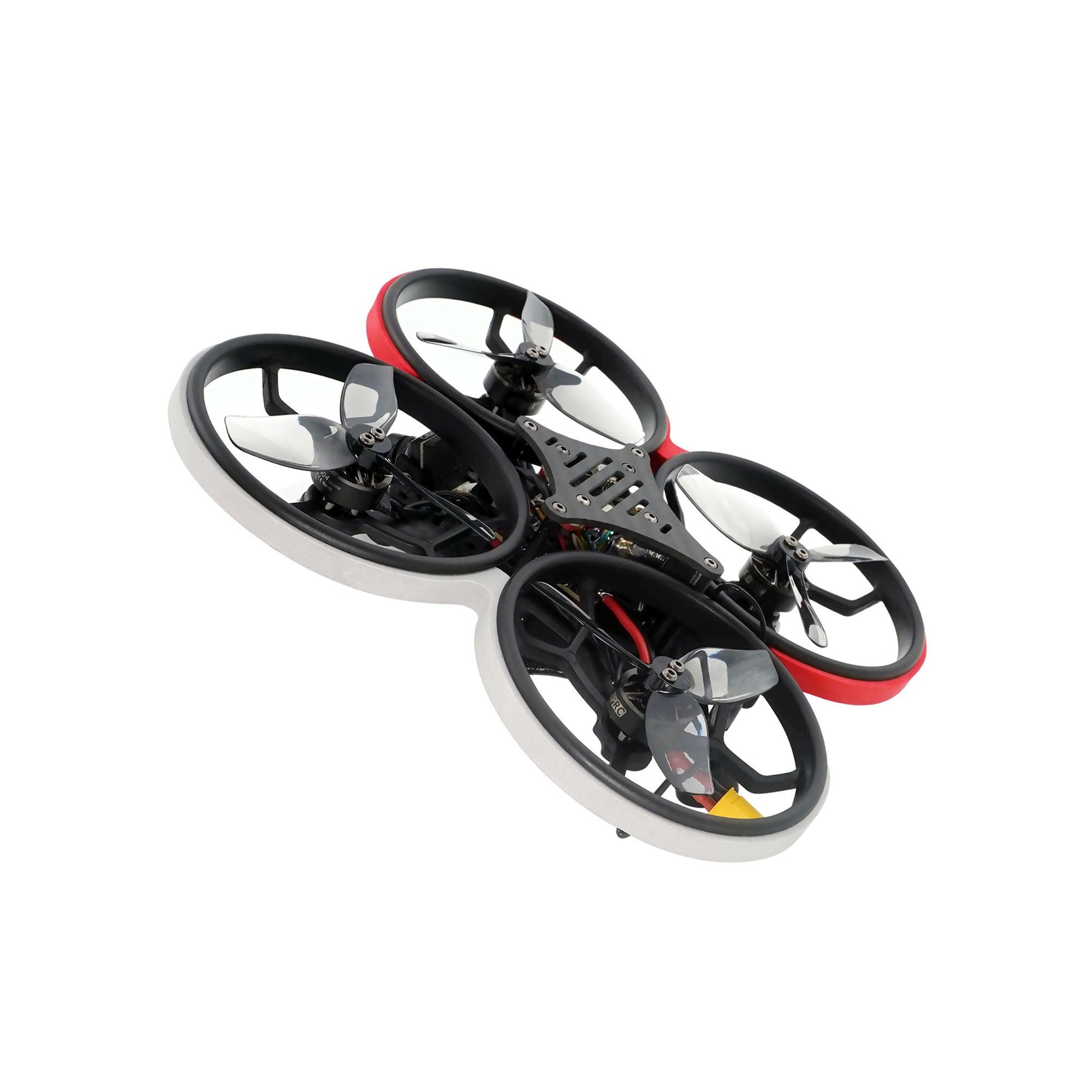

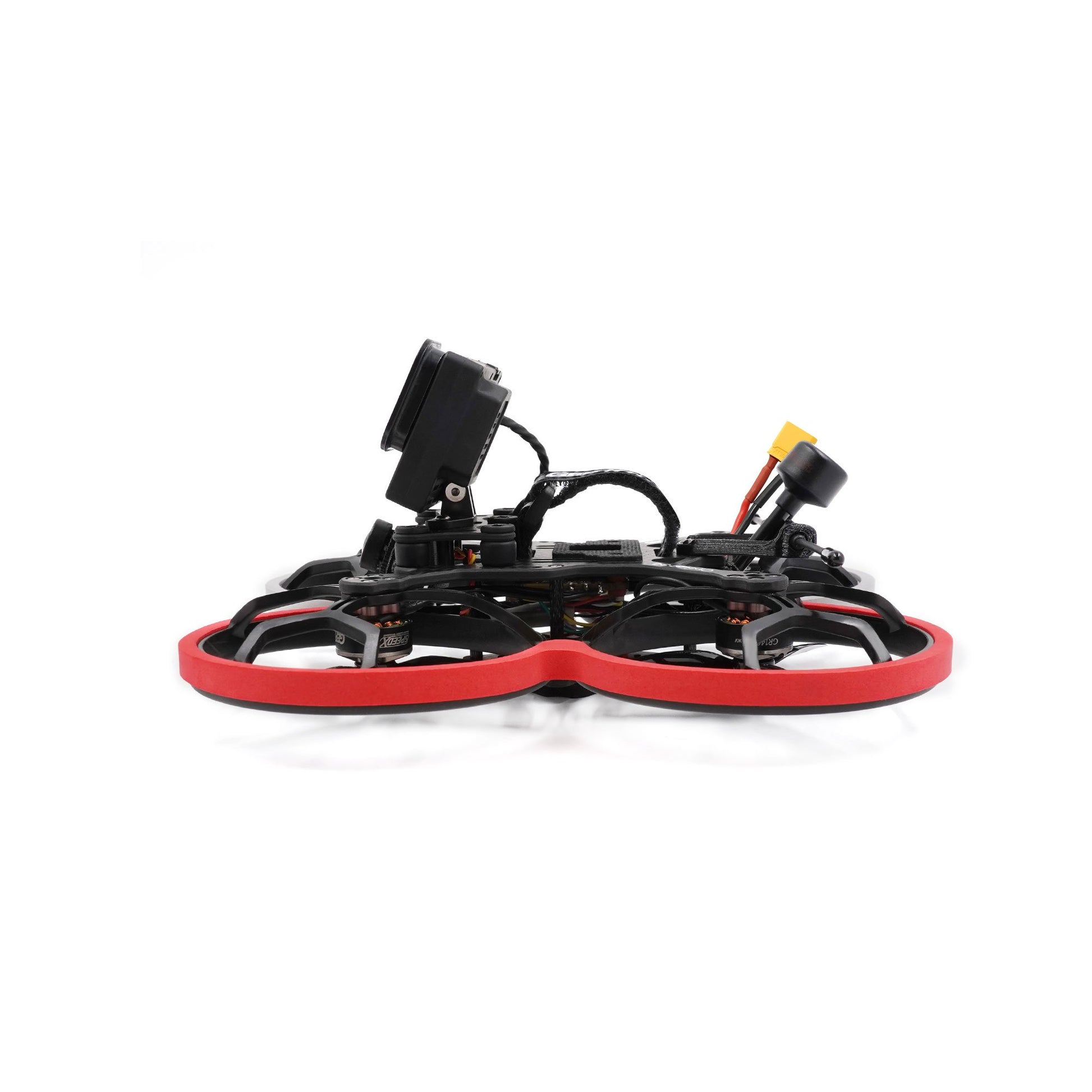

GEPRC CineLog30 Analog PNP

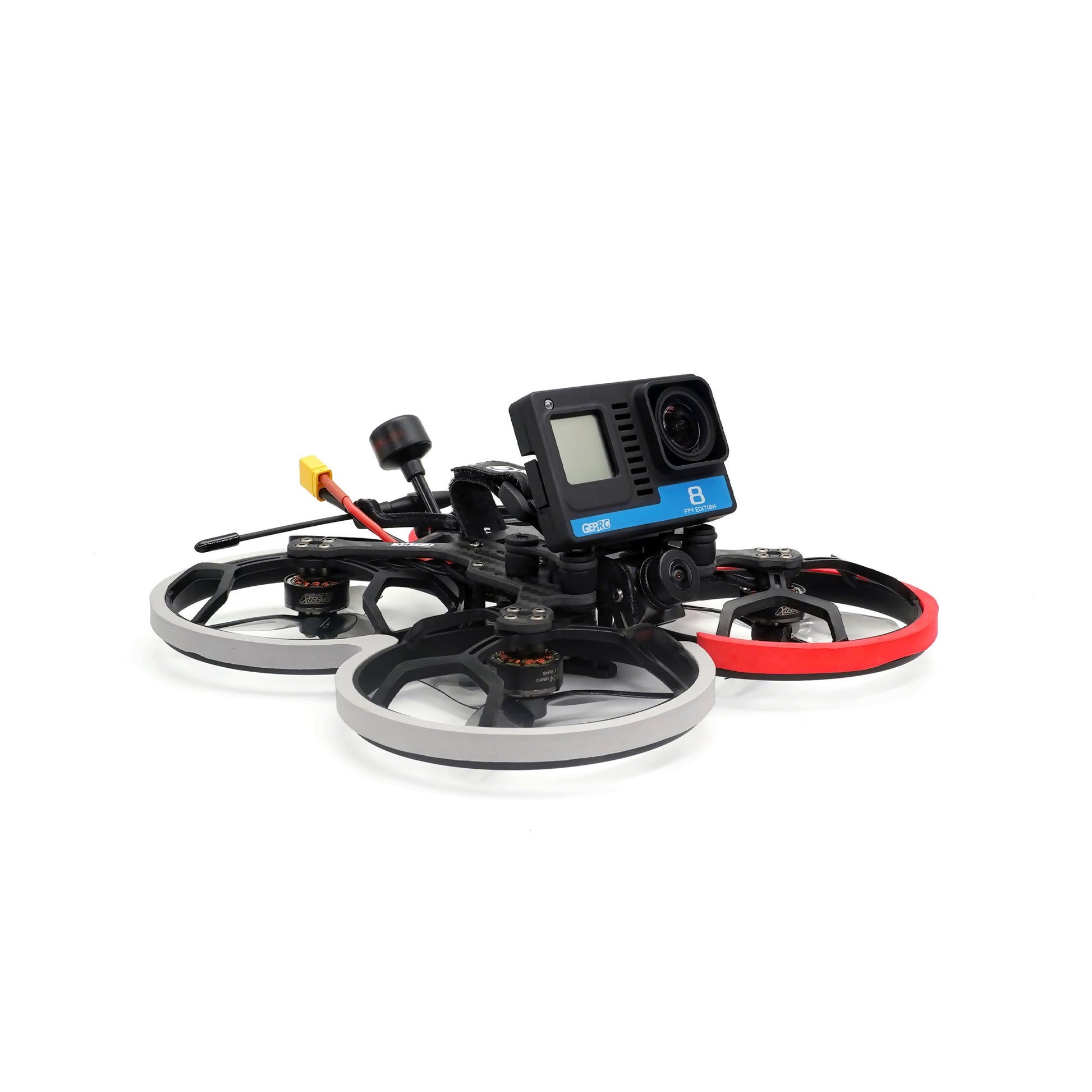

The latest 3 inch quadcopter from GEPRC is developed based on cinglog25. It has stronger power with 1404-3850kv engine and HQProp T76MMX3 propellers. Ultra light fuselage and CineLog30 Analog equipped with 4s 660mAh battery, take-off weight is only 204g. Flight duration is 7.5 minutes. GP8 naked camera and INSTA 360 GO2 camera can be installed with the mounting base.
Specifications:
Model: CineLog30 Analog
Brand: GEPRC
Frame: GEP-CL30
Wheelbase: 126 mm
Top plate: 2.0mm
Bottom plate: 2.0mm
Shoulder plate 3.0 mm
FC system: GEP-F411-35A AIO
MCU: STM32F411
Gyroscope: 6-axis
OSD: BetaFlight OSD with AT7456E chip
ESC: BLheli_S 35A
VTX: GEP-600mW-VTX
Camera: Caddx Ratel2
Propellers: HQProp T76MMX3
Antenna: GEPRC Momoda 5.8g MMCX RHCP 100mm
Engine: GEPRC GR1404-3850KV
CineLog30 analog weight: 140.0 g
Receiver: PNP (no receiver)
Battery used: GEPRC 4S 660 mAh
With naked camera GP8 (sub250g): 4S 660mAh 7-8min
