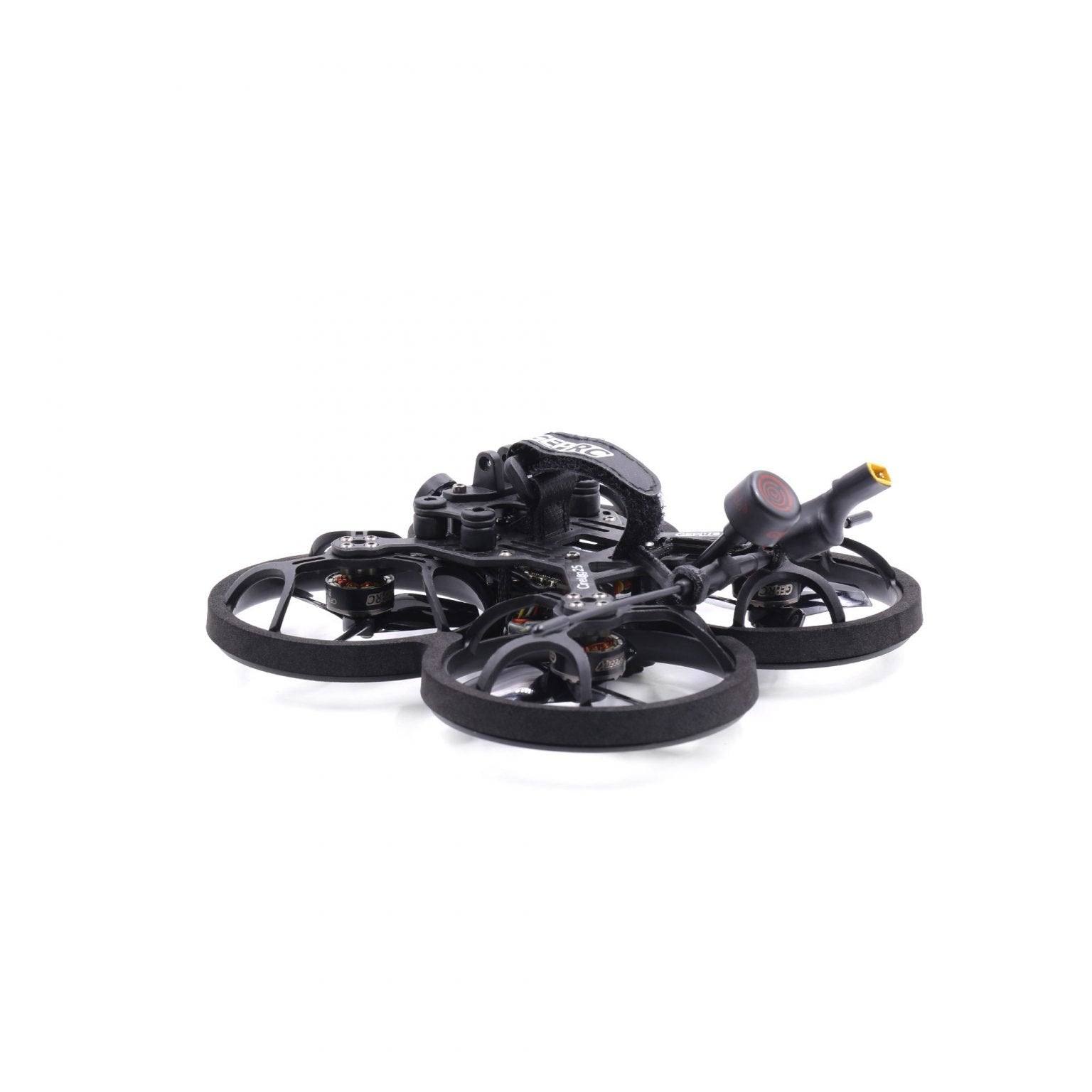

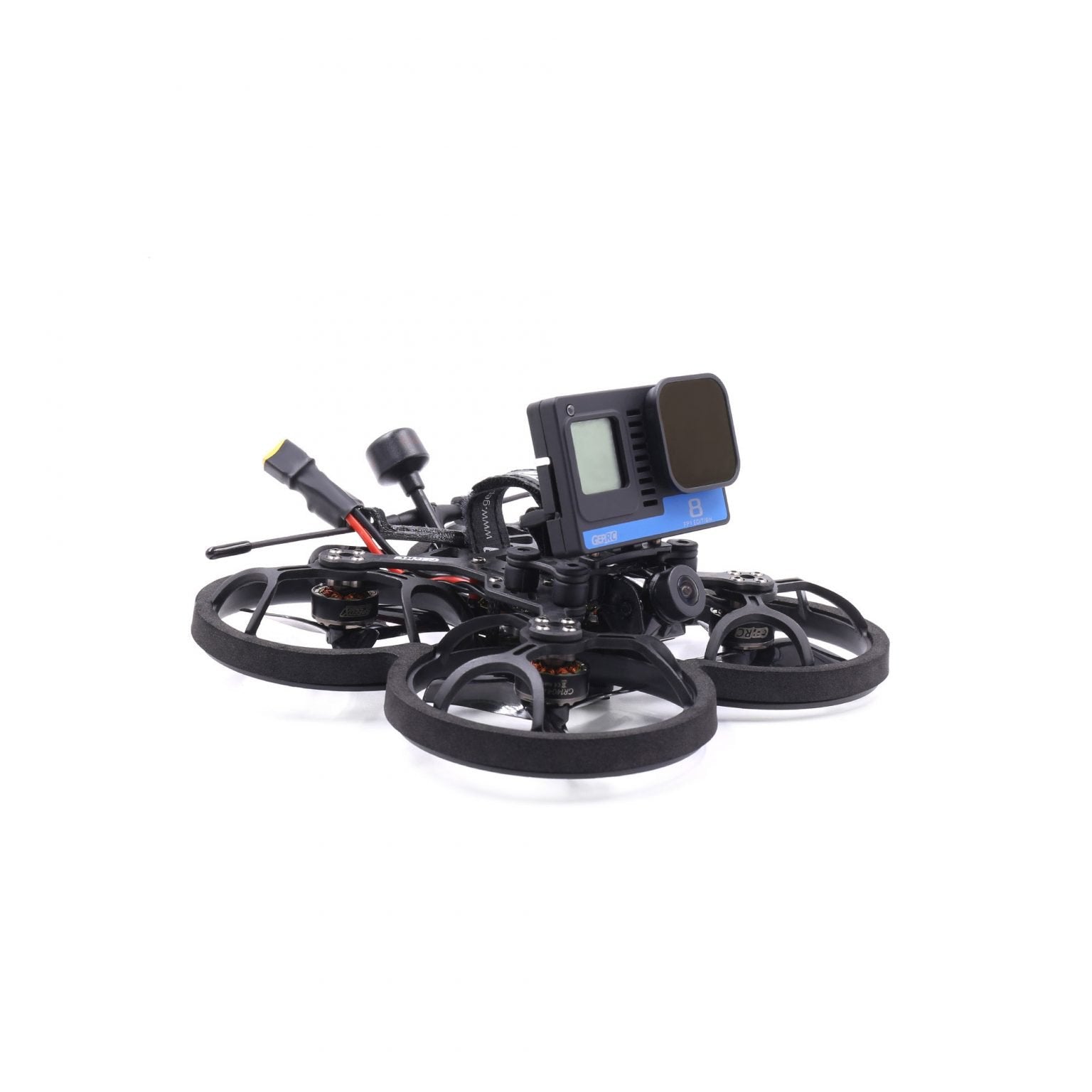

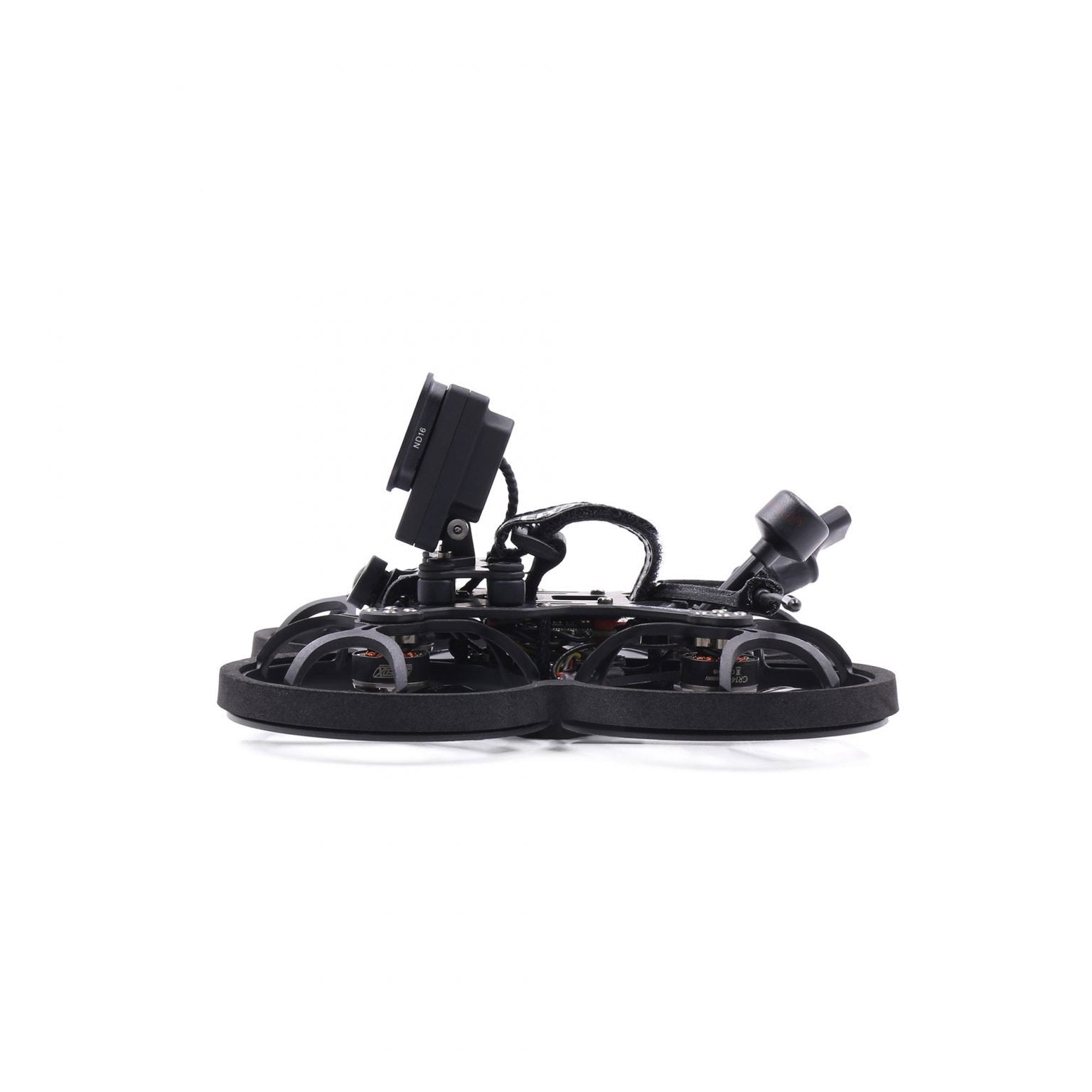

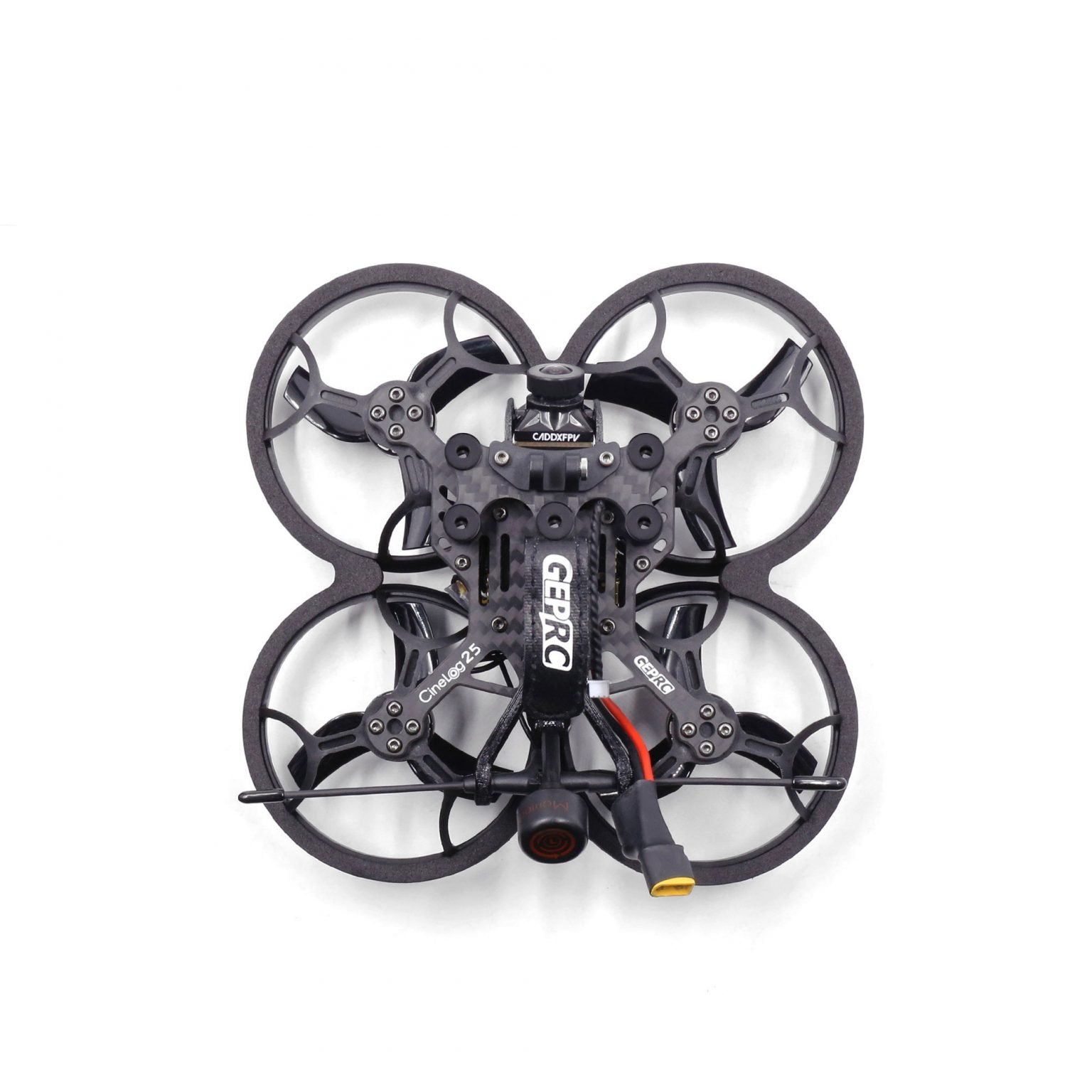

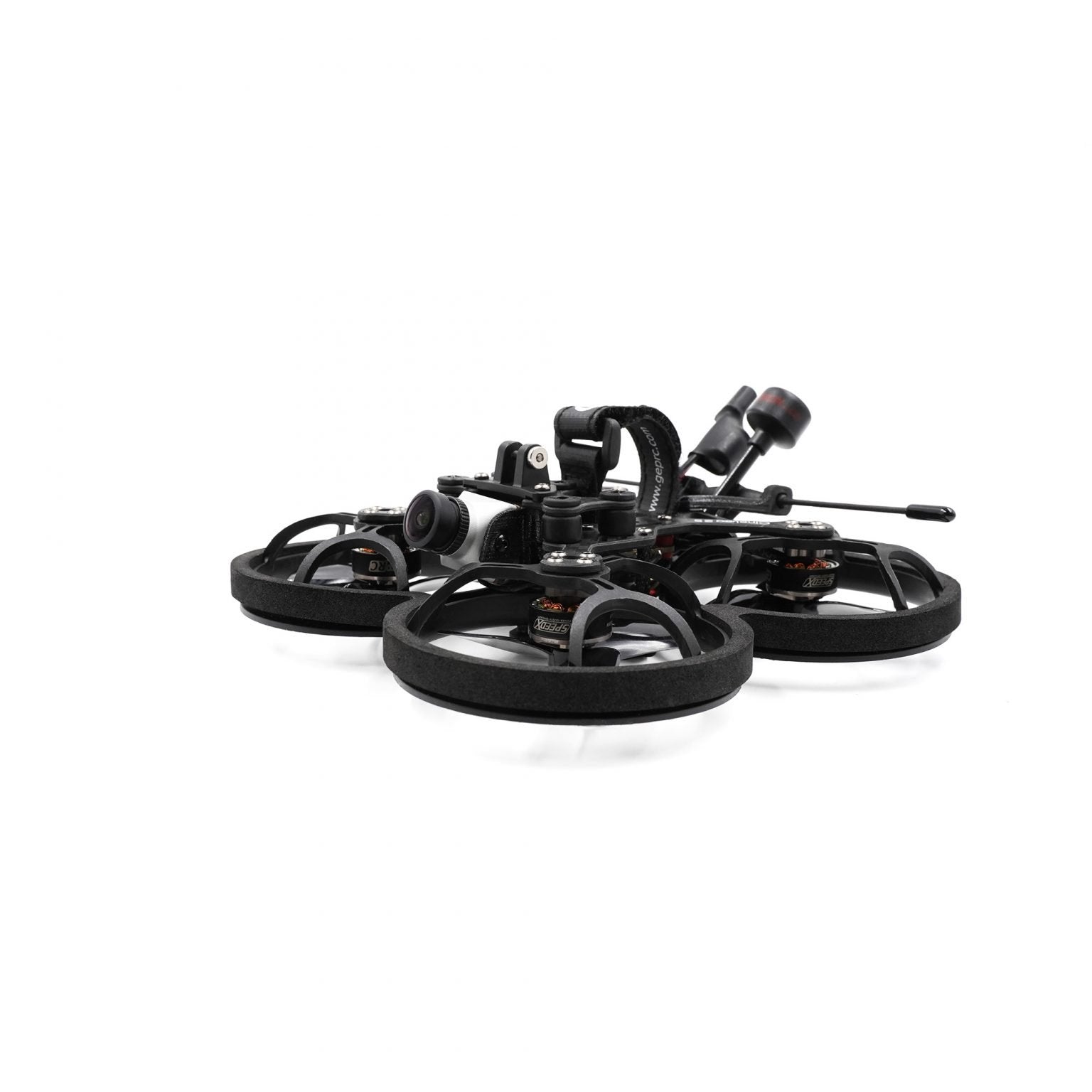

CineLog25 Wasp PNP
CineLog25 is a lightweight quadcopter designed for shooting videos with a GP Lite camera. It uses the popular push-back design in the field of FPV, optimizing the thrust-to-weight ratio for higher flight efficiency. Placing the VISTA HD in the center of the quadcopter balances the center of gravity, smooths the airflow through the propeller and reduces noise. The camera mount and GP Lite camera now feature redesigned shock absorption structures to eliminate camera and FPV vibration. Damping rings, available in 3, 4 or 5 variants, provide optimal stability against vibration and noise.
The flight system uses the F411-35A AIO and upgraded GEPRC GR1404 4500kv engines. Power batteries ranging from 450 mAh to 750 mAh are compatible. CineLog25 offers a flight time of approximately 5.5 minutes. Stable electronic components and advanced frame materials ensure the stability of the quadcopter and allow freestyle FPV maneuvers. Customized cushioning with EVA foam increases the protection of the frame during impacts.
Function:
1. Improved energy efficiency with GR1404 4500kv output power scheme (upgraded version) and precision tuning provide extended flight times.
2. Perfectly compatible with popular cameras such as SMO 4K, GP6 Lite and GP8 Lite, it offers versatility for your photography needs.
3. Adjustable lens angle from 0-40 degrees.
4. Camera power output: Dedicated output for camera power cable (GP6 and GP8) with video recording cable, allowing direct control of camera power by remote controller.
Specifications:
Frame: GEP-CL25
Wheelbase: 109 mm
Flight controller: F411-35A AIO
MCU: STM32F411
Gyroscope: 6-axis
OSD: BetaFlight OSD with AT7456E chip
ESC: BLheli_S 20A
VTX: Caddx Vista
Camera: Runcam Link Wasp
Props: GEMFAN D63-3
Engine: GR1404 4500kv (upgraded version)
Antenna: GEPRC Momoda 5.8G long version LHCP UFL antenna (85mm)
CineLog25 HD PRO Weight: 145.5 g (without battery)
Receiver: PNP
Battery: Recommended 4S 450-750mAh or GEPRC 4S 660mAh 90/180C HV 3.8V/4.35V LiPo Battery
