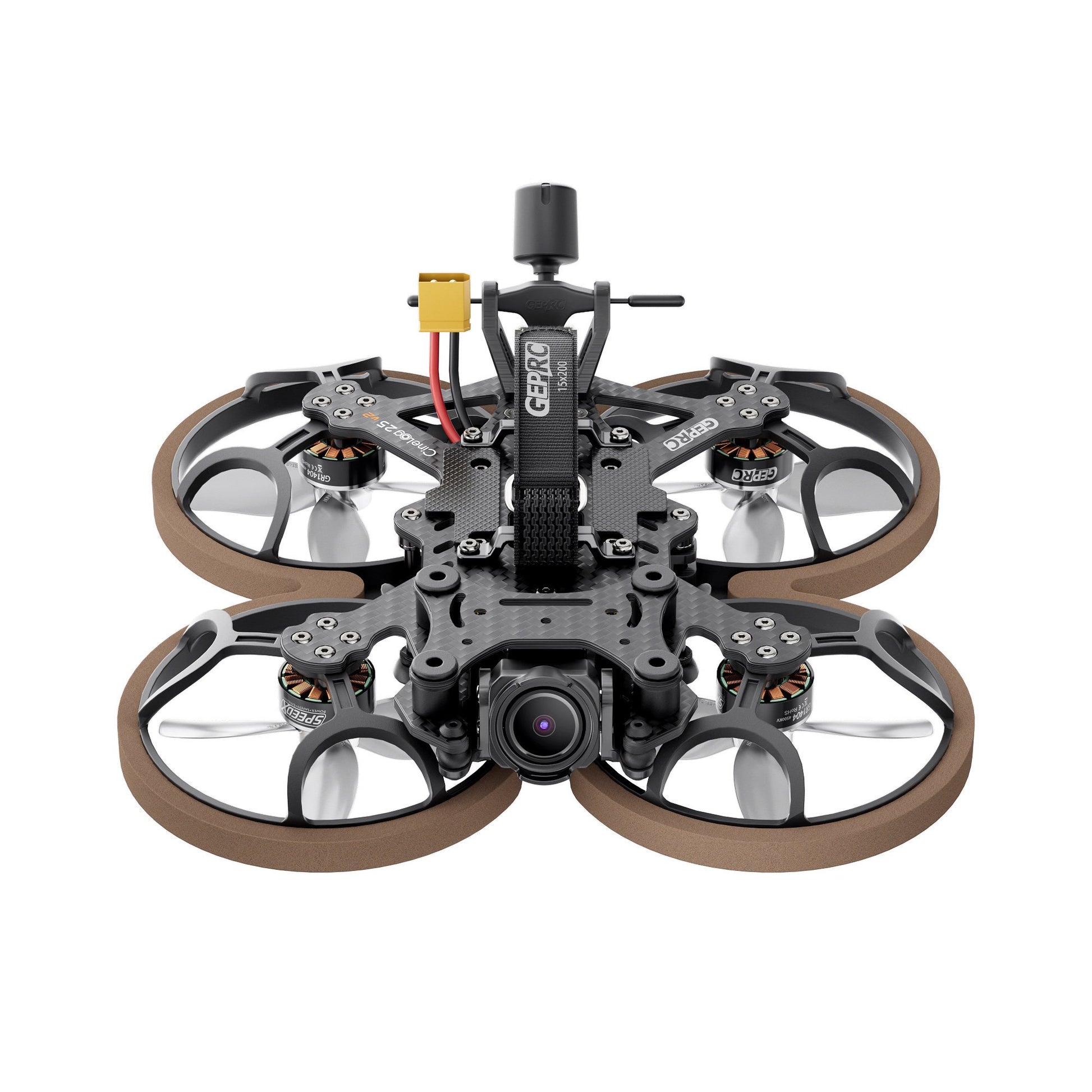

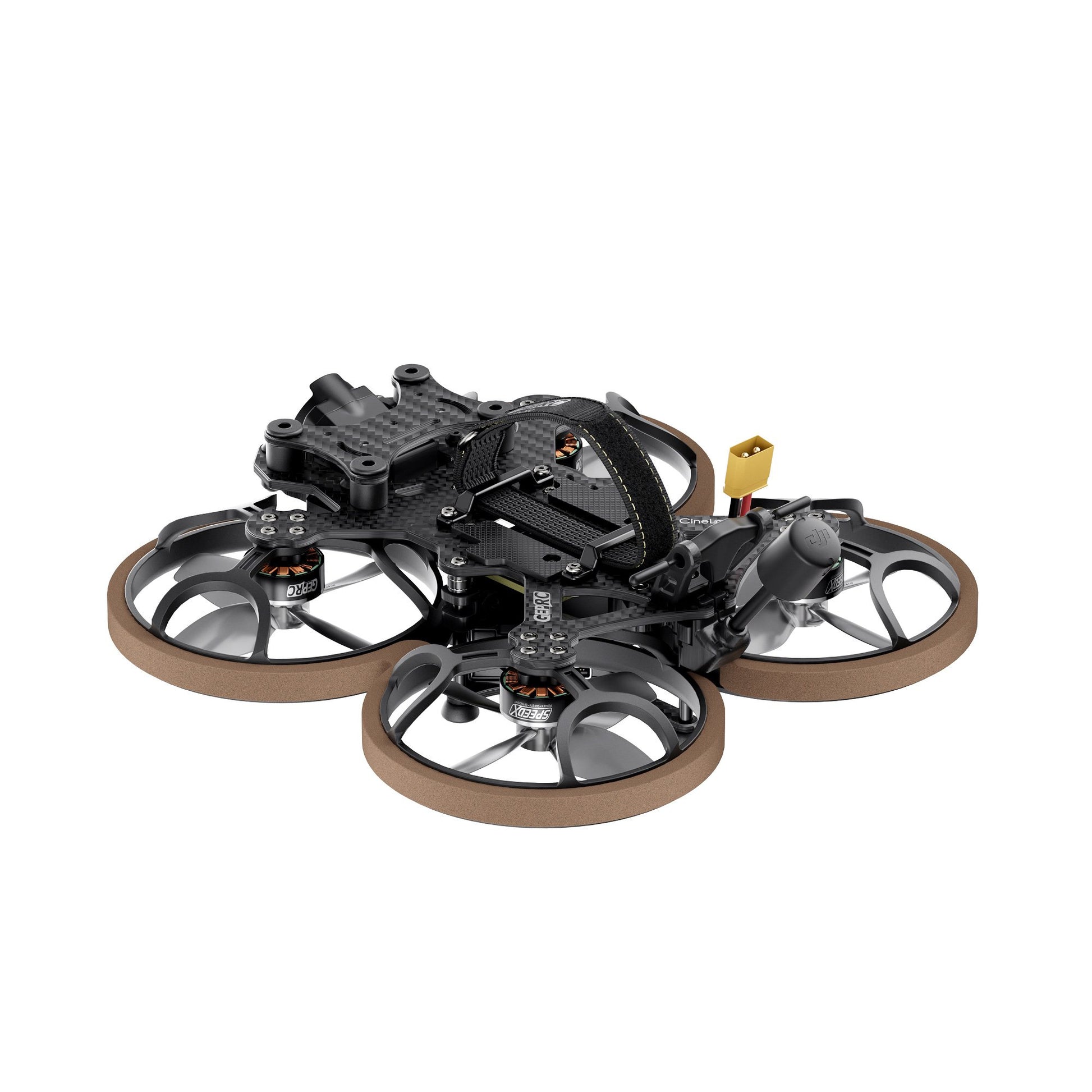

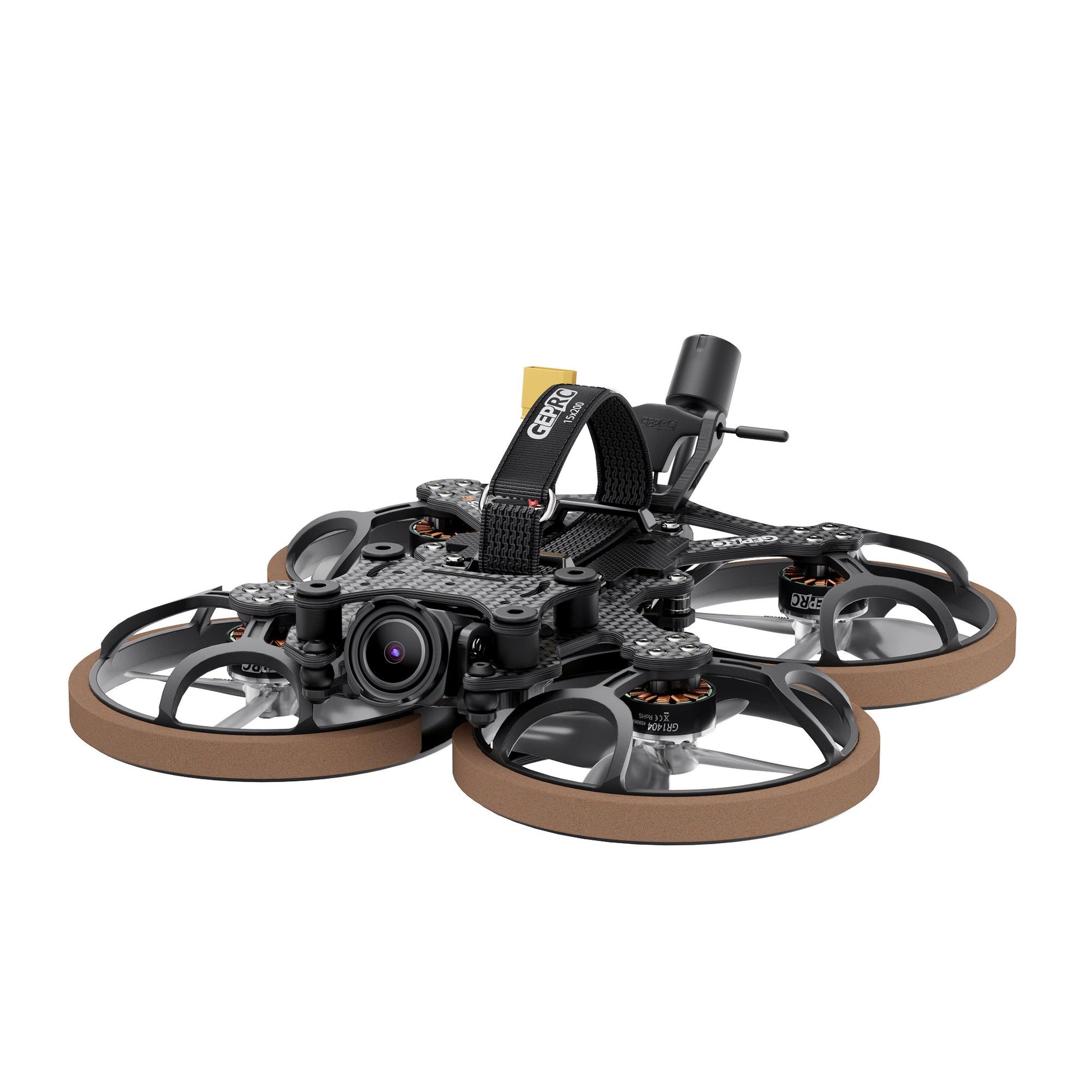

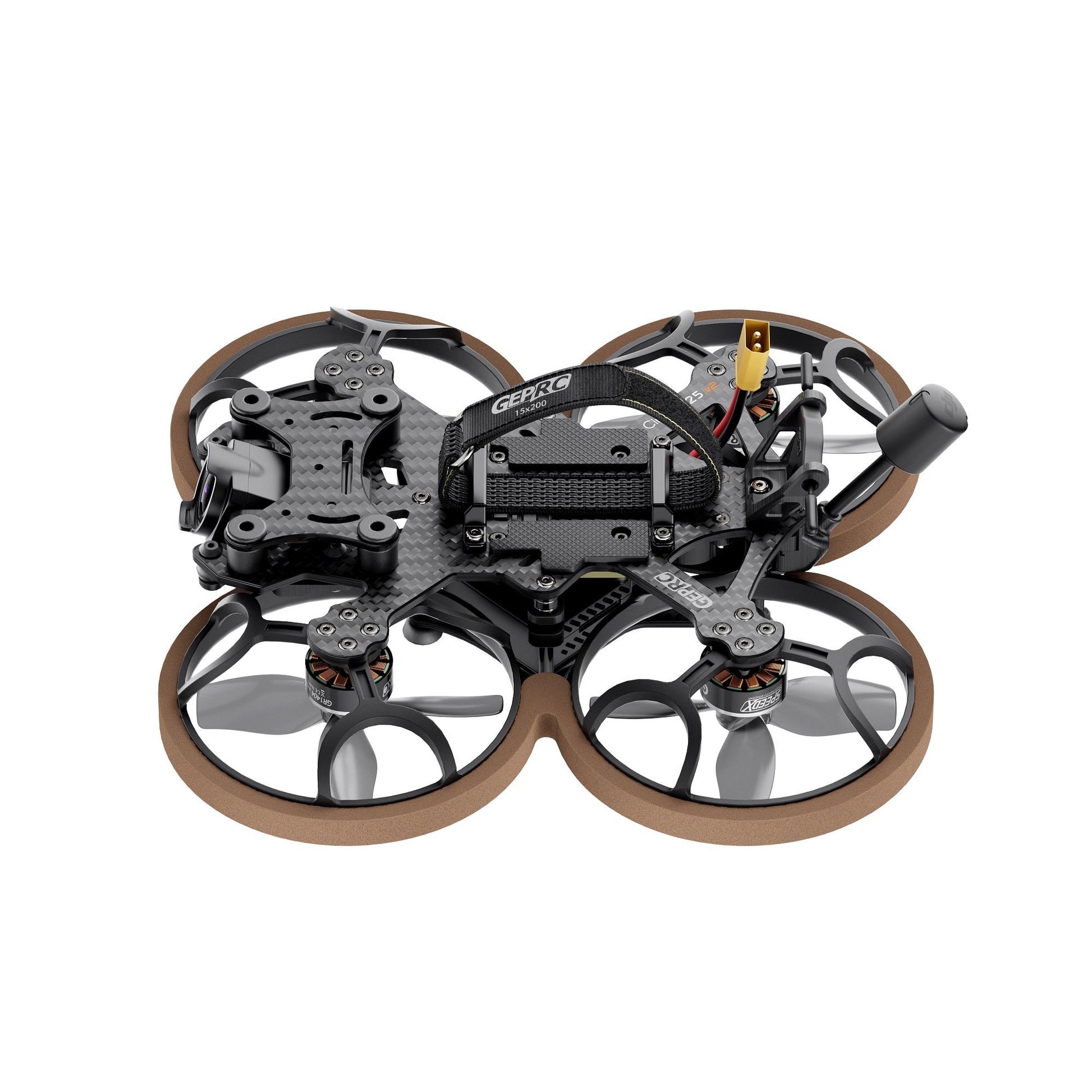

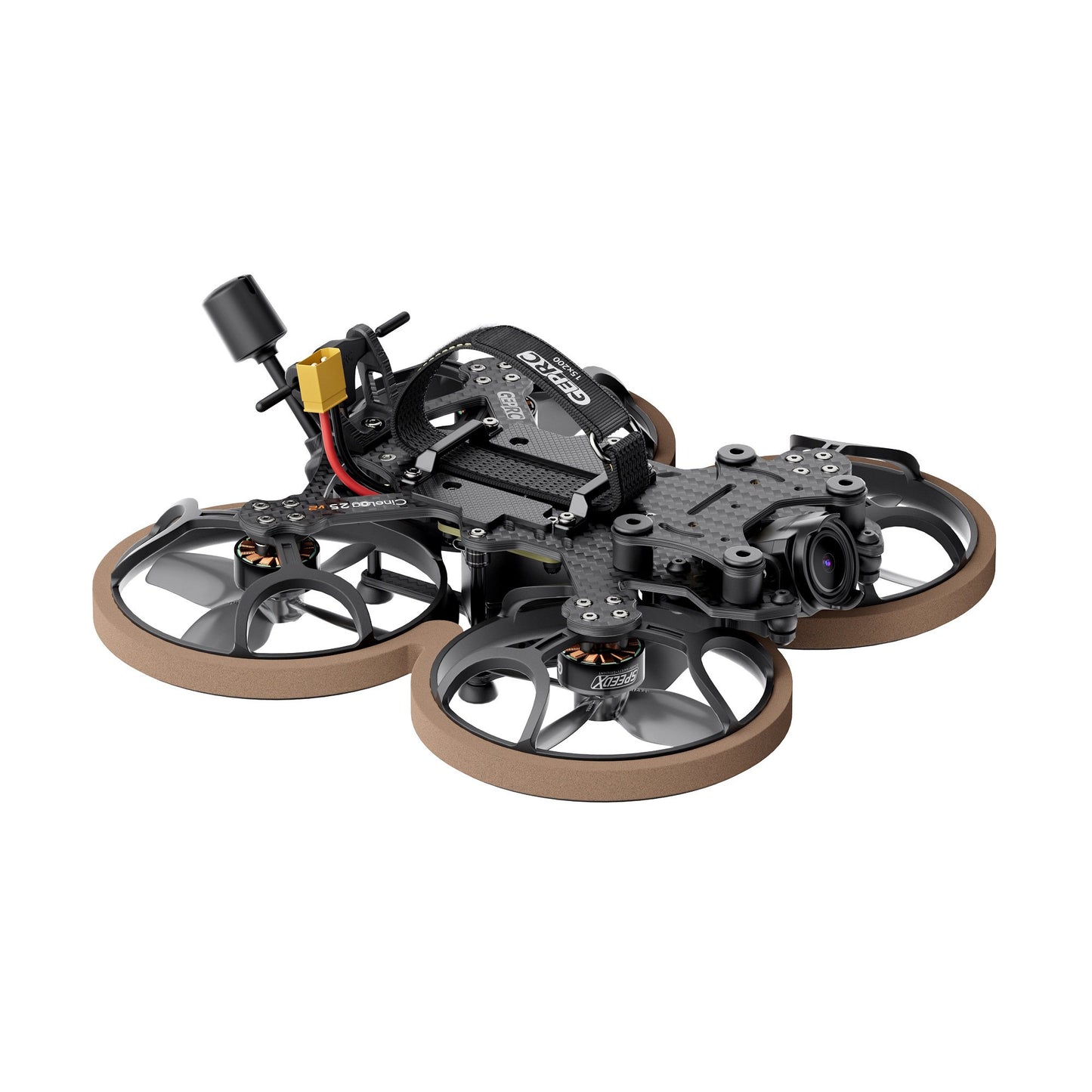

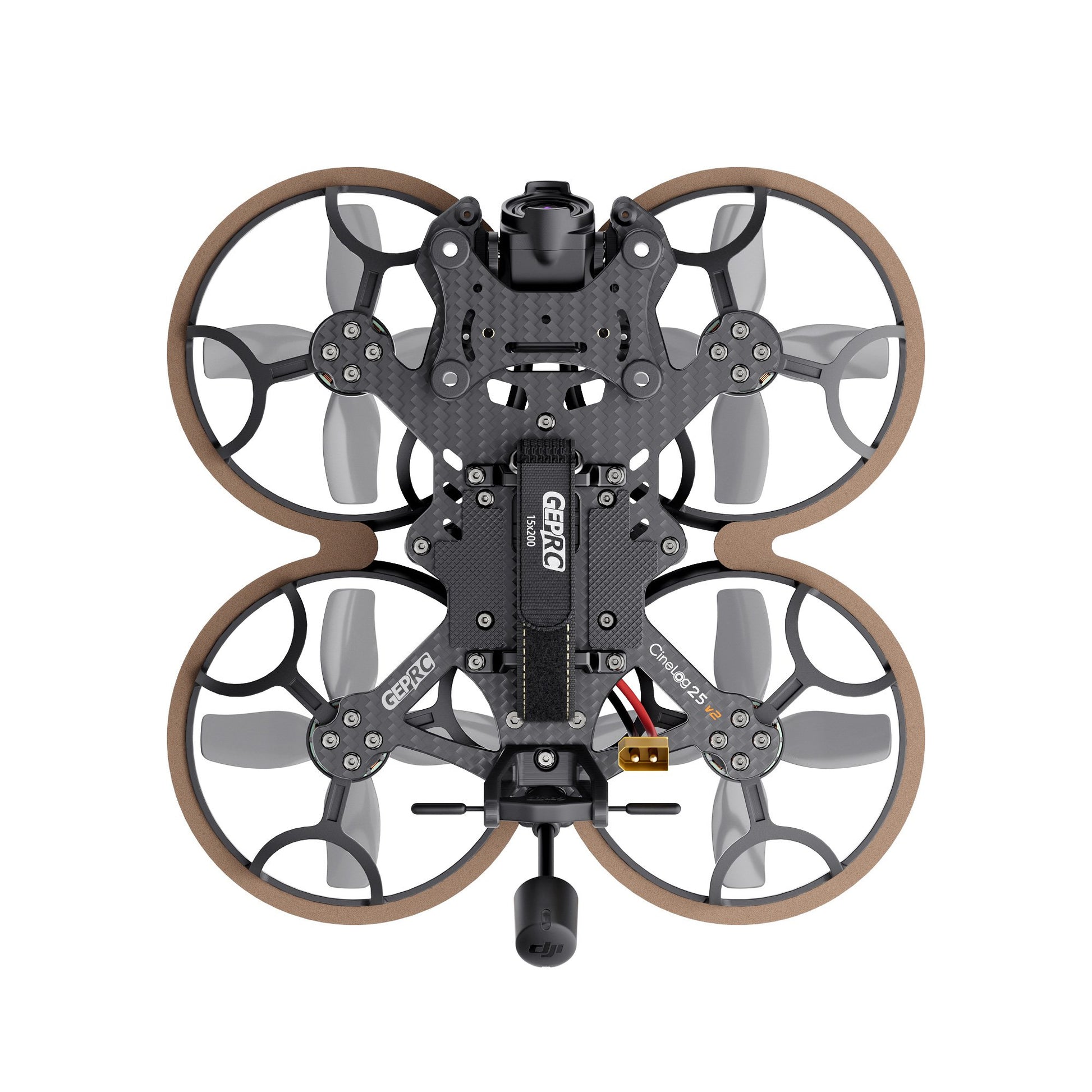

Cinelog25 V2 HD O3_PNP
Cinelog25 V2 is a 2.5 inch high definition FPV that integrates indoor and outdoor flying.
Function:
- O3 Air Unit image transfer version, ultra-light weight up to 250g. Complies with FAA flight standards.
- The O3 camera design is independently connected to the shock-absorbing gimbal to solve the resonance problems of the IMU camera and achieve the best anti-shake effect of the video.
- Designed aluminum parts with cable clips for easy battery replacement.
- Used new TAKER G4 35A AIO which has better processing power. The ESC overcurrent protection is stable and reliable.
- Design propeller cover, which can effectively prevent people from flying mistakes.
- The hull is small and compact, suitable for indoor and outdoor races.
Specifications
Model: Cinelog25 V2 HD O3 Quadcopter
Frame: GEP-CL25 V2
Wheelbase: 114 mm
Gimbal plate: 2.0 mm
Top plate: 2.5mm
Bottom plate: 2.0mm
FC system: TAKER G4 35A AIO
MCU: SMT32G473CEU6
Gyroscope: ICM 42688-P
OSD: Betaflight OSD with AT7456E
ESC: 8bit 35A
VTX: Air Unit O3
Camera: O3 camera
Antenna: Original O3 antenna
Motor: SPEEDX 1404 4500KV
Propeller: HQProp DT63mm*4
Cinelog25 V2 HD O3 PNP weight: 174g±5g
Receiver: PNP (built-in O3 air unit receiver)
Recommended battery: LiPo 4S 660mah-850mah
Flight time: 4′00″ - 6′ 00″
Includes
1 x Cinelog25 V2 HD O3 Quadcopter
2 x HQProp DT63mm*4 (2 pairs)
1x battery strap M15*200mm
1x battery strap M15*150mm
2 x battery silicone pads
1x set of screws
1 x 1.5mm L-shaped screwdriver
1x Keychain
1 x Naked Camera GP8 base
1x T-type antenna holder
