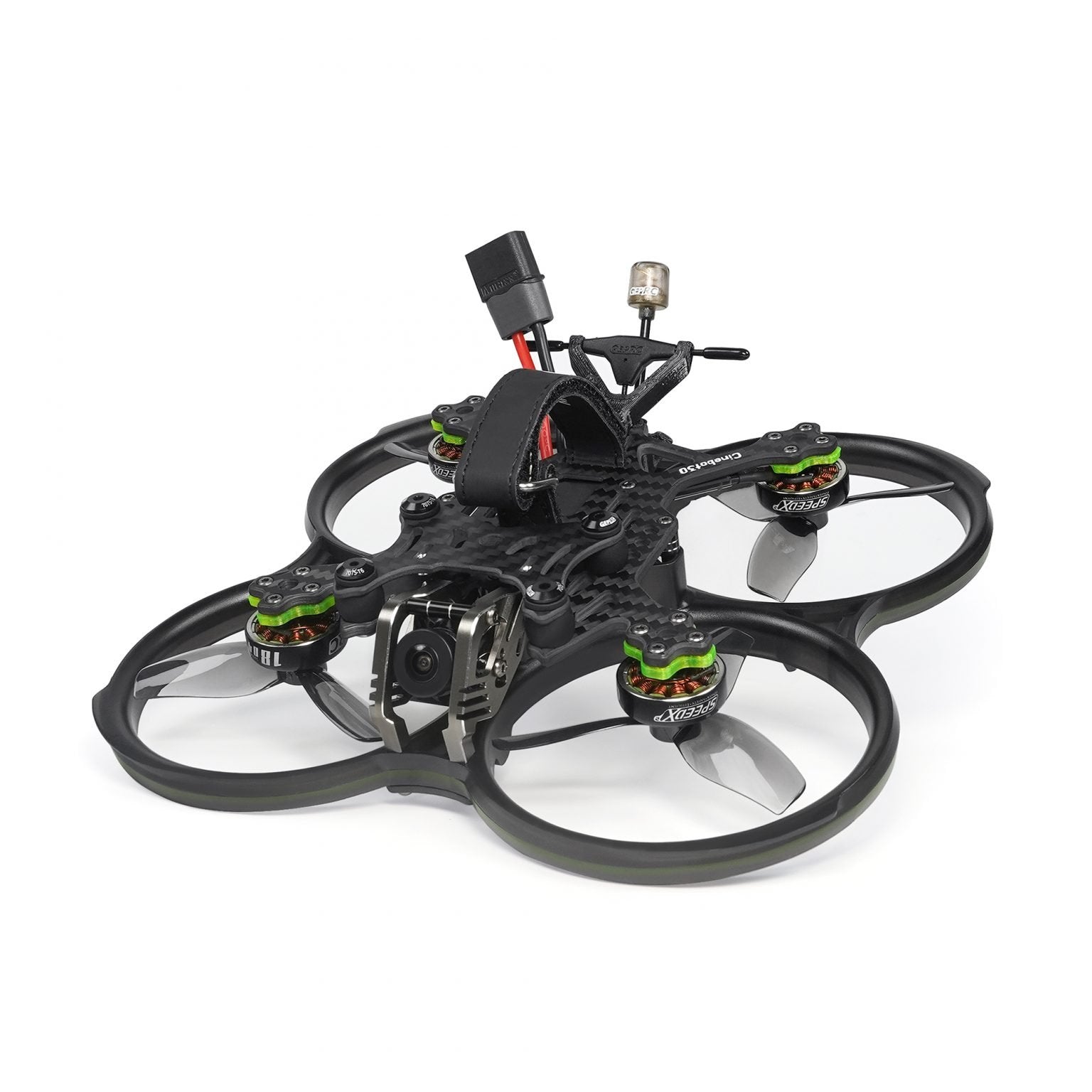

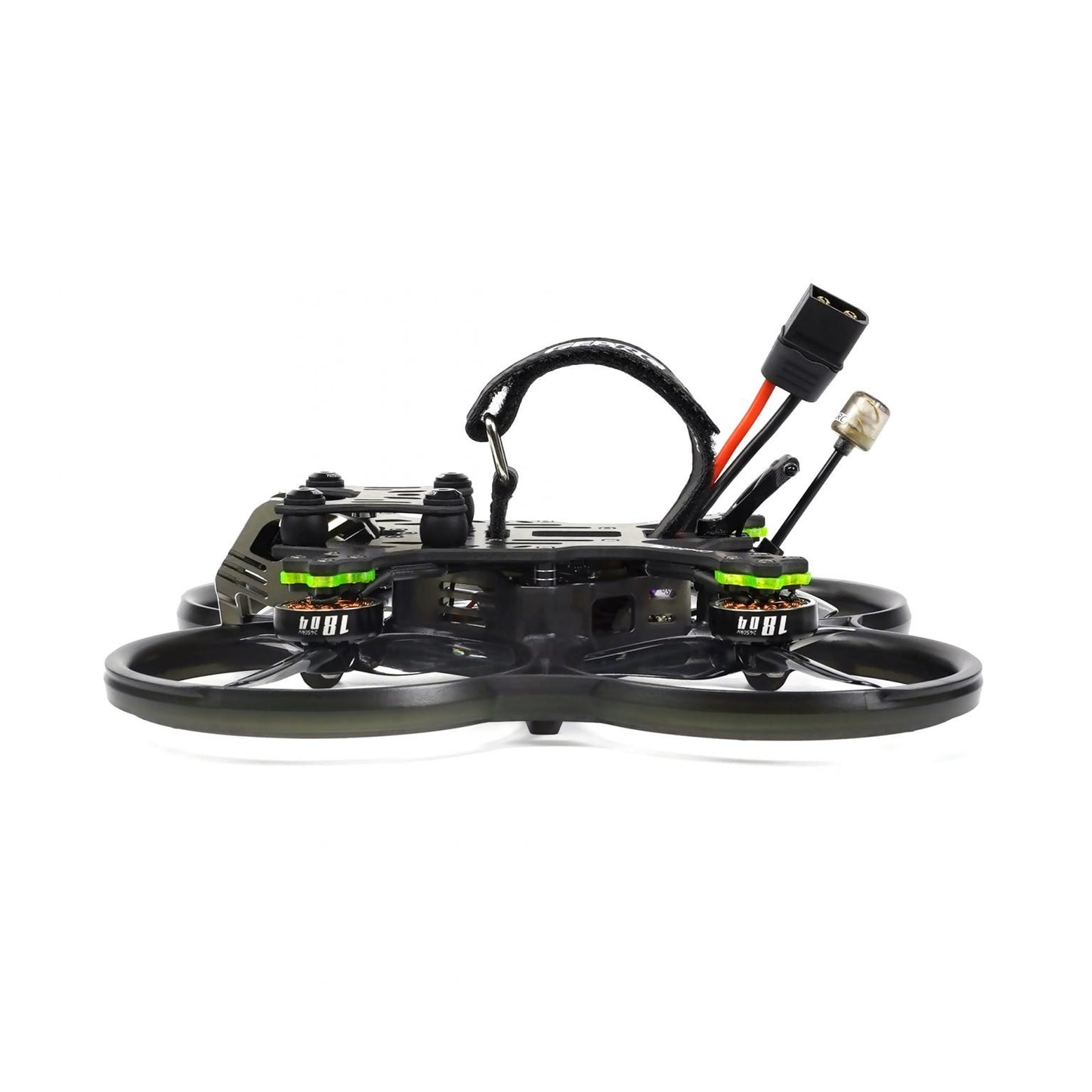

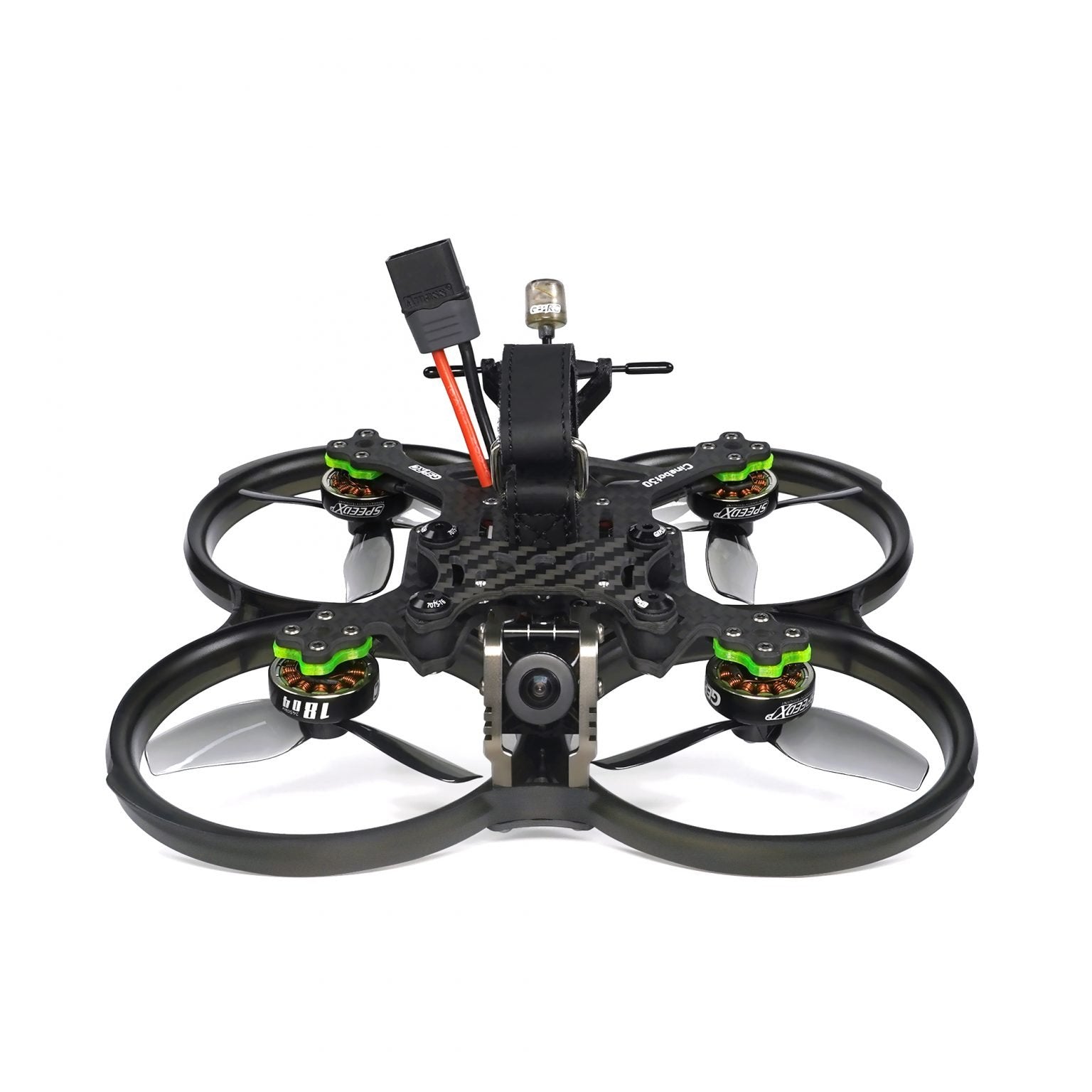

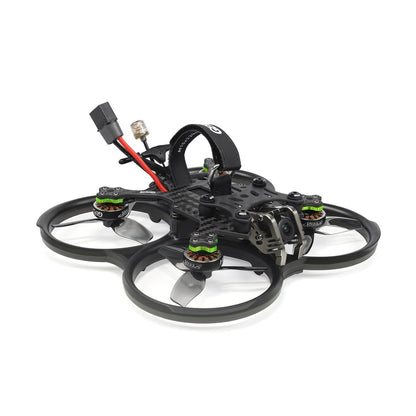

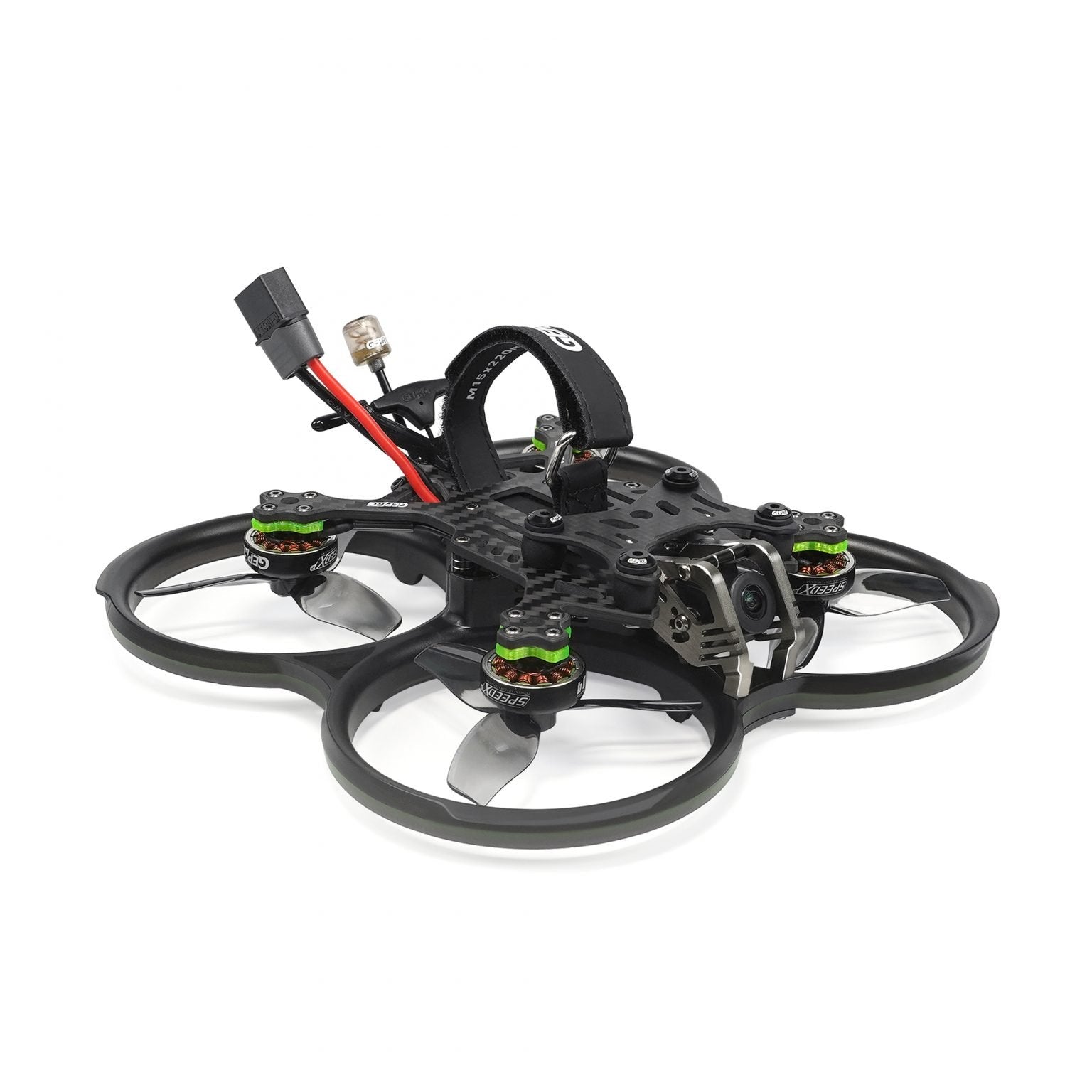

Cinebot30 HD Wasp ELRS24 (4S)

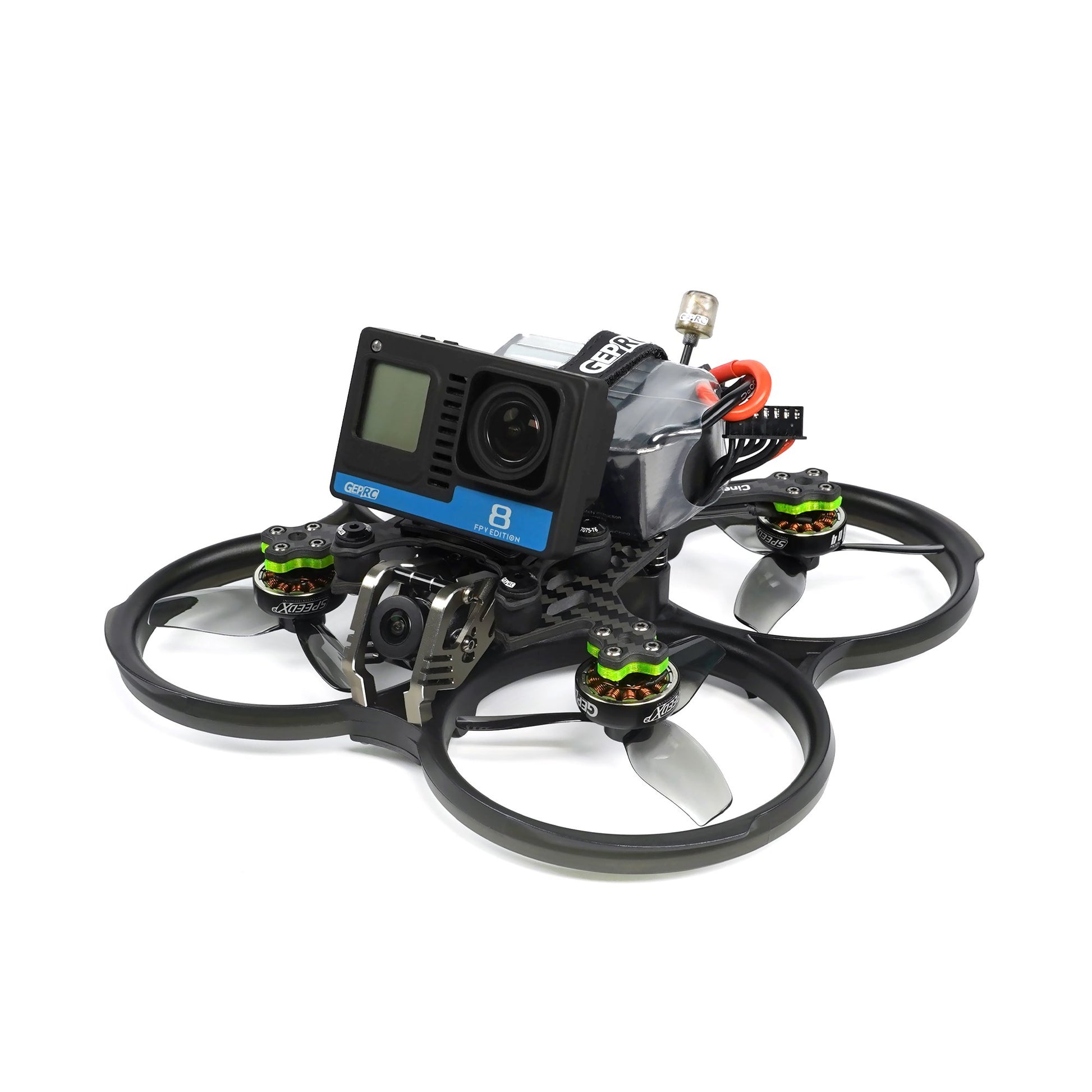

Cinebot30 is an advanced Cinematic FPV drone designed for stable camera work. It features a durable aluminum camera mount, a gimbal for smooth shots, and compatibility with a variety of cameras such as the GEPRC Naked GP8, GP Black Bones, and the Insta 360 GO2.
The Cinebot30 is made with a robust one-piece drone body cover and impact-resistant propellers, and includes a stylish Cob light strip. It boasts high-strength carbon fiber components and powerful 1804 motors, making it ideal for shooting at low altitudes. HQ T76mm*3 propellers produce minimal noise.
With the GEP-F722-45A AIO v2 flight controller, it offers perfect control in all situations. The design of the frame allows for easy replacement of accessories.
Tuned by GEPRC experts, the Cinebot30 excels in both indoor and outdoor cinematic FPV flights.
Specifications:
Model: Cinebot30 HD Wasp Quadcopter
Brand: GEPRC
Frame: GEP-CT30
Wheelbase: 127 mm
Insulation board: 2 mm
Main plate: 3 mm
Bottom plate: 1.5 mm
FC: GEP-F722-45A AIO V2
MCU: STM32F722RET6
IMU: ICM-42688-P
VTX: Runcam Link
Camera: Runcam Wasp
Propeller: HQ T76mm
Antenna: Peano 5.8G 110mm LHCP UFL antenna
Charger connector: XT60H-M
Motor: SPEEDX2 1804-3450KV (4S version)
Weight: Link Wasp version 222.5g (without battery)
Receiver: ELRS 2.4G
Recommended battery: LiPo 4S 1100mAh-1300mAh (4S version)
