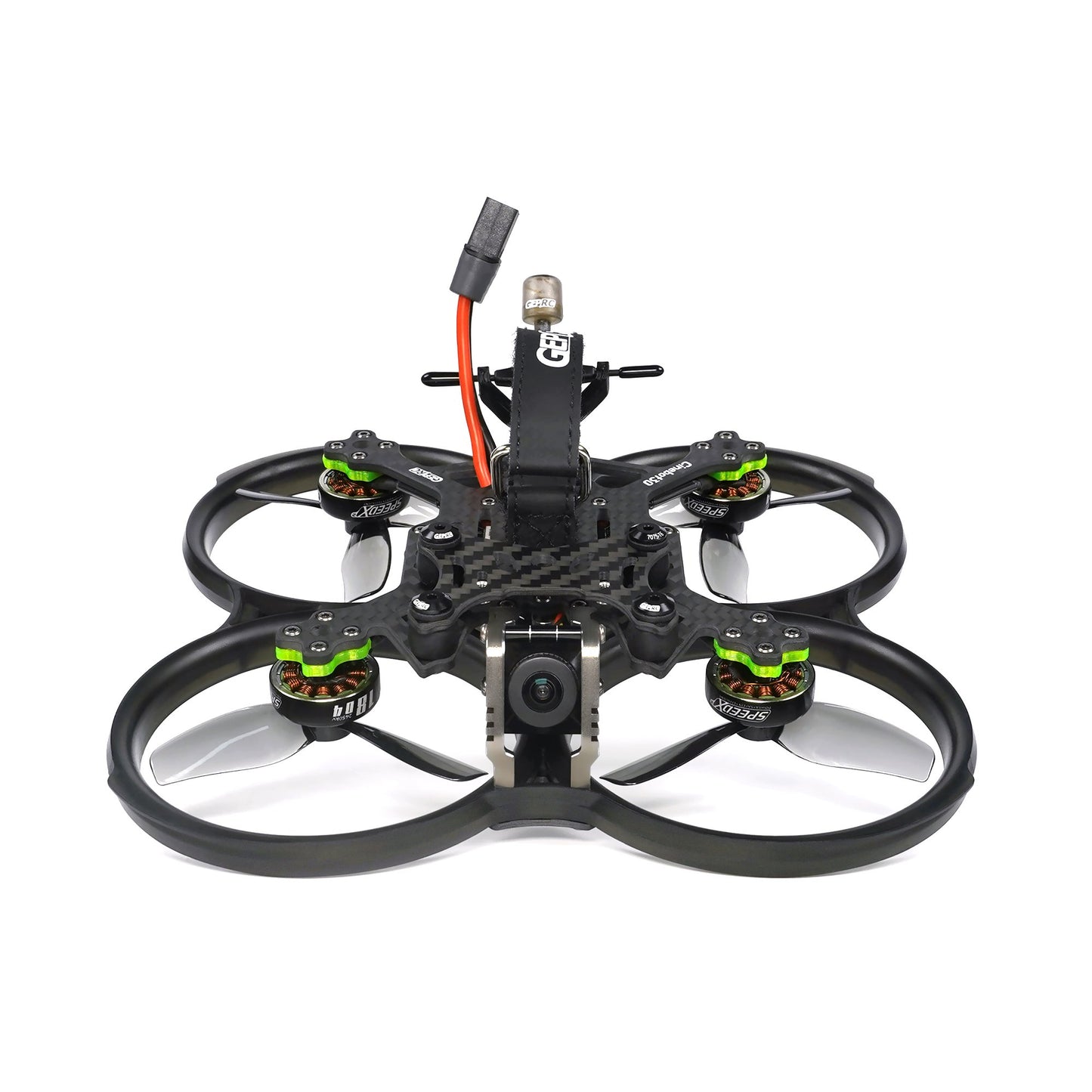

Cinebot30 analog PNP (4S)

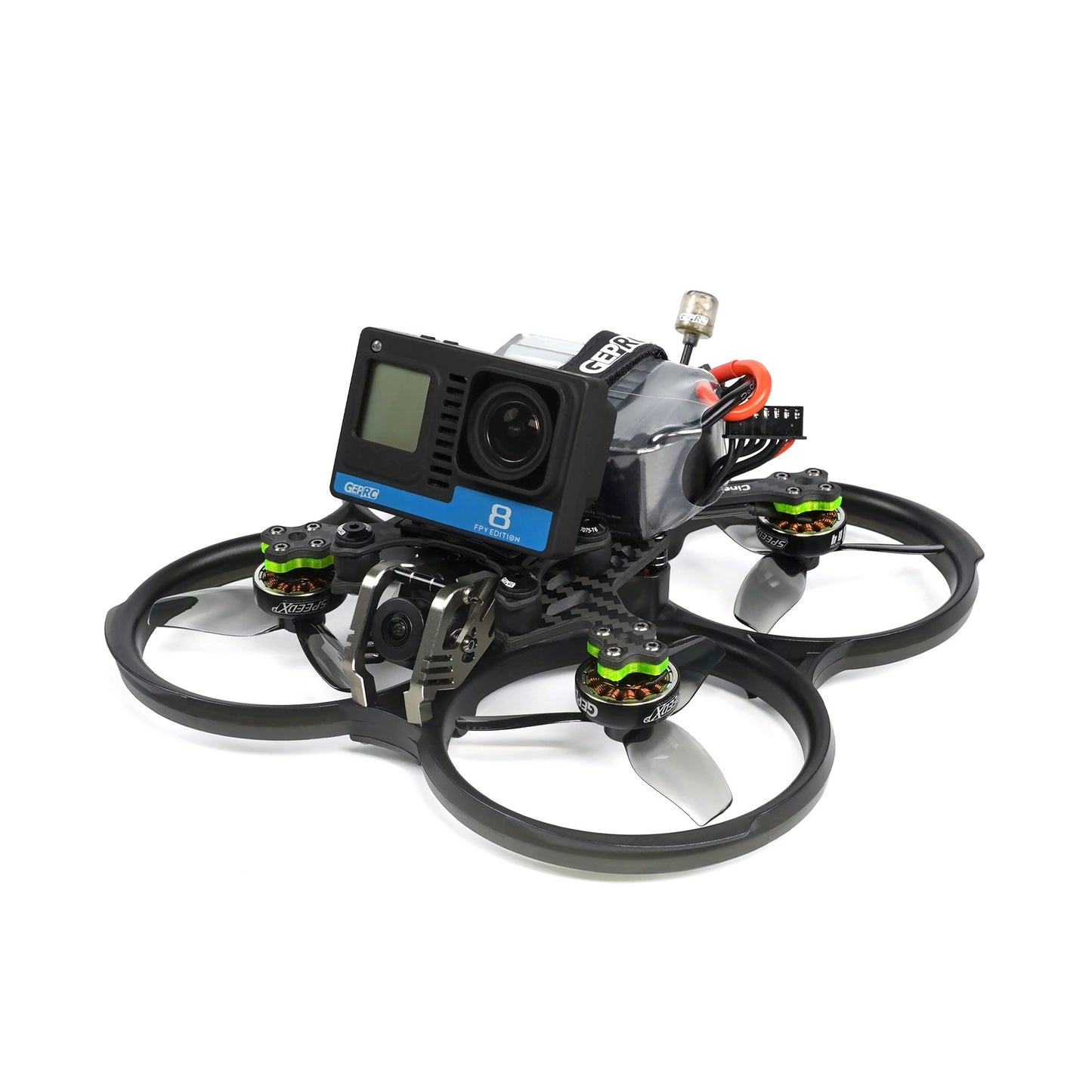

Cinebot30 is a new generation of Cinematic FPV drones. It has a high-strength 7075 aircraft aluminum alloy frame and an FPV camera. The gimbal damping module can easily solve the problems of high frequency vibration and image shake. It can be mounted with GEPRC Naked GP8 and GP Black Bones, Insta 360 GO2 and other cameras. The image is stable and clear. The drone has a high-strength one-piece propeller cover made of impact-resistant material. A Cob ring light strip is embedded in the propeller cover, and the lighting effect is carefully tuned. The base of the drone is a carbon fiber plate and thanks to it all components are protected. The Cinebot30 is equipped with a powerful 1804 motor with an optimized magnetic motor circuit and high torque that can handle ultra-low shooting with ease. With the HQ prop T76mm*3 propeller, it has the lowest noise effect in its class. Using the GEP-F722-45A AIO v2 flight controller, higher performance redundancy and easy handling of unexpected situations. Finely polished frame construction, only 6 screws need to be removed to separate the top plate of the drone and the protective frame. Thanks to this, you can easily change accessories wherever you need.
Specifications
Model: Cinebot30 Analog Quadcopter
Brand: GEPRC
Frame: GEP-CT30

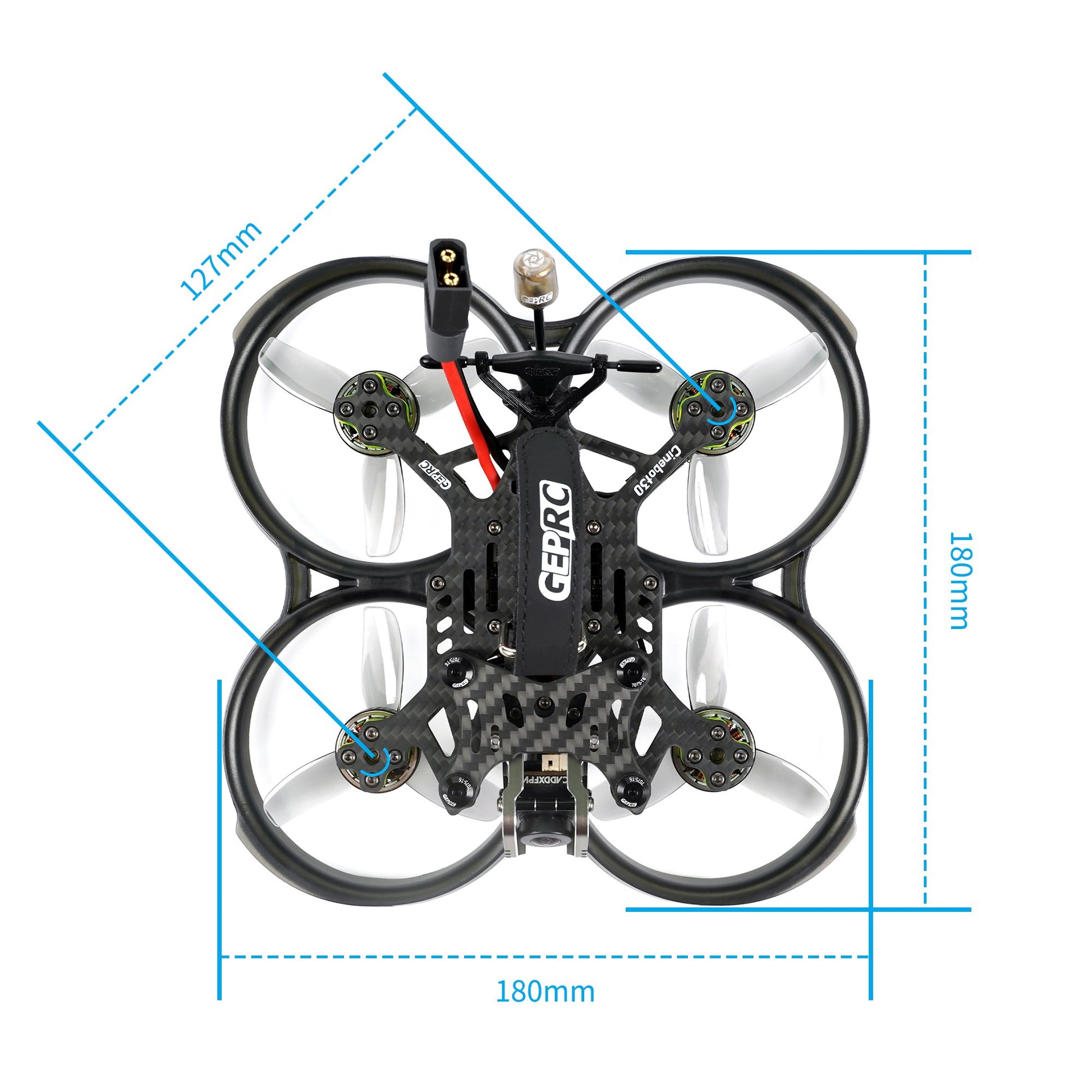

Wheelbase: 127 mm
Insulation board: 2 mm
Main plate: 3 mm
Bottom plate: 1.5 mm
FC: GEP-F722-45A AIO V2
MCU: STM32F722RET6
IMU: ICM-42688-P
VTX: GEPRC RAD 1W
Camera: Caddx Ratel 2
Propeller: HQ propeller T76mm
Antenna: Peano 5.8G 110mm RHCP UFL antenna
Charger connector: XT60H-M
Motor: SPEEDX2 1804-2450KV (6S version) / SPEEDX2 1804-3450KV (4S version)
Weight: Nebula Pro version 222.5g / Avatar version 221g / Analog version 209.2g / Link Wasp version 222.5g (without battery, above are TBS Nano RX versions)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
Recommended battery: LiPo 4S 1100mAh-1300mAh (4S version) / LiPo 6S 850mAh-1100mAh (6S version)
