Tinyhawk RTF

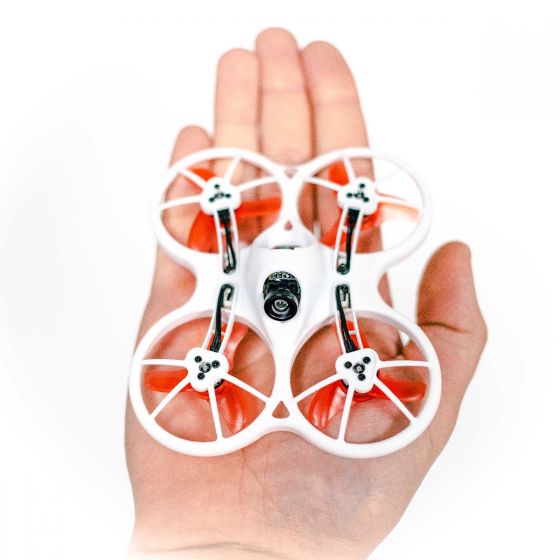

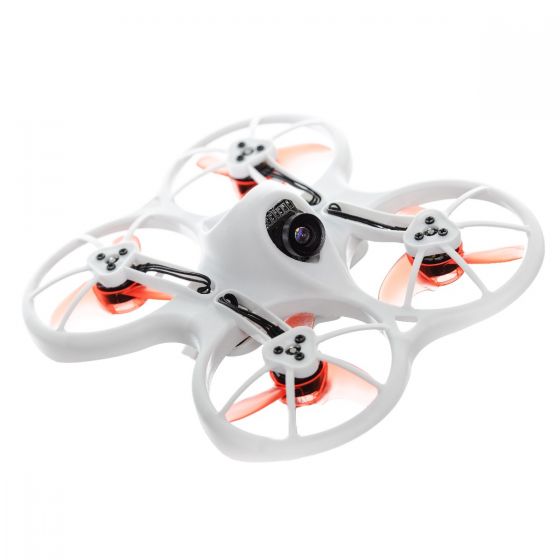

Tinyhawk is a 75mm indoor racing drone with a 08025 brushless motor with a durable ball bearing that ensures increased flight performance and easy maintenance. Its durable polypropylene plastic frame features propeller covers and a buzzer function to help locate your Tinyhawk after an accident. With a speed of up to 56 km/h and a flight time of up to 4 minutes on one battery, this drone is ideal for both experienced pilots and beginners.

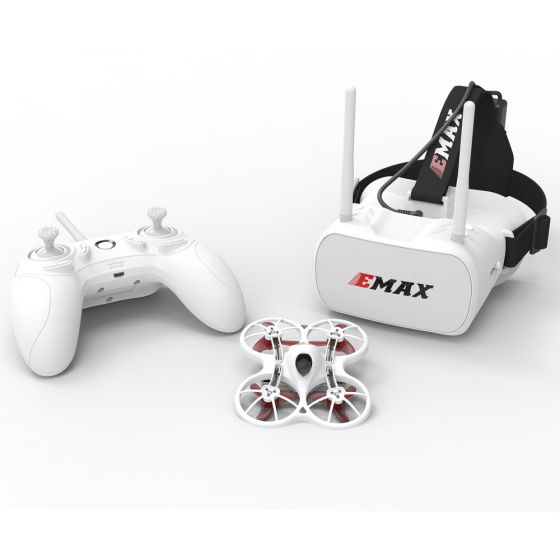

Tinyhawk RTF includes drone, FPV goggles and radio controller.
Specifications:
Model: Tinyhawk
Size: 75mm wheelbase, L 110mm x W 95mm x H 39mm
Weight: 29 g without battery
Weight: 42g with 450mAh 1s battery
Frame material: Polypropylene
Propeller diameter: 40 mm
Blades: 3
Spacing: 23 mm
Motor Stator: 8mm x 2.5mm (08025)
Sq.m.: 15000 sq.m
Bearing size: Φ1.5xΦ4x2mm
Shaft diameter: 1.5 mm
Flight controller: F4 (firmware MATEKF411)
ESC: 4in1 3A
Receiver: EMAX Tiny receiver (compatible with Frsky D8 mode)
Battery connector: JST-PH2
Camera and VTX:
VTX power: 25 mw
Channels: 37CH
Camera features: 600TVL CMOS
Smart Audio: Support
Battery capacity: 450 mAh
Voltage: 1s 4.35v HV
Discharge: 80c/160c

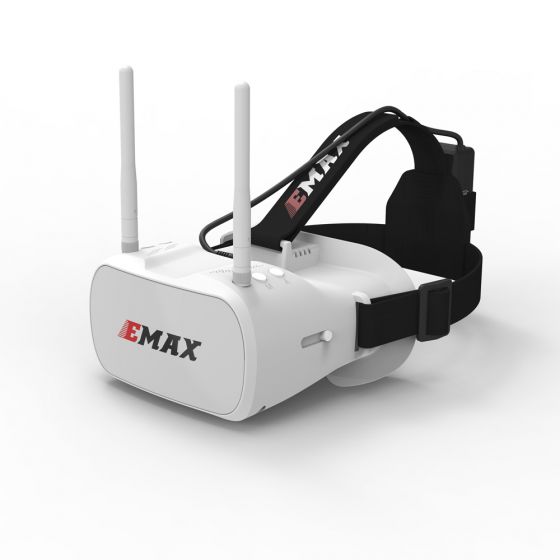

EMAX Transporter Goggles:
Maximum appearance size 140×153×90 (mm)
Weight (without battery) 398g
Resolution 480×272
Battery 1 cell 18650 lipo battery

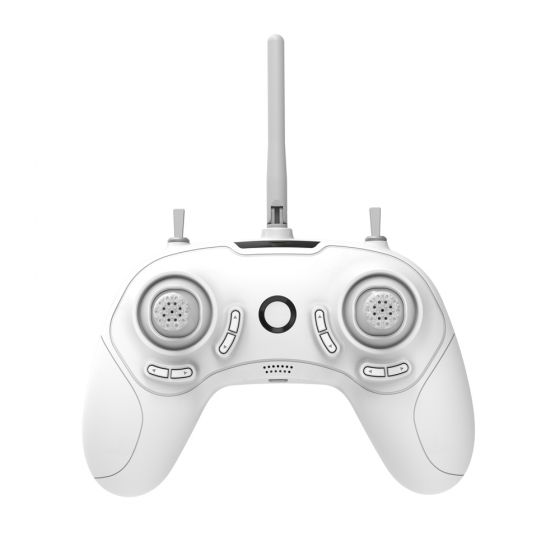

Specifications of the EMAX E6 transmitter:
Maximum appearance size 181×213×80 (mm)
Weight (without battery) 211g
Number of channels 6 channels
Transmission frequency 2.4 GHz ISM Band (2400 MHz~2483.5 MHz)
Output power 22 dBm
GFSK modulation
Battery 1s 18650 lipo battery

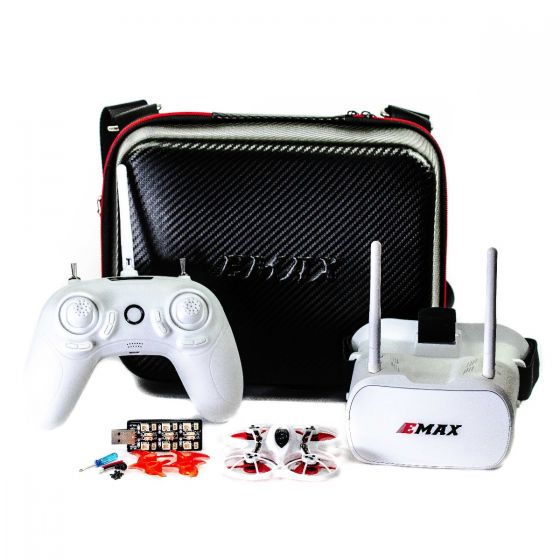

The package contains:

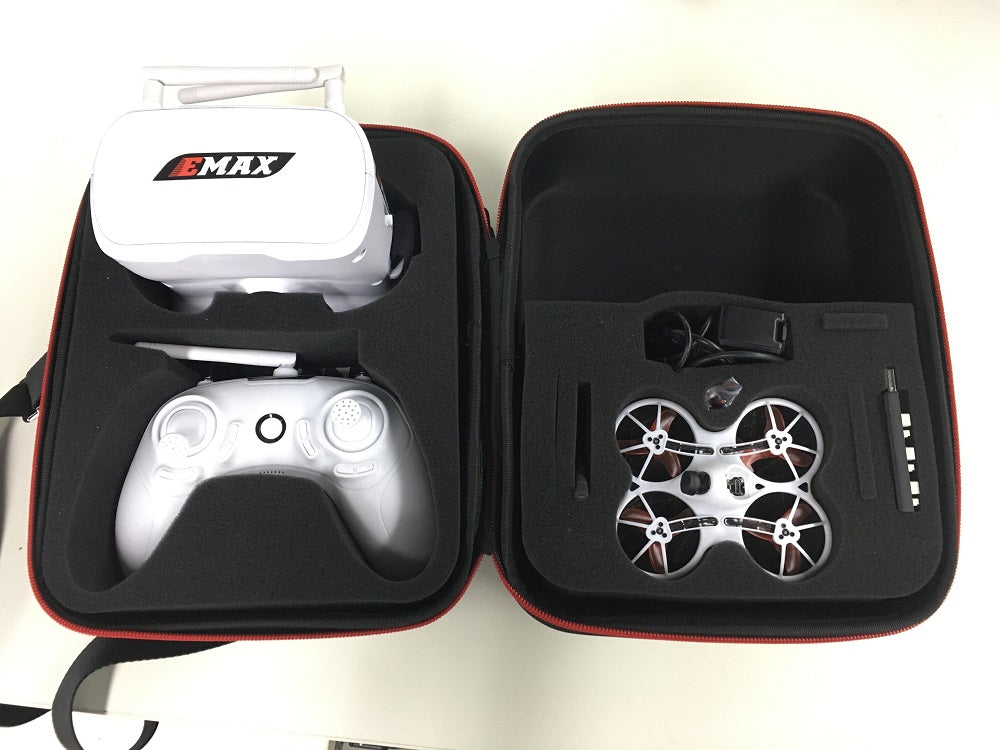

1x Lightweight case with carbon fiber design
1x cover for Tiny Hawk drone
1x USB high voltage 4-port USB charger
1x 1S high voltage (HV) 450mah lipo battery.
1x FPV goggles: EMAX Transporter 40 channels
1x EMAX E6 transmitter: 6 channels
1x USB cable for charging glasses and controllers
1x bag for parts
1x Phillips screwdriver
2x 18650 batteries are already pre-installed
1x Set of spare 3-blade AVAN Tinyhawk propellers.
