Tinyhawk III Plus RTF HD Zero
Function:
1. Durable construction: Made of high quality materials to ensure long life and impact resistance.
2. Powerful motors: Equipped with powerful motors for fast acceleration and impressive flight performance.
3. Advanced Flight Controller: Enjoy stable and accurate flight control, ideal for beginners and enthusiasts.
4. Extended flight time: Thanks to the efficient battery system, you have a longer flight and more fun.
Specifications:

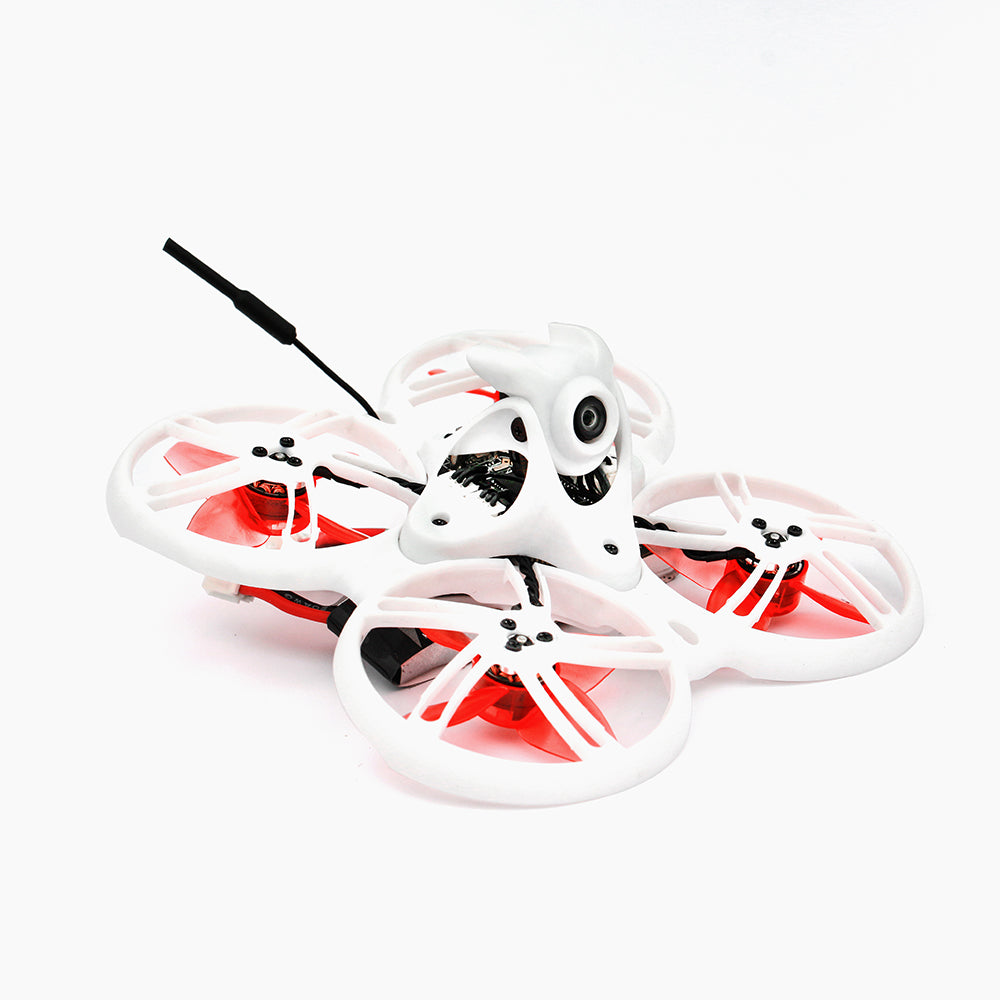

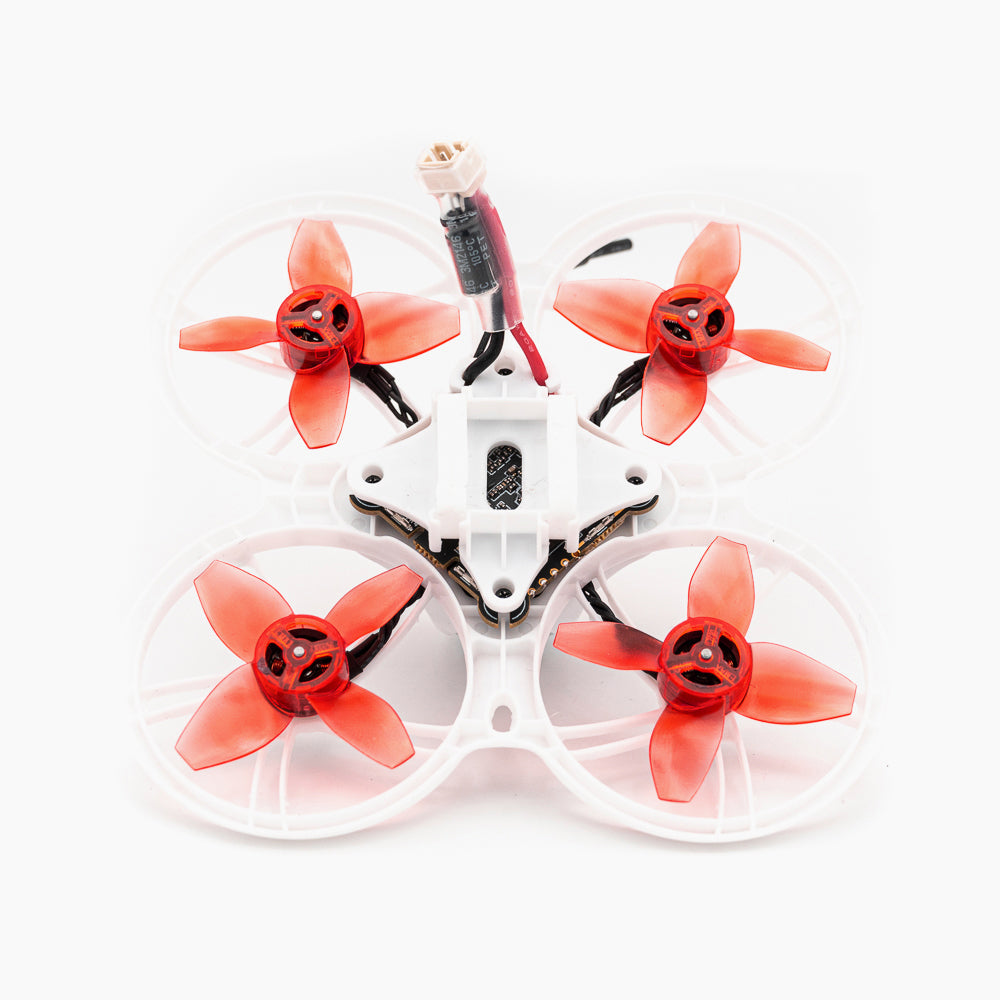

Model: Tinyhawk III Plus
Optional version: HDZero
Optional mode: RTF
Wheelbase: 76 mm
Maximum dimension w.h.: 105x105x45mm
Weight: approx. 35.5 g (without battery)
Motor: TH0802 II 15000KV
Propeller: Avan TH Turtlemode-2
Main control board: F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard receiver ELRS (2.4G) (SPI communication), input voltage 1-2S

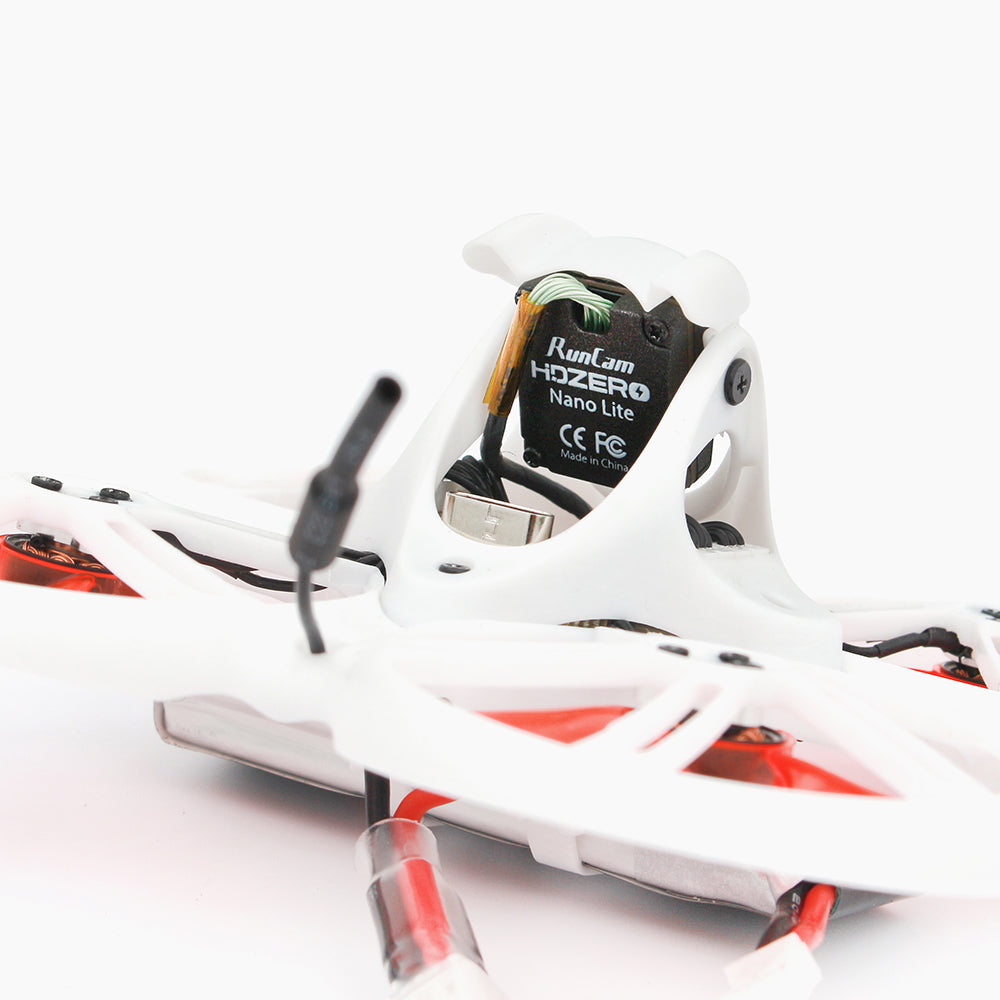

Camera: HDZERO Nano Lite Camera
Image transmission: HDZero whoop Lite 25mW/200mW
Battery: 1S HV 650mAh

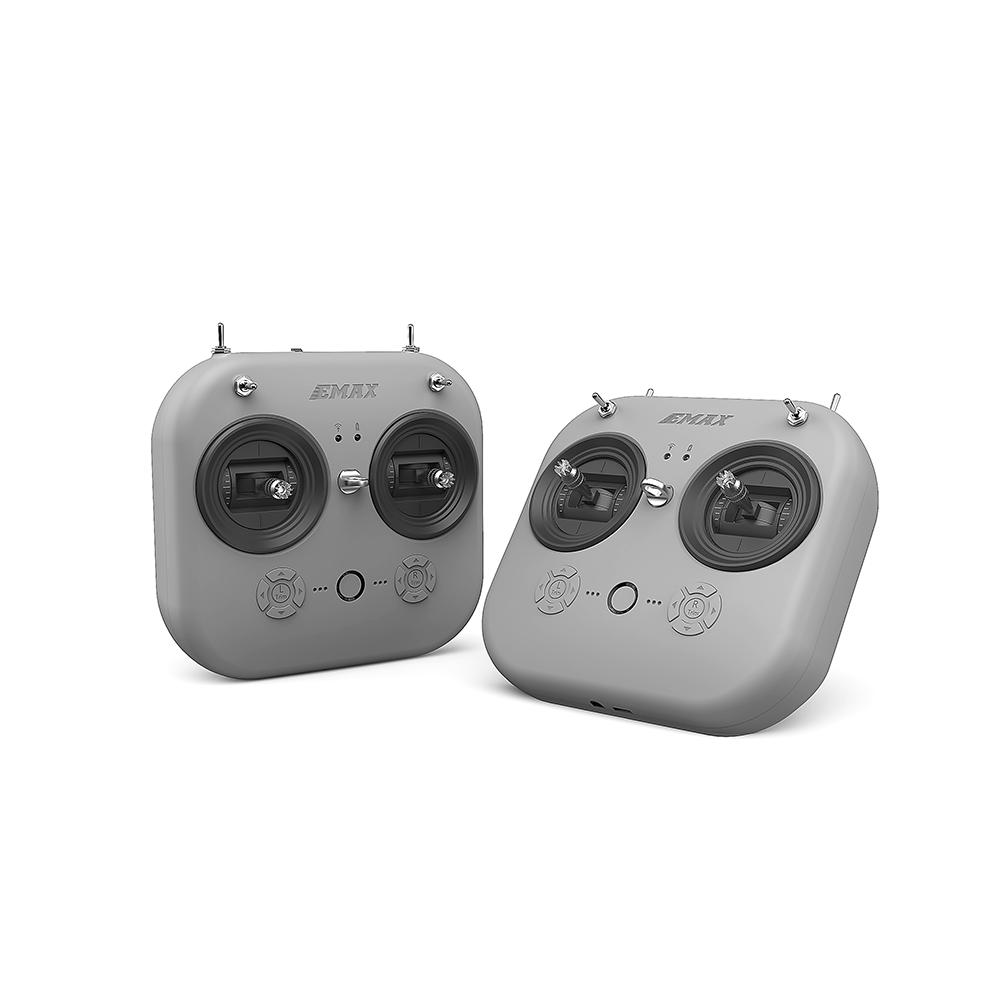

Remote control
Model: E8 Transmitter (ELRS-2.4G)
Dimensions: L×W×H=150×140×45 mm
Weight: approx. 260 g (without battery)
Number of channels: 8 channels
Protocol: ELRS-2.4G
Operating frequency: 2.4 GHz frequency band (2400-2483.5 MHz)
Power: 10mW/25mW/50mW/100mW
Battery: Built-in 1800mAh 18650 lithium-ion battery
Charging system: Built-in linear USB1A lithium-ion battery charging system
Working voltage: 3.7-4.2V
External interface: Type-C interface. 3.5mm audio interface (cable trainer interface)
Others: Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power supply, support adjustable send/return speed, support bind key change.

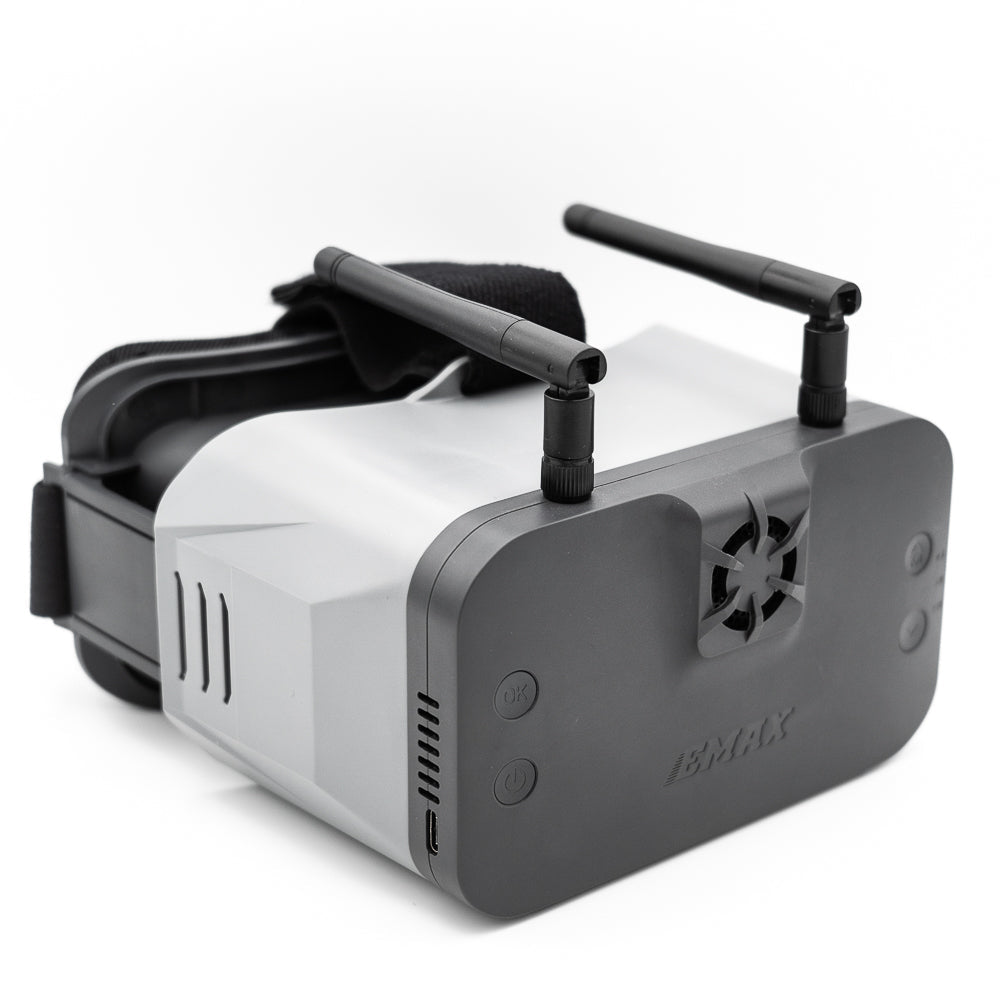

FPV goggles
Model: Transporter II HD
Size: 145×155×92mm (without antenna), 145×155×190mm (including antenna)
Weight: approx. 425 g (including headband and antenna)
Screen resolution: 720*1080
Display size: 4.45 inches
Battery: Built-in 2200mAh-2C lithium battery
Voltage: 3.7-4.2V
Operating frequency: 5.8 GHz frequency band (5658-5945 MHz)
Charging system: 5V/3A when turned on, 5V/1A charging when turned off
DVR: It is recommended to use 8-32GB TF memory card (C10 high-speed TF card), video format TS, MOV

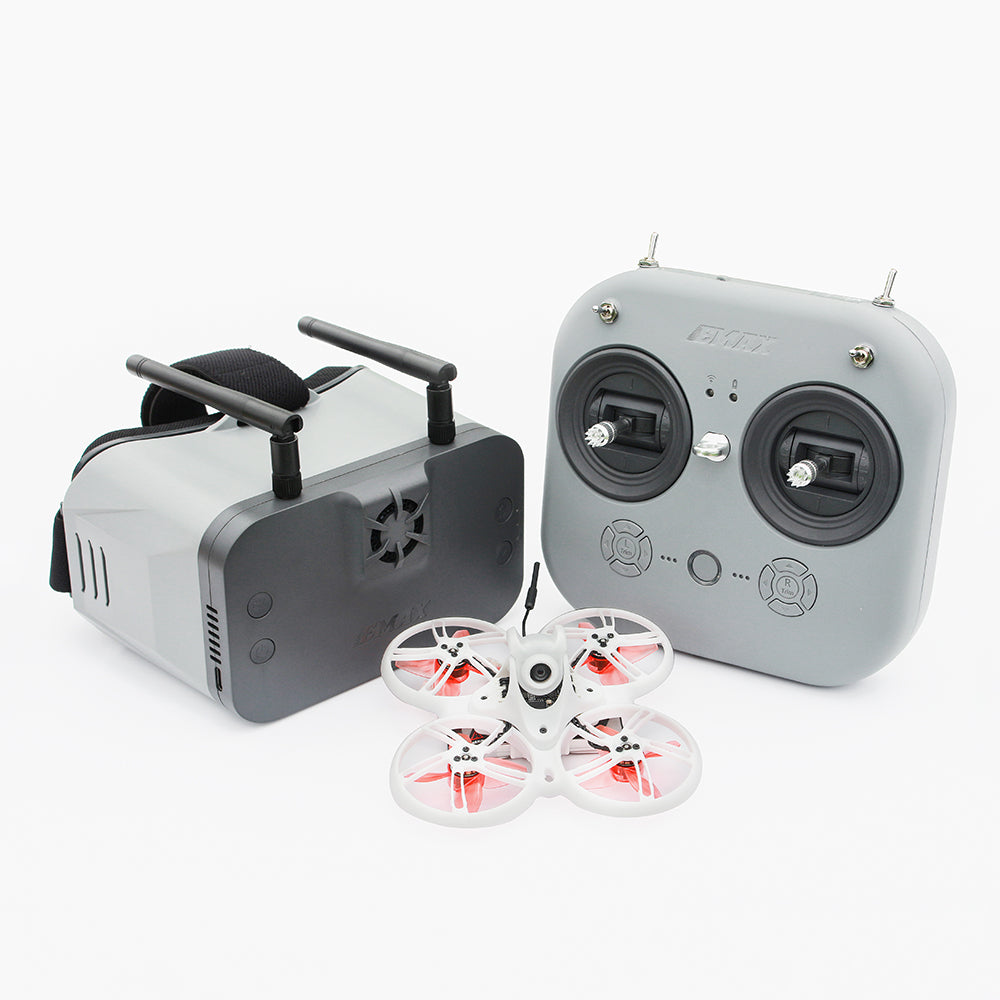

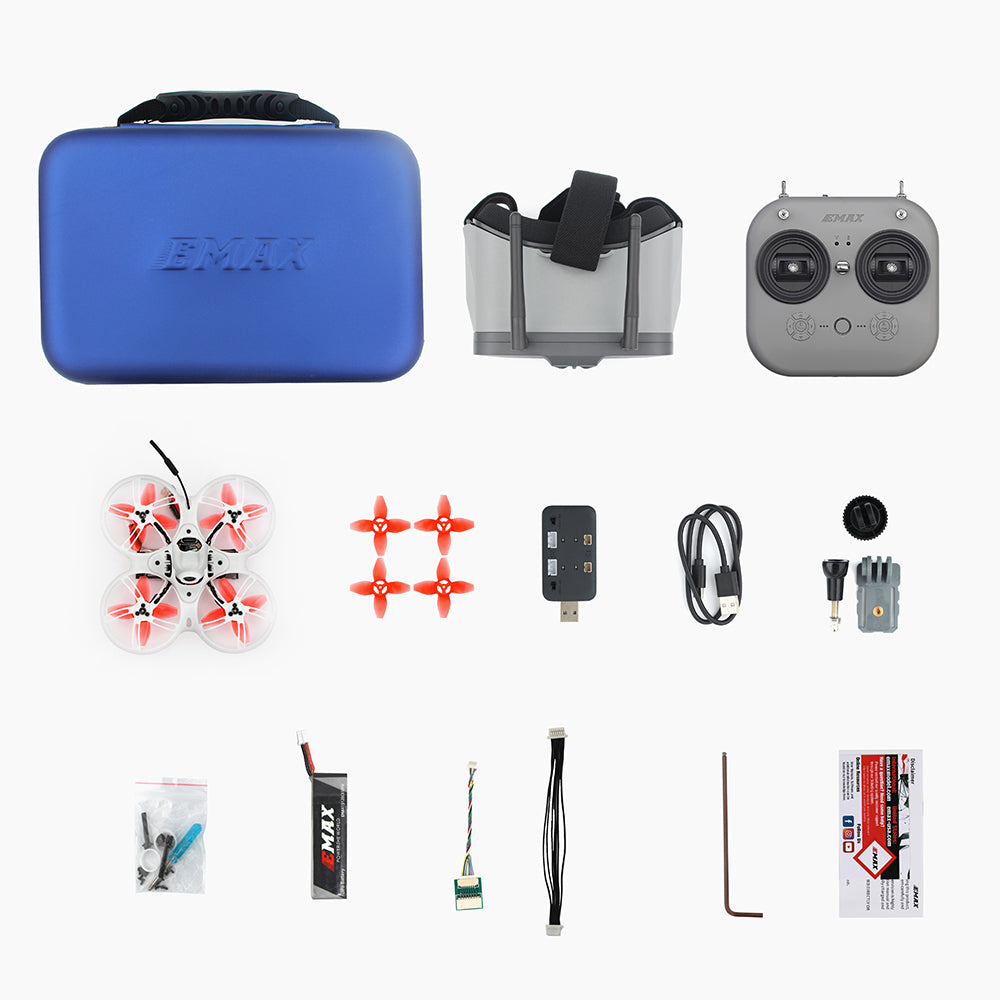

The package contains:
1x Tinyhawk III PLUS
1x FPV goggles
1x E8 remote control (ELRS-2.4G)
1x Battery 1S HV 650mAH
1x Charger
4x propellers
1x Accessory pack
1x USB data cable
1x screw
3x screen adapter (component)
1x Instructions and disclaimer
2x Adapter cable
