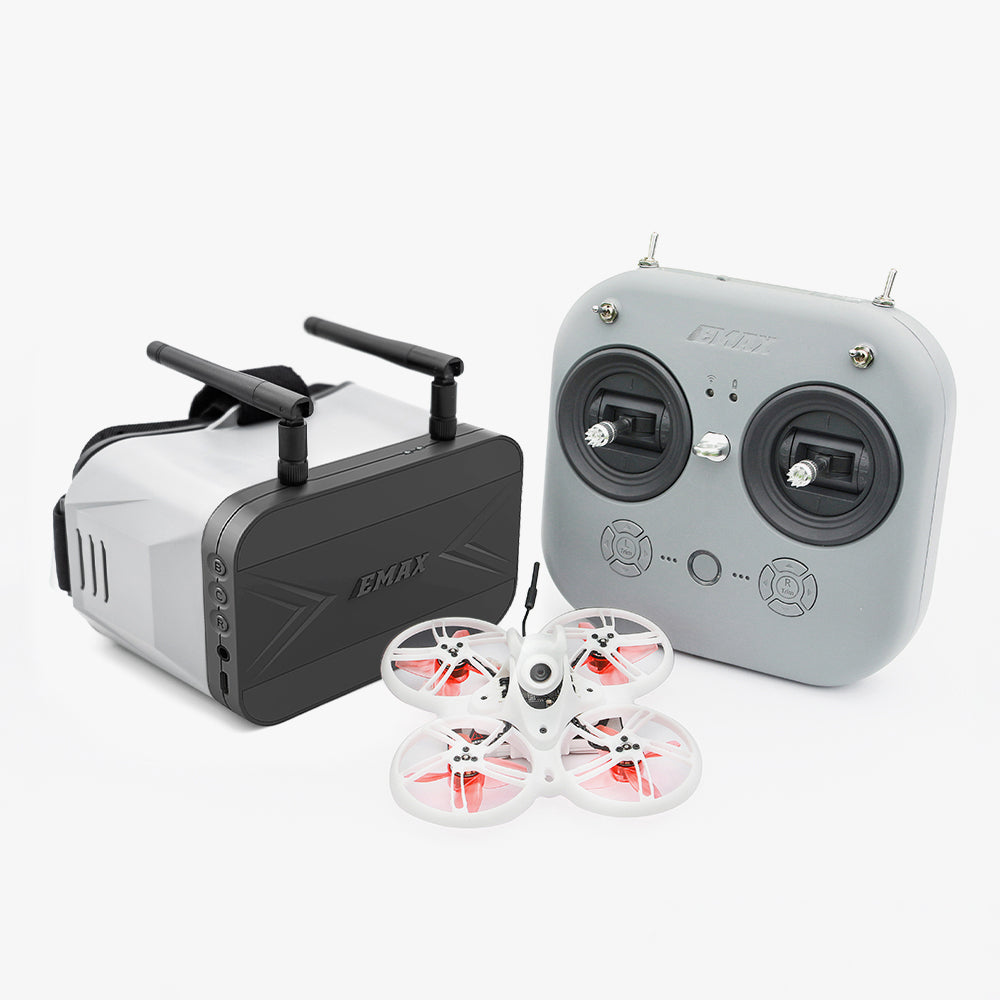

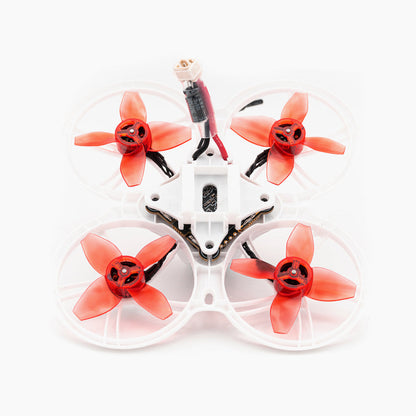

Analog Tinyhawk III Plus RTF
Function:
1. Durable construction: Made of high quality materials to ensure long life and impact resistance.
2. Powerful motors: Equipped with powerful motors for fast acceleration and impressive flight performance.
3. Advanced Flight Controller: Enjoy stable and accurate flight control, ideal for beginners and enthusiasts.
4. Extended flight time: Thanks to the efficient battery system, you have a longer flight and more fun.
Specifications:

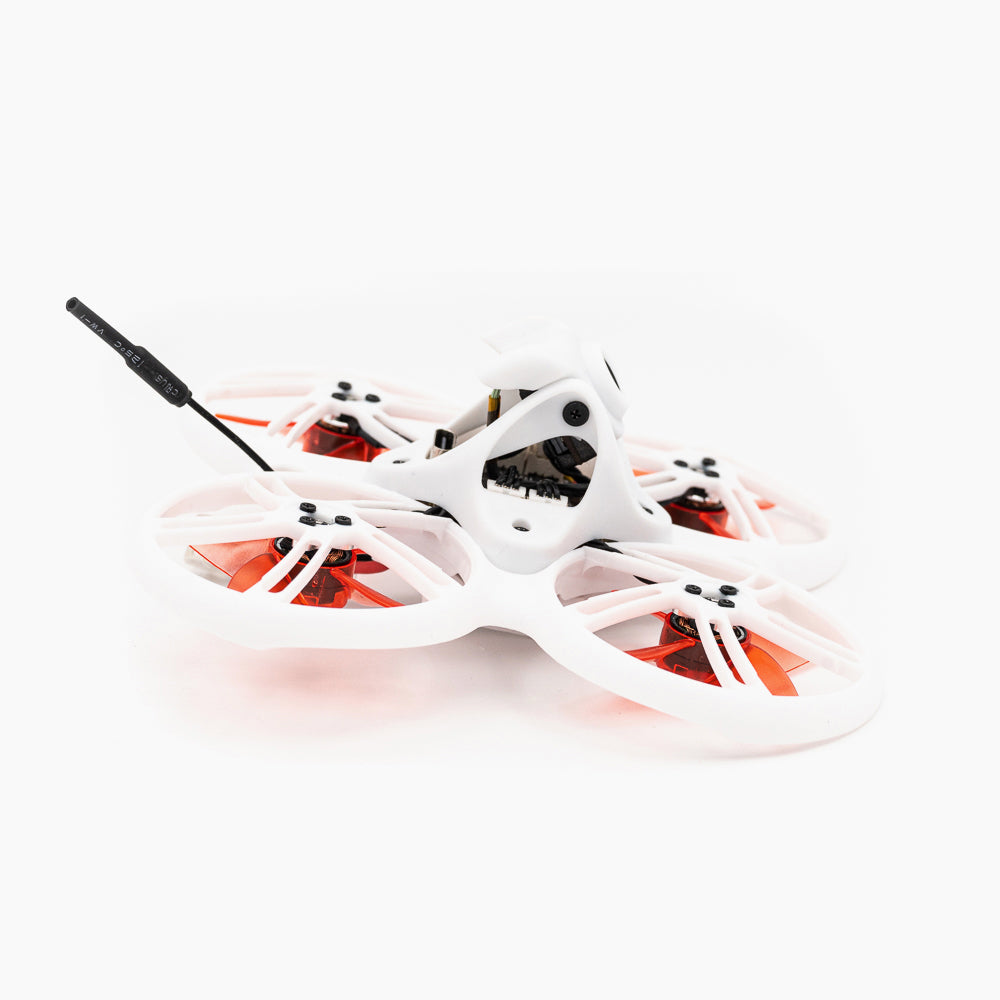

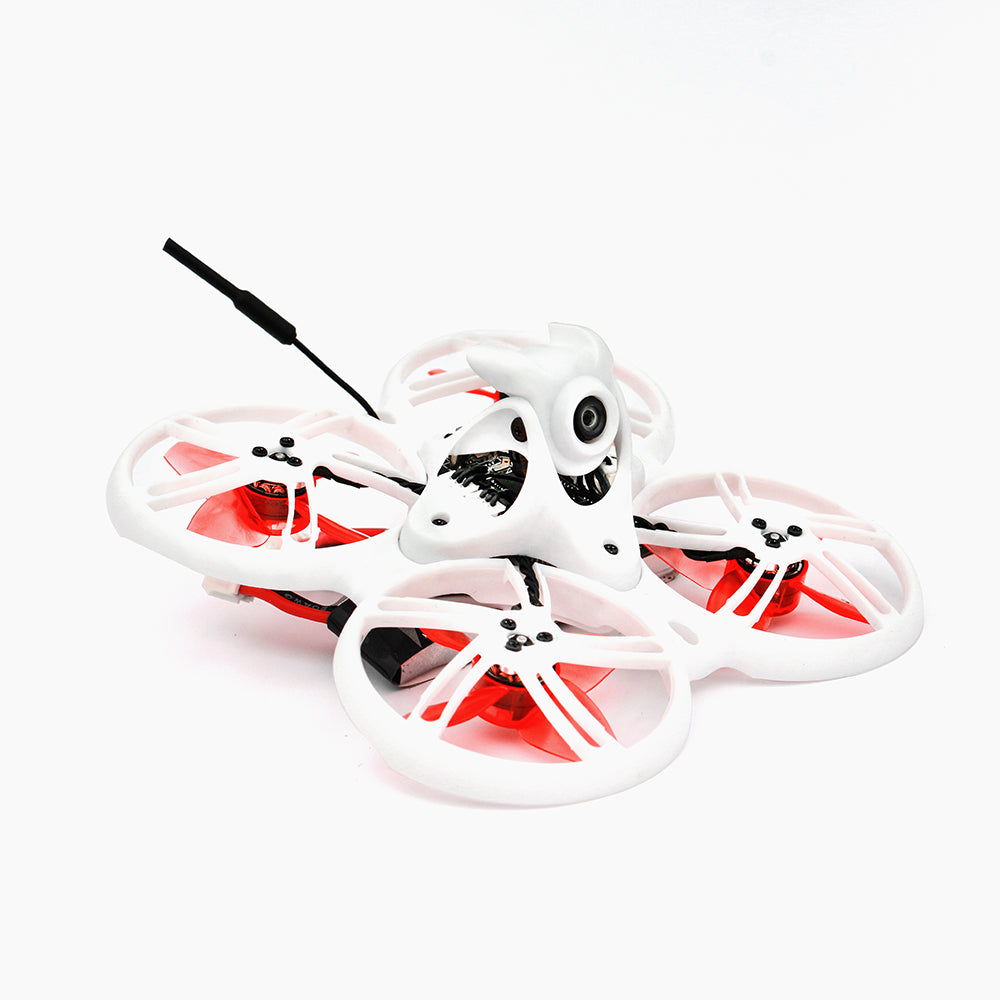

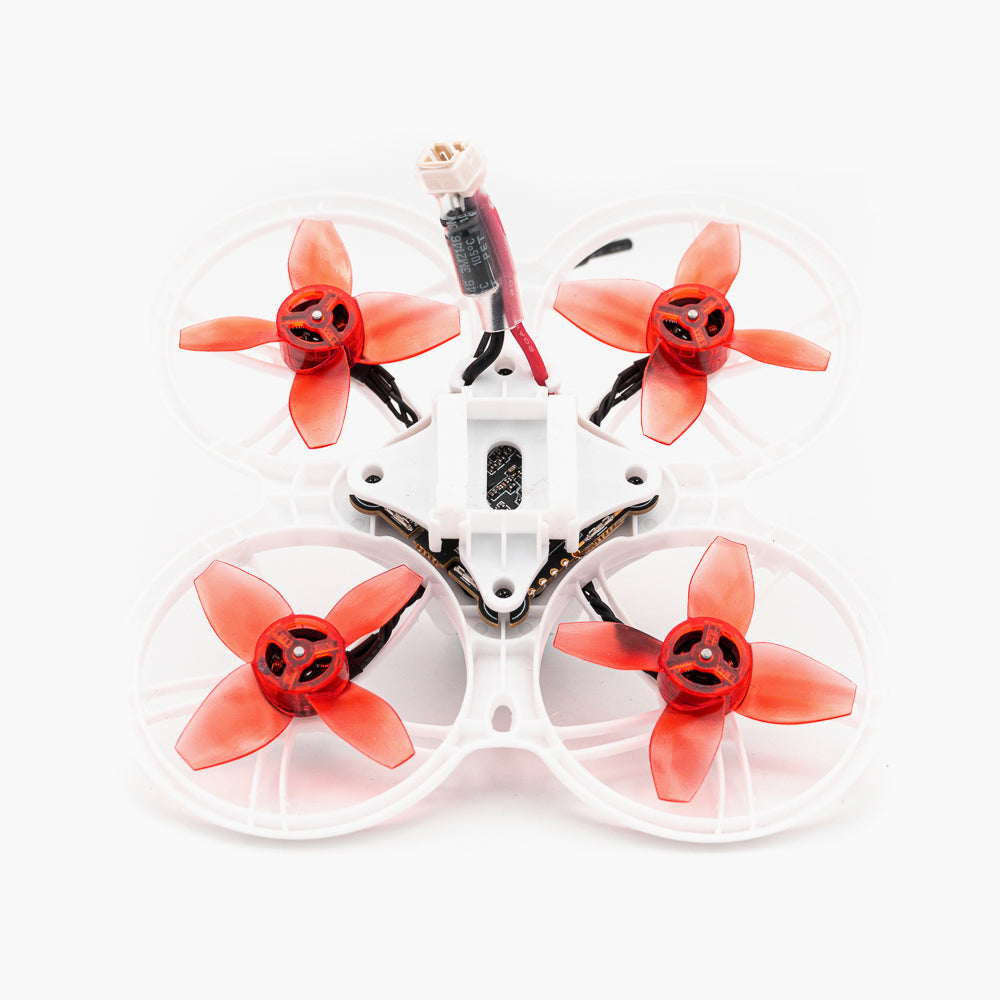

Model: Tinyhawk III Plus RTF Analog
Wheelbase: 76 mm
Maximum dimension w.h.: 105x105x45mm
Weight: approx. 32.5 g (without battery)
Motor: TH0802 II 15000KV
Propeller: Avan TH Turtlemode-2
Main control board: F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard receiver ELRS (2.4G) (SPI communication), input voltage 1-2S
Camera: RunCam Nano 6
Image transmission: 32-bit 40CH open-source image transmission 25mW/100mW/200mW
Battery: 1S HV 650mAh

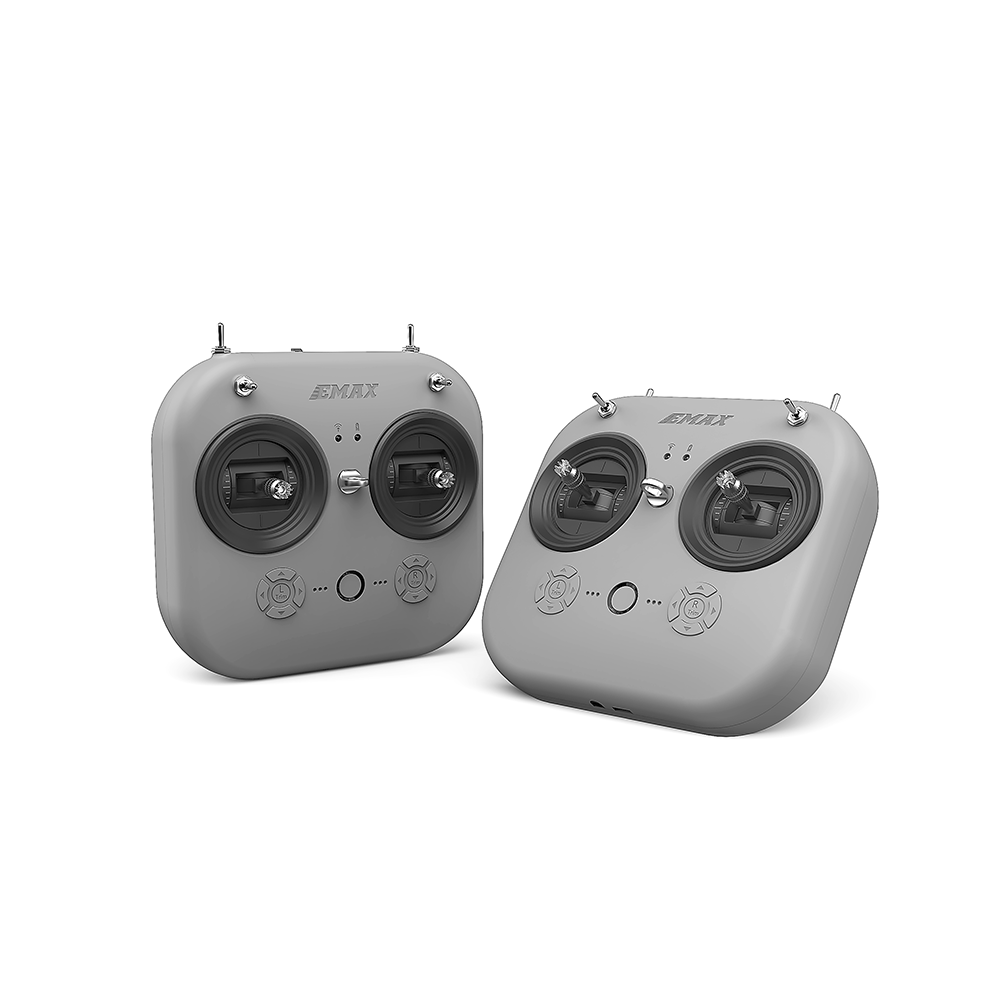

Remote control
Model: E8 Transmitter (ELRS-2.4G)
Dimensions: L×W×H=150×140×45 mm
Weight: approx. 260 g (without battery)
Number of channels: 8 channels
Protocol: ELRS-2.4G
Operating frequency: 2.4 GHz frequency band (2400-2483.5 MHz)
Power: 10mW/25mW/50mW/100mW
Battery: Built-in 1800mAh 18650 lithium-ion battery
Charging system: Built-in linear USB1A lithium-ion battery charging system
Working voltage: 3.7-4.2V
External interface: Type C interface. 3.5mm audio interface
Others: Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power supply, support adjustable send/return speed, support bind key change.

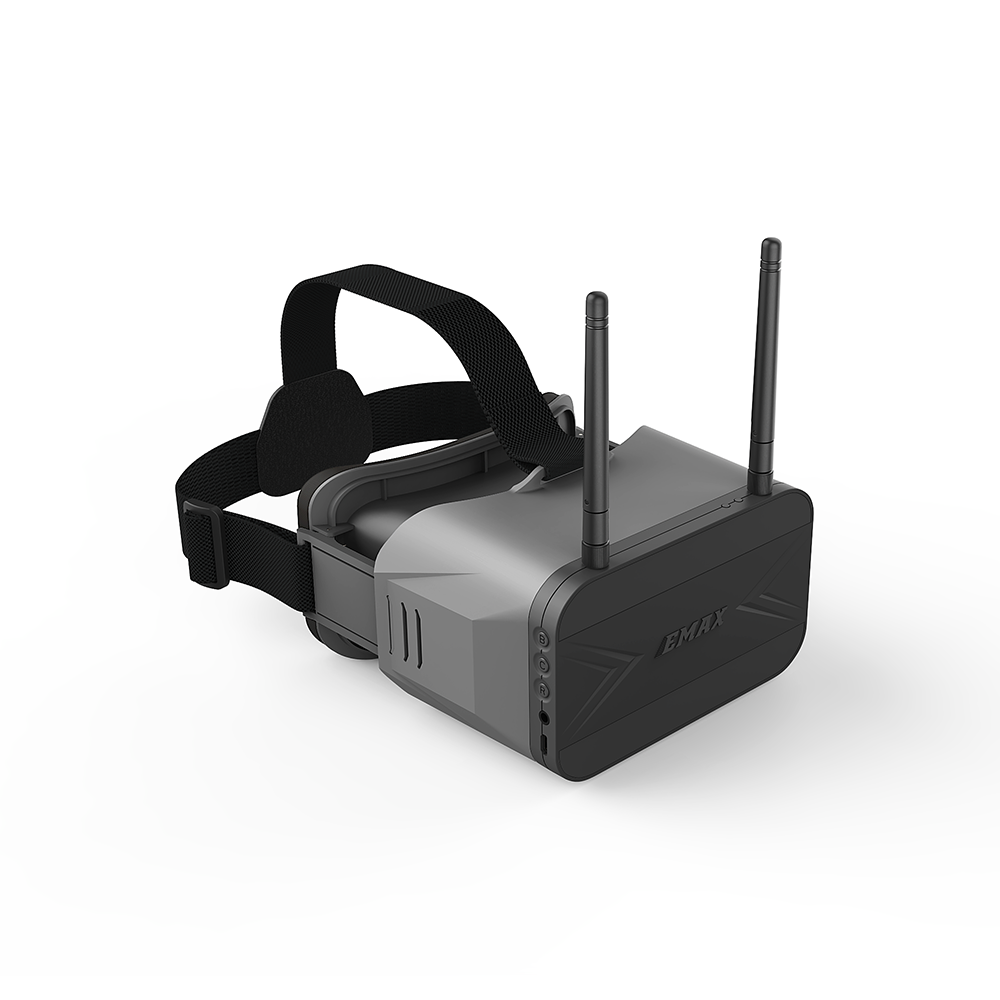

FPV goggles
Model: Transporter II
Dimensions: L×W×H=150×100×90 mm
Weight: approx. 398 g (including headband and antenna)
Screen resolution: 480 x 800
Display size: 4.3 inches
Battery: Built-in 1300mAh lithium battery
Voltage: 3.7-4.2V
Operating frequency: 5.8 GHz frequency band (5658-5945 MHz)
Charging system: Built-in USB 1A lithium battery linear charging system
DVR: Maximum supported memory 32G TF card, file format AV size: VGA/D1/HD (three modes optional)

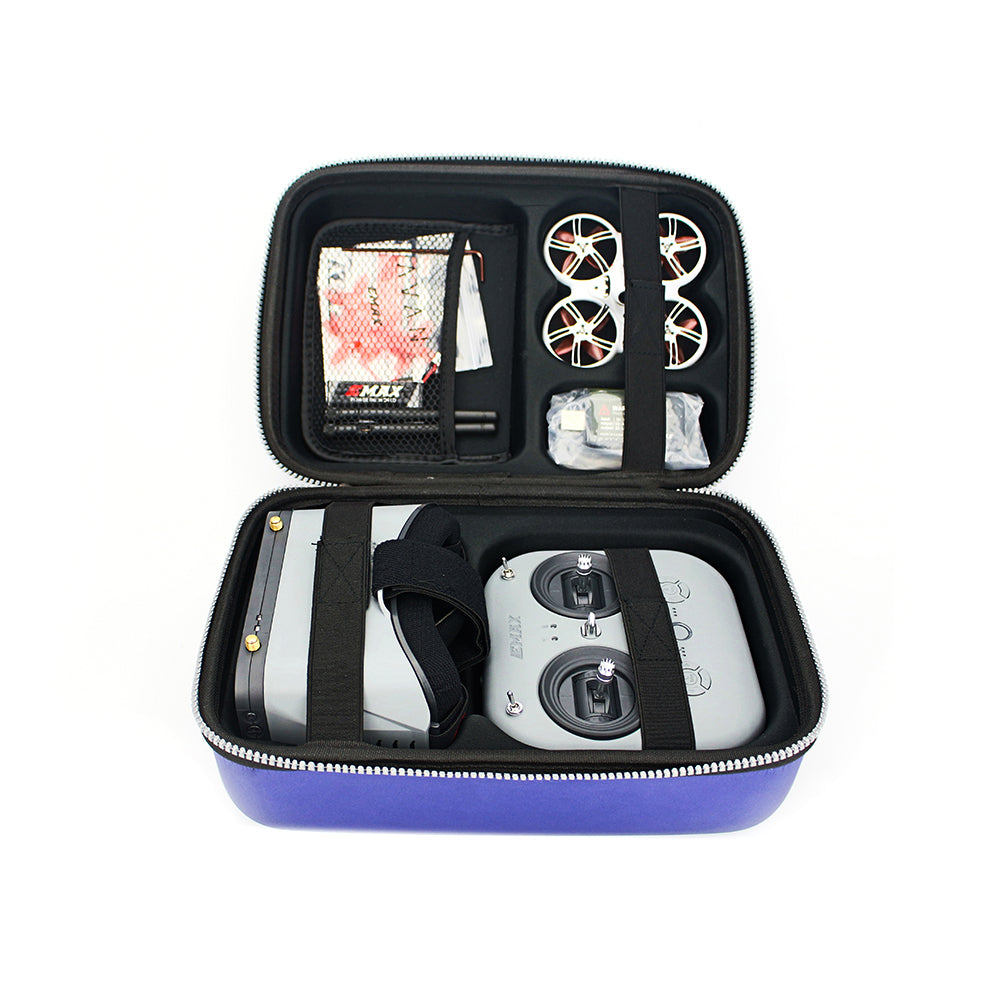

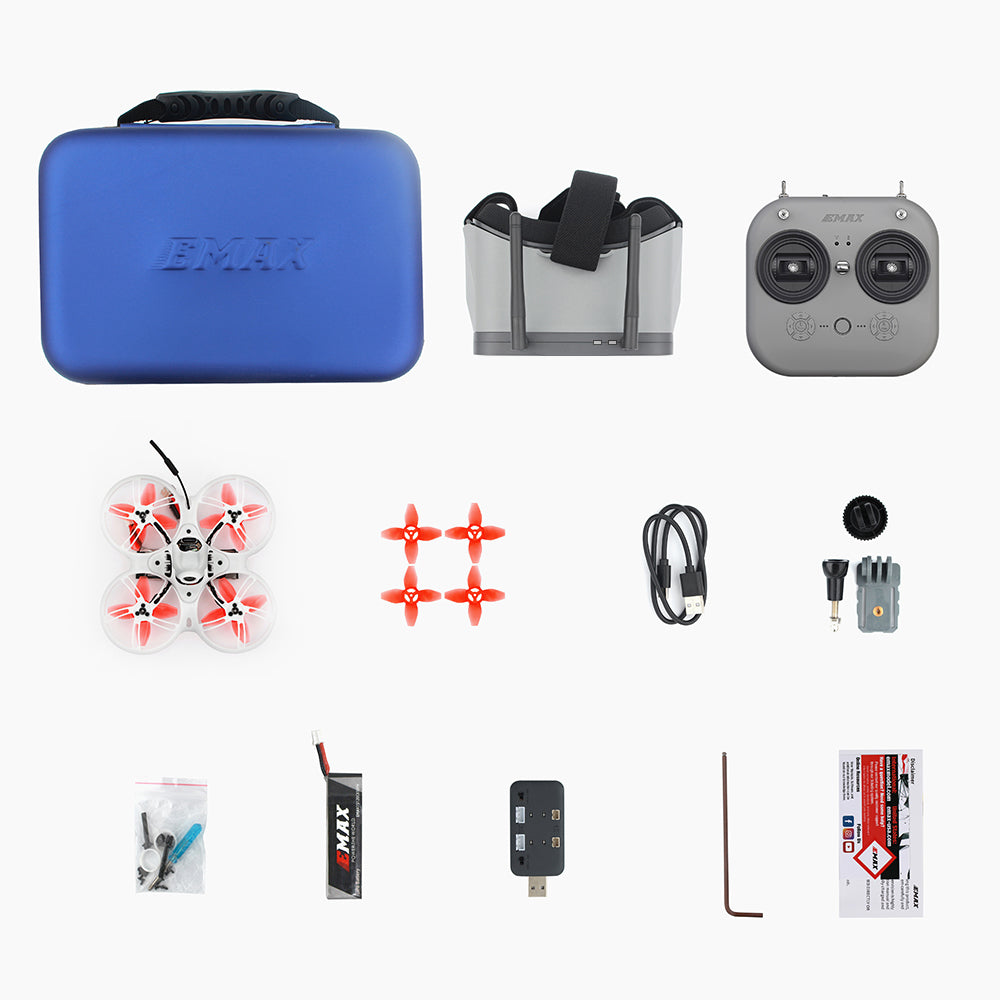

The package contains:
1x Tinyhawk III PLUS
1x FPV goggles
1x E8 remote control (ELRS-2.4G)
1x Battery 1S HV 650mAH
1x Charger
4x propellers
1x Accessory pack
1x USB data cable
1x screw
3x screen adapter (component)
1x Instructions and disclaimer
