Tinyhawk III Plus Freestyle RTF HD Zero

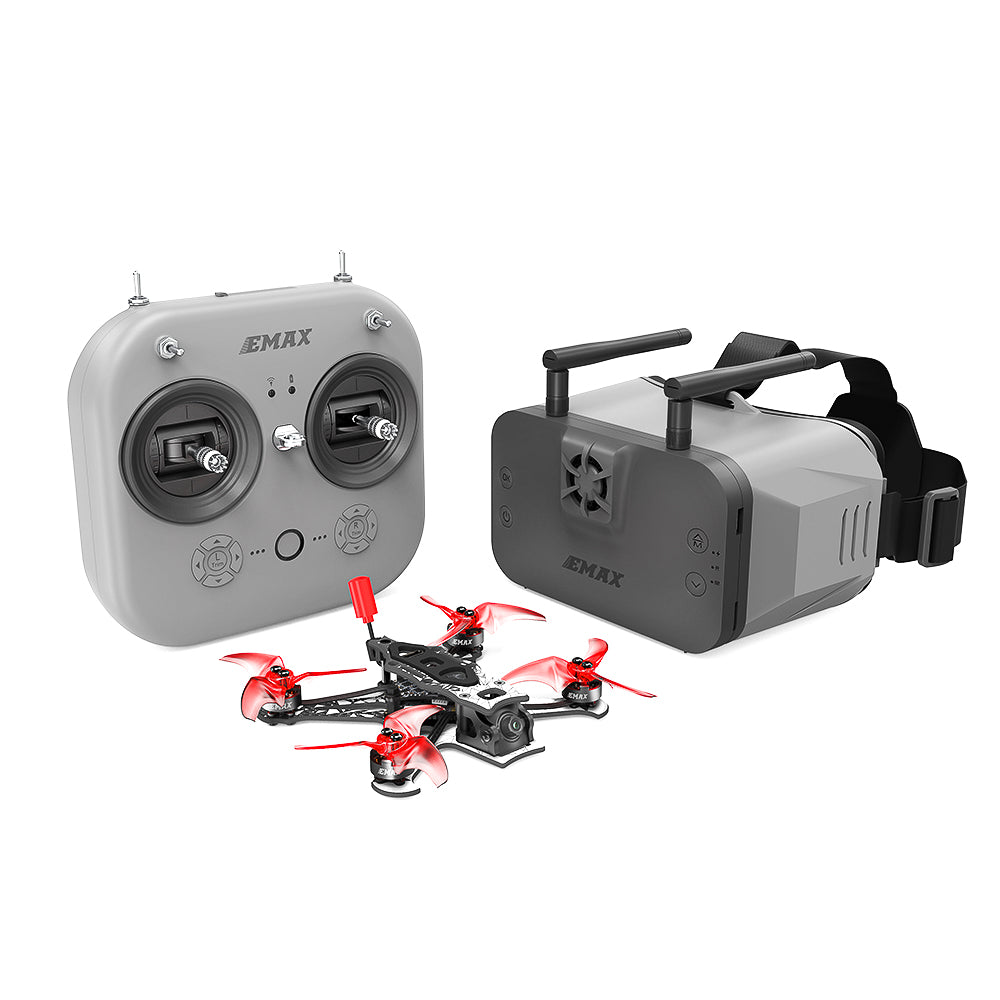

The Tinyhawk III Plus Freestyle RTF HD Zero is an all-in-one package for those who want to experience the thrill of freestyle flying in high definition. This version includes the drone, HD Zero VTX goggles and E8 transmitter with ELRS.
Function:
1. Durable construction: Made of high quality materials to ensure long life and impact resistance.
2. Powerful motors: Equipped with powerful motors for fast acceleration and impressive flight performance.
3. Advanced Flight Controller: Enjoy stable and accurate flight control, ideal for beginners and enthusiasts.
4. Extended flight time: Thanks to the efficient battery system, you have a longer flight and more fun.
Specifications:

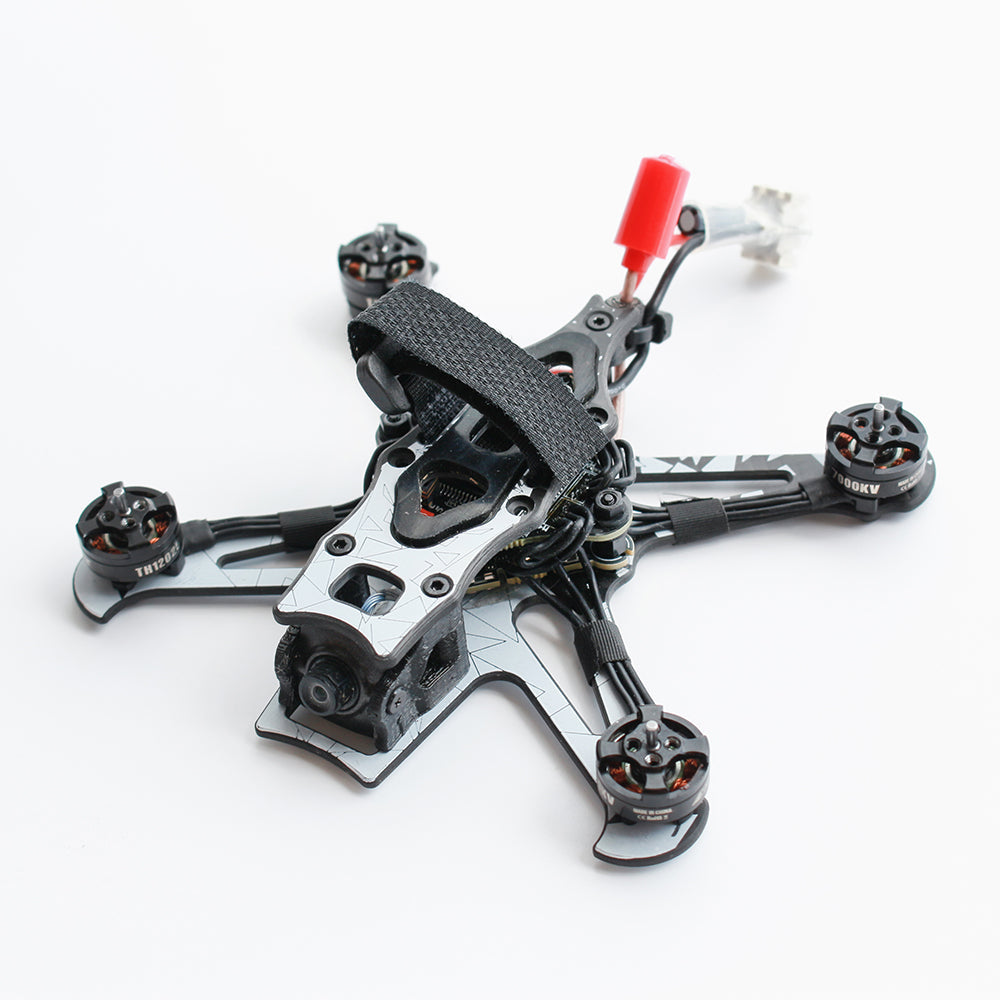

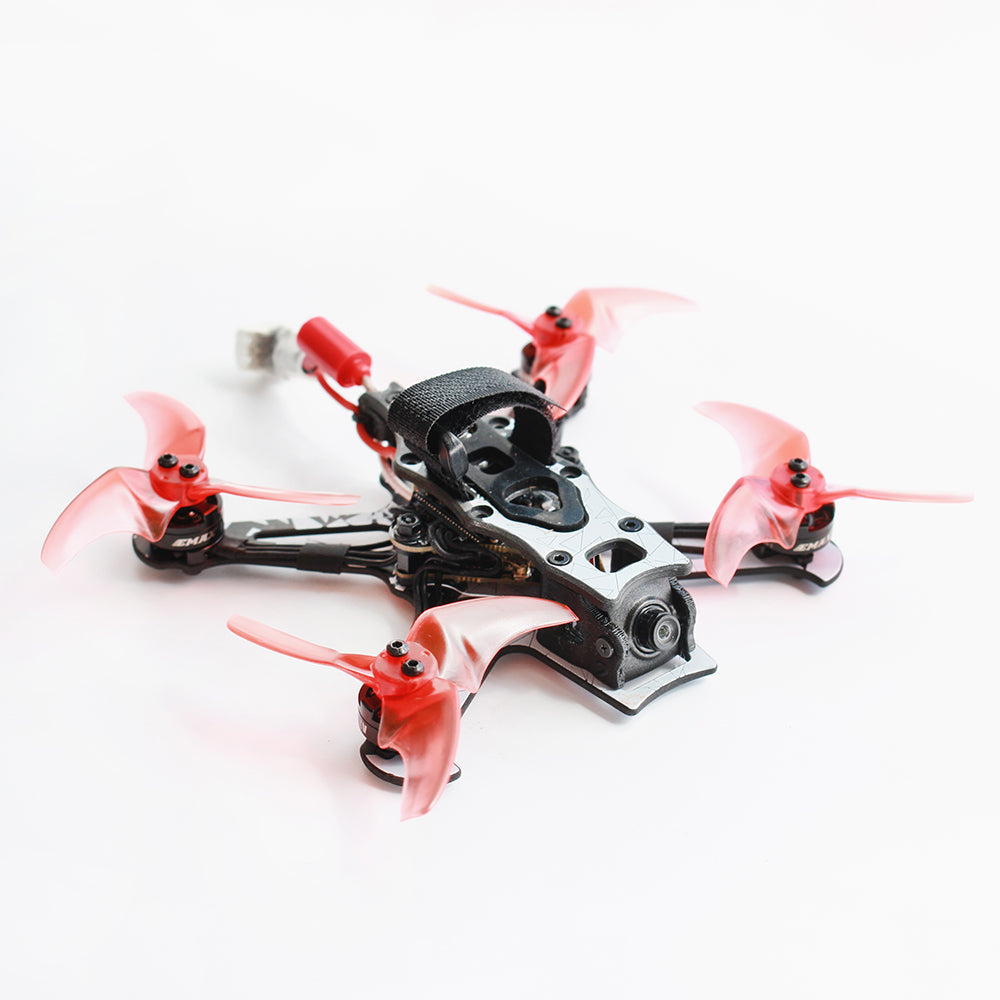

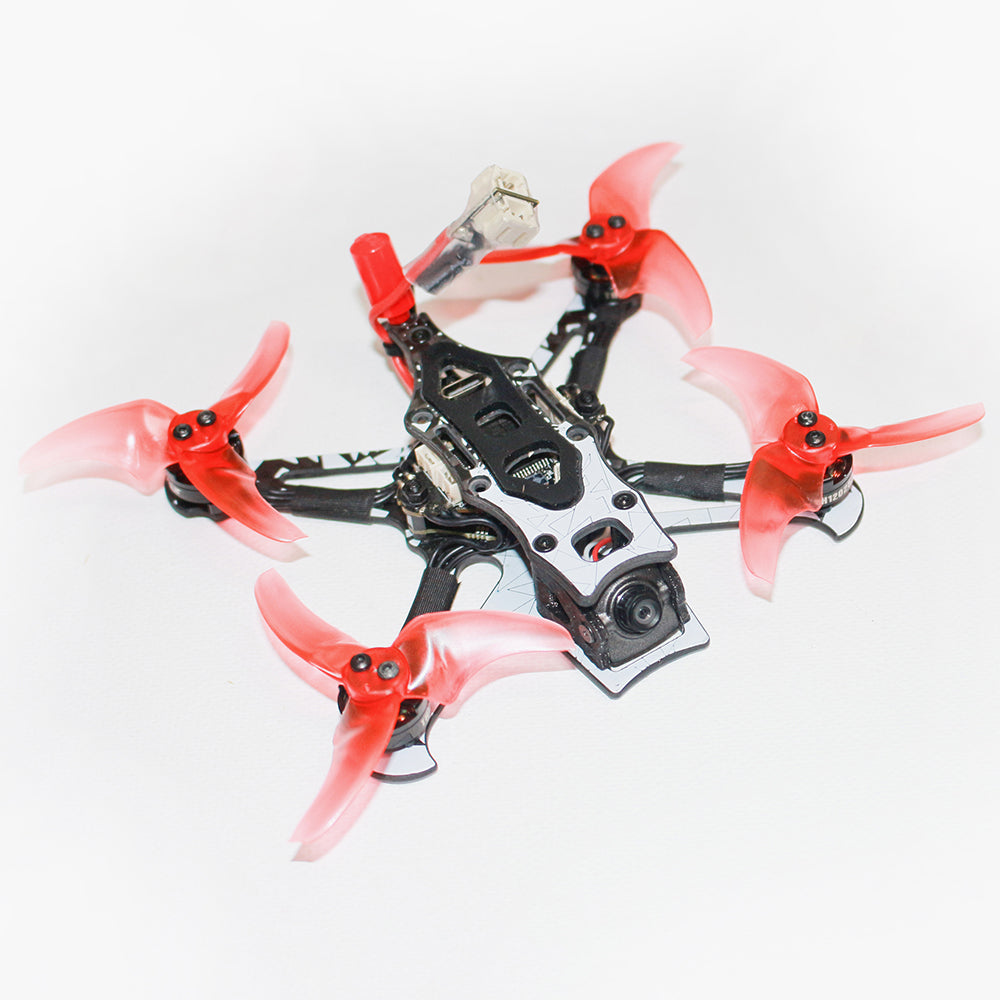

Model: Tinyhawk III Plus Freestyle RTF HD Zero
Wheelbase: 110 mm
Size: 100×104×22mm (propeller not included)
Weight: approx. 62.5 g (without battery)

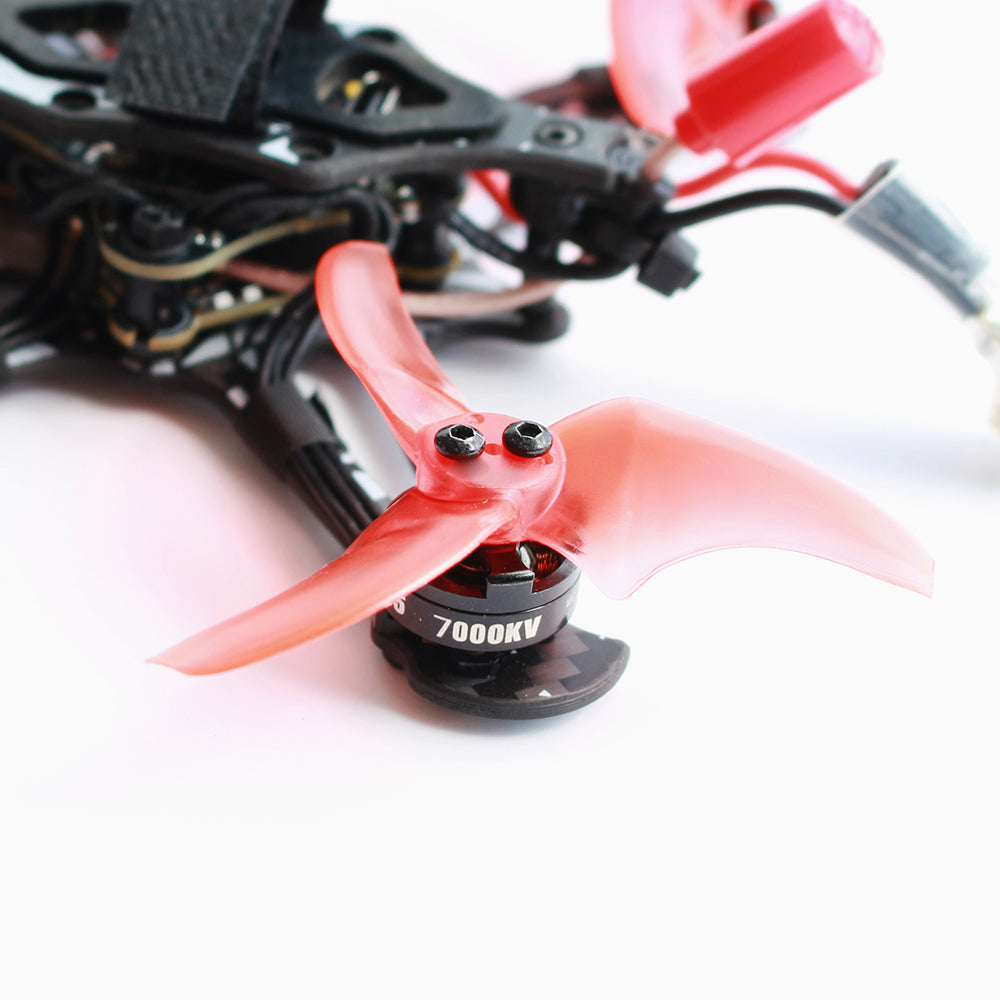

Motor: 12025 7000KV
Propeller: AVAN Rush 2.5 inch three blade propeller
Main control board: F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard receiver ELRS (2.4G) (SPI communication), input voltage 1-2S

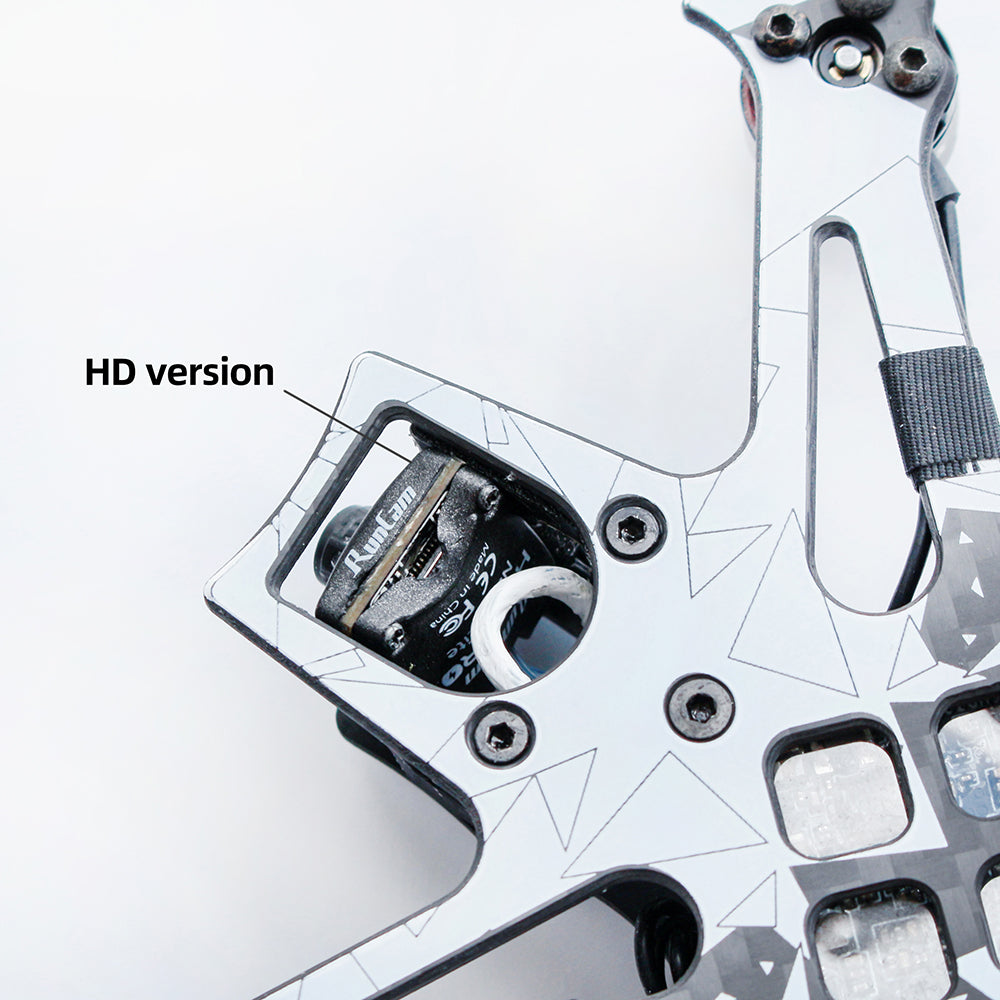

Camera: RunCam Nano 6
Image transmission: 32-bit 40CH image transmission with open source code
25mW/100mW/200mW
Battery: 1S HV 650mAh (with 2 1S batteries)
Remote control
Model: E8 Transmitter (ELRS-2.4G)
Size: 150×140×45 mm
Weight: approx. 260 g (without battery)
Number of channels: 8 channels
Protocol: ELRS-2.4G protocol
Operating frequency: 2.4 GHz frequency band (2400-2483.5 MHz)
Power: 10mW/25mW/50mW/100mW
Battery: Built-in 1800mAh 18650 lithium-ion battery
Charging system: Built-in linear USB1A lithium-ion battery charging system
Working voltage: 3.7-4.2V
External interface: Type C interface. 3.5mm audio interface
Others: Support simulator, support joystick calibration, support left and right hand switching, support firmware update (USB method), support adjustable power supply, support adjustable send/return speed, support bind key change.
FPV goggles
Model: Transporter II
Size: 150×100×90 mm
Weight: approx. 398 g
Screen resolution: 480 x 800
Display size: 4.3 inches
Battery: Built-in 1300mAh lithium battery
Voltage: 3.7-4.2V
Operating frequency: 5.8 GHz frequency band (5658-5945 MHz)
Charging system: Built-in USB 1A lithium battery linear charging system
DVR: Maximum supported memory 32G TF card, file format AV size: VGA/D1/HD (three modes optional)

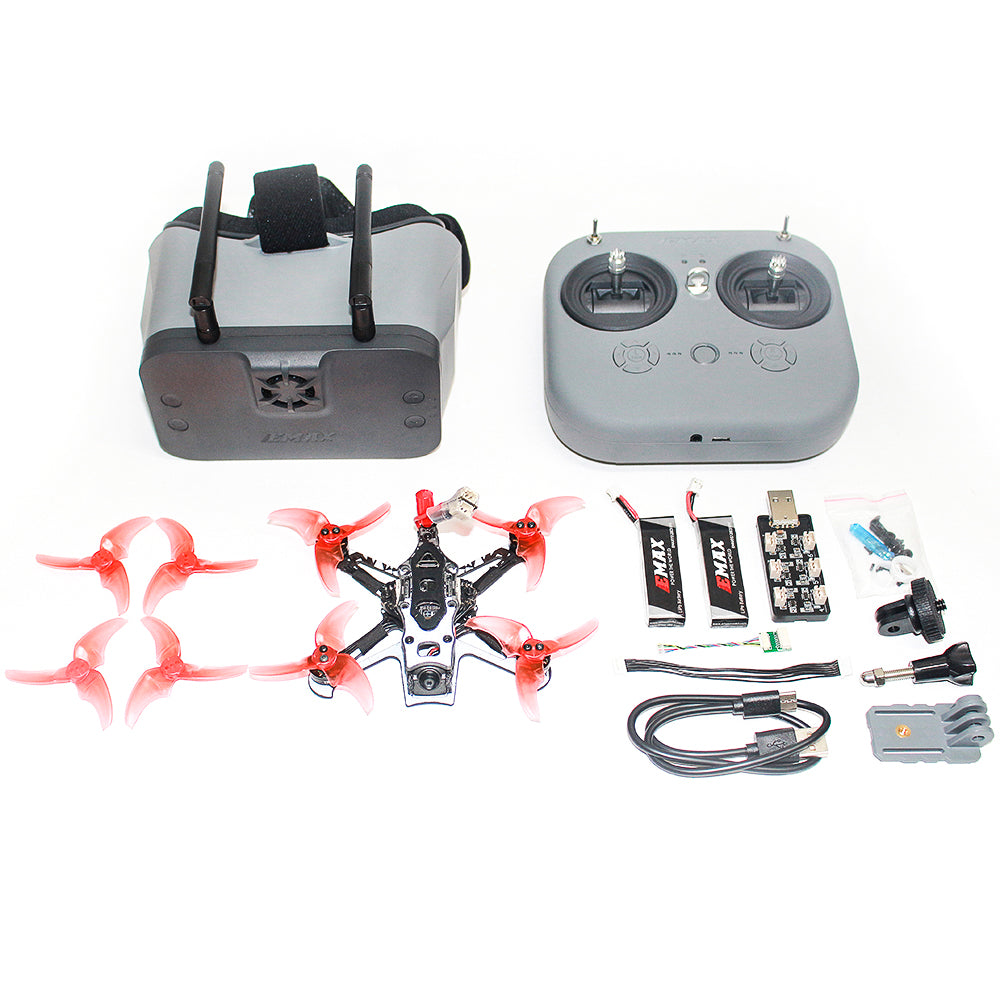

The package contains:
1x Tinyhawk III Plus Freestyle RTF HD Zero
1x FPV goggles
1x E8 remote control (ELRS-2.4G)
2x Battery 1S HV 650mAH
1x Charger
4x propellers
1x Accessory pack
1x USB data cable
1x screw
3x screen adapter
1x Instructions and disclaimer
2x Adapter cable
