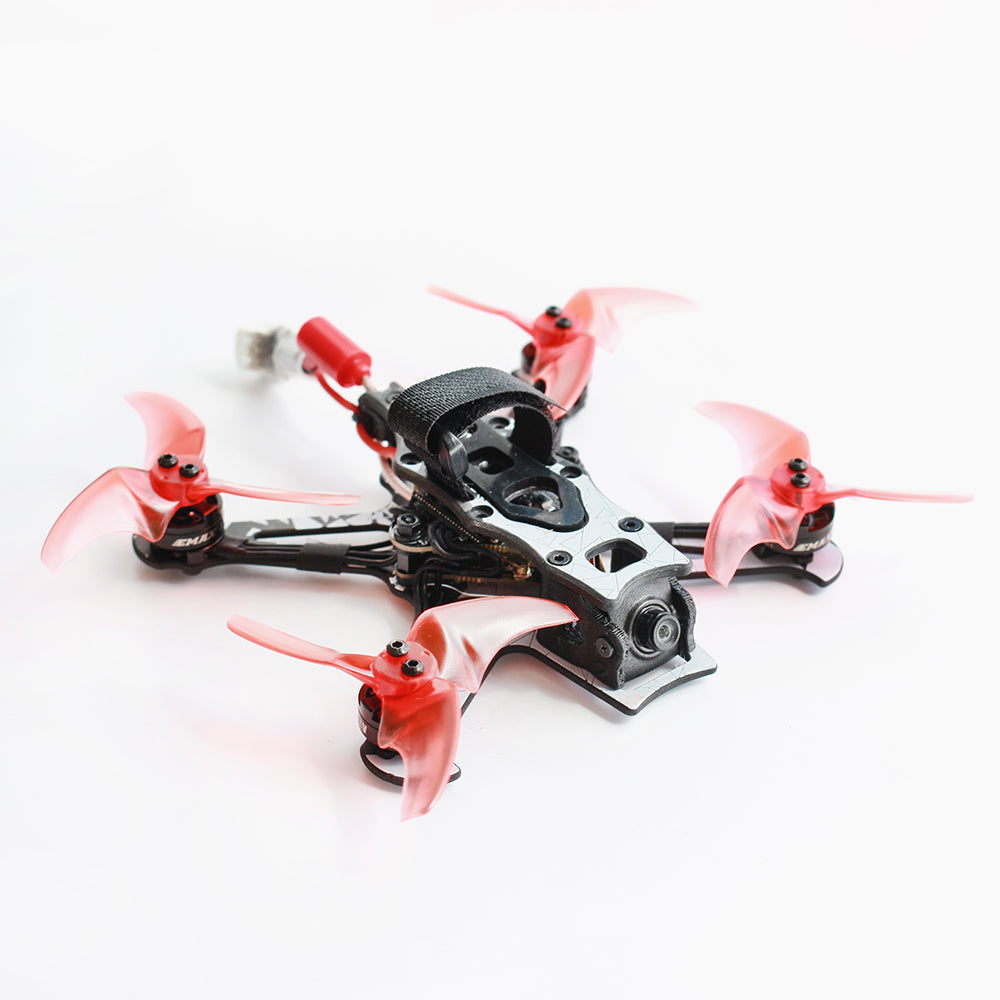

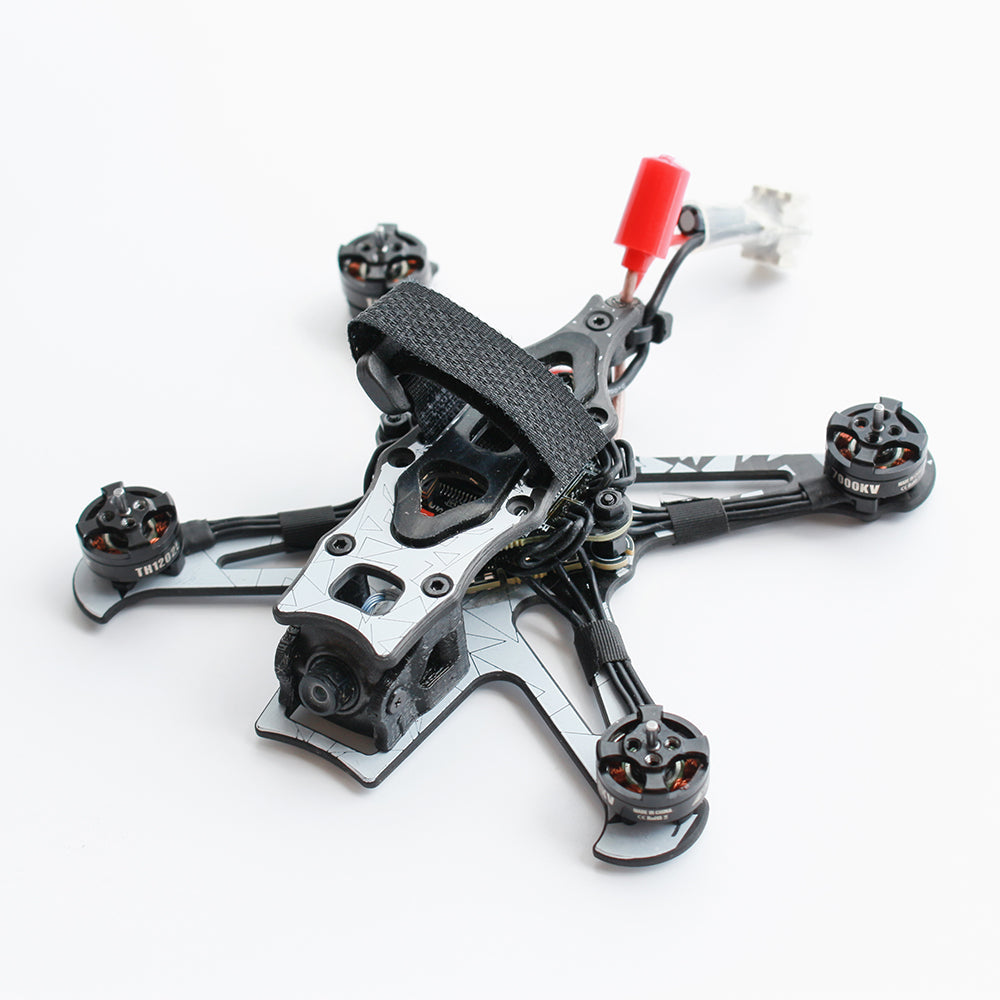

Tinyhawk III Plus Freestyle RTF analog
Tinyhawk III Plus Freestyle RTF Analog is a high performance FPV racing drone designed for freestyle flying. With its durable construction and powerful engines, it provides an exciting and reliable flying experience. Equipped with an advanced flight controller, it offers precise control and stability, making it suitable for both beginners and experienced pilots.

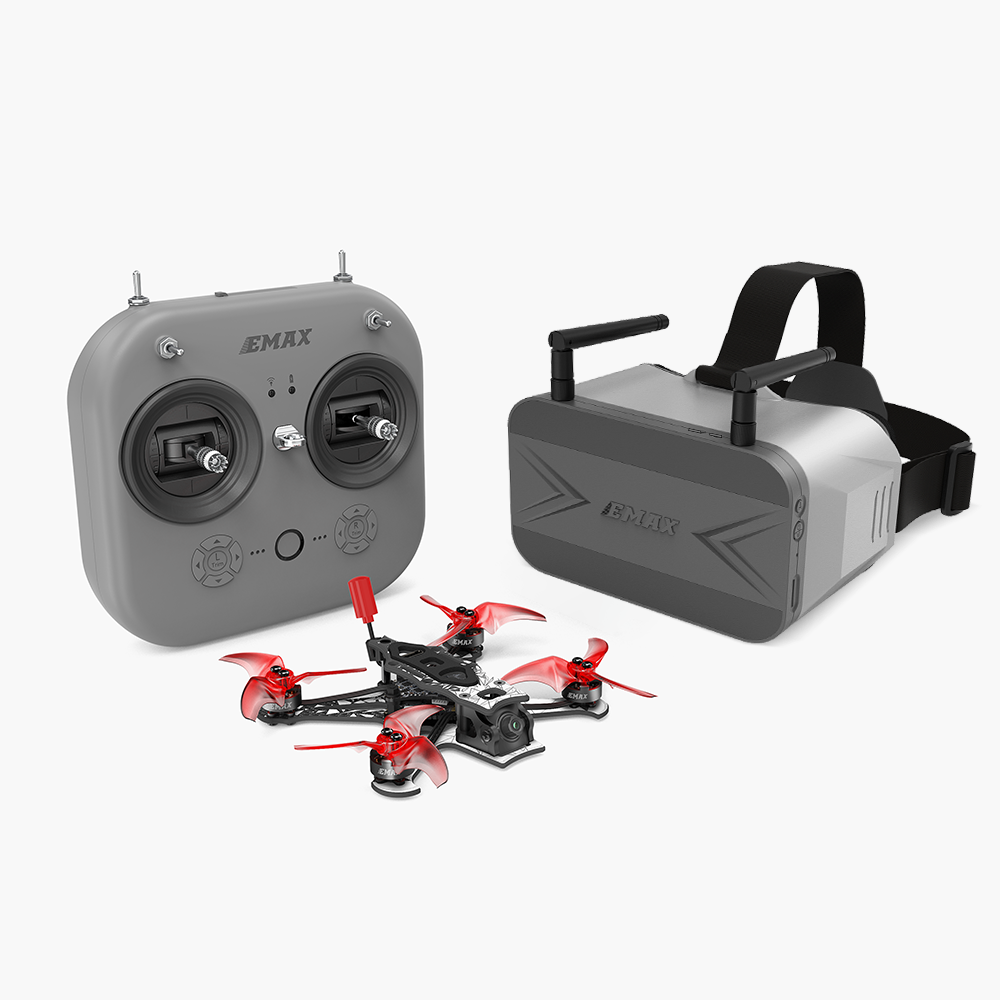

The Tinyhawk III Plus Freestyle RTF Analog version includes a drone, analog goggles and an E8 transmitter with ELRS.
Specifications:
Model: Tinvhawk III PLUS Freestyle
Optional version: Analogue
Optional mode: RTF
Wheelbase: 110 mm
Size: 100×104×22mm (propeller not included)
Weight: approx. 62.5 g (without battery)

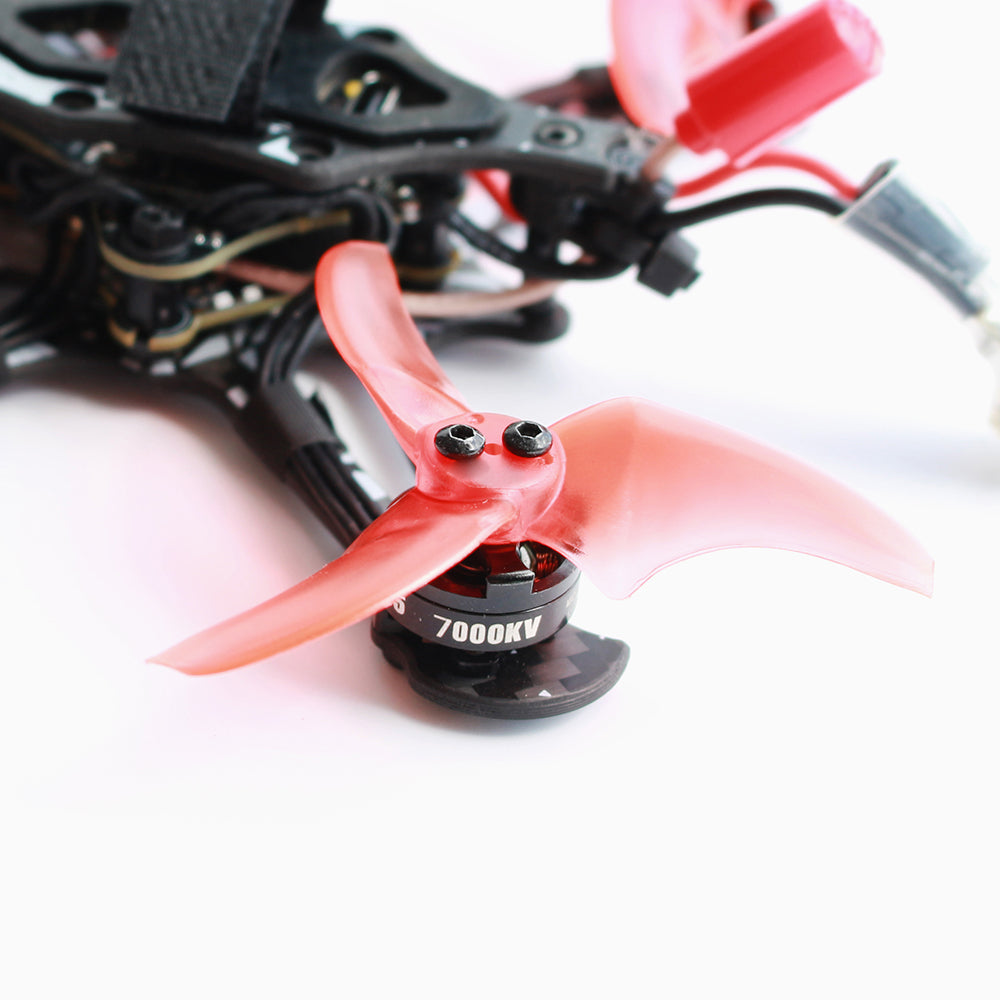

Motor: 12025 7000KV
Propeller: AVAN Rush 2.5 inch three blade propeller
Main control board: F411 (100MHz) main control, integrated 4-in-16A 8-bit ESC, onboard receiver ELRS (2.4G) (SPI communication), input voltage 1-2S

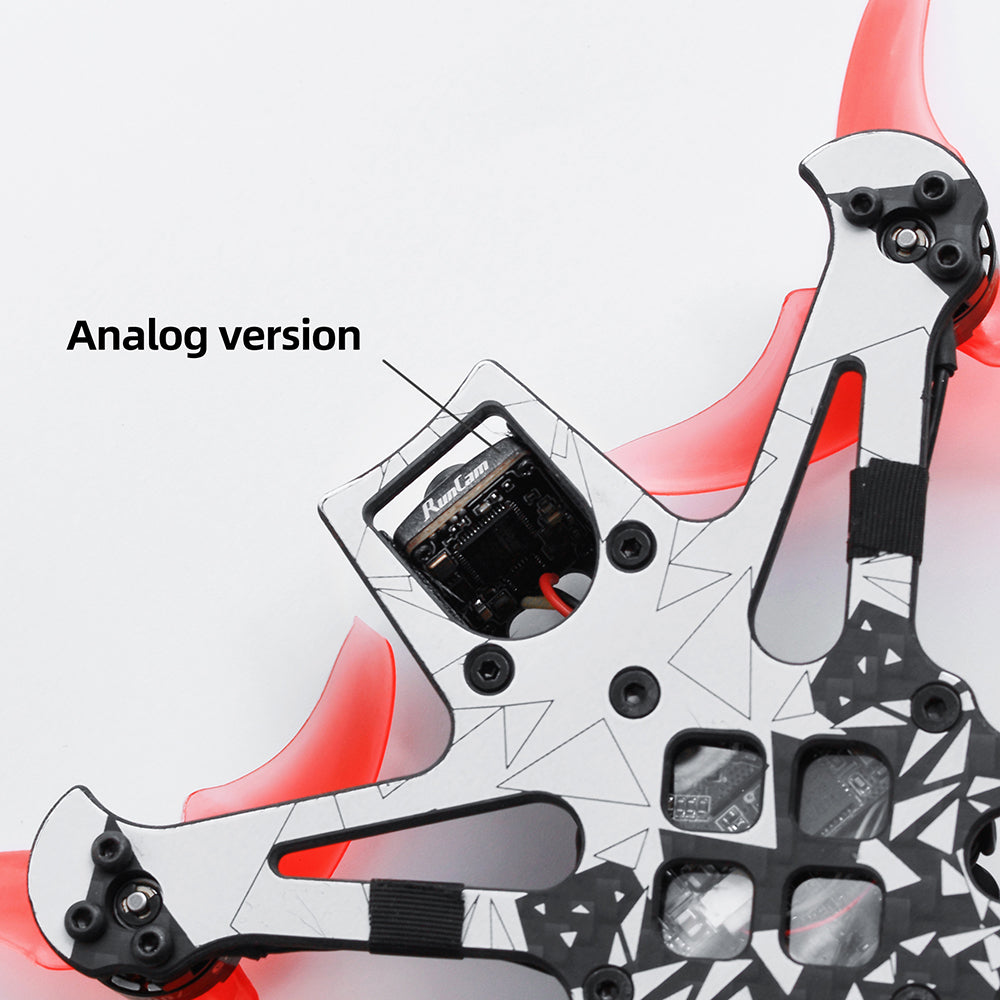

Camera: RunCam Nano 6
Image transmission: 32-bit 40CH image transmission with open source code
25mW/100mW/200mW
Battery: 1S HV 650mAh (with 2 1S batteries)
Remote control
Model: E8 Transmitter (ELRS-2.4G)
Size: 150×140×45 mm
Weight: approx. 260 g (without battery)
Number of channels: 8 channels
Protocol: ELRS-2.4G protocol
Operating frequency: 2.4 GHz frequency band (2400-2483.5 MHz)
Power: 10mW/25mW/50mW/100mW
Battery: Built-in 1800mAh 18650 lithium-ion battery
Charging system: Built-in linear USB1A lithium-ion battery charging system
Working voltage: 3.7-4.2V
External interface: Type C interface. 3.5mm audio interface
Others: Support simulator, support joystick calibration, support left and right hand switching, support firmware upgrade (USB), support adjustable power supply, support adjustable send/return speed, support bind key change.
FPV goggles
Model: Transporter II
Dimensions: L×W×H=150×100×90 mm
Weight: approx. 398 g (including headband and antenna)
Screen resolution: 480 x 800
Display size: 4.3 inches
Battery: Built-in 1300mAh lithium battery
Voltage: 3.7-4.2V
Operating frequency: 5.8 GHz frequency band (5658-5945 MHz)
Charging system: Built-in USB 1A lithium battery linear charging system
DVR: Maximum supported memory 32G TF card, file format AV size: VGA/D1/HD (three modes optional)
The package contains:
1x Tinyhawk III PLUS Freestyle analog
1x FPV goggles
1x E8 remote control (ELRS-2.4G)
2x Battery 1S HV 650mAH
1x Charger
4x Propellers
1x Accessory pack
1x USB data cable
1x screw
3x screen adapter (component)
1x Instructions and disclaimer
