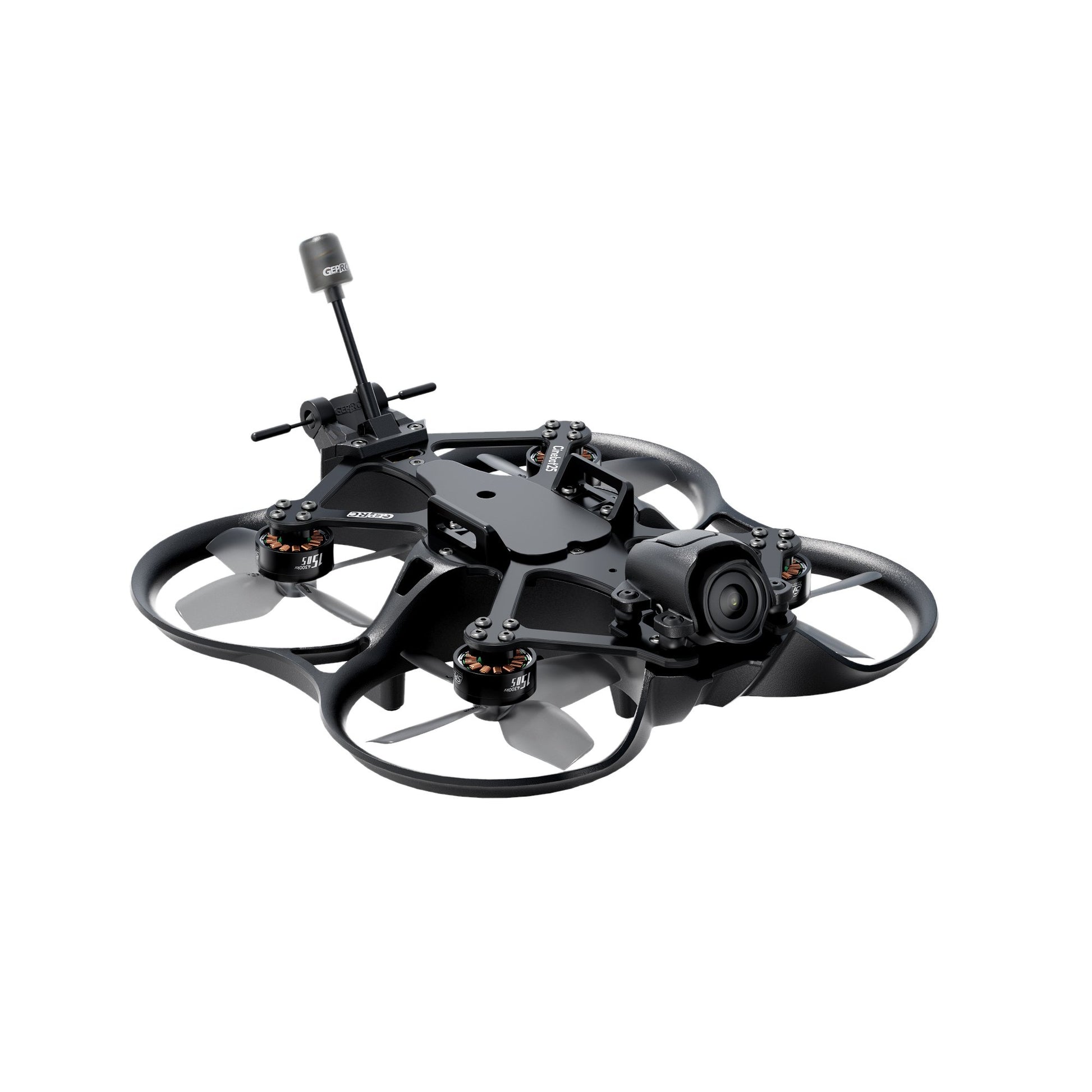

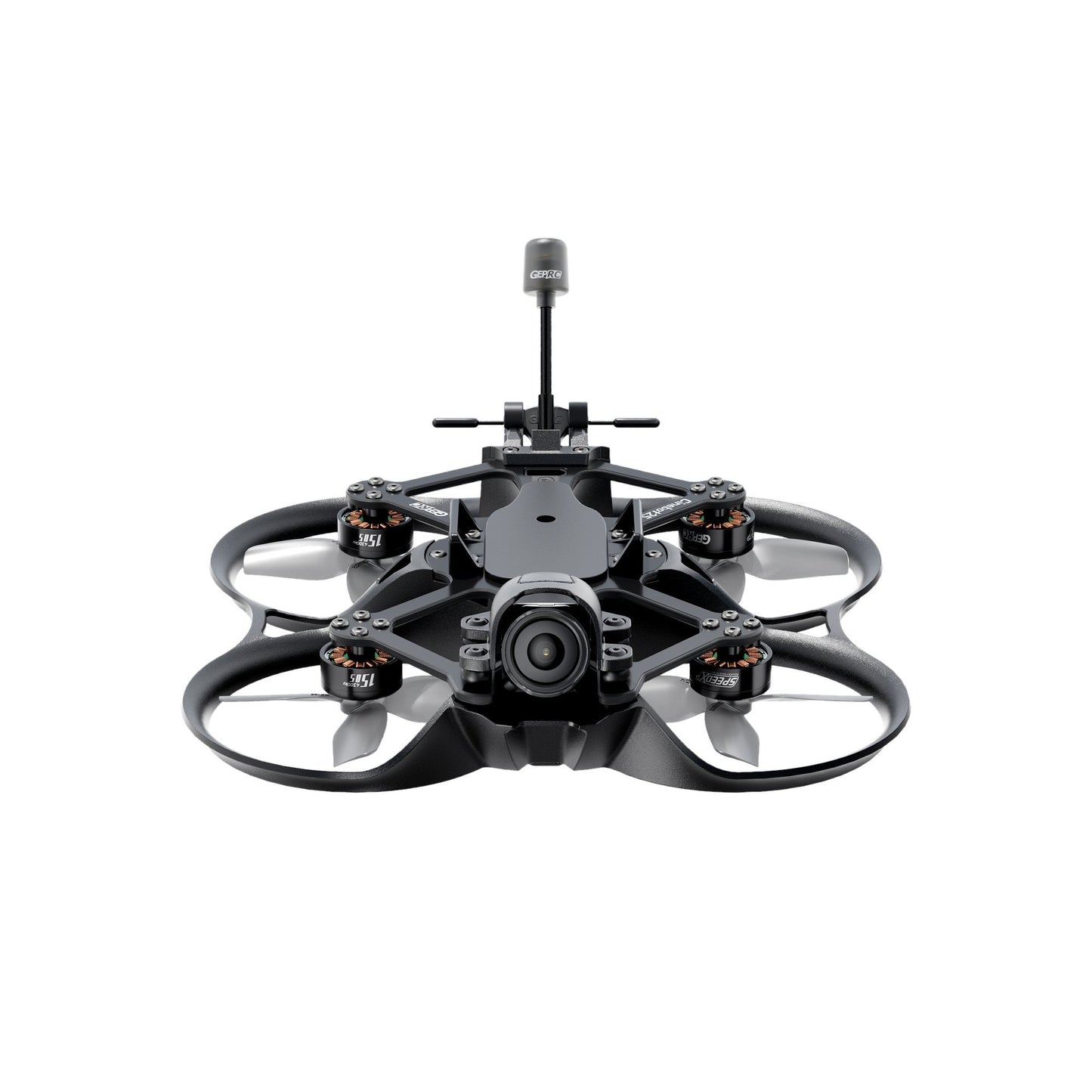

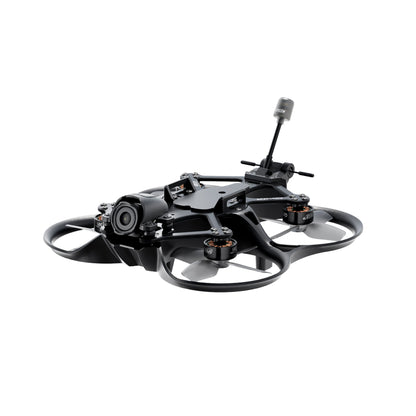

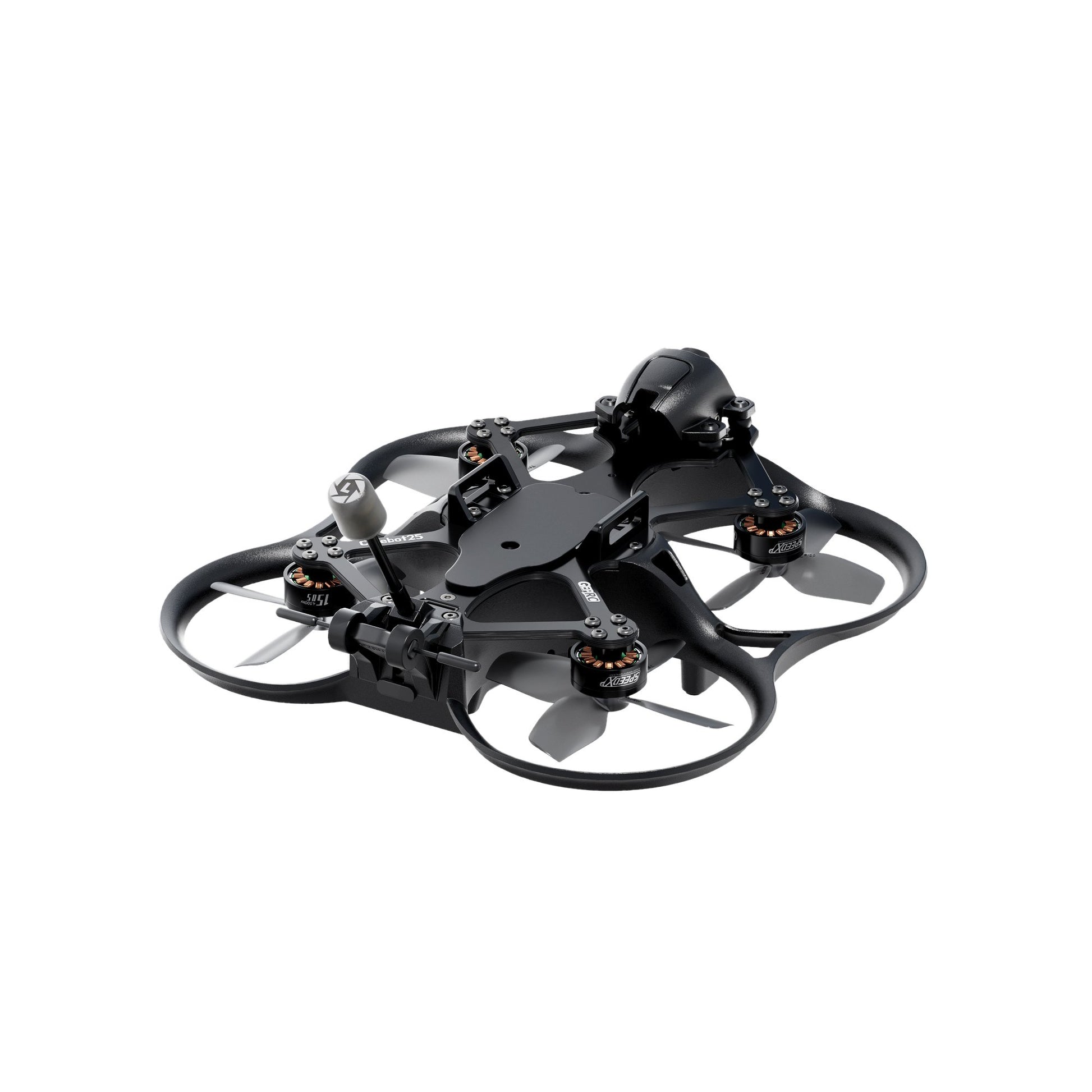

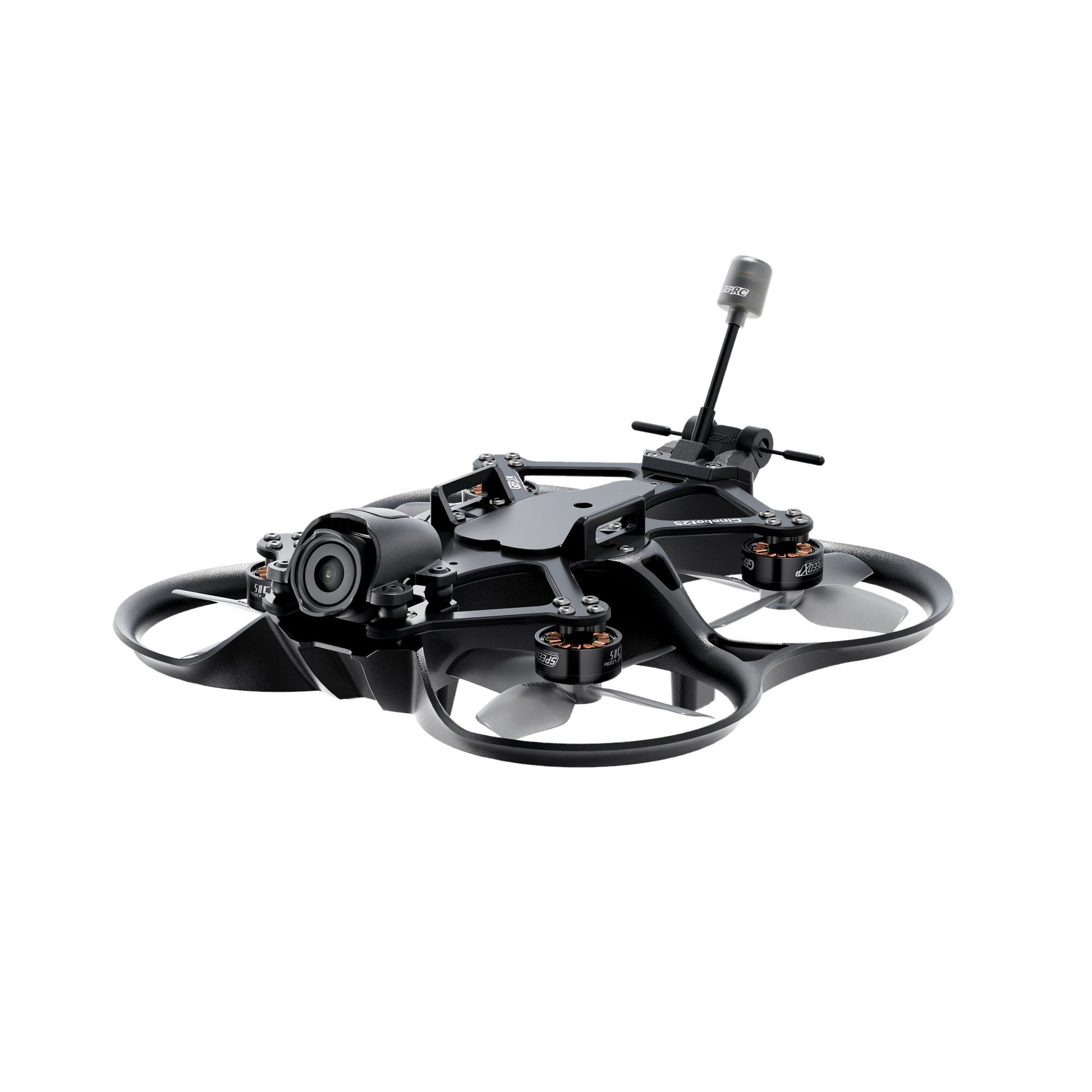

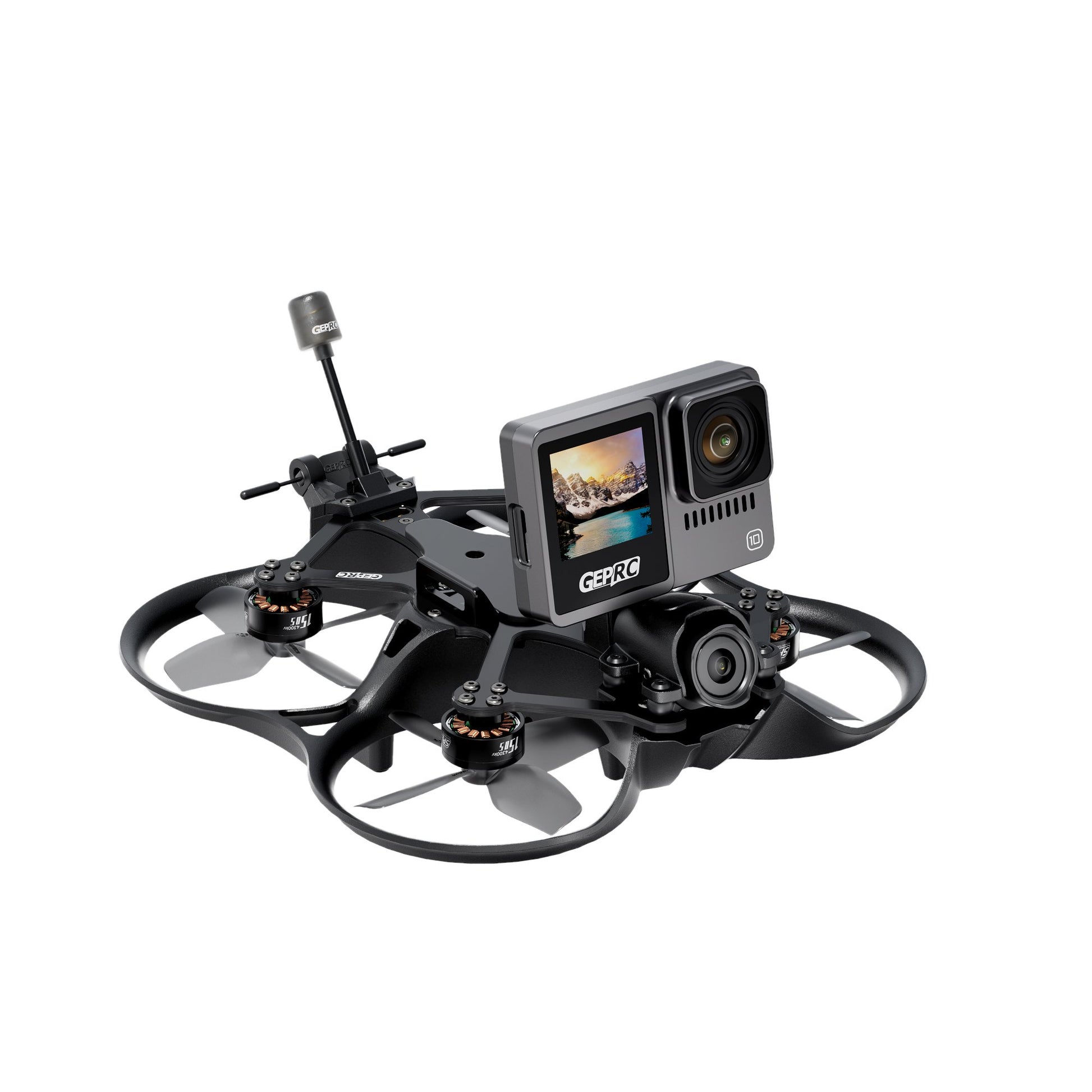

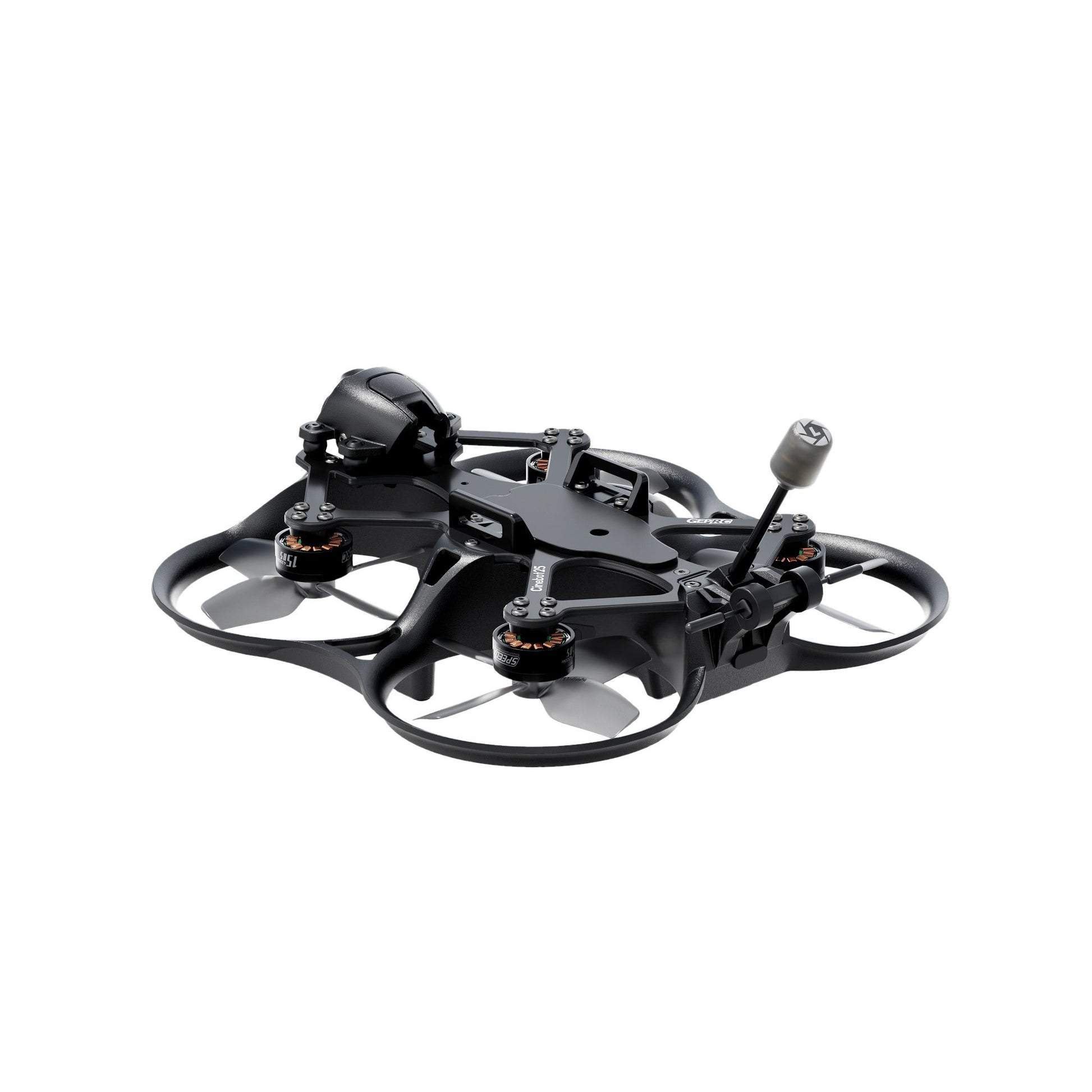

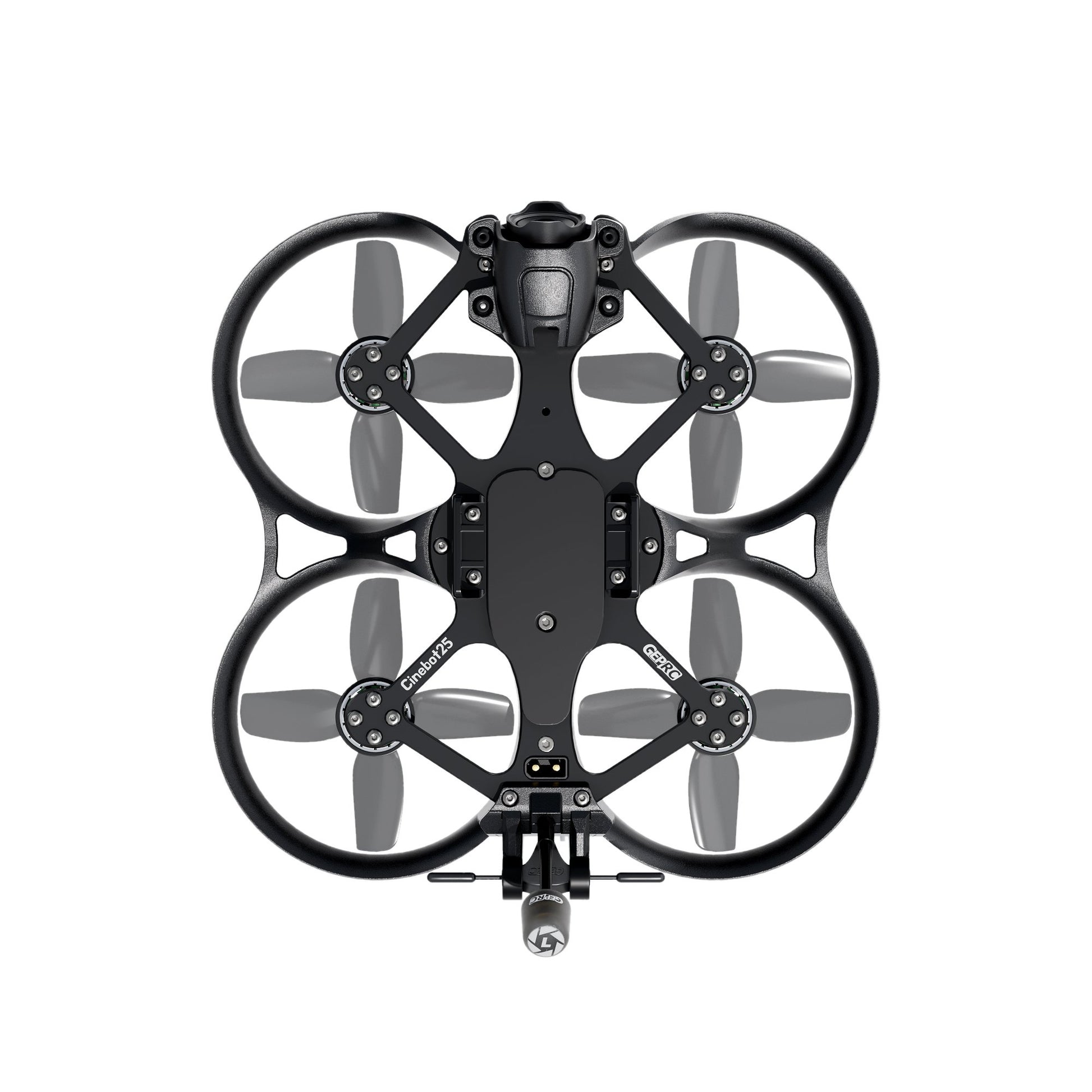

FPV Drone Cinebot25 S Wasp TBSNanoRX

Warning, this version does not include GPS M-10. FPV Drone Cinebot25 S Wasp TBSNanoRX

Functions

Integrated external design. Equipped with a reinforced carbon plate and modified one-piece bottom injection material.
Camera protective cover with damping effect provides better stability when shooting footage.
There are two power versions available: the standard version with SPEEDX2 1404 motor and the superior version with SPEEDX2 1505 motor.
TYPE-C and BOOT button on the back make it easy to set parameters.
Optimized T-shaped antenna mounting silicone component.
Cinebot25 Lite quadcopter is equipped with LiHV 4S 720mAh battery, which weighs less than 250g.
Equipped with new TAKER G4 45A AIO, FC G4 has stable flight computing ability. The integrated 45A BL32 ESC has a strong power capability that supports a refresh rate of up to 128K PWM.
Compatibility between the VTX O3 and the case makes it easy to install memory cards and load footage.
Customized receiver mounting bracket simplifies the internal space.
Diversification of battery selection with a comprehensive method of fixing aluminum components and tapes.

Specifications
Model: FPV Drone Cinebot25 S Wasp TBSNanoRX
Frame: GEP-CT25 Black
Wheel Track: 115mm
FC (Flight Controller): TAKER G4 45A AIO
MCU (Main Control Unit): STM32G473CEU6
Gyroscope: ICM 42688-P
Firmware FC: TAKERG4AIO
ESC (Electronic Speed ​​Controller): BLHeli 32Bit 45A
Motor: SPEEDX2 1505 4300KV
Propeller: HQprop DT63mm x4
Connector: XT30
VTX (Video Transmitter): Runcam Link
Camera: Runcam Wasp
Antenna: Peano 5.8G LHCP UFL
Receiver: TBS
Weight: Cinebot25 S Wasp PNP Version 180g±1g
Recommended Battery: LiPo 4S 650mAh-850mAh
Flight Time: 5′-7’30” (Reference time is based on low speed flight. Actual time depends on individual flight methods.)

Includes
1 x Cinebot25 Quadcopter
1 x HQprop DT63mmx4 Propeller Pack
2 x Anti-Slip Battery Pads
1 x Battery Strap 15150mm
1 x Battery Strap 15*180mm
1 x GoPro Base Without Case
1 x O3 Cooler
1 x Spare Screws Storage
1 x L-wrench 1.5mm
1 x Frequency Pairing Indicator
1 x Damping Ball Puncher

Stock of spare screws includes
2 x Damping Camera Balls
4 x M2 Nuts
6 x M26 Button Head Screws
4 x M218 Button Head Screws
4 x M1.68 Round Head and Collar Screws
4 x M25 Button Head Screws
4 x M1.610 Hex Screws
2 x M212 Button Head Screws
2 x M2 Self-Locking Nuts
2 x Silicone T-Antenna Fasteners
