Pavo35 Brushless Whoop Quadcopter (ELRS 2.4G, does not include HD Digital VTX)
Pavo35 is BETAFPV's revolutionary Cinewhoop. The new frame design can increase additional thrust by 400g and the new Y-shaped aluminum CNC machined 7075 eliminates vibration and bending during flight while accommodating common HD VTX and standard action cameras. The new powerful propulsion system boosts performance for up to 12 minutes of flight, guaranteeing the smoothest, most powerful and responsive flight among 3.5" cinewhoops.
Function
- With a thrust to weight ratio of 9:4:1, this is a 3.5" drone that can be compared to the performance of 5" drones. 12 minutes of flight ensures that the pilot gets a lot of footage in one go.

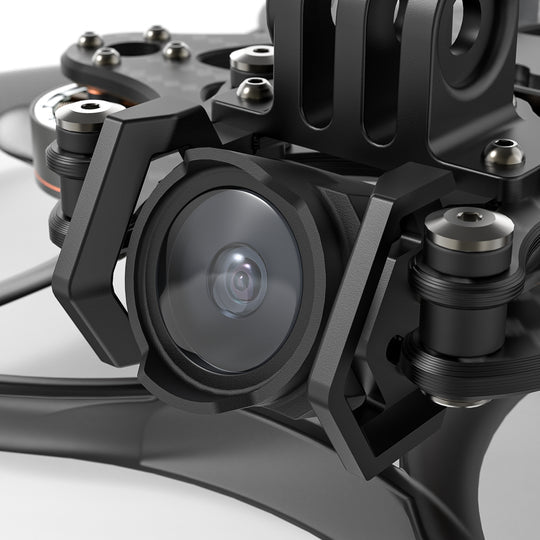

- The innovative Y-shaped CNC metal support structure improves the structural strength, torsion resistance and vibration resistance of the whole machine compared to the classic aluminum frames, making the drone respond faster and smoother.
- The rocket engine-inspired propeller shroud design improves lateral stability and increases thrust by 400g compared to non-propeller shroud models, giving the Pavo35 stronger performance and a better flying feel.
- The frame is riveted and assembled. Additionally, the new design allows for easier installation and stronger construction.
- Offers exceptional mounting options and supports not only DJI O3, Walksnail and HD VTX installations, but also works seamlessly with standard action cameras such as GoPro 12, DJI Action 4 and Insta One R.
- F722 35A AIO Brushless Flight Controller comes with F722 chip, this board provides great performance and high processing speed up to 128k PWM frequency,

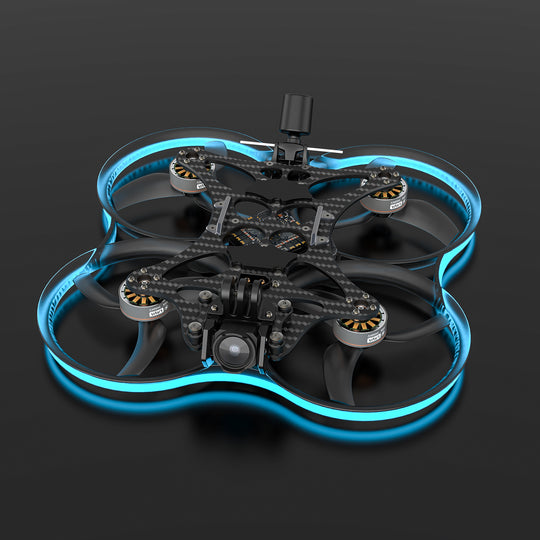

- The COB light strip assembly, which can be turned on and off remotely, allows pilots to enjoy flying in any light conditions.
Specifications
Model: Pavo35
Size: 148 mm

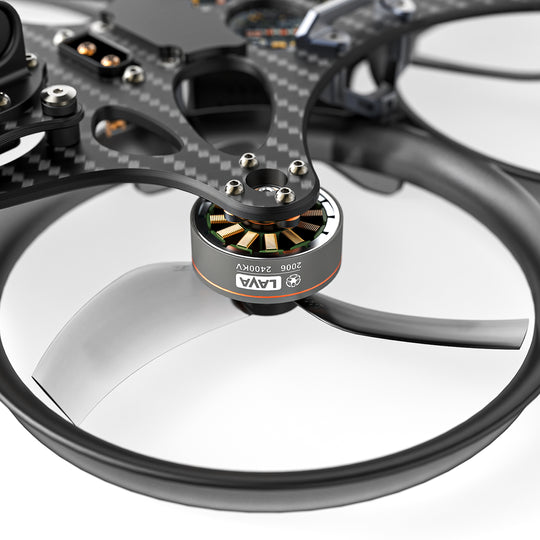

Engine: 2006, 2400KV
Propellers: GF D90S-3
Battery Connector: Fixed XT60

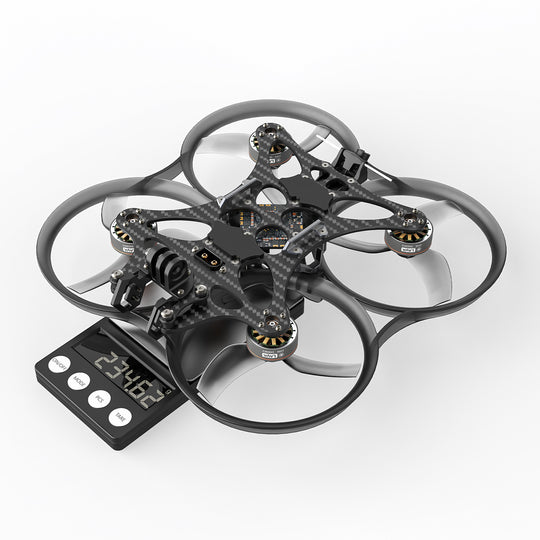

Weight (without DJI O3 air unit, battery): 238g
Battery: 6S 1050mAh - 1400mAh
Flight time: 10-12 minutes
Recommended camera: GoPro12, DJI Action4, Insta One R
FC: F722 35A AIO V2
VTX Support: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit/RUNCAM Link Analog Camera
Camera support: DJI O3, Avatar HD Pro, Caddx, RUNCAM series 19mm & 20mm HD, Analogue 19mm
RX version: ELRS

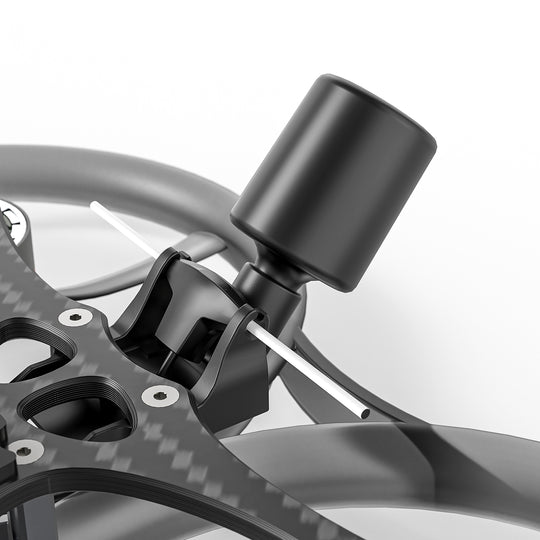

Camera mount: GoPro Mount
The package contains:
1 x Pavo35 brushless quadcopter | ELRS2.4G
1 x COB Light Strip Accessory Pack
4 x GemFan D90S 3-Blade Propellers (1.5mm Shaft) (Transparent Grey)
1 x GoPro Mount
1 x Camera mount (left)
1 x Camera Mount (Right)
4 x M1.6 * 8 Hex Flat Head Screw
4 x M2 * 3 Hex Flat Head Screw
4 x M2 * 8 Hex Flat Head Screw
4 x M2 * 4 Hex Head Screw
2 x M2 * 5 Hex Head Screw
2 x M2 * 8 hex head screw
1 x M5*18 hex head screw
1 x M5 * 5 Anti-loose nut
1 x H1.27 hex key
1 x Service card
1 x Instructions for use of the frame
1 x Flight controller instruction manual
Note: Camera, Battery and HD Digital VTX (DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit/RUNCAM Link and Analog Camera) are not included.
