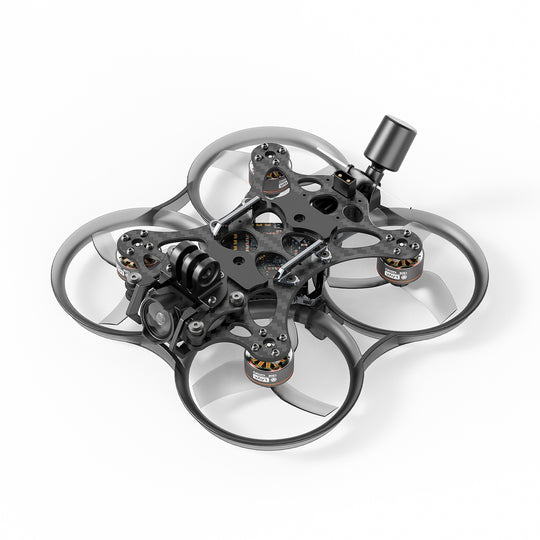

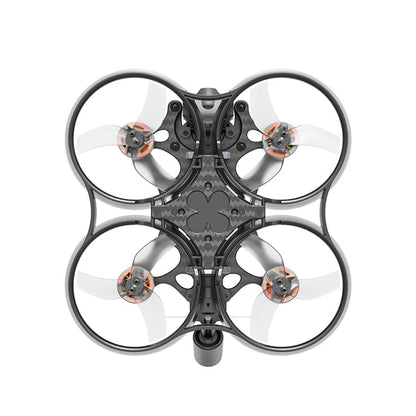

Pavo25 V2 Brushless Quadcopter (TBS, does not include HD Digital VTX)
Pavo25 V2 is the new cinewhoop drone from BETAFPV. The improved design can increase the additional pull by 200g. A new CNC 7075 Y-shaped frame that eliminates distortion and bending in flight while accommodating common HD VTX and Naked Action Cams. The new powerful propulsion system boosts power for up to 8 minutes of flight, guaranteeing the smoothest, most powerful and most responsive flight.
Function
- The Pavo25 V2 is specially designed to seamlessly integrate with the DJI O3 air unit, thus addressing the limitation of the previous Pavo25 model to be compatible with the O3.

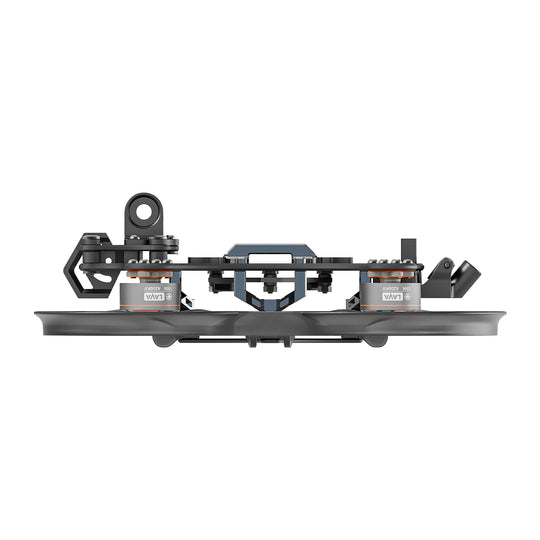

- The innovative Y-shaped CNC metal support structure will improve the structural strength, torsion resistance and vibration resistance of the whole machine compared to aluminum frames, making it respond faster and smoother.

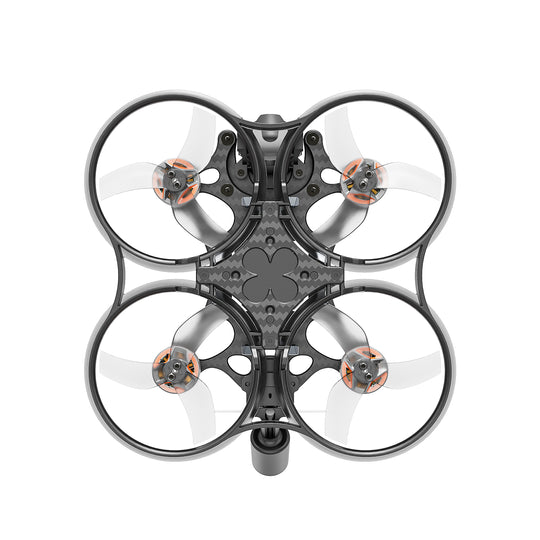

- Propeller shroud design, inspired by a rocket engine, improves lateral stability and increases thrust by 200g compared to non-propeller shroud models, giving the Pavo25 V2 stronger performance and better flight feel.
- The frame is riveted and assembled. The new appearance and design concept allow for easier installation and stronger construction.
- Offers exceptional build options and supports not only DJI O3, Walksnail and HD VTX installations, but also works with lightweight cameras such as Naked GoPro 12, DJI Action 2 and InstaGo 3.

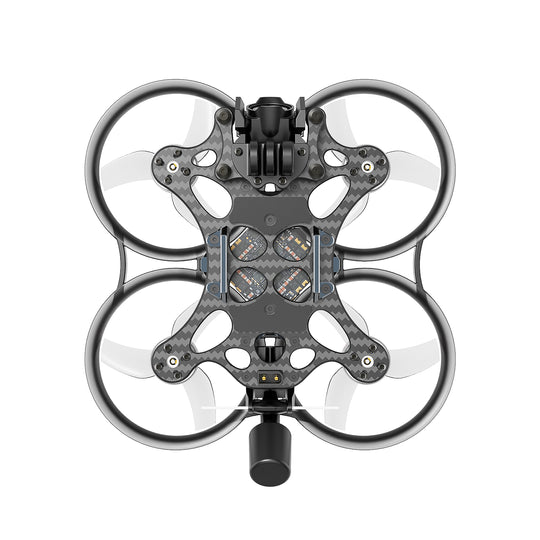

- F722 35A AIO Brushless Flight Controller comes with F722 chip, this board provides great performance and high processing speed up to 128k PWM frequency,

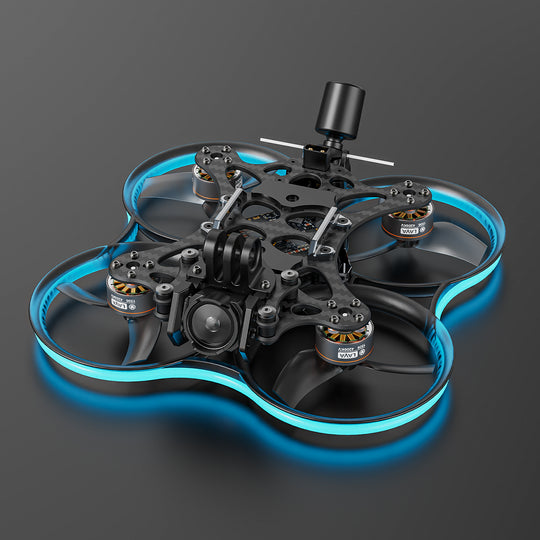

- The COB light strip assembly, which can be turned on and off remotely, allows pilots to enjoy flying in all light conditions.
Specifications
Item: Pavo25 V2 Brushless Quadcopter
Size: 112 mm
FC: F722 35A AIO V2

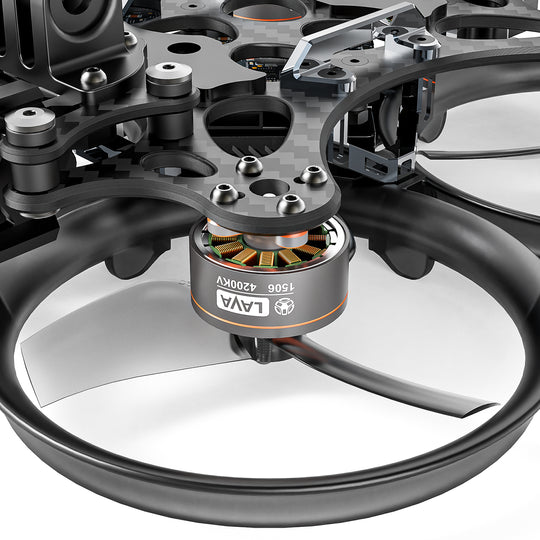

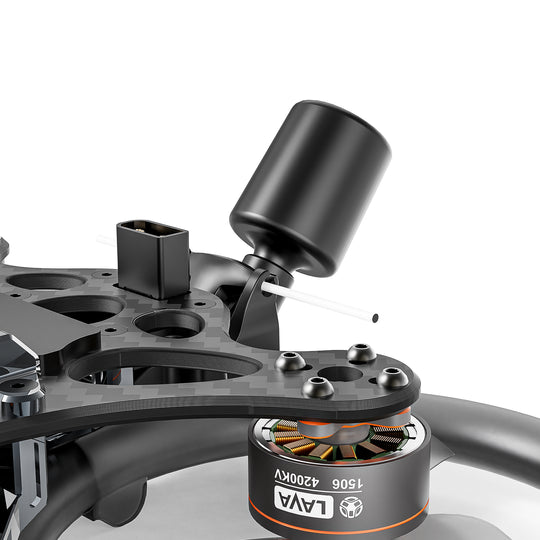

Engine: 1506 | 4200 KV
Battery Connector: Fixed XT30
Frame: Pavo25 V2 Brushless Whoop Frame
VTX Support: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit/RUNCAM Link, Analog Camera

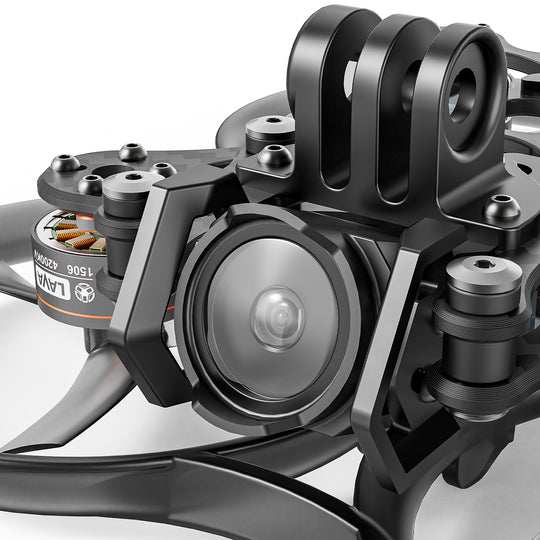

Camera support: DJI O3, Avatar HD Pro Caddx, RUNCAM series 19mm & 20mm HD, Analogue 19mm
Flight time: 6~8 min
Propeller: GF D63 3-Blade
RX version: TBS
Recommended battery: 4S 650mAh – 850mAh
The package contains
1 x Pavo25 V2 Brushless Quadcopter (TBS)
1 x COB Light Strip Accessory Pack
4 x GF D63 3-Blade Props 1.5mm Shaft (Clear Grey)
1 x Gopro Mount
1 x Camera mount (left)
1 x Camera Mount (Right)
4 x M1.6 * 8 Hex Flat Head Screw
4 x M2 * 3 Hex Flat Head Screw
4 x M2 * 8 Hex Flat Head Screw
4 x M2 * 4 Hex Head Screw
2 x M2 * 5 Hex Head Screw
2 x M2 * 8 hex head screw
1 x M5*18 hex head screw
1 x M5 * 5 Anti-loose nut
1 x H1.27 hex key
1 x Service card
1 x Instructions for use of the frame
1 x Flight controller instruction manual
Note: Camera, battery and HD Digital VTX are not included.
