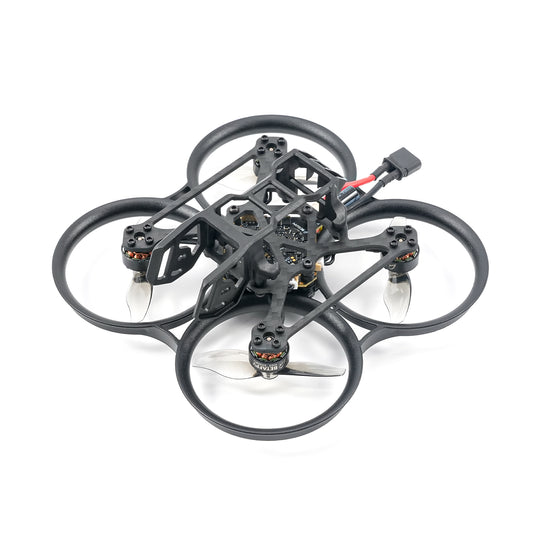

Pavo20 Brushless Whoop Quadcopter (for DJI O3 HD Digital VTX) ELRS 2.4G
The Pavo 20 is designed as a 2″ DJI O3 cinewhoop under 150g, also compatible with Caddx Vista and RunCam Link. The innovative design with a reinforced cross-section made of PA12 material, ingeniously using the principles of aerodynamics and working flawlessly with the improved powerful 3S drive system, will provide unrivaled traction. The camera holder has undergone a comprehensive redesign, ensuring precise protection. Easily accommodates COB LED strips. It delivers unrivaled indoor and outdoor flight performance.
Function
- Pavo20 is an ideal choice for small action cameras like the 2'' DJI O3 cinewhoop under 150g.

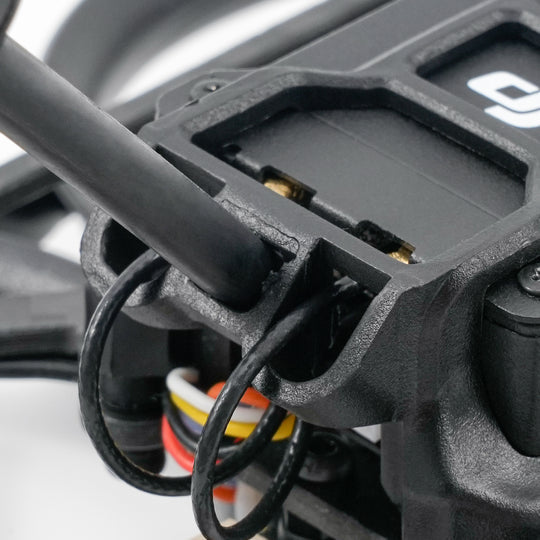

- Integrated HD VTX mount, effortless installation. The side panel of the camera and the design of the 4-point mounting hole precisely protect the lens and guarantee uncompromising protection of the lens even in the event of an impact.
- Innovative design with a reinforced cross-section of PA12 material, ingeniously using the principles of aerodynamics and flawlessly cooperating with the improved powerful 3S drive system, will provide unrivaled traction.
- The new F4 2-3S 20A AIO FC V1 weighs only 5.92 grams and is optimized for HD digital VTX. Its enhanced processing power, high response speed and stable flight make it an ideal choice for HD wops.
Please note that the HD VTX and camera are not included.
Specifications
Model: Pavo20
Size: 90 mm

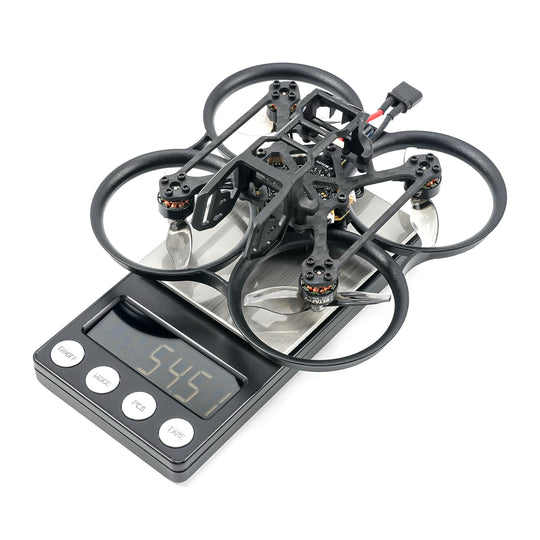

Empty weight (without battery): 54.51 g
VTX support: DJI O3 Air Unit / Caddx Vista Kit / RunCam Link
Camera Support: DJI O3 Camera / Caddx Series / RunCam Series 19mm, 20mm
Camera filter installation: Vertical
Battery slot: 20 mm * Unlimited height
Recommended battery: Only 3S 450mAh~650mAh

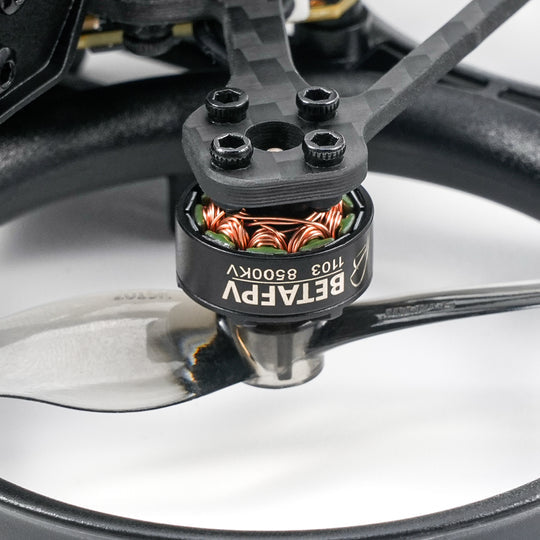

Motor: 1103 8500KV AC
Propeller: GF 2015 2-Blade Propeller
Flight time (8.4V~6.8V): 5min (3S 450mAh)
FC: F405 2-3S 20A ELRS V1.0 FC
RX version: ELRS
Battery connector: XT30
Quadcopter Color: Black
Recommended parts:
FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
Engine: 1103 8000kv/8500kv/11000kv
Propellers: GF 2015-2B, GF 2020-4B
Battery: 3S 450mAh~650mAh
VTX: DJI O3, Caddx Vista, RunCam Link
Filter: BETAFPV ND filter
The package contains:
1 x Pavo20 brushless quadcopter (without HD VTX and camera)
1 x Pavo20 HD VTX Holder
1 x HD VTX Bracket Screw Set

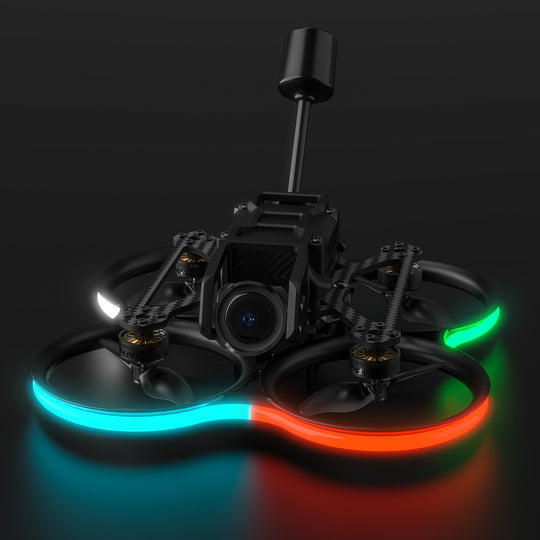

1 x Pavo Series COB LED Strip Accessory Set (Ice Blue)
4 x GemFan 2015 2-blade propeller
1 x Type-C Adapter Board
1 x 4-pin adapter cable
