Pavo 25 Whoop quadcopter (TBS, HD digital version)

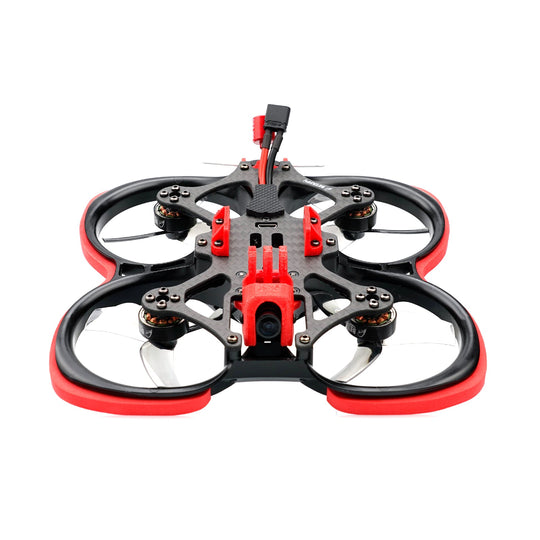

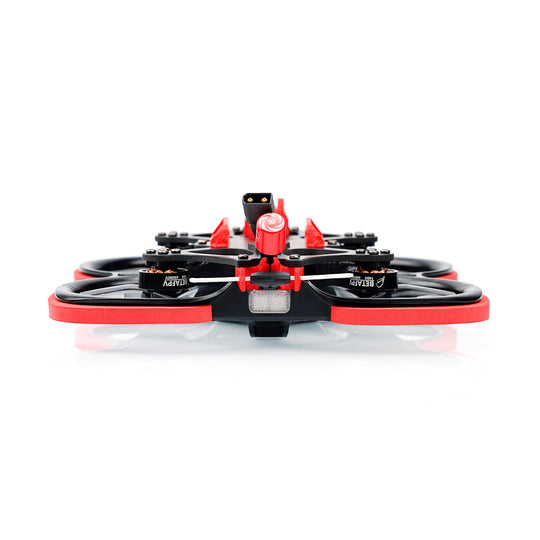

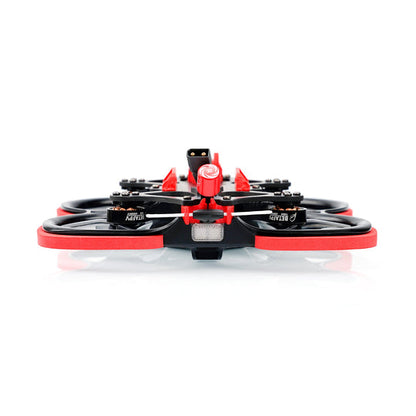

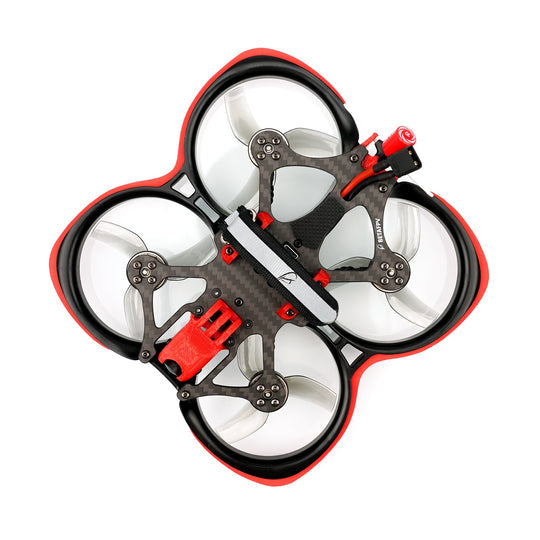

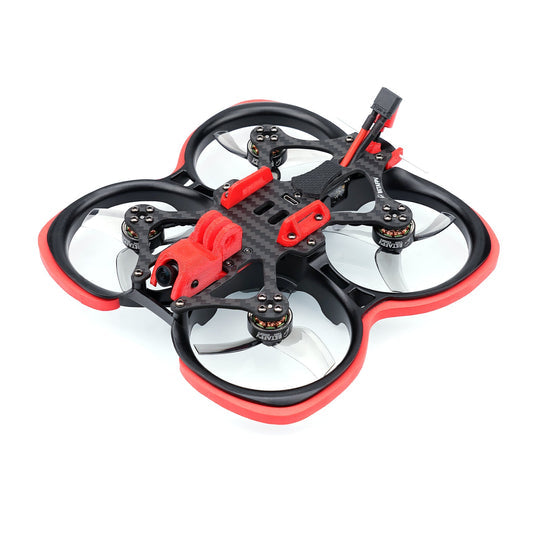

The BETAFPV Pavo25 Whoop Quadcopter is a 2.5-inch FPV drone designed for indoor and outdoor flying. The Pavo25 requires only 6 screws to assemble the drone, simplifying the construction process. It is equipped with a CNC Vista adapter with efficient Caddx Vista HD Digital VTX cooling, it has a larger area for heat dissipation. This ensures safe VTX RF power, especially important for long-haul flights. Made from high-quality PA12 material and 2.5mm carbon fiber, the Pavo25 boasts a strong and durable frame. Optimized vibration dampening structure for the camera mount provides image stability during flight. The drone includes a USB port on the top of the frame for convenient configuration. When carrying an action camera such as SMO 4K or DJI Action 2, users can adjust the position of the battery and add a second battery strap to maintain the center of gravity and prevent it from leaning to one side.
Pavo25 Whoop is available in HD and Analog VTX versions:
- HD digital VTX version provides colorful and excellent image with high frame rate 720P/120FPS video in Nebula Pro Nano camera.
- Analog VTX version includes Caddx Baby Ratel2 camera with 1/18" inch starlight HDR sensor and A03 400mW VTX.
Specifications:
Version: Caddx HD Digital VTX
Weight: 153.3g without battery and action camera
Size: 108 mm
Frame: Pavo25 Frame Kit

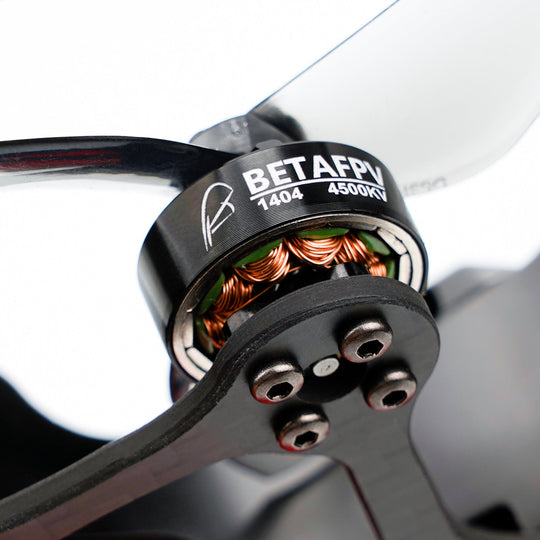

Motor: Brushless motor 1404 4500KV
Battery connector: XT30
Propeller: Gemfan D63-3B (grey)
Flight Controller: F405 AIO 20A Toothpick V4 BMI270
VTX: Caddx Nebula Pro Nano Vista Kit (HD Digital)
Adjustable camera angle: 0°-50°
Receiver version: TBS
Recommended battery: 4S 750mAh/4S 850mAh (not included)
Recommended camera mount: SMO 4K, DJI Action 2
Flight time (reference only): 7.5 minutes (HD), using 4S 750mAh battery without action camera
The package contains:
1 x Pavo25 Whoop Quadcopter (HD Digital VTX)
4 x Gemfan D63 (2CW+2CCW) 3-blade propellers
1 x spare 180mm battery strap
2 x spare EVA foam tape (black)
2 x spare EVA foam tape (red)
4 x 3M double-sided adhesive tapes
1 x SMO4K camera mount
1 x SMO4K Power Cable
1 x M5*18 screws
1 x M5 anti-slip nut
10 x M2*7 screws
