Pavo 25 Whoop quadcopter (TBS, analog version)
The BETAFPV Pavo25 Whoop Quadcopter is a 2.5-inch FPV drone designed for indoor and outdoor flying. This ensures safe VTX RF power, especially important for long-haul flights. Made from high-quality PA12 material and 2.5mm carbon fiber, the Pavo25 boasts a strong and durable frame. The optimized vibration damping structure for the camera mount provides a stable image during flight. The drone includes a USB port on the top of the frame for convenient configuration. When carrying an action camera such as SMO 4K or DJI Action 2, users can adjust the position of the battery and add a second battery strap to maintain the center of gravity and prevent it from leaning to one side.
Pavo25 Whoop is available in HD and Analog VTX versions:
- HD digital VTX version provides colorful and excellent image with high frame rate 720P/120FPS video in Nebula Pro Nano camera.
- Analog VTX version includes Caddx Baby Ratel2 camera with 1/18" inch starlight HDR sensor and A03 400mW VTX.
Specifications:
Version: Analog
Weight: 140 g without battery and action camera
Size: 108 mm
Frame: Pavo25 Frame Kit

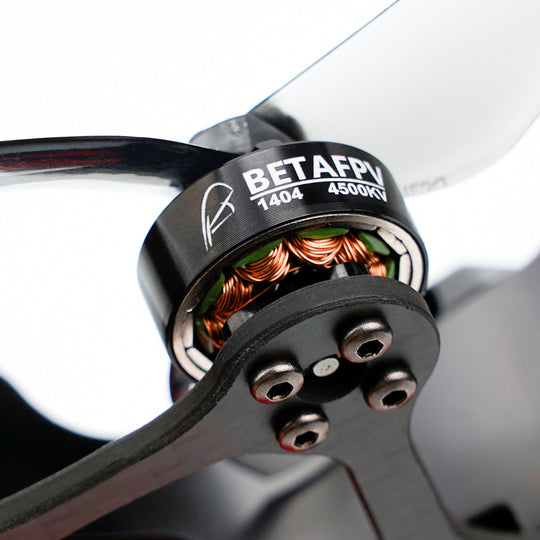

Motor: Brushless motor 1404 4500KV
Battery connector: XT30
Propeller: Gemfan D63-3B (grey)
Flight Controller: F405 AIO 20A Toothpick V4 BMI270
VTX: Caddx Baby Ratel2+A03 400mW 5.8G (Analog)
Adjustable camera angle: 0°-50°
Receiver version: TBS
Recommended battery: 4S 750mAh/4S 850mAh (not included)
Recommended camera mount: SMO 4K, DJI Action 2
Flight time (reference only): 8.5 minutes, using 4S 750mAh battery without action camera
The package contains:
1 x Pavo25 Whoop Quadcopter (Analog VTX)
4 x Gemfan D63 (2CW+2CCW) 3-blade propellers
1 x spare 180mm battery strap
2 x spare EVA foam tape (black)
2 x spare EVA foam tape (red)
4 x 3M double-sided adhesive tapes
1 x SMO4K camera mount
1 x SMO4K Power Cable
1 x M5*18 screws
1 x M5 anti-slip nut
10 x M2*7 screws
