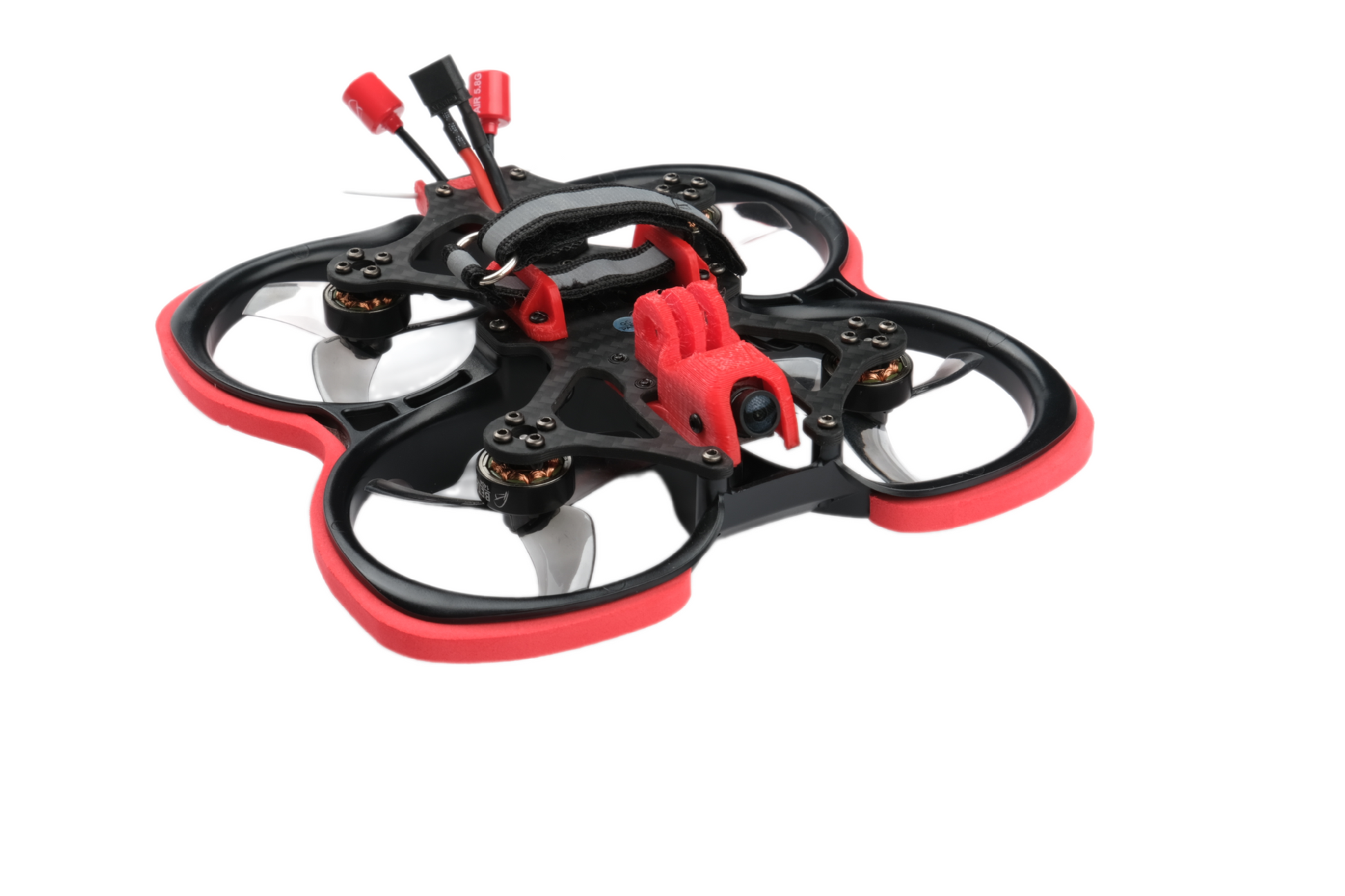

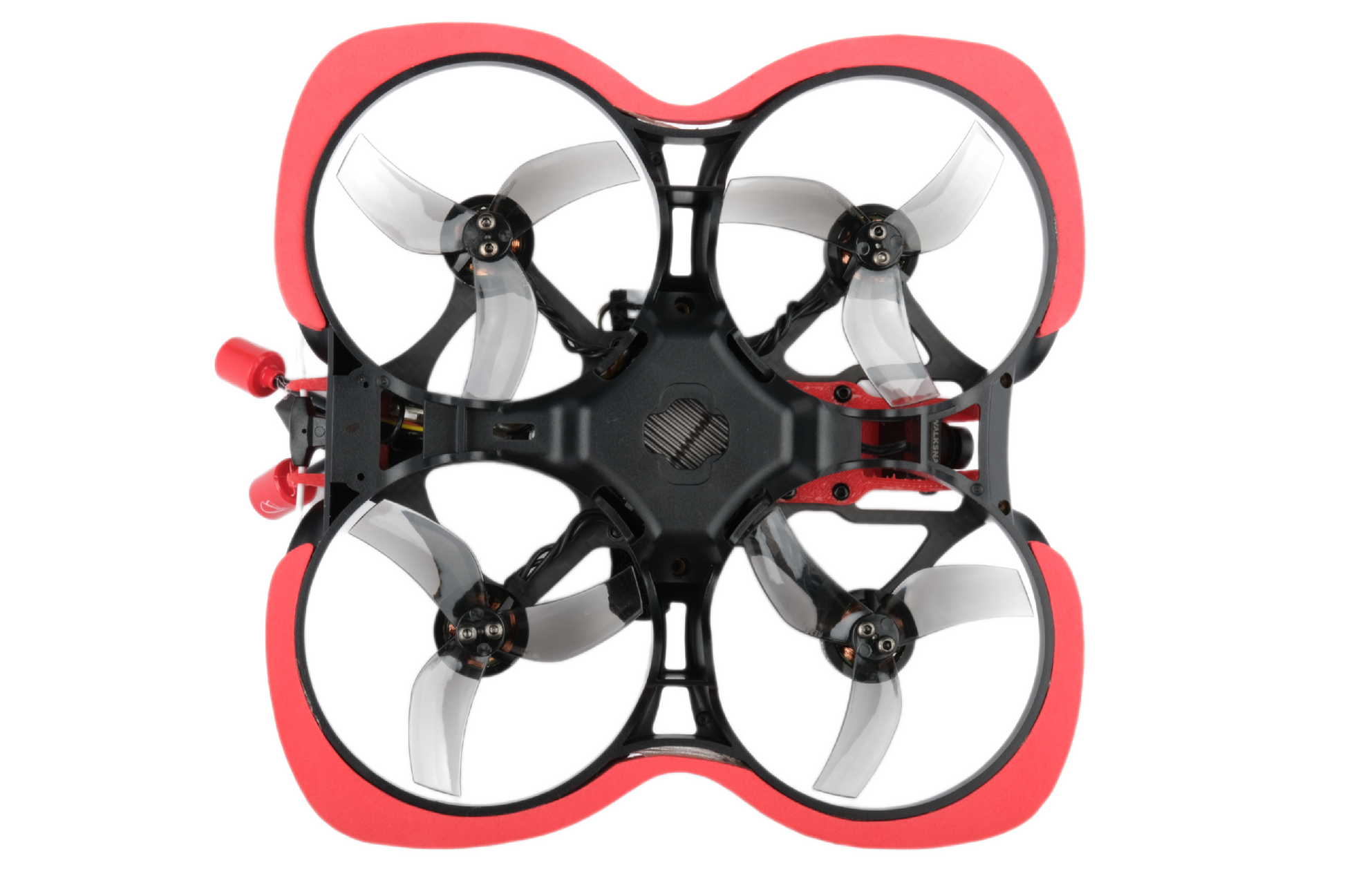

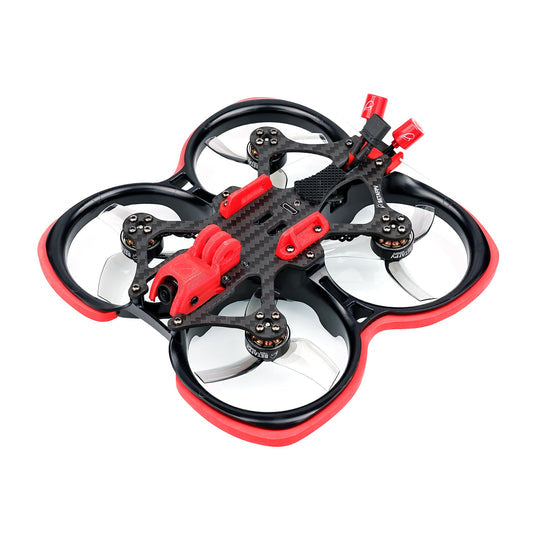

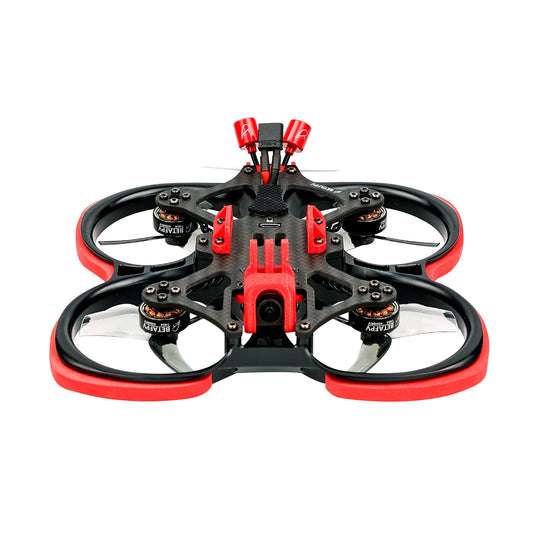

Pavo 25 Whoop Quadcopter Kit (ELRS 2.4G, Walksnail Digital Version)

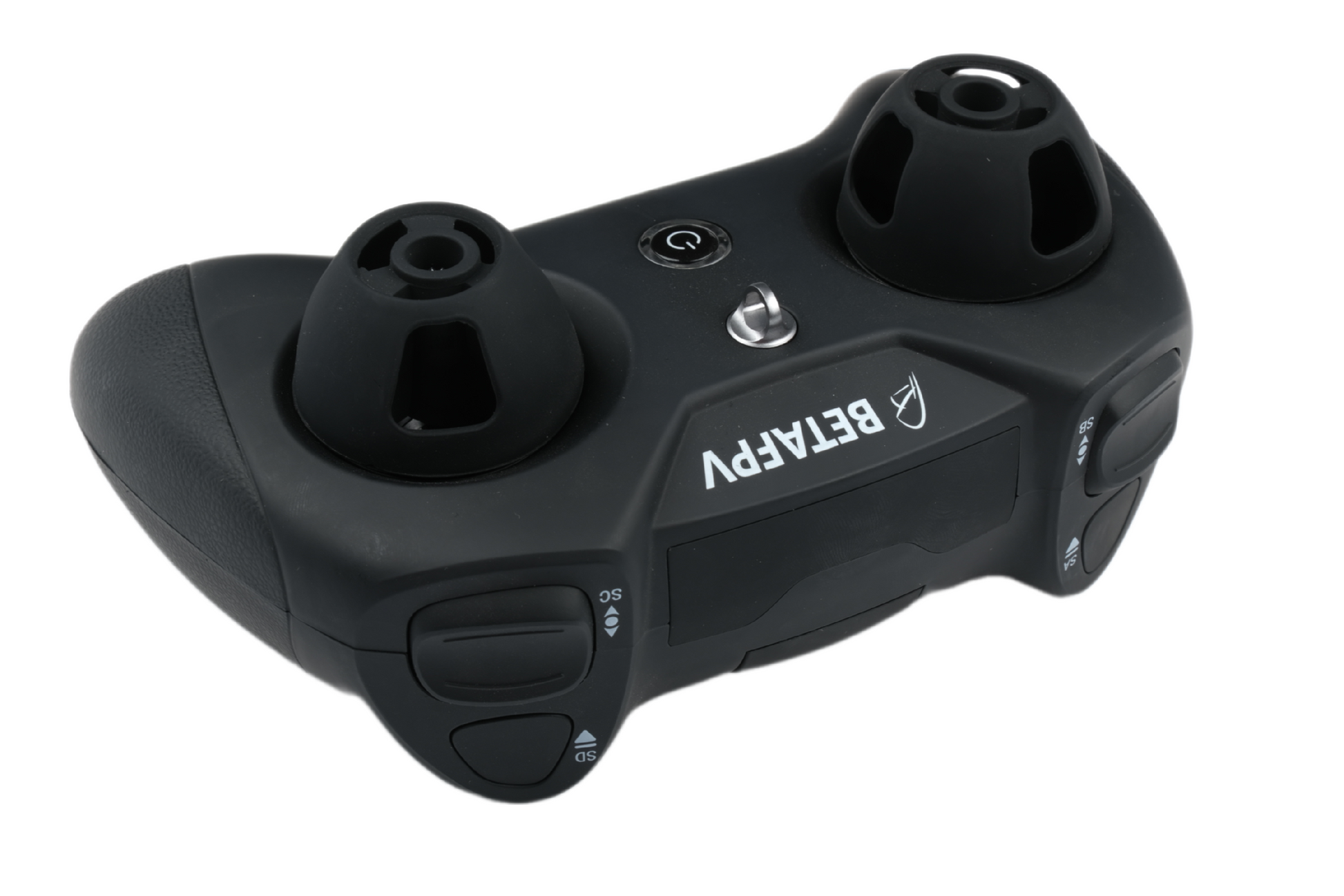

Pavo25 Walksnail Whoop Kit includes Pavo25 Whoop Quadcopter Walksnail HD VTX and LiteRadio 3 Radio Transmitter for an unbeatable flight experience.
Key features:
- Easy assembly with only 6 screws, which simplifies the assembly process and optimizes the assembly structure for trouble-free use.
- Equipped with a CNC Vista Adapter that ensures efficient heat dissipation for the Walksnail Avatar HD Digital VTX, which is essential for safe RF performance during long flights.
- The innovative design of the pusher frame with covers generates increased buoyancy, thereby increasing the durability and propulsion of the quadcopter.
- Made of high quality PA12 material and 2.5mm carbon fiber, which provides a strong and durable frame for stable flights and optimal vibration damping for the camera mount.

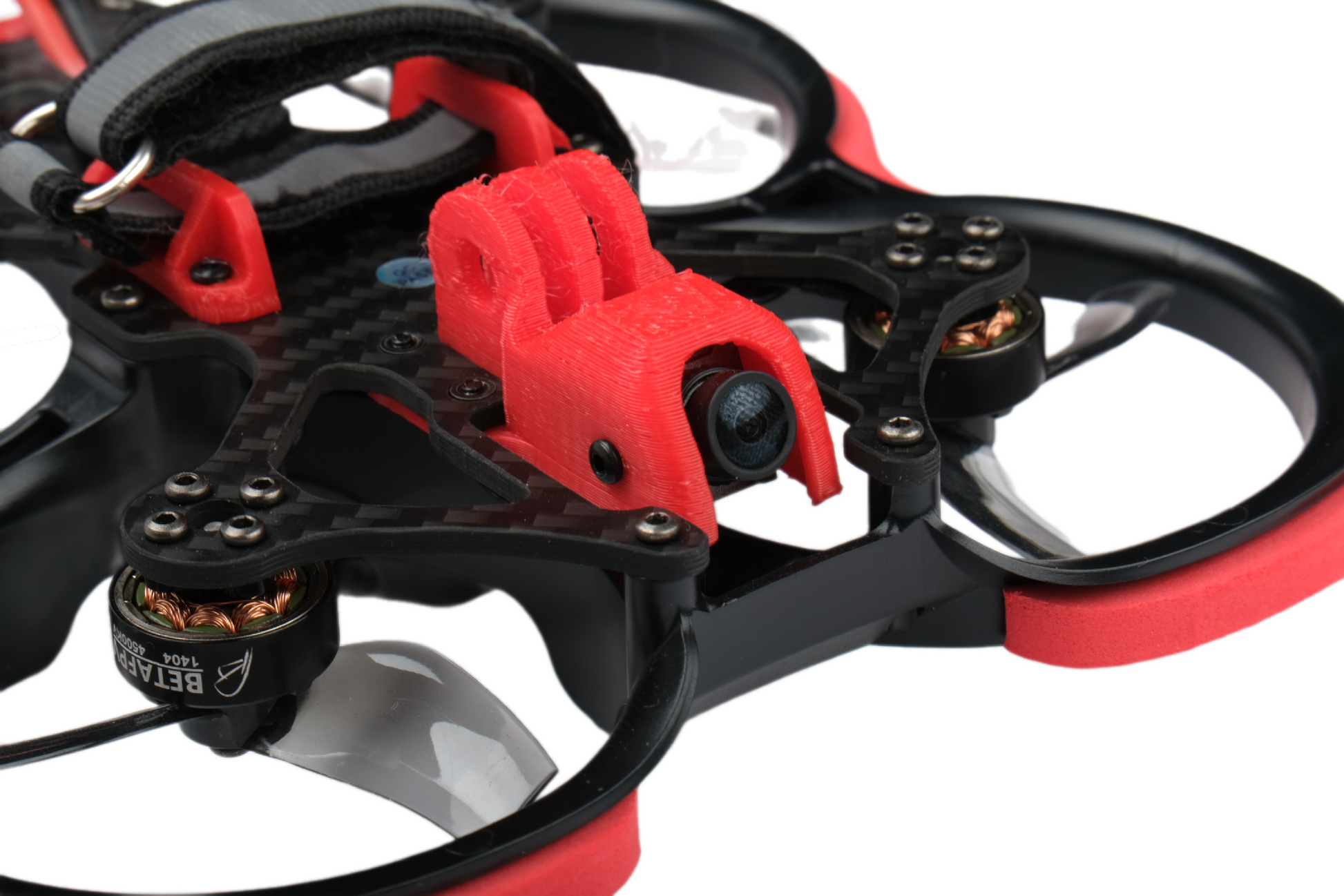

- User-friendly features, including a convenient top USB port, an LED back light with colored lights for visual effect in the dark, and a balanced layout for action camera compatibility.
- Equipped with the Walksnail Avatar HD Kit, which offers 1080P ultra-low latency recording, dual antenna design for long-term transmission, 8GB of built-in storage and Betaflight support for full OSD display via Canvas Mode on Avatar VTX.

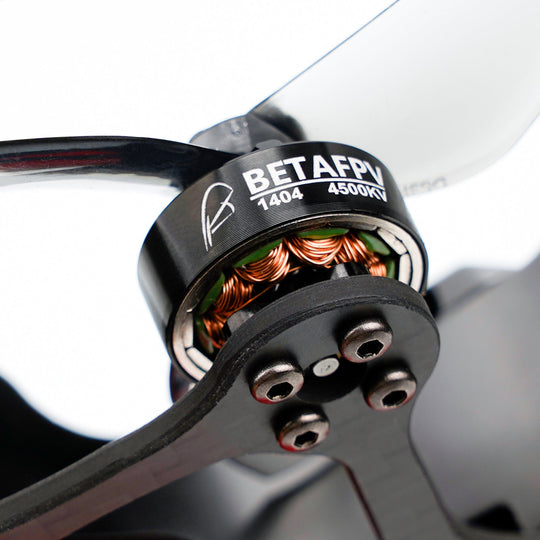

Specifications: Weight: 146g (without battery and action camera) Wheelbase: 108mm Frame: Pavo25 Frame Kit Motor: 1404 4500KV Brushless motor Battery connector: XT30 Battery: 4S 850mAh (included) Transmitter: LiteRadio 3 Radio Transmitter (ExpressLRS 2.4G) Propeller: Gemfan D63-3B (Grey) Controller: F405 AIO 20A Toothpick V4 BMI270 VTX: Walksnail Avatar HD Digital Kit (HD Digital) Adjustable camera angle: 0°-50° Receiver version: ELRS 2.4G Recommended camera: SMO 4K, DJI Action 2 Flight time (for reference only): 7 min/5 min with DJI Action2 camera when using 4S 750mAh battery

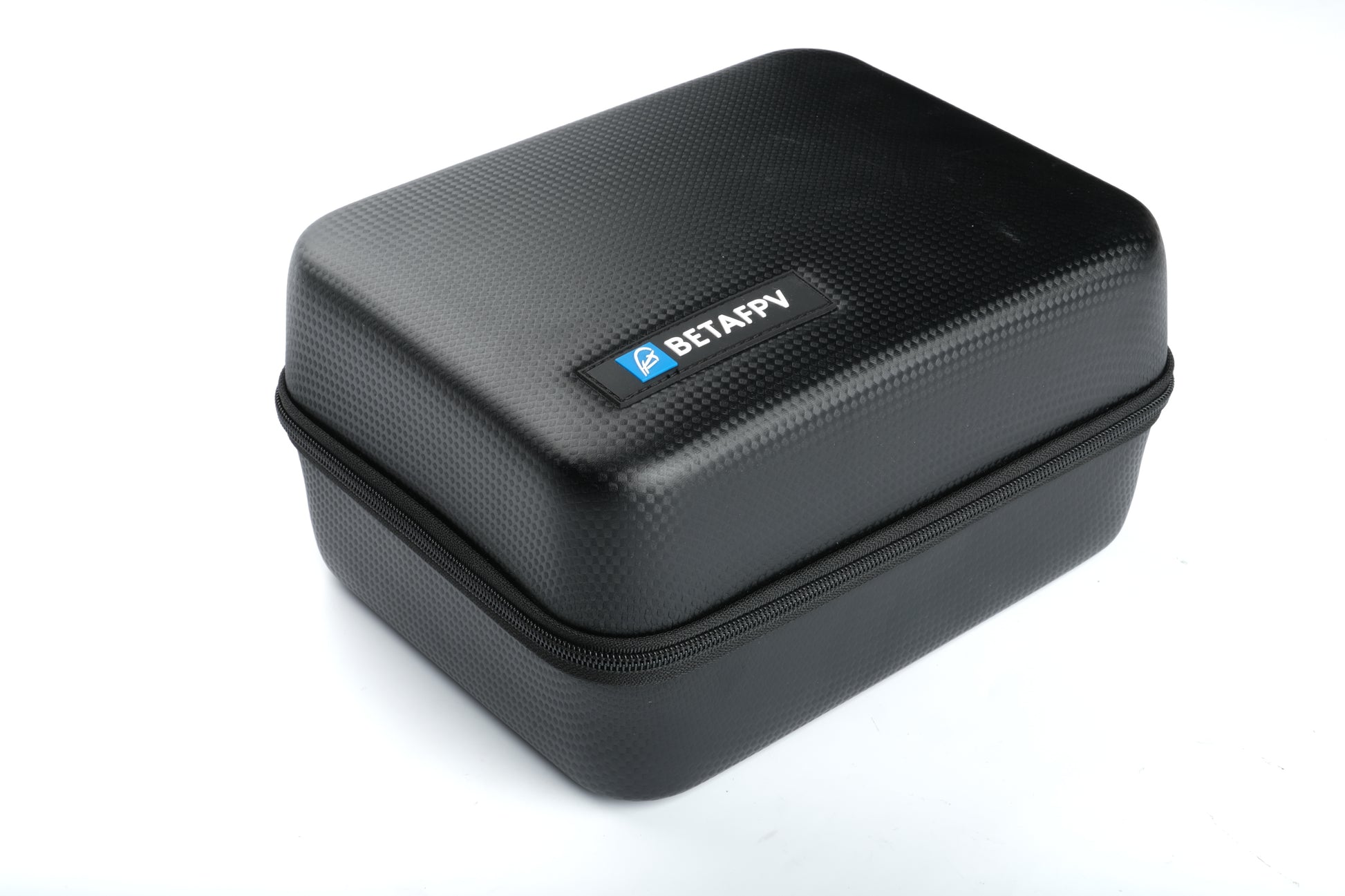

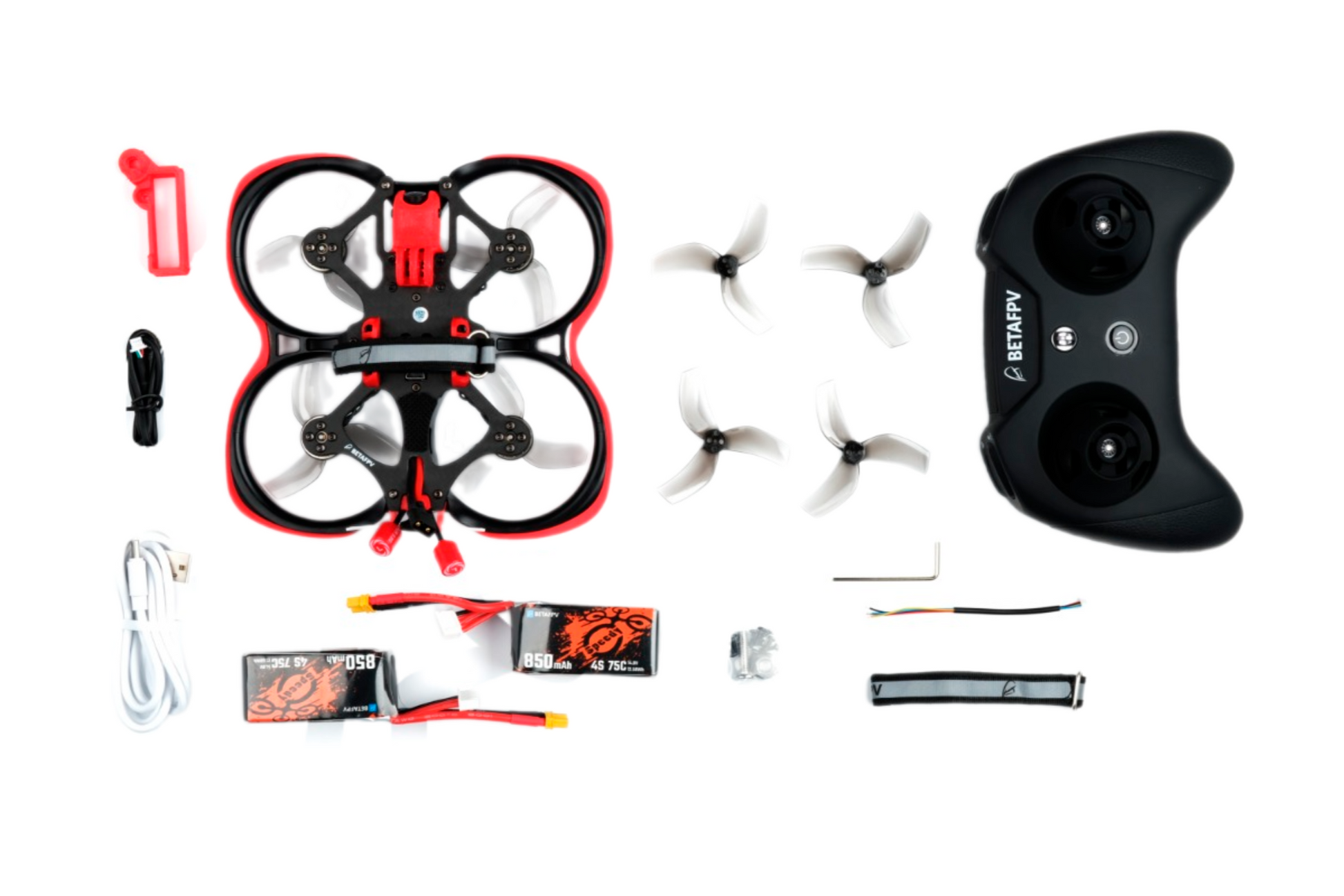

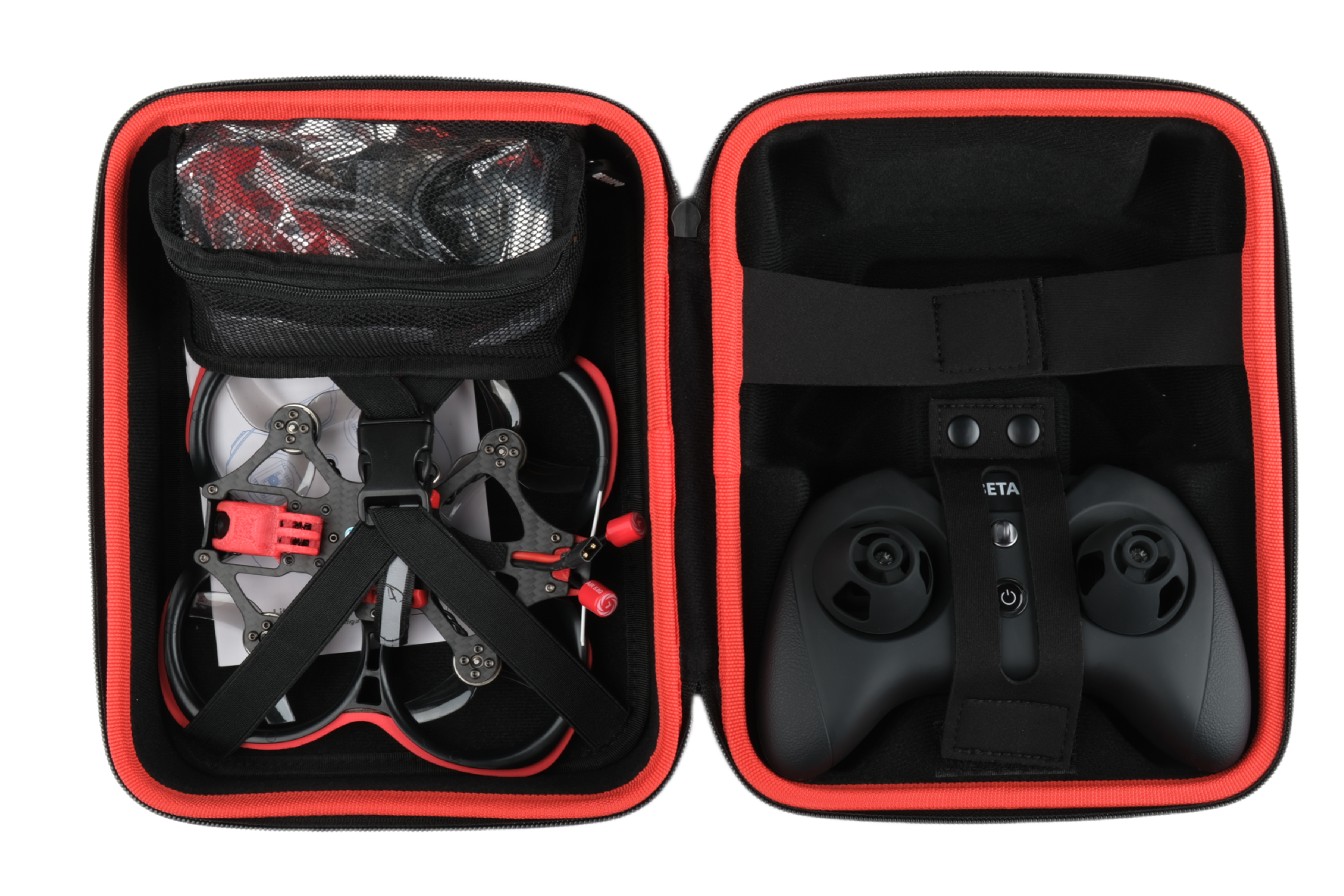

Package includes: 1 x Pavo25 Whoop Quadcopter (Walksnail HD VTX) 1 x LiteRadio 3 Radio Transmitter (ExpressLRS 2.4G) 4 x Gemfan D63 (2CW+2CCW) 3-blade Propellers 2 x 4S 850mAh Battery (XT30) 1 x 4-PIN Avatar Kit USB Cable 1 x Type-C USB Cable 1 x Portable Storage Bag
