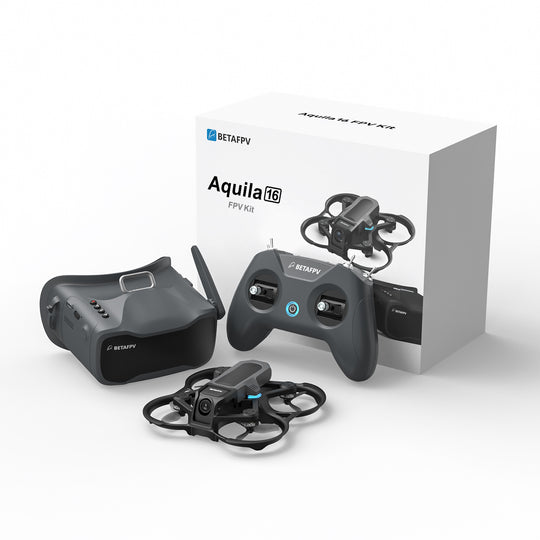

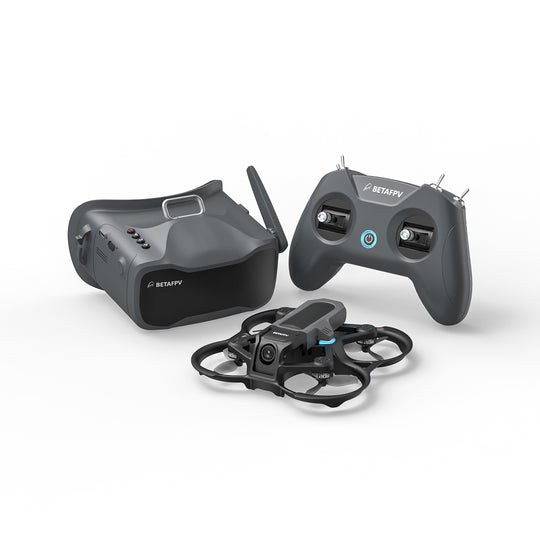

Aquila16 FPV kit
The Aquila16 FPV kit is a more advanced kit for beginners. It is an inverted quadcopter with a modular aerodynamic design. The flight time is up to 8 minutes, the maximum distance is 200 meters. Stable hovering and improved frame protection allow safe flight and better control. The kit includes VR03 FPV goggles and a Literadio 2 SE radio transmitter with the latest ELRS 3.0 firmware.
Specifications:
Item: Aquila16 FPV Kit
Battery: Aquila16 Special Battery|1100mAh (default), 650mAh (optional)
Camera: C02
Camera angle adjustment: 15°-30°
Charger used: BT2.0 battery charger and V2 voltage tester
Flight controller: Aquila16 V1.0
Flight modes: N/S/M mode
Flight time (4.35V-3.4V): 8 min
Frame material: black PA12
Goggles: VR03 FPV Goggles
Engines: 1102|18000KV
Power connector: BT2.0 connector
Propellers: Beta-45mm 3-blade props
Radio transmitter: LiteRadio 2 SE radio transmitter
Receiver: ELRS 2.4G 3.0 serial version
Receiver binding: Turn on the power 3 times
Video transmitter (VTX): Aquila 25-350mW VTX
VTX power and range: 25mW (range: 80m), 350mW (range: 200m)
Wheelbase: 86 mm

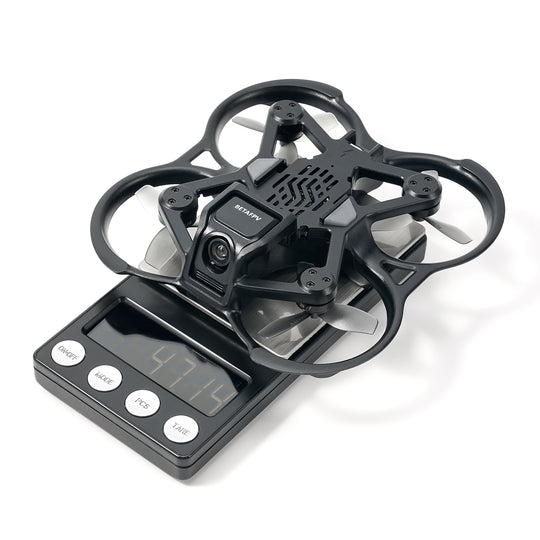

Weight (without battery): 47.1 g
Take-off weight (with 1100mAh battery): 72.5g

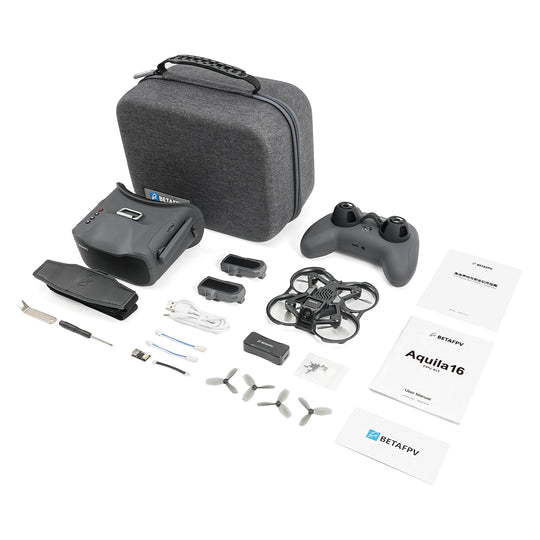

The package includes:
1 * Aquila16 Brushless Quadcopter
1 * LiteRadio 2 SE radio transmitter
1 * VR03 FPV Goggles
4 * Beta-45mm 3-Blade Propellers (Spare Set)
2 * Exclusive Aquila16|1100mAh battery
2 * Charging adapter cable
1 * BT2.0 battery charger and V2 voltage tester
1 * 4 pin adapter cable
1 * USB Charging Cable (Type C)
1 * Phillips screwdriver
1 * Exclusive set of screws (spare)
1 * Propeller Removal Tool

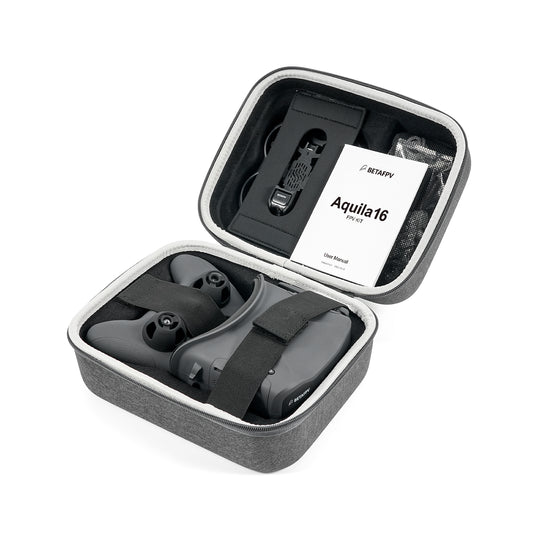

1 * Portable Storage Bag
1 * User manual
1 * USB Type-C adapter board (used in conjunction with 4-pin adapter cable for FC configuration)
