The WiFiLink camera module is designed for high definition recording, providing smooth performance at 1080P resolution with 60FPS and 90FPS or 720P at 120FPS. Thanks to the advanced IMX415 sensor, it offers excellent image quality and a wide 160° viewing angle that ensures complete coverage of your projects.
Universal power supply and compact design

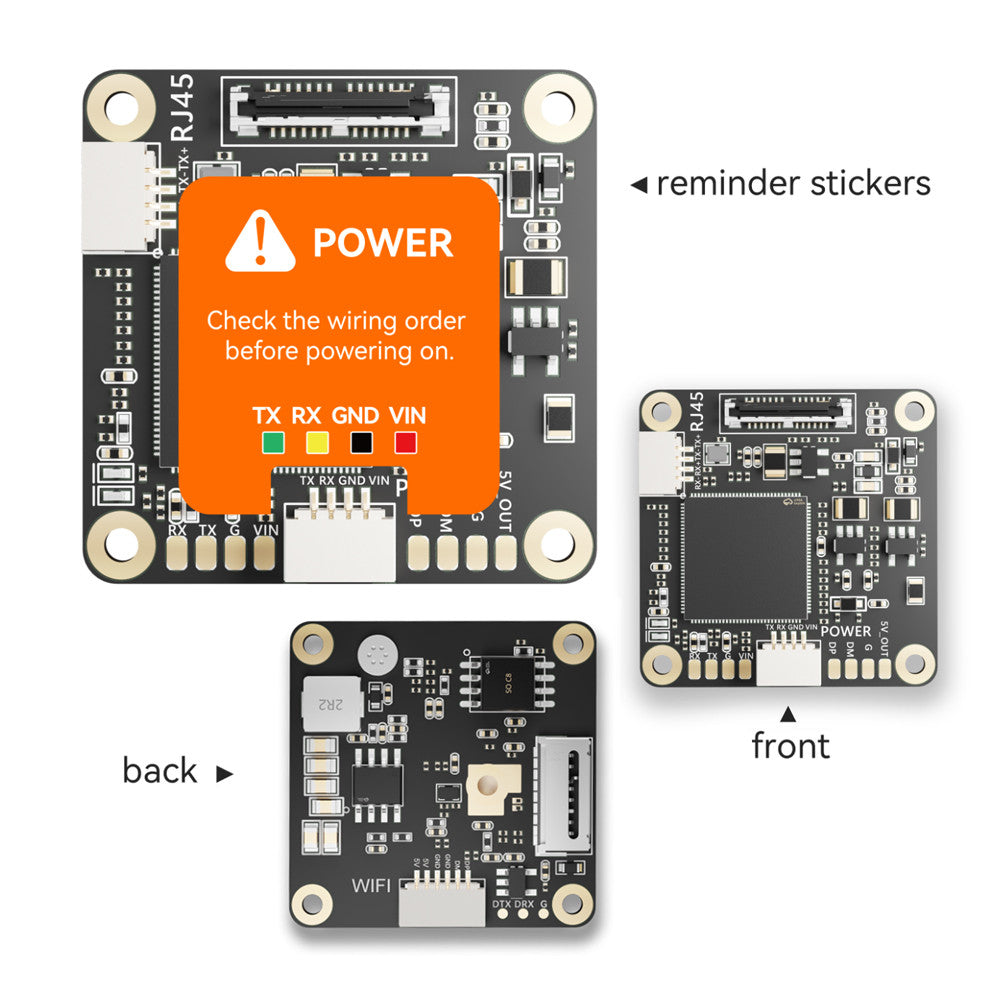

The camera supports input power in the range of DC 9-30V, and it is recommended to use a BEC power supply for stable performance. Its compact design includes a 19x19mm lens module and MIPI cable options (200mm/130mm), making it highly adaptable for a variety of installations. 25.5mm x 25.5mm mounting hole spacing and PCB sizes 30x30mm (338Q) or 32x32mm (WIFI) further increase flexibility for mounting and integration.
Reliable wireless connection
With an IPEX1 antenna supporting 5G, the WiFiLink camera ensures robust and efficient wireless transmission. The PA's 29dBm output power boosts connectivity, making it ideal for applications requiring reliable long-distance video transmission.
Lightweight and durable
Weighing only 30g, this camera module is lightweight and easy to integrate into drones, robotic systems or security applications. Its durable construction guarantees reliable performance even in demanding conditions.
Key features:
- High quality video: 1080P up to 90FPS and 720P up to 120FPS
- Wide viewing angle: 160° FOV with IMX415 sensor
- Flexible power supply: DC 9-30V with recommended BEC power supply
- Compact design: 19x19 mm lens and various mounting options
- Robust wireless connection: IPEX1 5G antenna with 29dBm power
- Low weight 30 g
