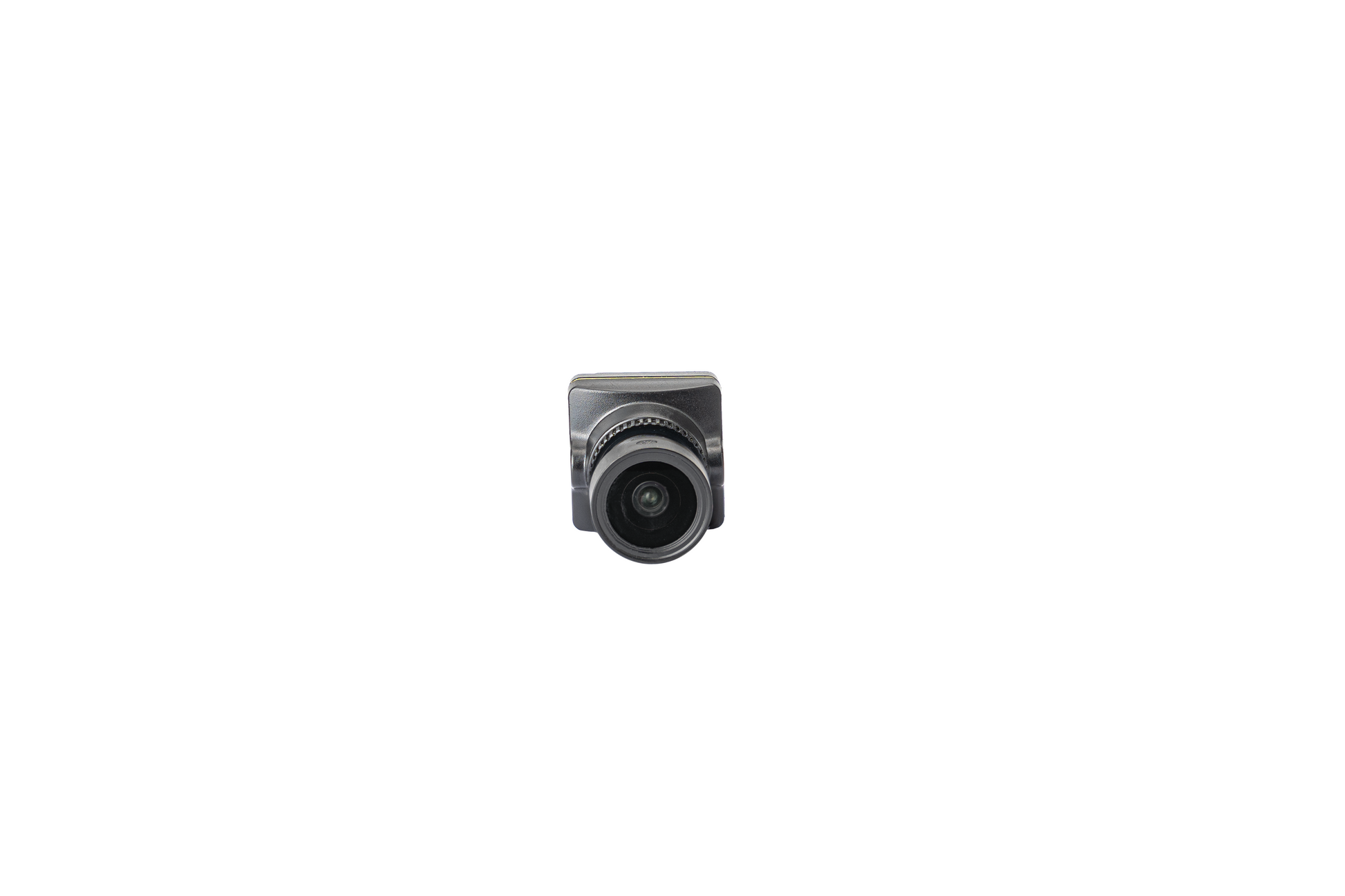

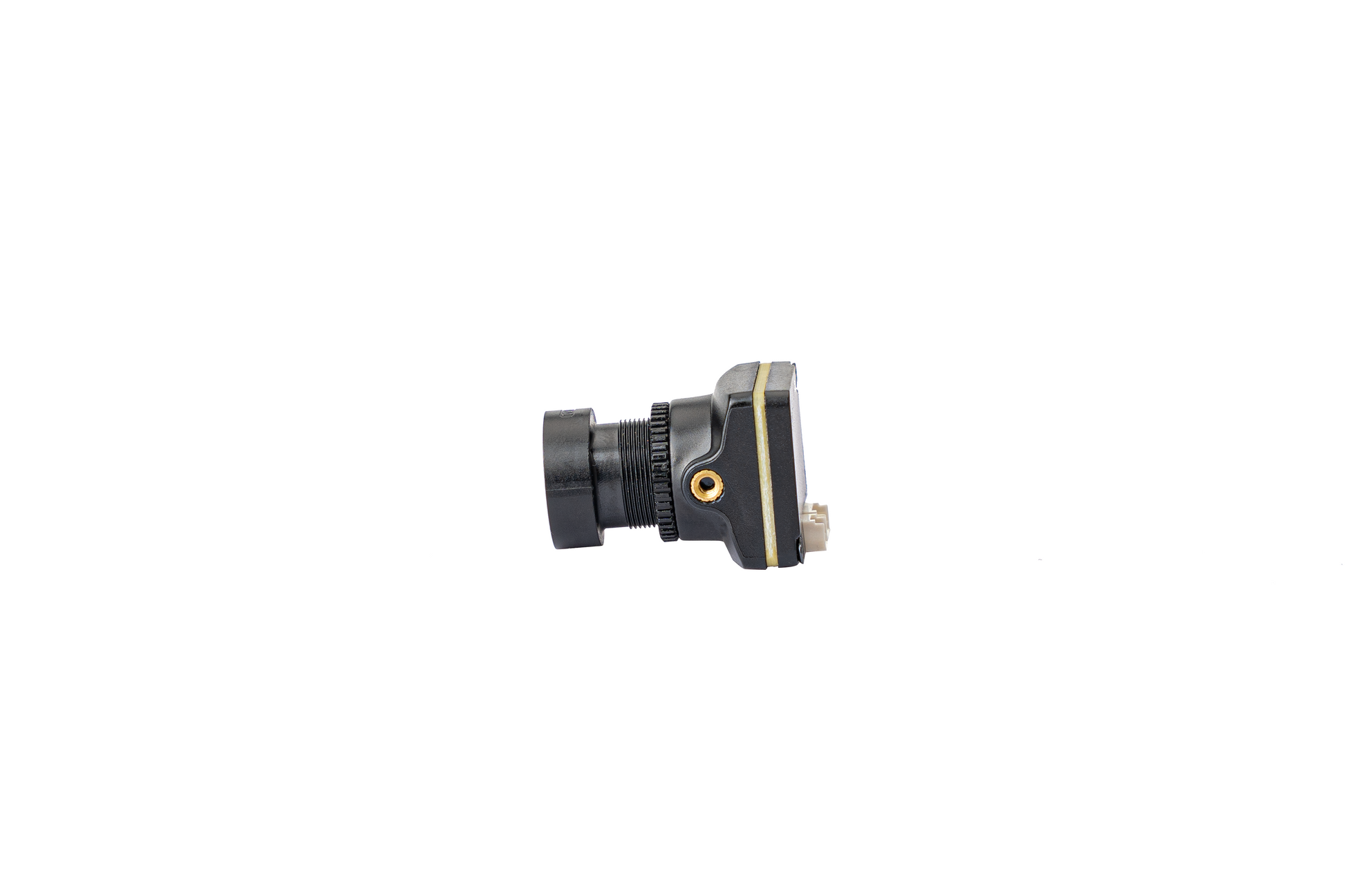

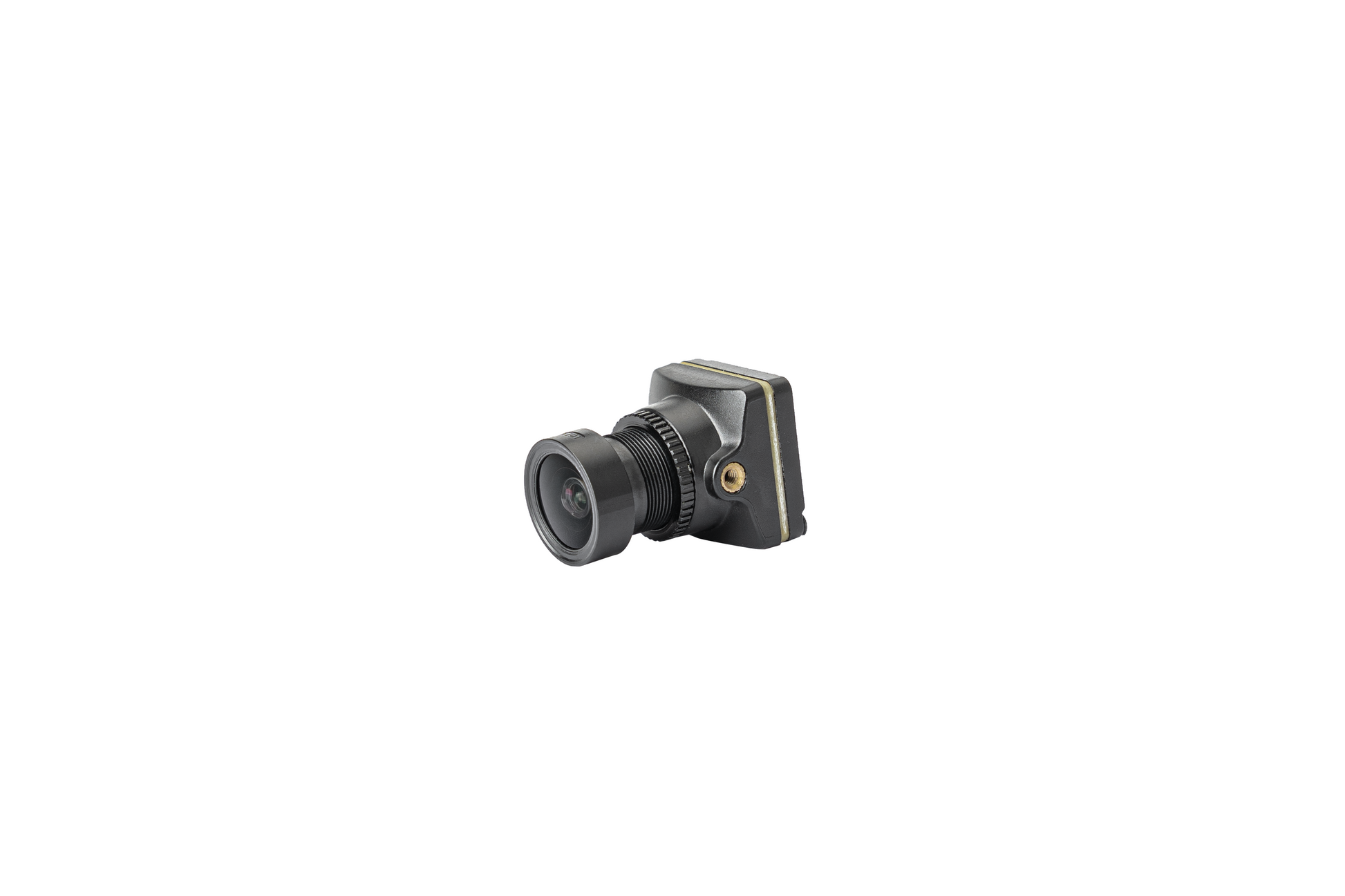

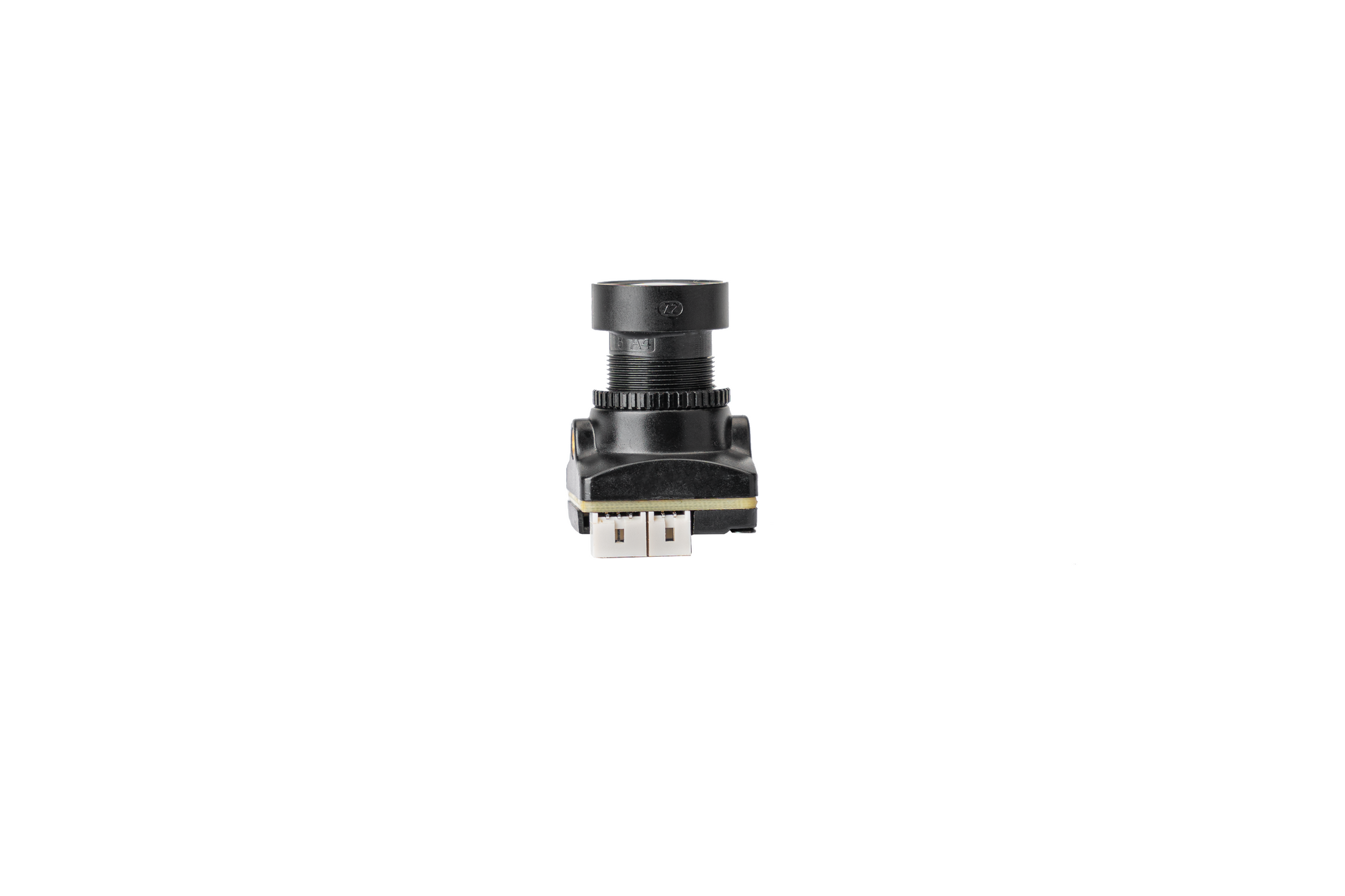

Pilotix N2 Night FPV camera
Pilotix N2 Night FPV camera
Pilotix N2 Night is a high-performance FPV camera designed for flying in low-light conditions and at night. With a resolution of 1500 TVL and ultra-sensitive night vision (down to 0.000001 lux), it provides a clear and detailed image even in near-total darkness. Its compact 19 x 19mm dimensions, wide dynamic range and customizable settings make it a reliable choice for drone pilots who require precision and flexibility in challenging lighting conditions.
Features:
- 1500 TVL resolution for crisp high-definition analog video
- Night vision sensitivity 12400 mV/lux-sec
- Very low light performance: 0.000001 lux (black and white mode, F1.6, AGC on)
- Wide dynamic range for better visibility in contrast scenes
- Built-in OSD, adjustable menu for basic camera functions
- Video format PAL/NTSC
- Switchable aspect ratio 4:3 / 16:9
- Operating voltage 5 V-30 V
Specifications:
Type: N2 NIGHT
CCD Type: 1/2.8" CMOS Sensor
Resolution: 1500 TVL
Standard: PAL/NTSC Selectable
Angle: FOVD: 125° H: 105° V: 55°
Minimum Illumination: B&W: 0.000001 lux (F1.6, 50IRE, AGC on)
Lens: M12
Signal to Noise Ratio: 50dB
Wide Dynamic Range: Supported
White Balance: Auto White Balance
Image: Color/Black & White Selectable
Menu: Supported
Video Output: CVBS (customizable BT1120 output, HD image transmission connection)
Power: DC5V-30V
Operating Temperature: -10 °C to 50 °C
Operating humidity: Relative humidity below 90%
Dimensions: 19 x 19 mm
Package includes:
1 x Pilotix N2 Night FPV Camera
