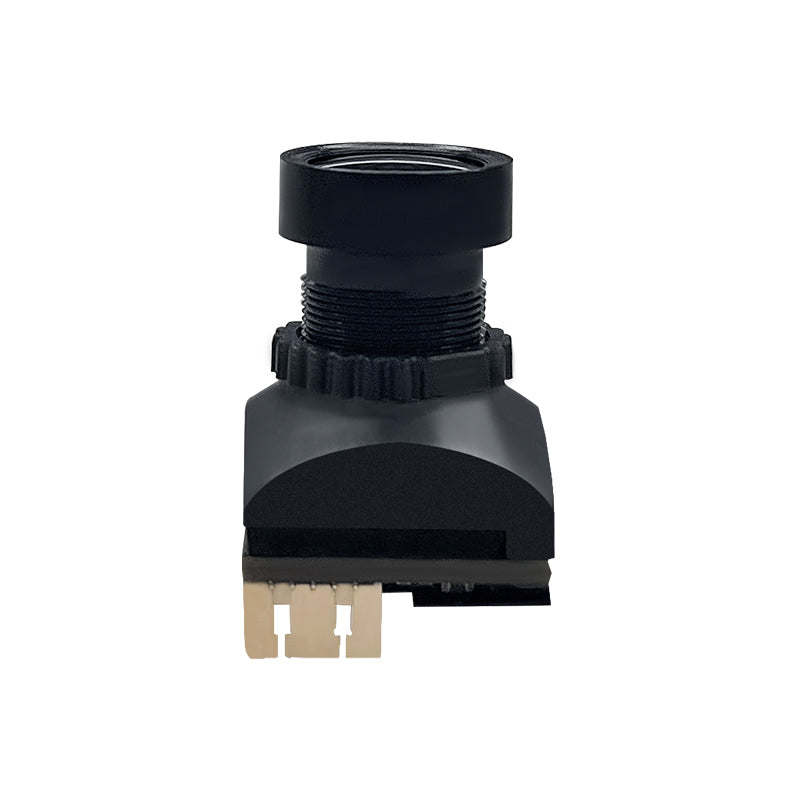

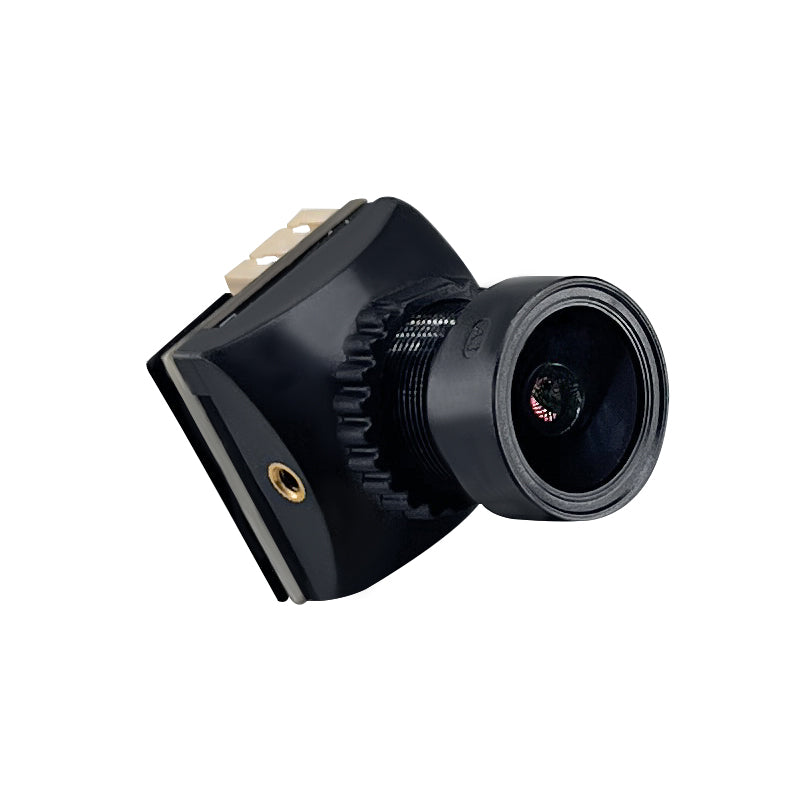

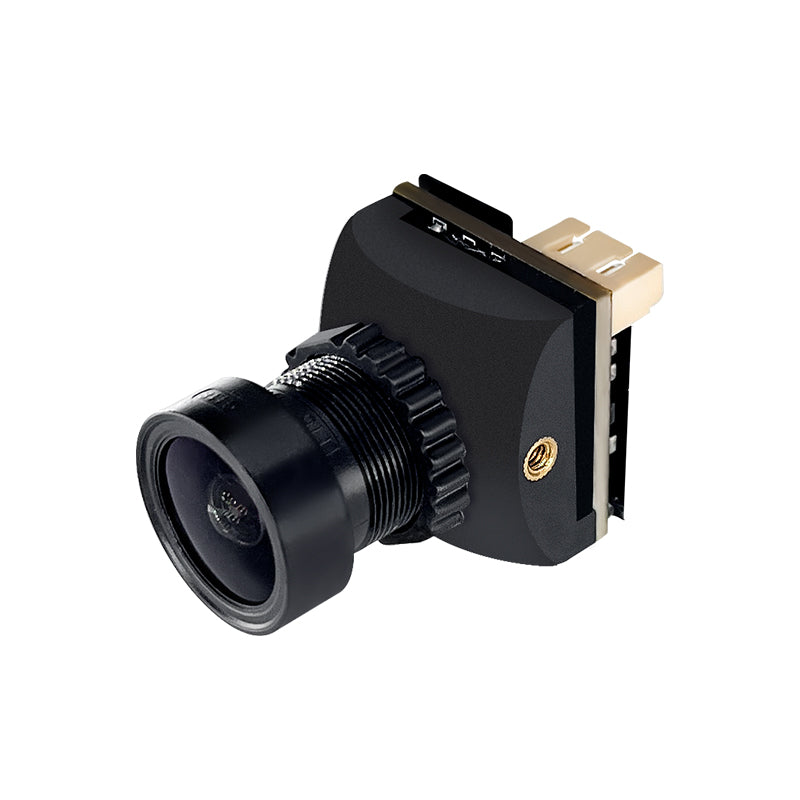

FPV camera Pilotix C3 Starlight 1200TVL
FPV camera Pilotix C3 Starlight 1200TVL
Brand: Pilotix
Couldn't load pickup availability
- Description
- Related Files
- Discussion
Pilotix C3 Starlight 1200TVL FPV Camera
The Pilotix C3 Starlight FPV camera is the ideal companion for crystal-clear, immersive flights, even in the darkest conditions. Enjoy stunning 1200TVL resolution, vivid colors and a wide viewing angle for an exciting visual experience. This compact and lightweight camera is designed for pilots who desire exceptional clarity and smooth performance day and night.
Specifications:
Spectral range: 400nm-650nm
Sensor type: Sony 1/3" CMOS sensor
Aspect ratio: 4:3 (default) / 16:9 switchable
Resolution: 1200TVL
TV system: PAL (default) / NTSC switchable
Lens: M12 2.1mm F1.2 aperture
Video output: CVBS analog signal
FOV:
- 4:3 FOV-H: 100 FOV-D: 125°
- 16:9 FOV-H: 100 FOV-D: 115°
Minimum Illumination: 0.00001Lux
Shutter Speed: - PAL: 1/25-1/10000 sec
- NTSC: 1/30-1/10000 sec
White Balance: Auto
DNR: 3DNR
DAY/NIGHT: EXT/Auto/Color/B&W
WDR: 100dB
Input Voltage: 5-36V
Language: ENGLISH / 中文 / PYCCKNN / ESPAÑOL / ITALIANO / FRANÇAIS / POLSKI / PORTUGAL / 日本語 / EΛΛHNIKA
Working temperature: -10° to 50°C, RH 90% MAX
Working humidity: 20% ~ 80%
Consumption: 95mA ± 15% @DC12V
Dimensions: 19 x 19mm
Weight: 12.2g (without cable)
Storage temperature: -20° to 70°C
Package contents:
1x FPV camera Pilotix C3 Starlight 1200TVL
