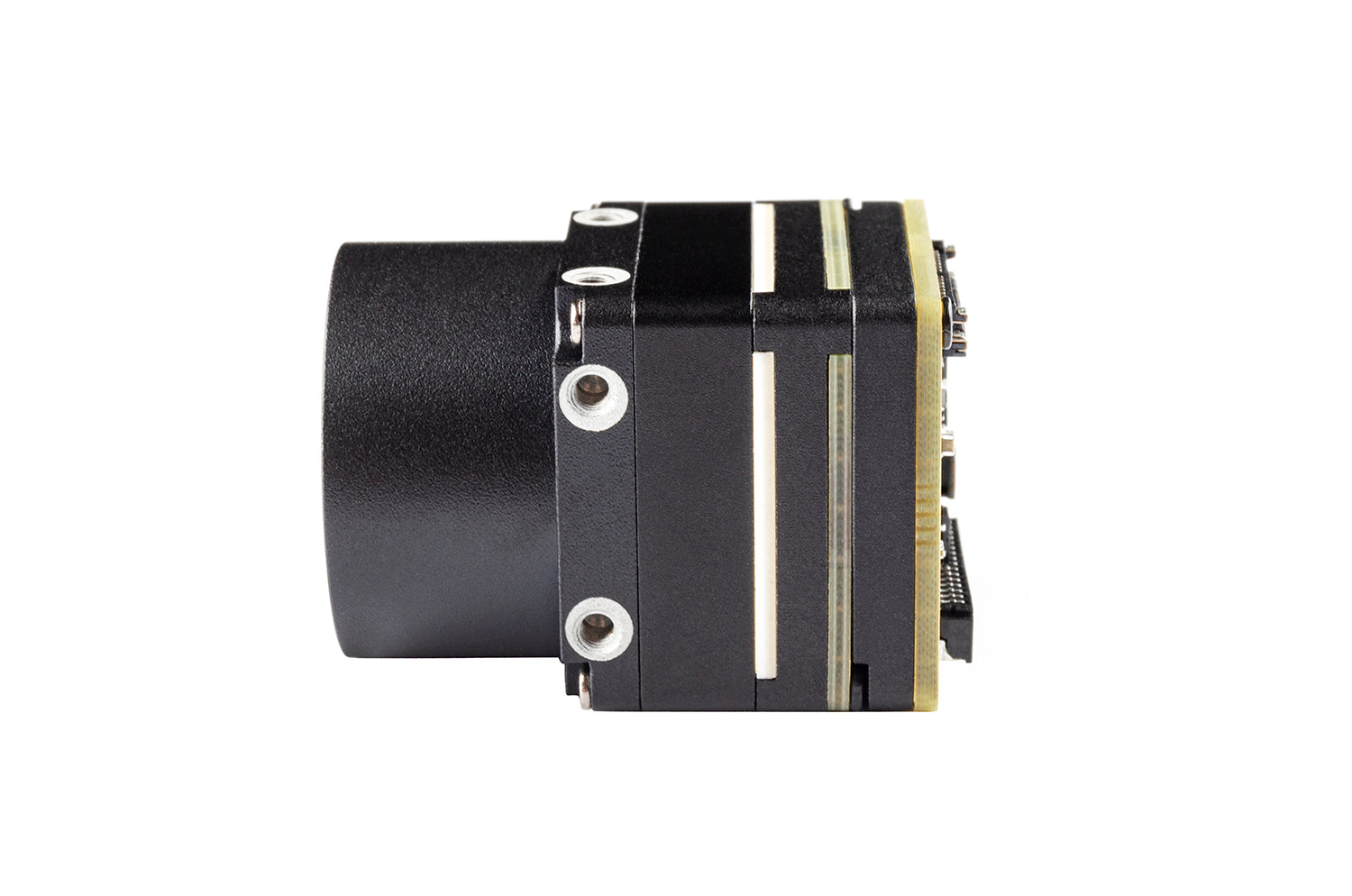

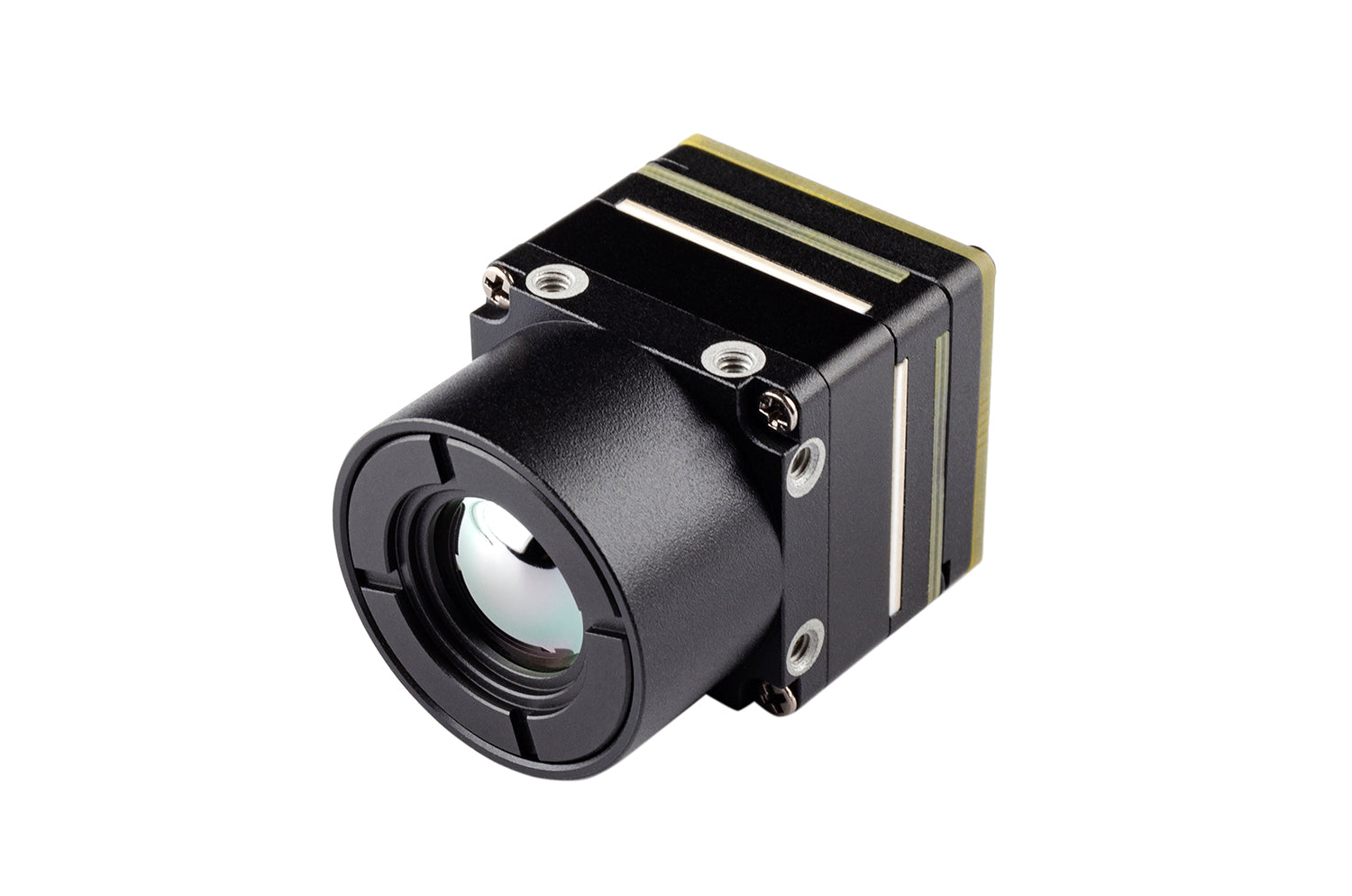

FPV Thermal Camera Pilotix T640
FPV Thermal Camera Pilotix T640
Brand: Partizan
Regular price
€1.054,15
Regular price
€1.340,45
Sale price
€1.054,15
Unit price
/
per
Taxes included.
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Payment methods

- Description
- Related Files
- Discussion

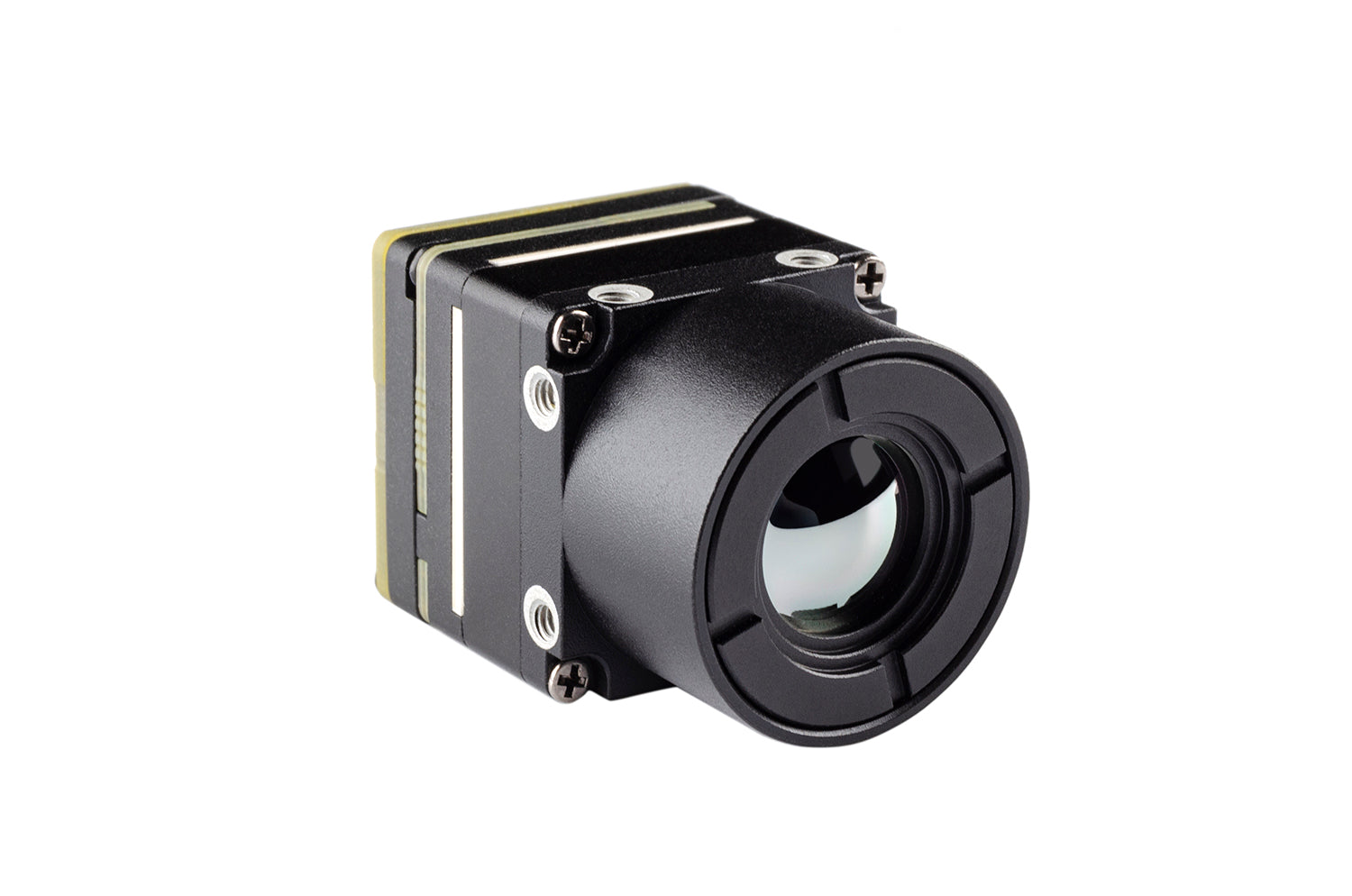

The Pilotix T640 is a compact FPV thermal imaging module featuring a 640 × 512 resolution uncooled IRFPA sensor with VO technology. This thermal camera core is designed for integration into FPV systems and offers a sensitivity of 40 and a 12 µm pixel size. The T640 provides a 45.8° horizontal and 37.3° vertical field of view through its 9.1 mm focal length lens with an f/1.0 iris. The sensor supports both white hot and black hot polarity modes and utilizes shutter correction for non-uniformity correction, with a thermal time constant of 12 ms. Video output is available in analog CVBS format as well as digital via MIPI and USB interfaces. The module operates on 5 V input with a power consumption of 260 mA. With compact dimensions of 21 × 21 × 31.5 mm and a weight of 22 g, it is suitable for weight-sensitive applications. Operating temperature ranges from -20 to 40 °C with humidity tolerance of 20-95% RH non-condensing. Storage temperature is rated from -30 to 50 °C. The product includes a 2-year warranty.
Product details
| Model | T640 |
|---|---|
| SKU | 5054 |
Image sensor
| Sensor | VO, Uncooled IRFPA |
|---|---|
| Sensitivity | ≤40mK |
| Resolution | 640x512 |
| Pixel size | 12x12 μm |
| Polarity | White hot/black hot |
| Non-Uniformity Correction | Shutter correction |
| Thermal time constant | <12ms |
Lens
| Focal length | 9.1 mm |
|---|---|
| Iris | F1.0 |
| Horizontal view | 45.8° |
| Vertical view | 37.3° |
Electrical specification
| Input voltage | 5V |
|---|---|
| Power consumtion | 260 mA @ 5 V |
Interfaces
| Analog video output | CVBS |
|---|---|
| Digital video output | Mipi/USB |
Mechanical specifications
| Dimension | 21x21x31.5 mm |
|---|---|
| Weight | 22 g |
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|---|
| Operating temperature | -20 - 40 °C |
| Storage temperature | -30 - 50 °C |
Common
| Warranty | 2 years |
|---|
