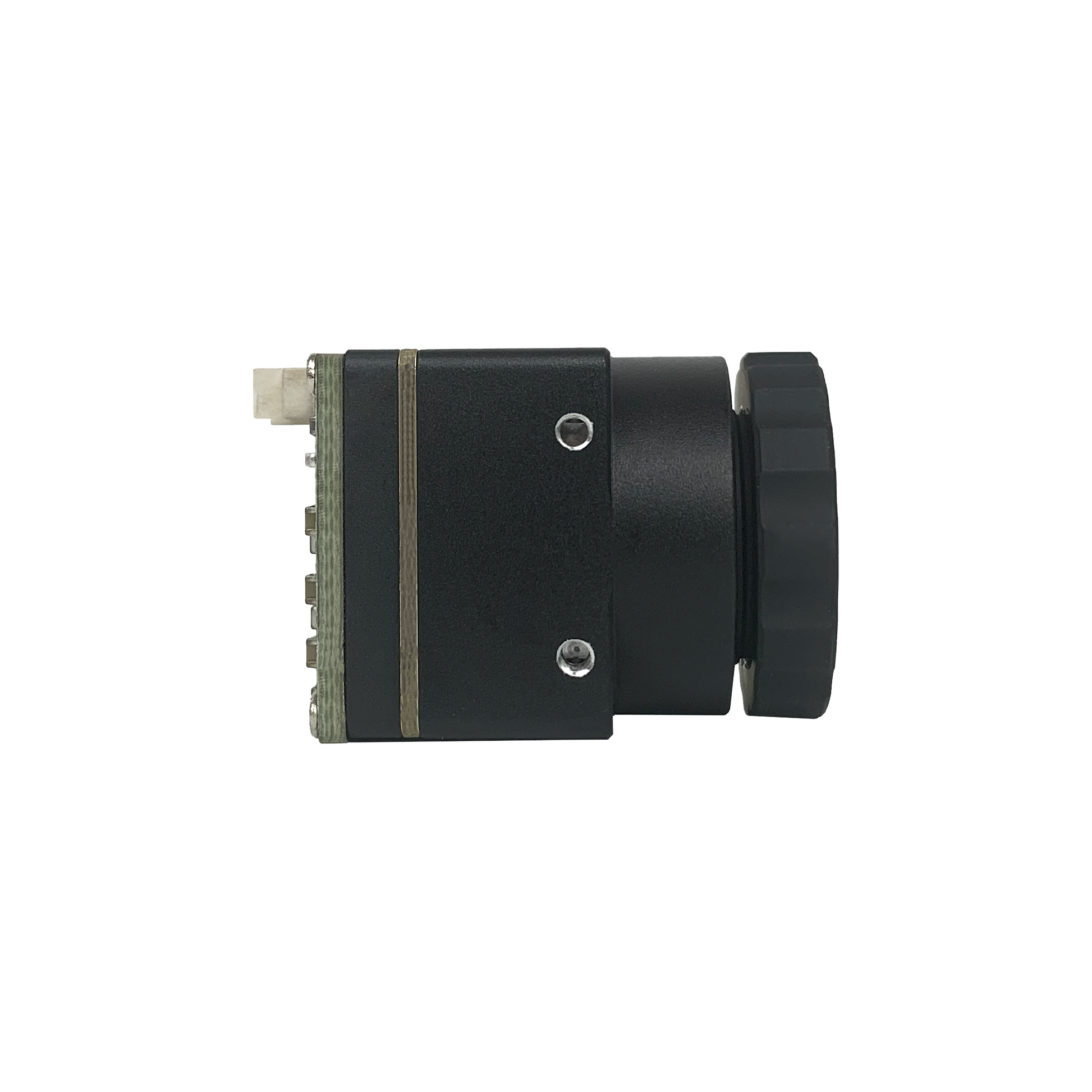

FPV camera Partizan Thermal T384 (6.8mm)
FPV camera Partizan Thermal T384 (6.8mm)
Brand: Partizan
Couldn't load pickup availability
- Description
- Related Files
- Discussion
The Partizan Thermal T384 FPV camera is a high-end thermal imaging solution specifically designed for use on drones. The camera is equipped with a lens with a focal length of 6.8 mm and works in the wavelength range of 8 to 14 μm, which ensures accurate detection of heat traces. With a resolution of 384×288, it provides clear and accurate thermal images. The robust construction of the camera enables its effective operation in extreme temperatures, from -40℃ to +80℃, and its light construction (only 20 g) ensures minimal impact on the flight dynamics of the drone.
Specifications:
Sensor Type: Vanadium Oxide (VOx) Microbolometer
- Maximum image resolution: 384x288 pixels
- Pixel size: 12 μm
- Response wavelength: 8~14μm
- NETD (Noise Equivalent Temperature Difference): ≤40mK (@25°C, F#1.0)
- Field of View: 26.46° (H) x 19.81° (V), 33.19° (D)
- Lens: 6.8 mm
- Storage temperature: -45°C to +75°C
- Storage humidity: <90% RH
- Operating temperature: -40°C to +60°C
- Operating humidity: <90% RH
- Weight: 23 g
- Dimensions: 21 mm x 21 mm x 38 mm
- Power consumption: ≤0.8W
- Power: 5~12 V
The package includes:
1x FPV camera Partizan Thermal T384 (6.8mm)
