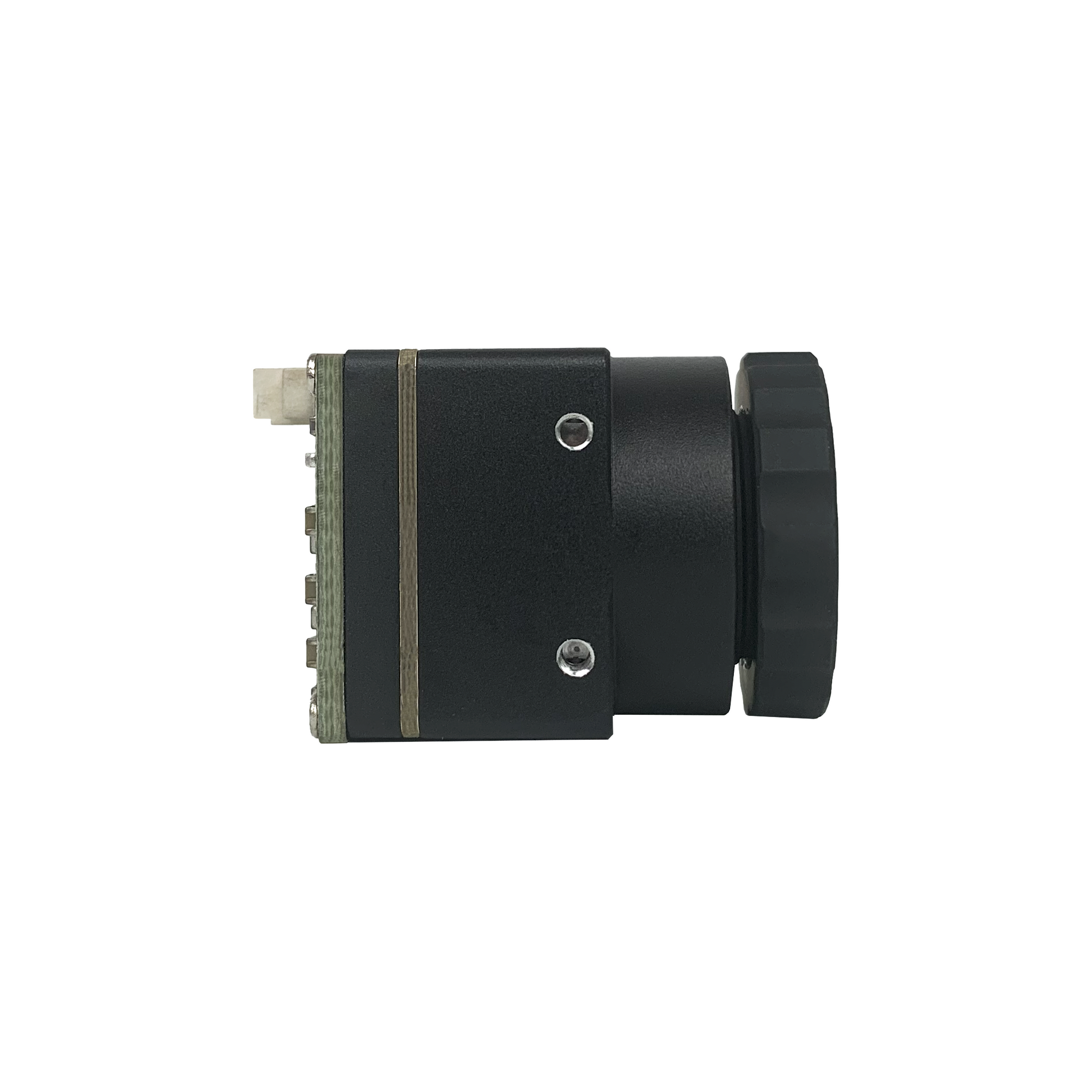

The Partizan Thermal T256 camera is a high-end thermal imaging solution specifically designed for use on drones. This high-performance camera enables operators to capture detailed thermal images, ideal for a range of industries including security, search and rescue, environmental monitoring and infrastructure inspection.
T256 provides a resolution of 256x192 pixels and a wide wavelength range of 8 to 14 μm, which ensures accurate detection of heat traces. With NETD ≤50 mK, it excels at distinguishing subtle temperature differences, even in poor visibility. The robust construction of the camera enables its effective operation in extreme temperatures, from -40℃ to +80℃, and its light construction (only 20 g) ensures minimal impact on the flight dynamics of the drone.
Specifications:
Detector Type: Cooled Vanadium Oxide
Resolution: 256×192
Lens: 4mm
Wavelength Range: 8 ～ 14μm
NETD: ≤50mK @ F1.0 25℃
Frame Rate: 50Hz
Scene Temperature Range: -20℃ +550℃
Temperature Accuracy: ±2℃
Video output: CVBS

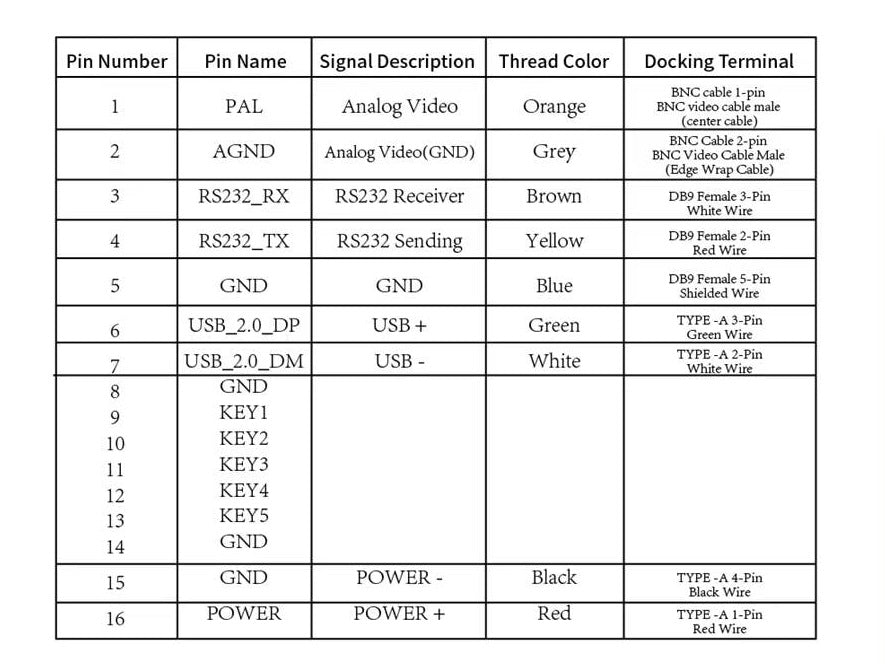

Outputs: UART2, PWM2, GPIO*2
Operating temperature: -40℃ +80℃
Supply voltage: 5V
Power consumption: <1.3W
Dimensions: 21×21×30mm
Weight: 20g
Humidity: 5% - 95%
Vibration: 6.06g
Shock: 80g @ 4ms
The package contains:
1x FPV camera Partizan Thermal T256 (4mm)
