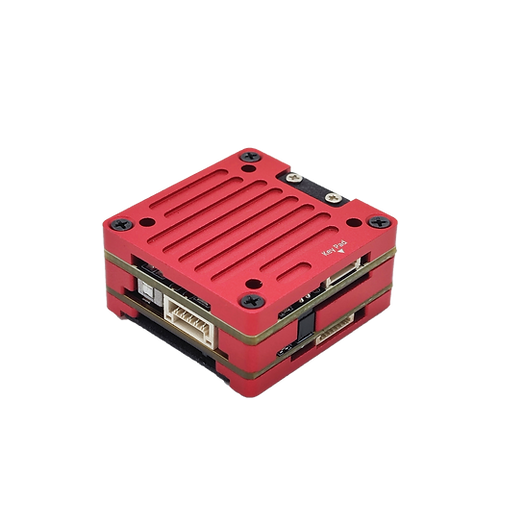

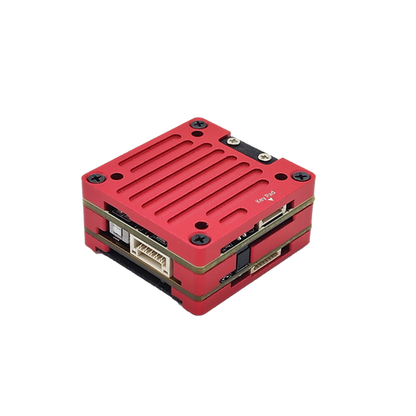

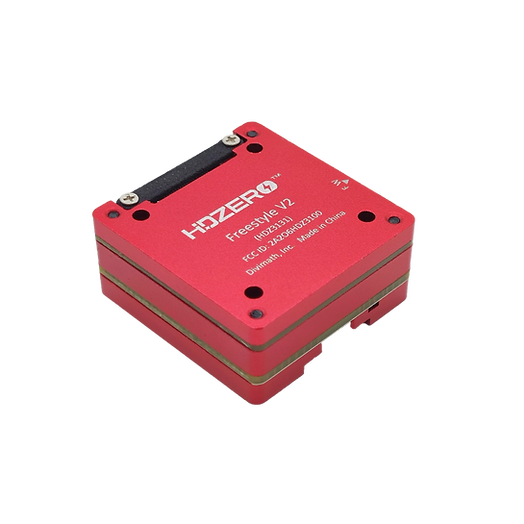

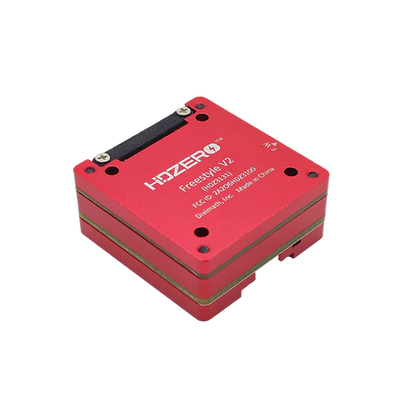

HDZero Freestyle V2 VTX is a top-of-the-line 5.8GHz digital video transmission solution designed specifically for freestyle drones. Ideal for 3-5 inch HD drones, this second VTX model ensures excellent durability and signal integrity with a CNC machined aluminum protective case that provides robust RF shielding.
Key features:
- Video Quality: Enjoy superior image quality with support resolution 720p60, 1080p30, 540p60 and 540p90.
- Increased durability: All connectors are protected by a CNC case and the antenna with the MIPI cable are firmly secured using the included fixing bar and screws.

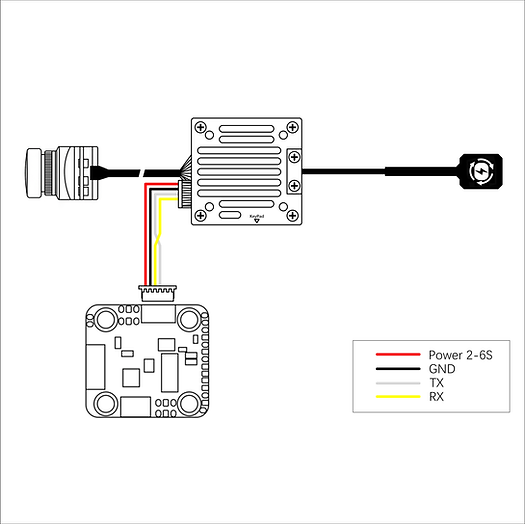

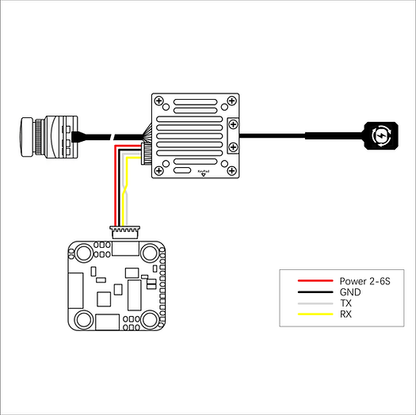

- Easy connection: A wiring harness is included for easy, solder-free connection to the power supply and MSP UART port.
- High output power: Can output RF power up to 1W (unlock requires license or approval from local authorities).
- Compact mounting: Compact design with mounting pattern 20x20mm M2, ideal for small drones.
Specifications:
- Manufacturer: Divimath, Inc
- Weight: 22.3 g
- Dimensions: 29x30x14 mm
- Operating frequency: 5.725-5.850 GHz
- Output power: 25mW, 200mW
- Antenna Connector: U.FL Secured
- Input voltage: 7-25V
- Operating Temperature: 0-40°C (32-104°F)
- Power consumption: 6-15 W

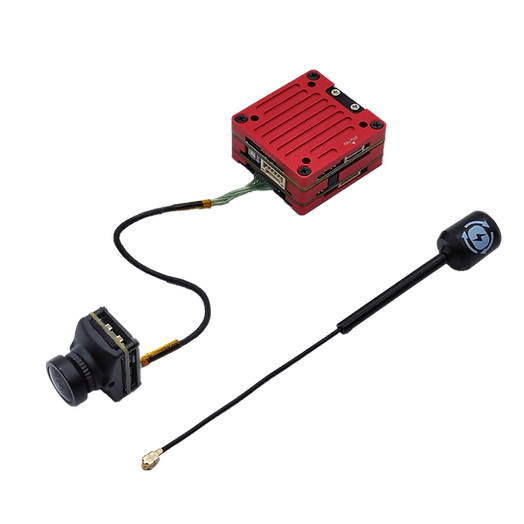

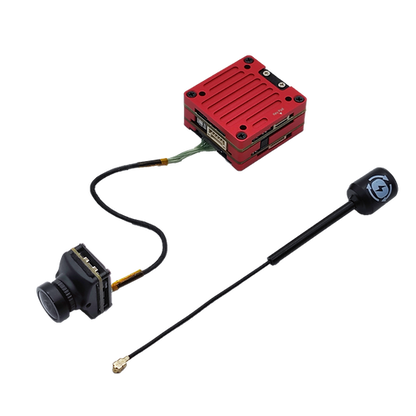

Package contents:
- Freestyle V2 VTX
- Nano 90 camera with 19x19 mm holder
- HDZero RHCP antenna
- 120mm MIPI cable
- Power and SA cable
- Plastic fixing strips with screws for MIPI and U.FL connections
- Double-sided adhesive tape
