Code: SKU:HS1262

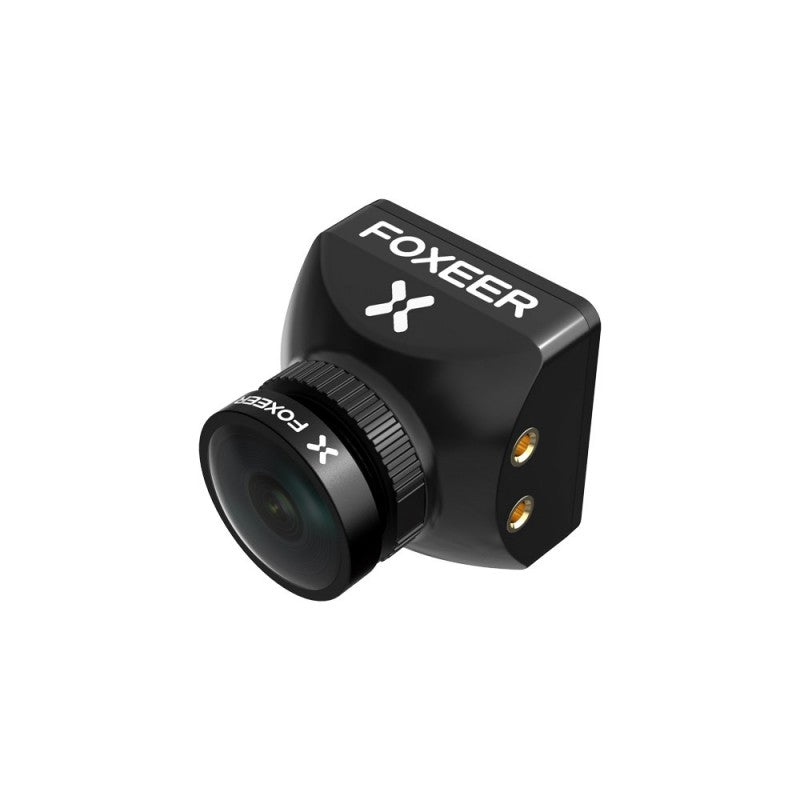

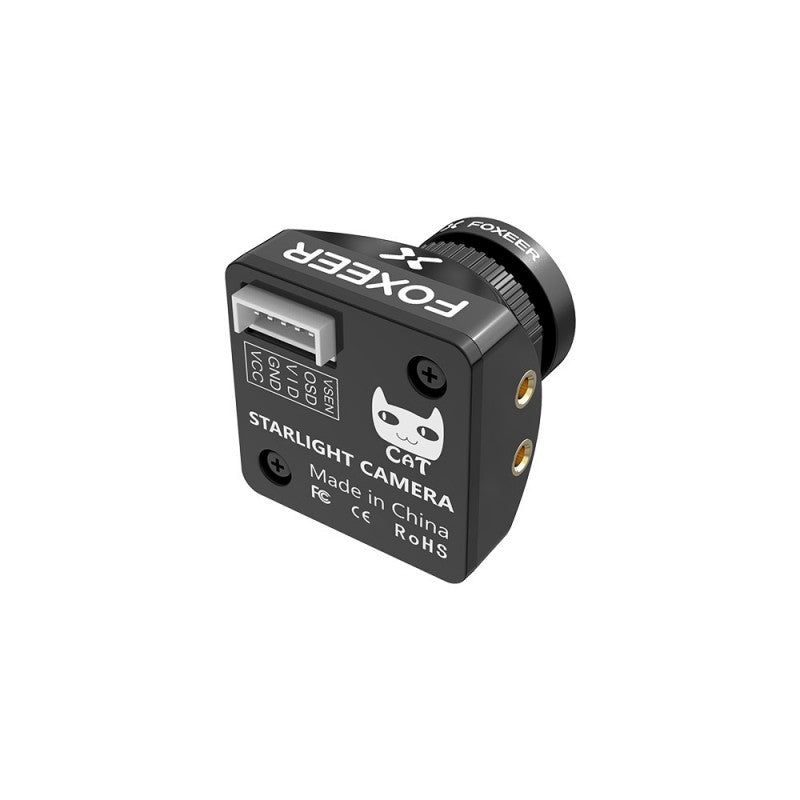

FPV camera Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light
FPV camera Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light
Brand: Foxeer
Regular price
€67,08
Regular price
€64,63
Sale price
€67,08
Unit price
/
per
Taxes included.
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Payment methods
- Description
- Related Files
- Discussion
FPV camera Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light
Camera specifications
- Sensor type: Sony 1/3" CMOS sensor
- Compatibility with IR light: Works with 850nm IR light
- Aspect ratio: 4:3 (default) / 16:9 switchable
- TV system: PAL (default) / NTSC switchable
- Resolution: 1200TVL
- Lens: M12 2.1mm F1.4 for low light
- Filter: No filter
Field of View (FOV)
-
Aspect ratio 4:3:
- FOV-H: 100°
- FOV-D: 125°
-
Aspect ratio 16:9:
- FOV-H: 100°
- FOV-D: 115°
Shutter speed
- PAL: 1/25~1/10000 sec
- NTSC: 1/30~1/10000 sec
Video output
- Output type: CVBS analog signal
Sensing capabilities
- Minimum illumination: 0.00001 Lux
- White balance: Automatic
- DNR: 3DNR
- WDR: 100dB
- Day/Night Mode: EXT / Auto / Color / Black & White
On Screen Display (OSD)
- Flight OSD: Displays voltage, camera name and time
Power and environmental specifications
- Input voltage: 4.6V ~ 20V
- Power consumption: 95mA ±15% at DC12V
- Working temperature: -10° ~ 50°C (RH90% MAX)
- Working humidity: 20% ~ 80%
- Storage temperature: -20° ~ 70°C

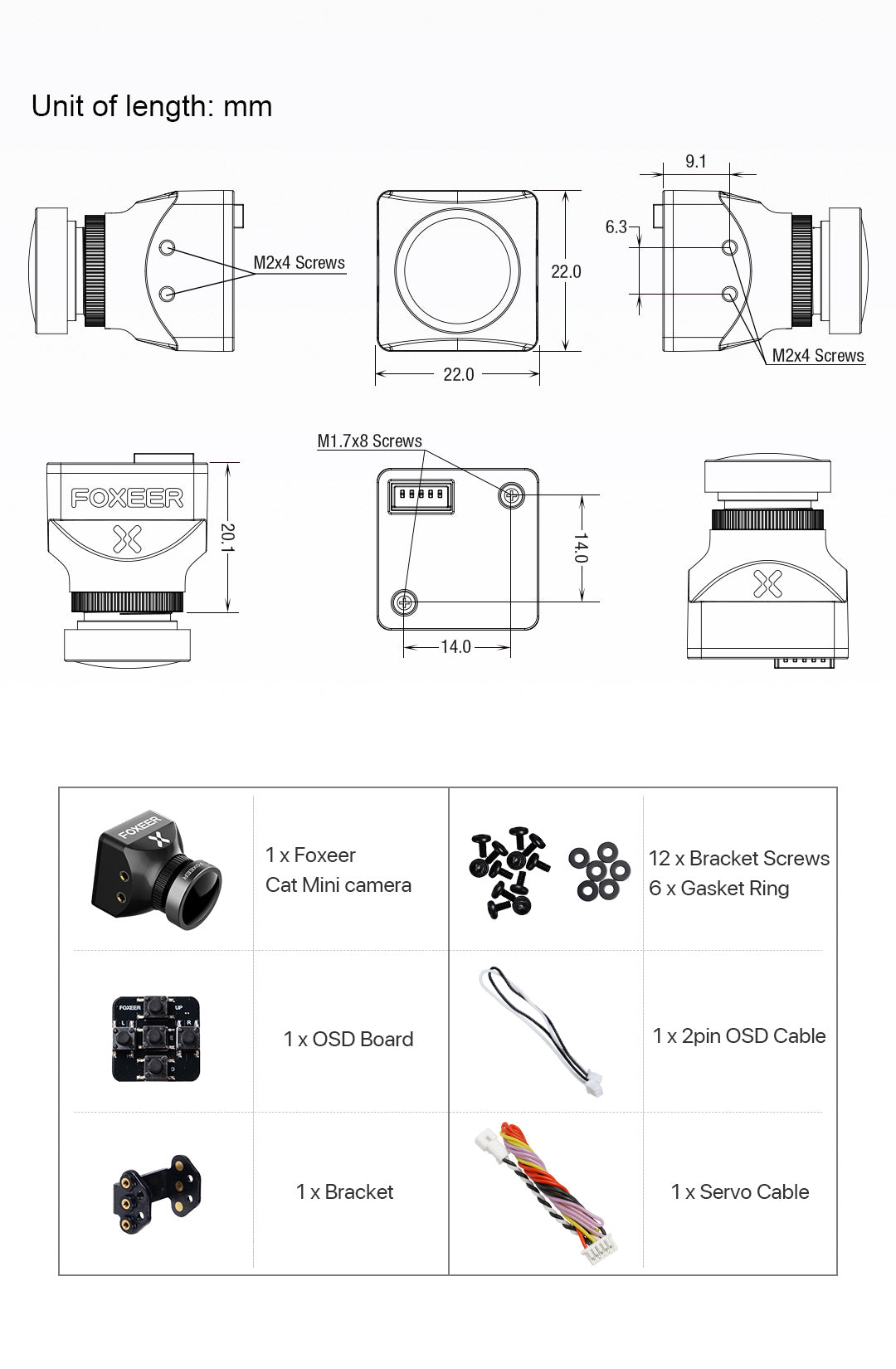

Physical dimensions
- Dimensions: 22x22mm
- Weight: 12.2g (without cable)
Other functions
- Language support: English, 中文, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek
- ODM/OEM: Support available
