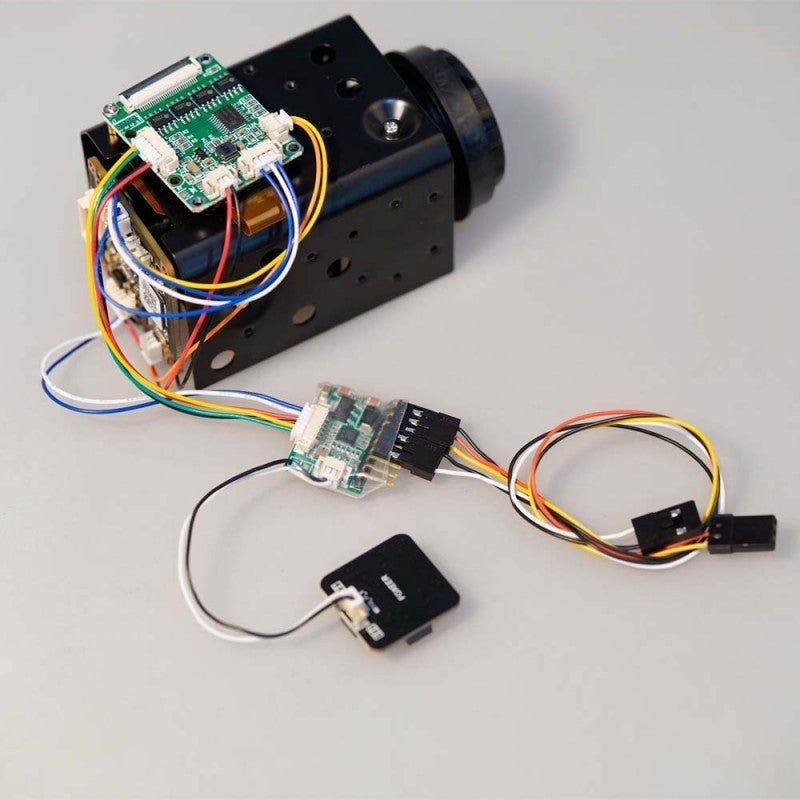

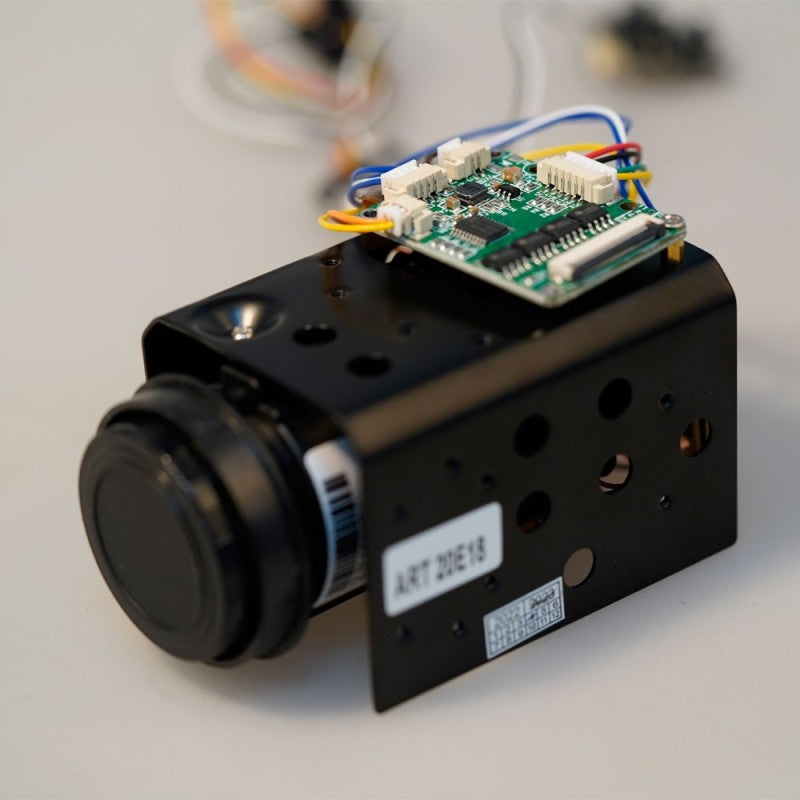

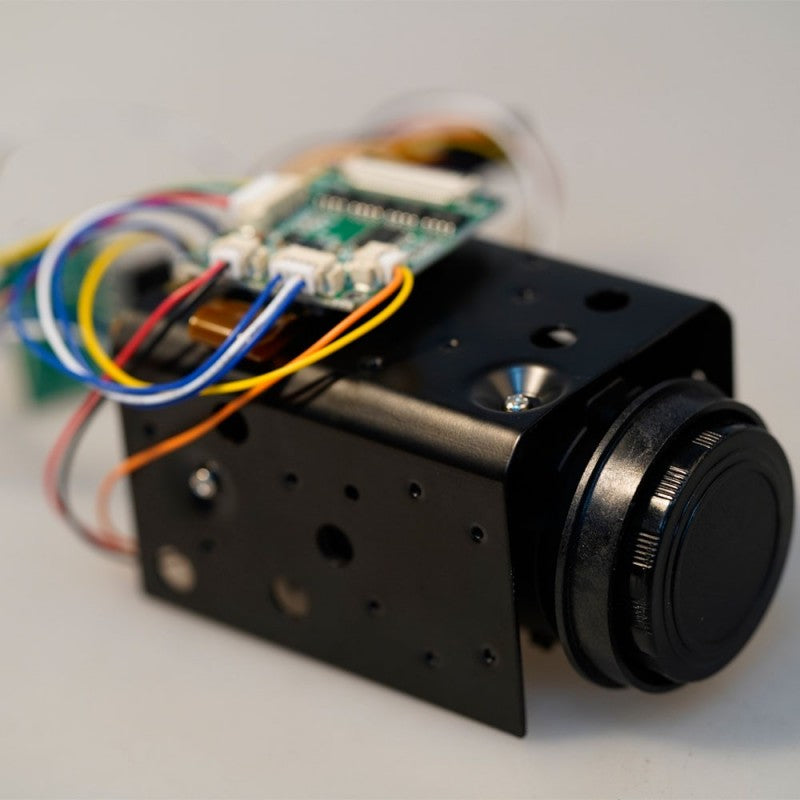

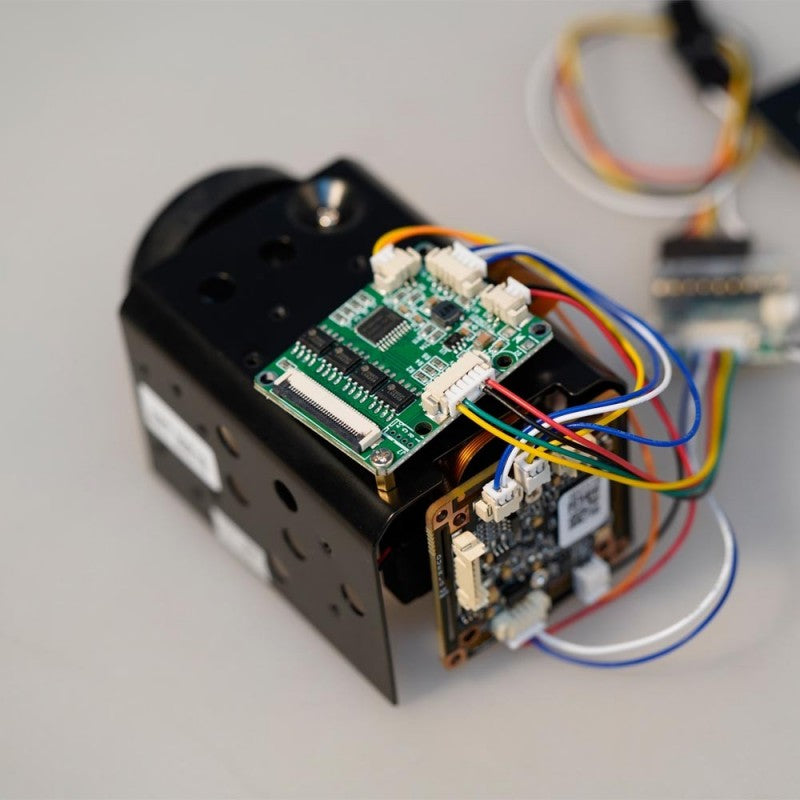

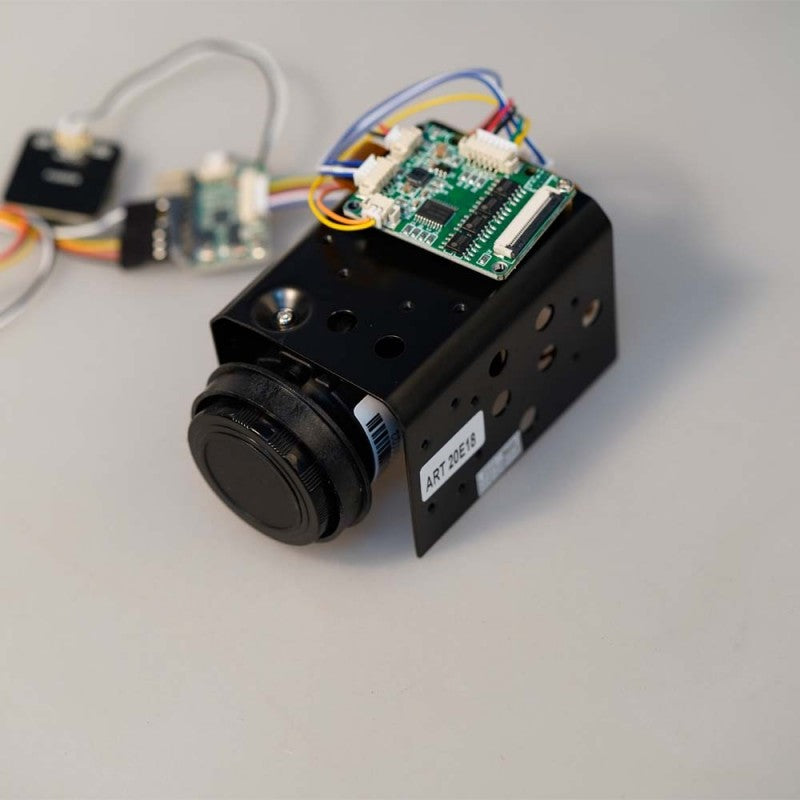

Foxeer 30x Zoom 700TVL CMOS FPV Camera
The Foxeer 30x Zoom 700TVL CMOS FPV Camera is a high-performance camera designed for FPV enthusiasts who require advanced zoom capabilities and excellent image quality. With a 1/3" Sony CCD sensor and Effio DSP, this camera offers exceptional clarity, wide dynamic range (WDR) and low-light sensitivity, making it ideal for racing and long-haul flights.
Key features:
- Sensor: 1/3" Sony CCD with Effio DSP for a clear and high-quality image.
- Resolution: 700TVL for sharp and detailed analog video output.
- TV System: Switchable between PAL and NTSC for compatibility with various video systems.
- Signal format: CVBS for analog output.
Image performance:
-
Minimum lighting:
- Color: 0.01 Lux
- Black & White: 0.001 Lux for excellent low light performance.
-
Zoom and focus:
- Optical zoom: 30X for detailed and precise adjustments.
- Focal length: 3.9mm-85.8mm for a versatile zoom range.
- Focus control: Ground controller control for precise in-flight adjustments.
- Wide Dynamic Range (WDR): To improve image clarity in high-contrast scenes.
- Digital Noise Reduction: For clear video with minimal noise.
- Frame Accumulation: Improves image clarity in low light.
Additional features:
-
Electronic shutter:
- PAL: 1/50-1/10000 second.
- NTSC: 1/60-1/12000 second.
- White balance: Automatic for balanced colors in different lighting conditions.
- Aperture: Automatic for optimal exposure.
- S/N ratio: >60dB (enhanced), ensuring clear video with minimal noise.
Construction and Power:
- Power supply: DC 12V for stable power supply.
- Operating temperature: 0-70°C for reliable performance in various environments.
- Size: 65mm x 35mm x 43mm for compact design.
- Weight: 163g for a strong yet lightweight design.
The package contains:
- 1 × Foxeer 30x Zoom Camera
- 1 × Cable
