Code: SKU:MN01-4L00B
FPV camera CADDXFPV Ratel Pro 1500TVL Black (Industrial Packaging)
FPV camera CADDXFPV Ratel Pro 1500TVL Black (Industrial Packaging)
Brand: CaddxFPV
Couldn't load pickup availability
- Description
- Related Files
- Discussion

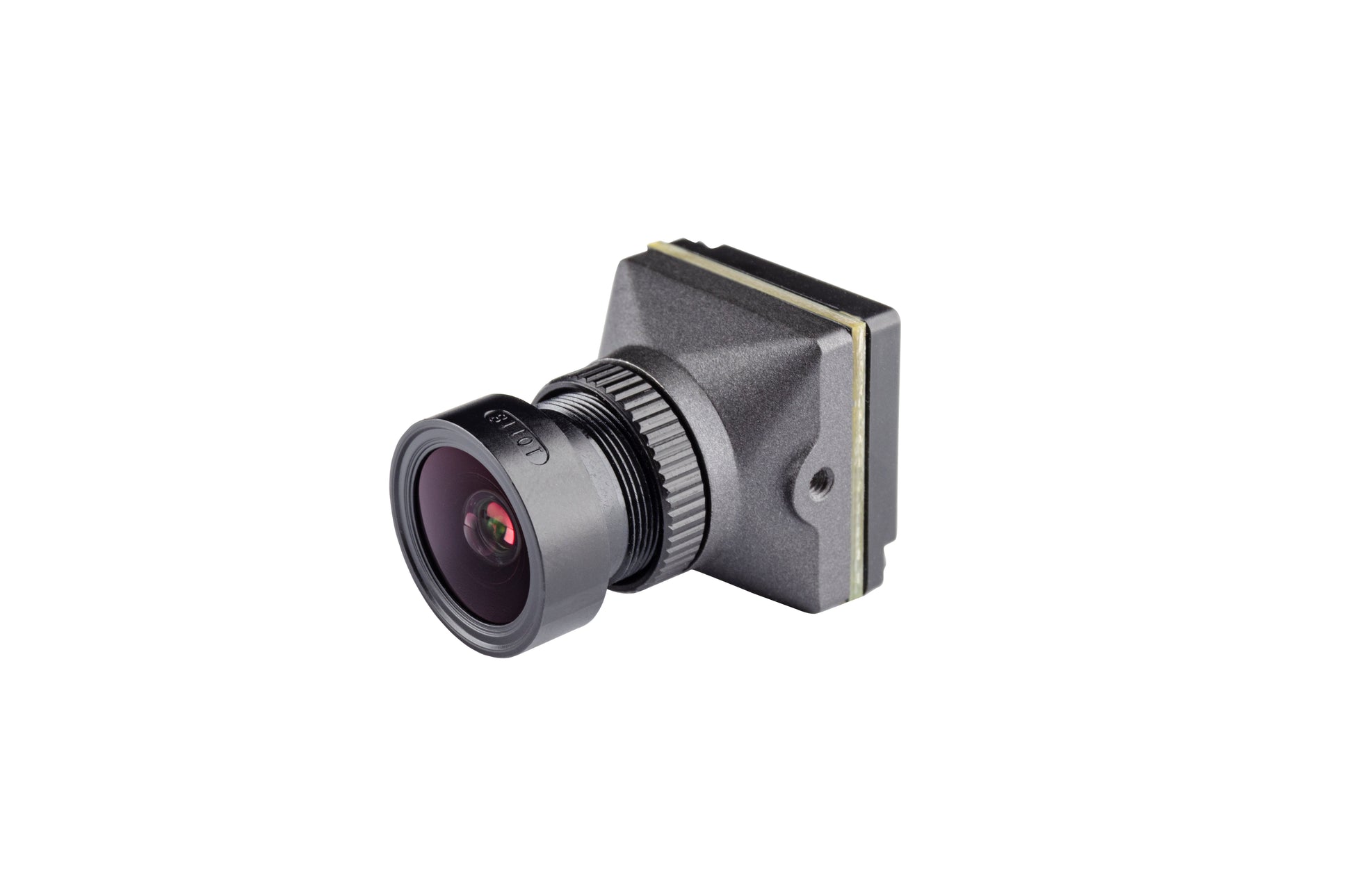

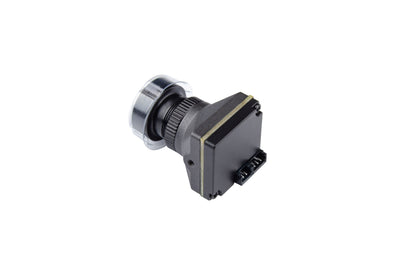

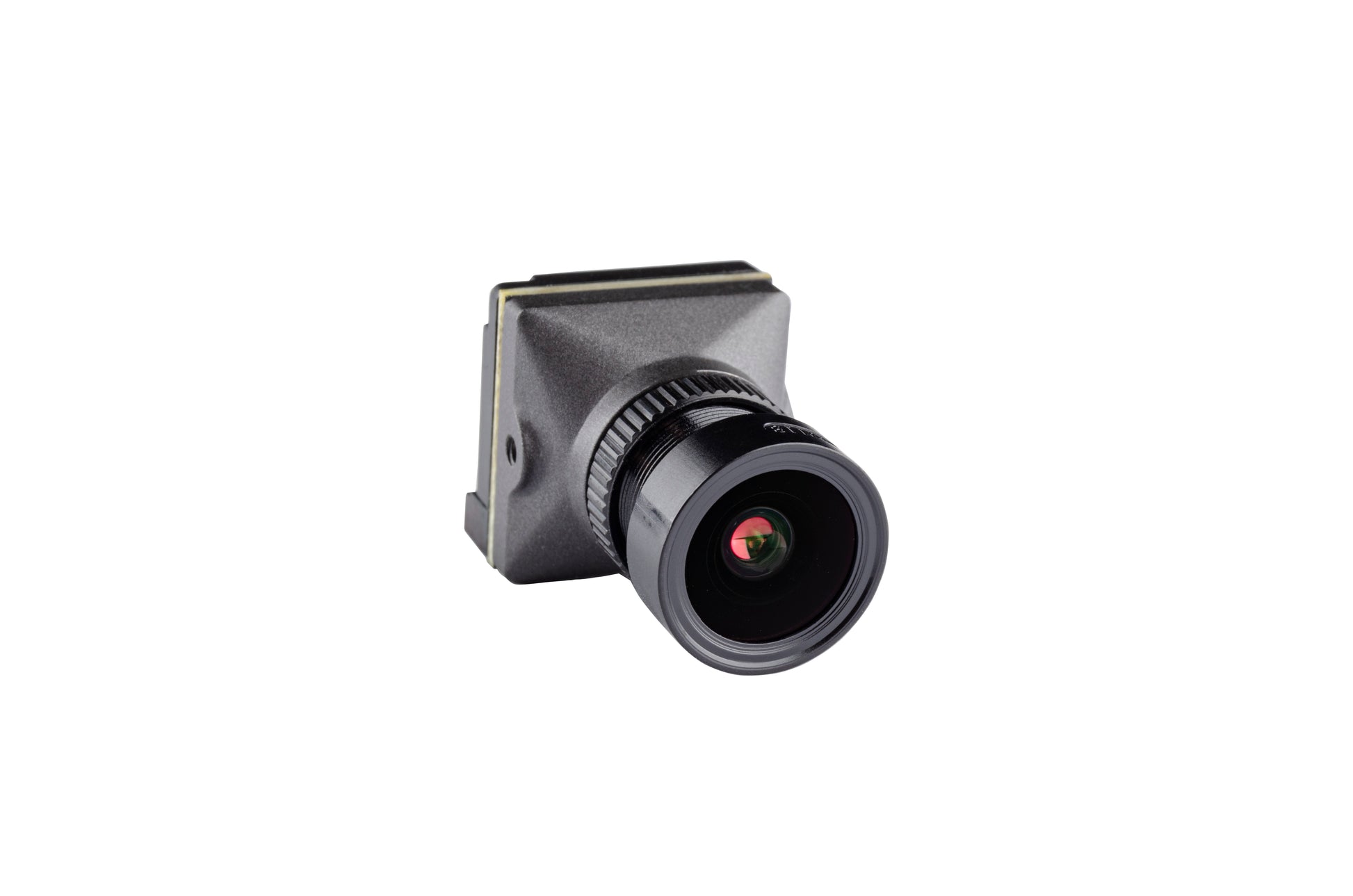

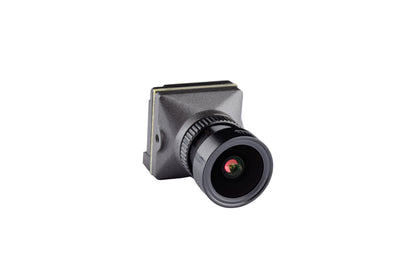

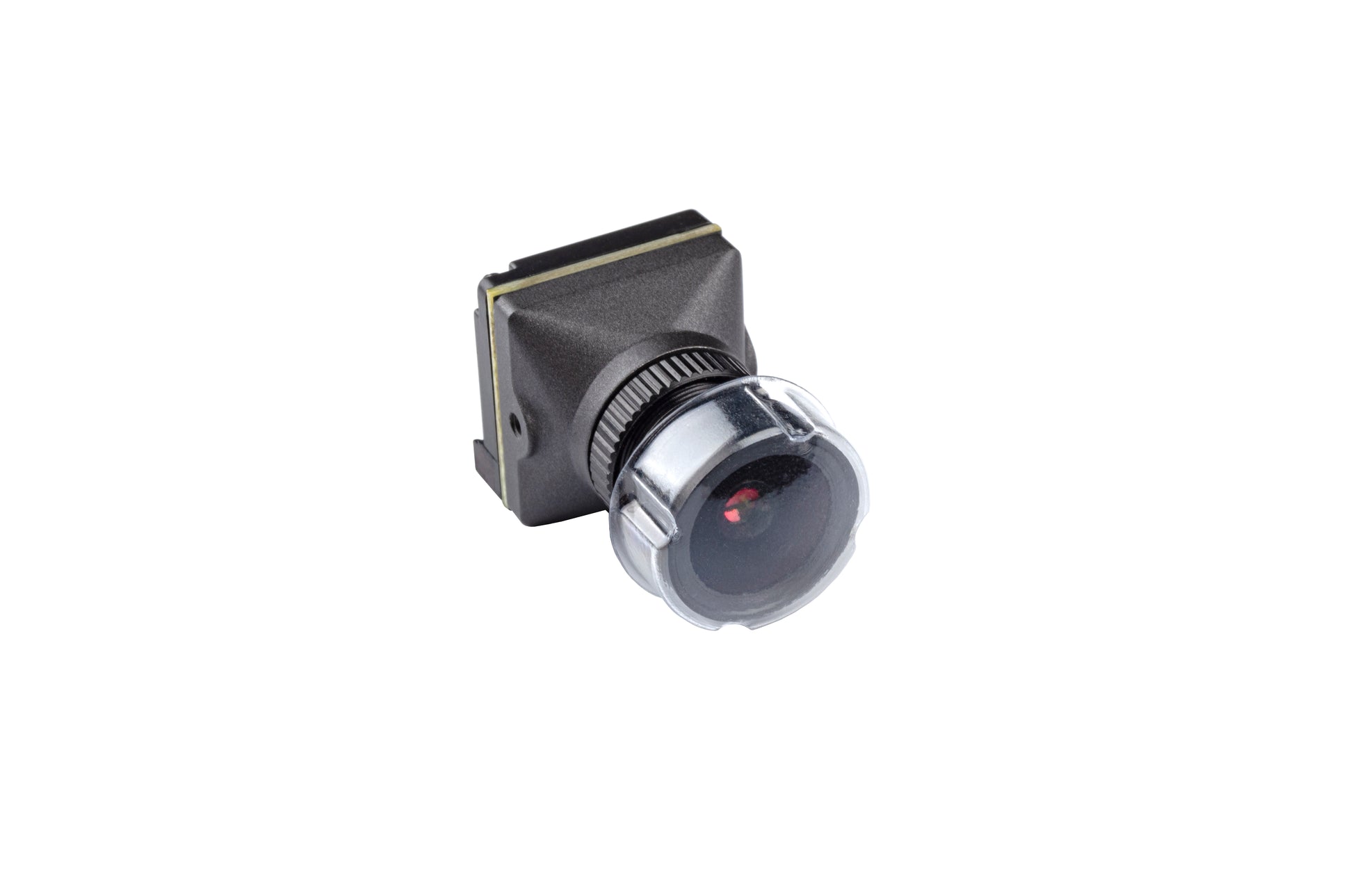

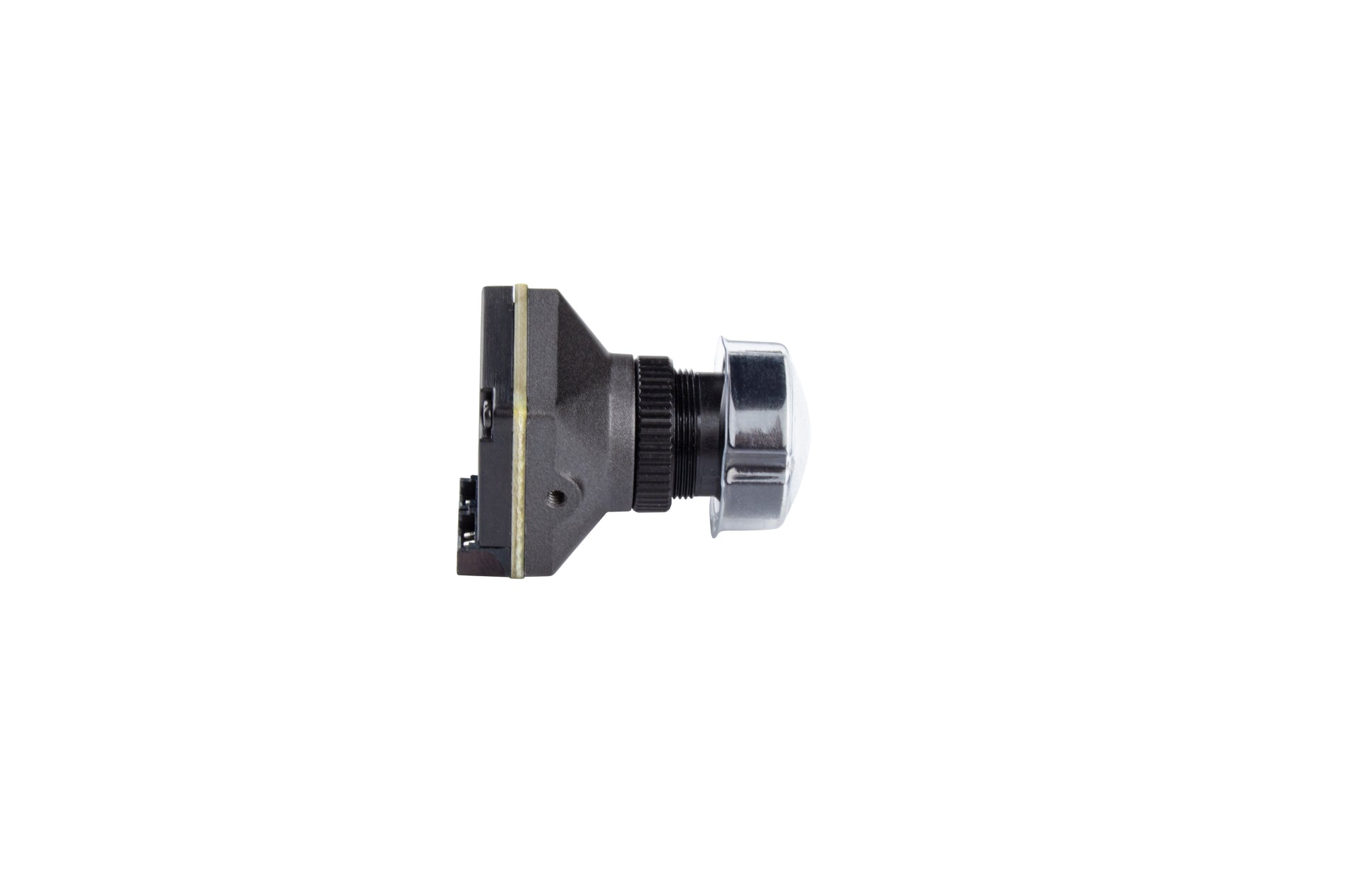

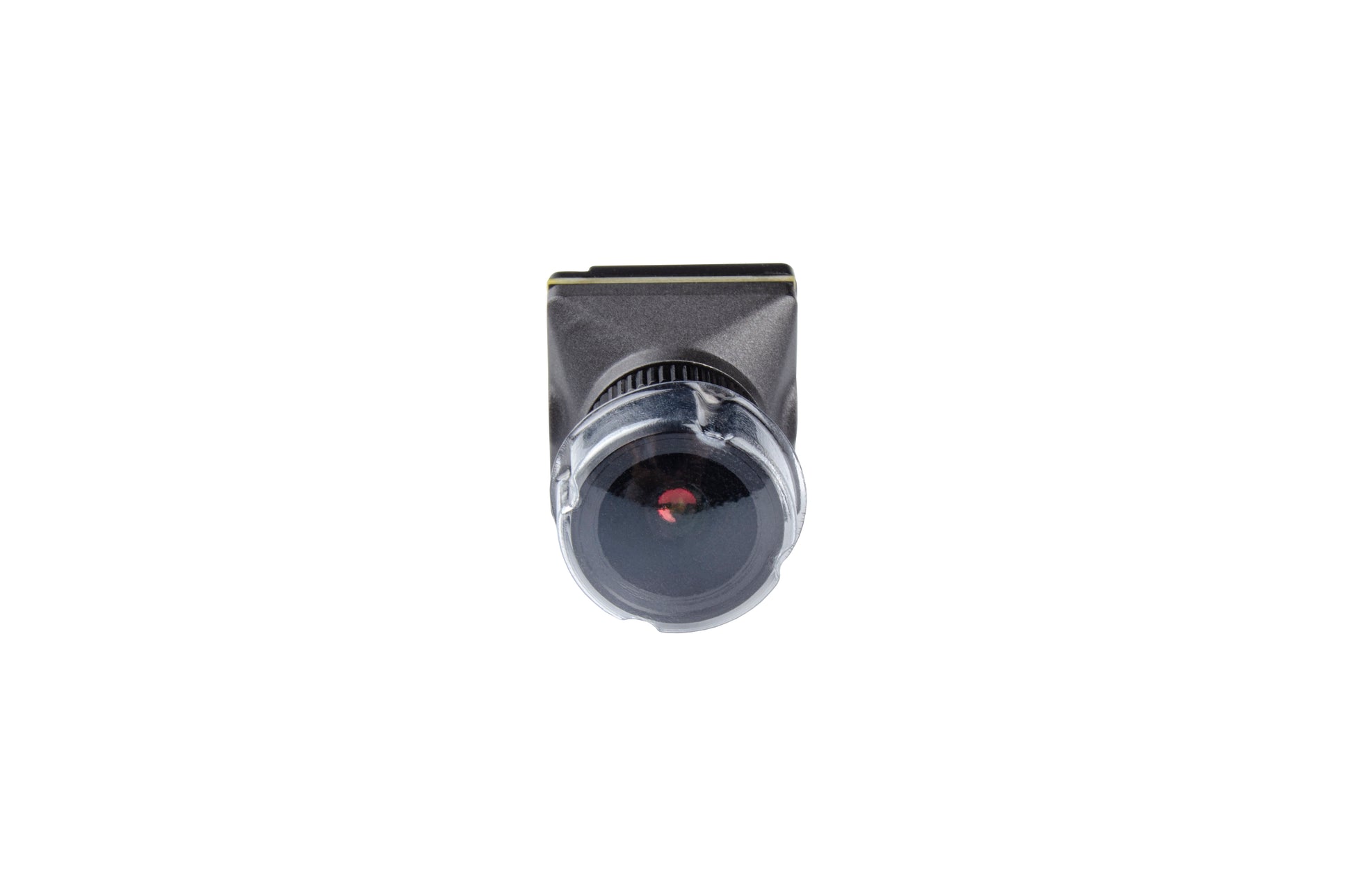

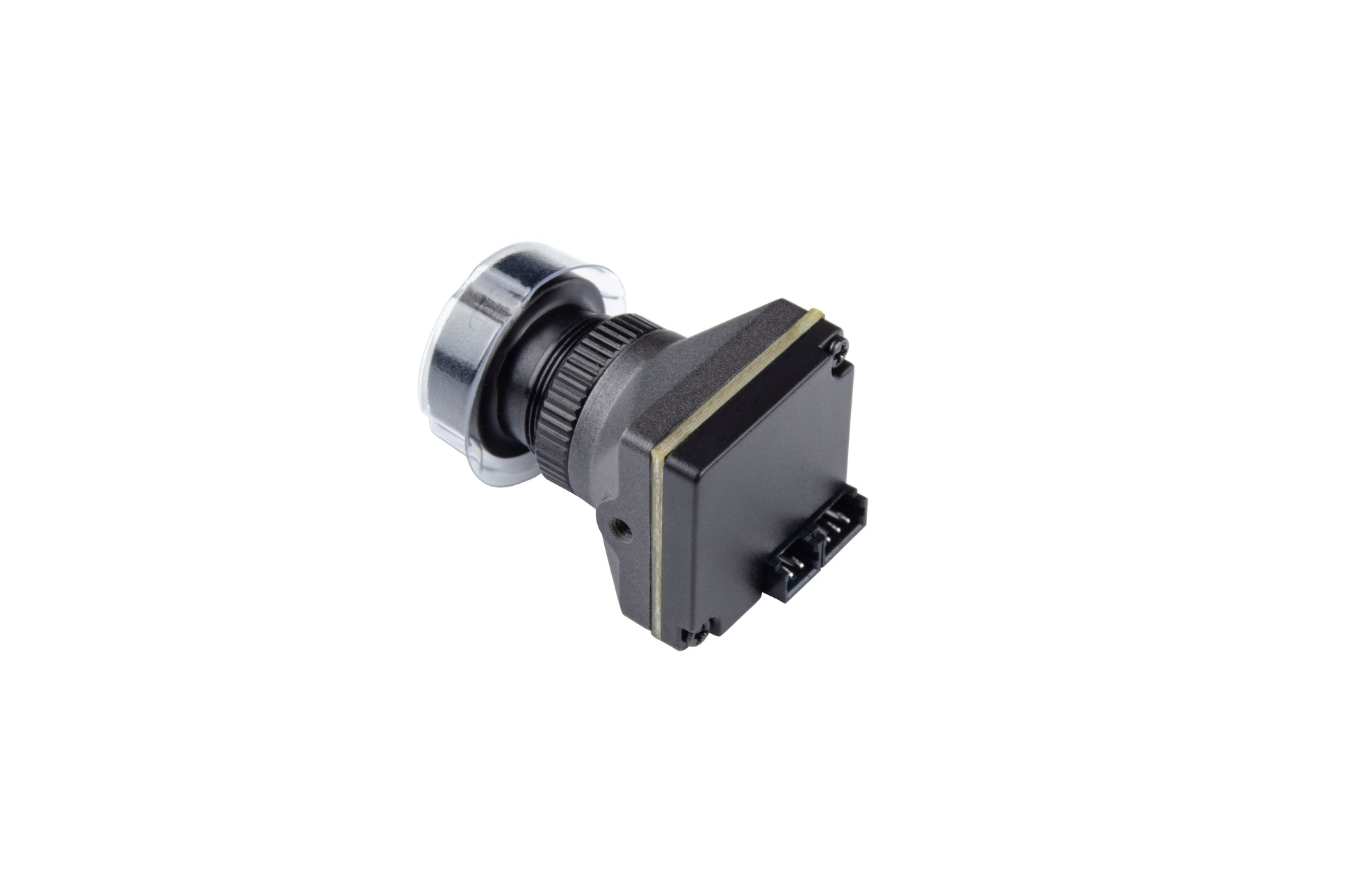

Caddx Ratel Pro Analog Camera (Industrial Package)
The CaddxFPV Ratel Pro is a high-performance analog FPV camera designed for exceptional image quality in a variety of lighting conditions. It is equipped with a 1/1.8-inch sensor and 1500TVL resolution, which guarantees sharp and clear images. The camera is equipped with Super WDR (Wide Dynamic Range) technology, which improves details in both bright and dark environments. Its low-light performance is remarkable, with a minimum illumination of 0.00001 lux, making it suitable for night flights. Users can switch between 16:9 and 4:3 aspect ratios to suit different viewing preferences. The robust metal housing improves durability and heat dissipation, while the 125° field of view offers a natural flight perspective. With a wide input voltage range from 4.5V to 27V, the Ratel Pro is compatible with a variety of FPV setups.
Specifications: Model: Ratel PRO
Sensor: 1/1.8" inch Sensor
Horizontal resolution: 1500TVL
TV system: NTSC and PAL (switchable)
Image: 16:9 and 4:3 (switchable)
WDR: Super WDR (HDR)
Minimum illumination: 0.00001 lux
Lens: 5Mega
Color: Black
Sync: Internal
Electronic Shutter: PAL: 1/50100000; NTSC: 1/60100000
Signal to Noise Ratio: >60dB (AGC Off)
Video Output: CVBS
OSD Menu: Supported
DNR: 3-DNR
FOV: 125°
Language: (ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语)
Day/Night: Auto/Color/Black & White/EXT
Size: 19mm x 19mm
Wide Power: DC 4.5-27V
Working Temperature: -20℃~+60℃
Working Humidity: 20%~80%

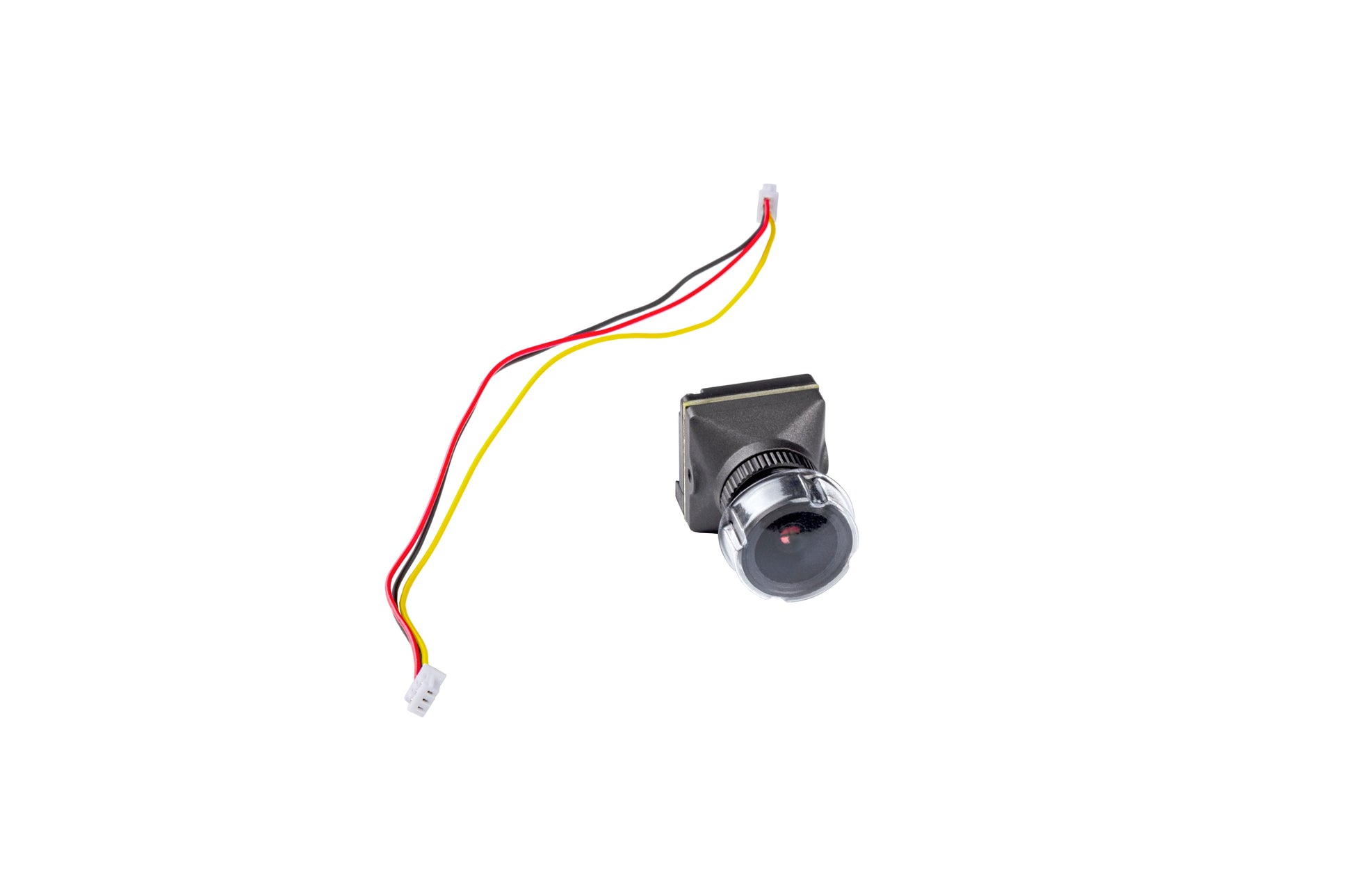

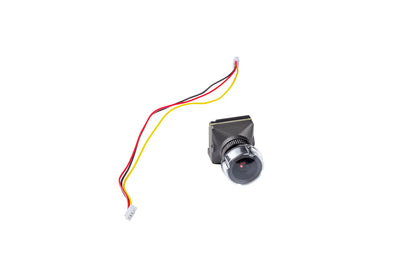

Weight: 9.5g The package contains: 1x CADDX Ratel Pro Camera 1x Menu Board 1x 2pin silicone cable 1x 3pin silicone cable 1x 1.5mm Allen key 1x Set of screws
