FPV Camera CaddxFPV Nebula Pro Nano Vista Kit (8cm)

Name: FPV Camera CaddxFPV Nebula Pro Nano Vista Kit (8cm)
Brand: Baltic Drones
SKU: SZ05-K008B
Price: 194.35 EUR
Availability: OutOfStock

FPV Camera CaddxFPV Nebula Pro Nano Vista Kit (8cm)

Brand: CaddxFPV

€194,35

~~€194,35~~ €194,35

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

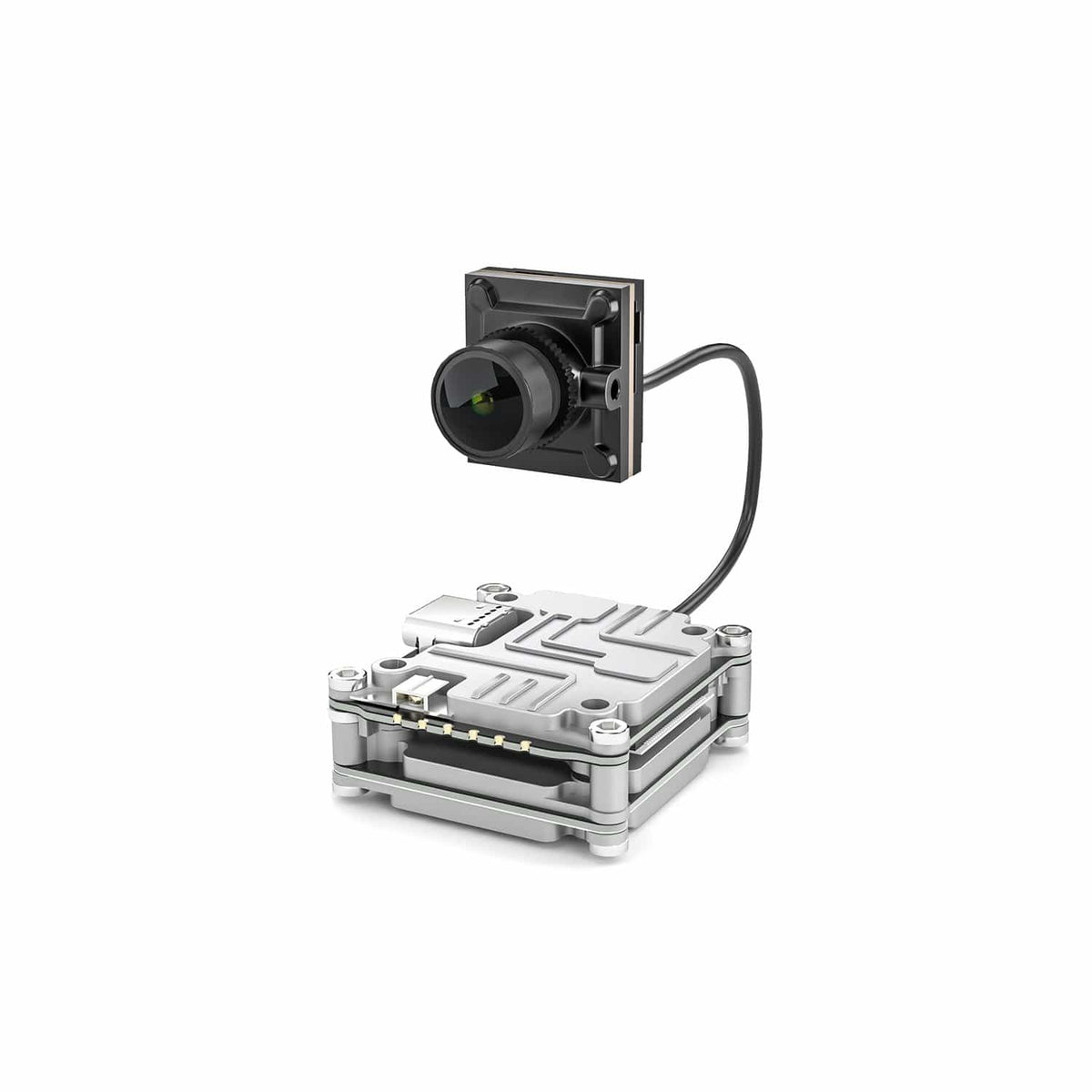

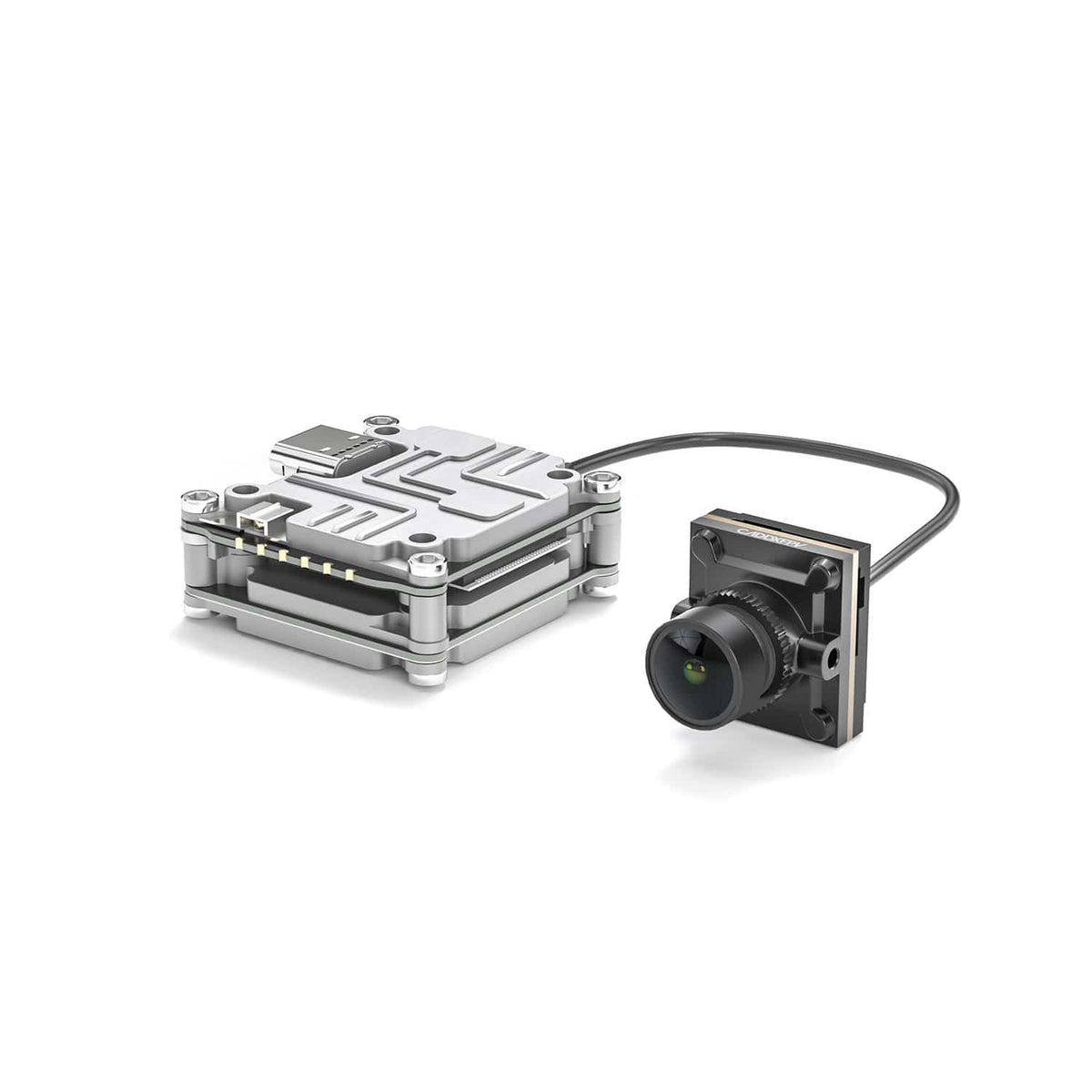

Nebula Pro Nano Vista Kit (8 cm)

Caddx Nebula Pro Nano Vista Kit is another advanced video transmission module from Caddx and fully authorized by DJI, which supports 5.8GHz digital video signal and switchable 16:9/4:3 1080p to 720p image transmission. The Caddx Nebula Pro Nano with Vista is designed for FPV drones and can be used with DJI FPV Goggles, providing high-definition digital images and a transmission range of up to 4 km. The Nebula Pro NANO Vista Kit comes with a Nebula Pro Nano camera with an 8cm connection cable.

Specifications

Camera:
Model: Nebula Pro Nano
Image sensor: 1/3-inch CMOS sensor
Field of view: 150°(D); 122°(H); 93° (H)
Aspect ratio: 16:9 & 4:3 (switchable)

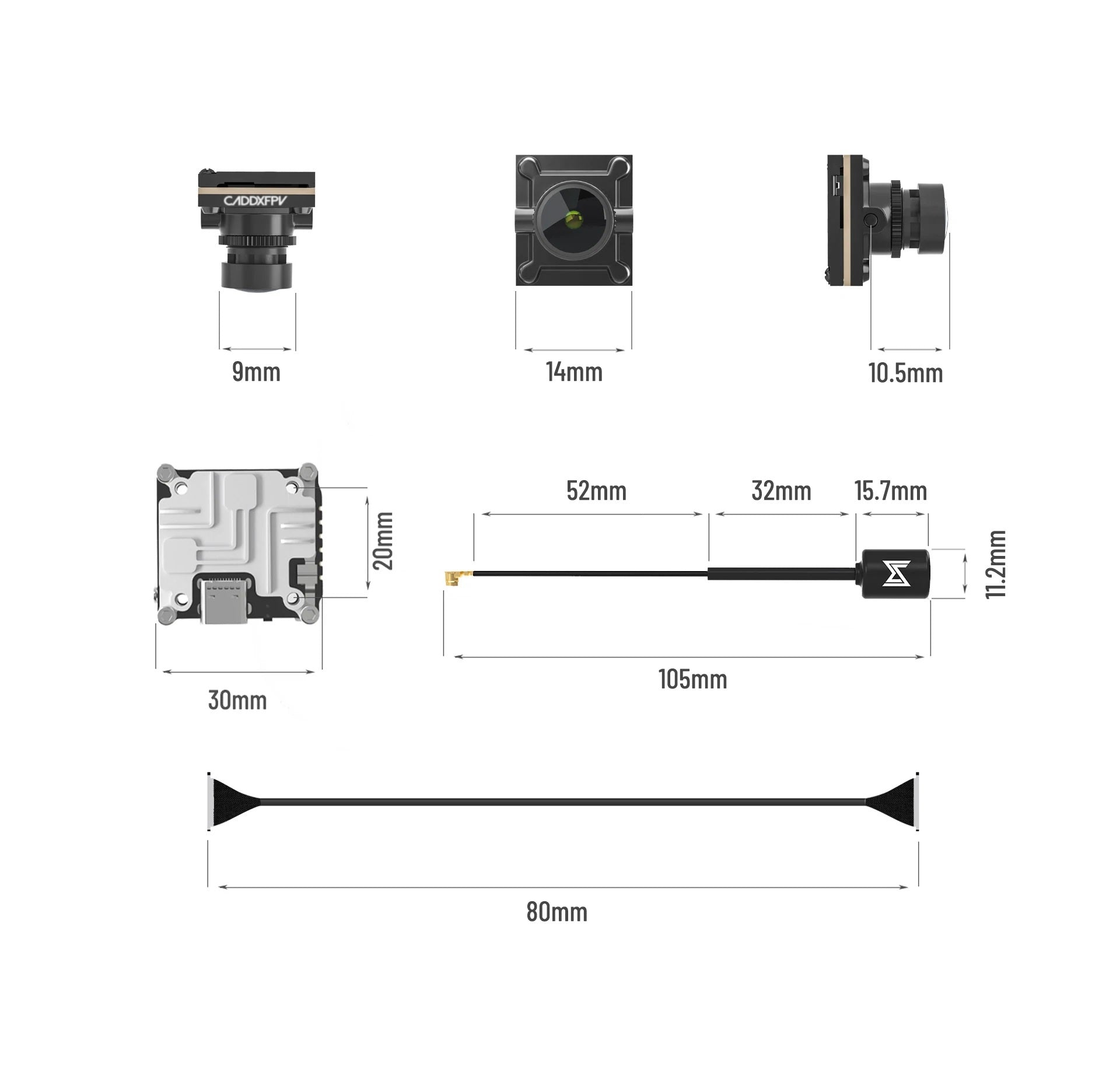

Dimensions: 16.5 x 16 x 14 mm
Resolution: 720p/120fps
Lens size: 2.1mm f/2.1
Cable length: 8 cm
Aperture: F/2.0
Weight: 3.5g

Vista drive:
Min Latency: (end-to-end) Low Latency Mode (720p 120fps): 21-28ms
Transmitter power: (EIRP) FCC/SRRC/MIC: <30dBm / CE: <14dBm
Max. Transmission distance: FCC/SRRC: 4km / CE: 0.7km
Output power: 25 mW / 200 mW / 500 mW / 700 mW
Supported flight control system: F3 / F4 / F7
High quality mode: (720p 60fps): 30-40ms
I/O interface: USB-C, Ipex3, 3 in 1 port
Operating frequency: 5.725-5.850 GHz
Dimensions: 30 x 29 x 13 mm
Weight: 20.8g (unit only)
Power consumption: 7.4-26.4V

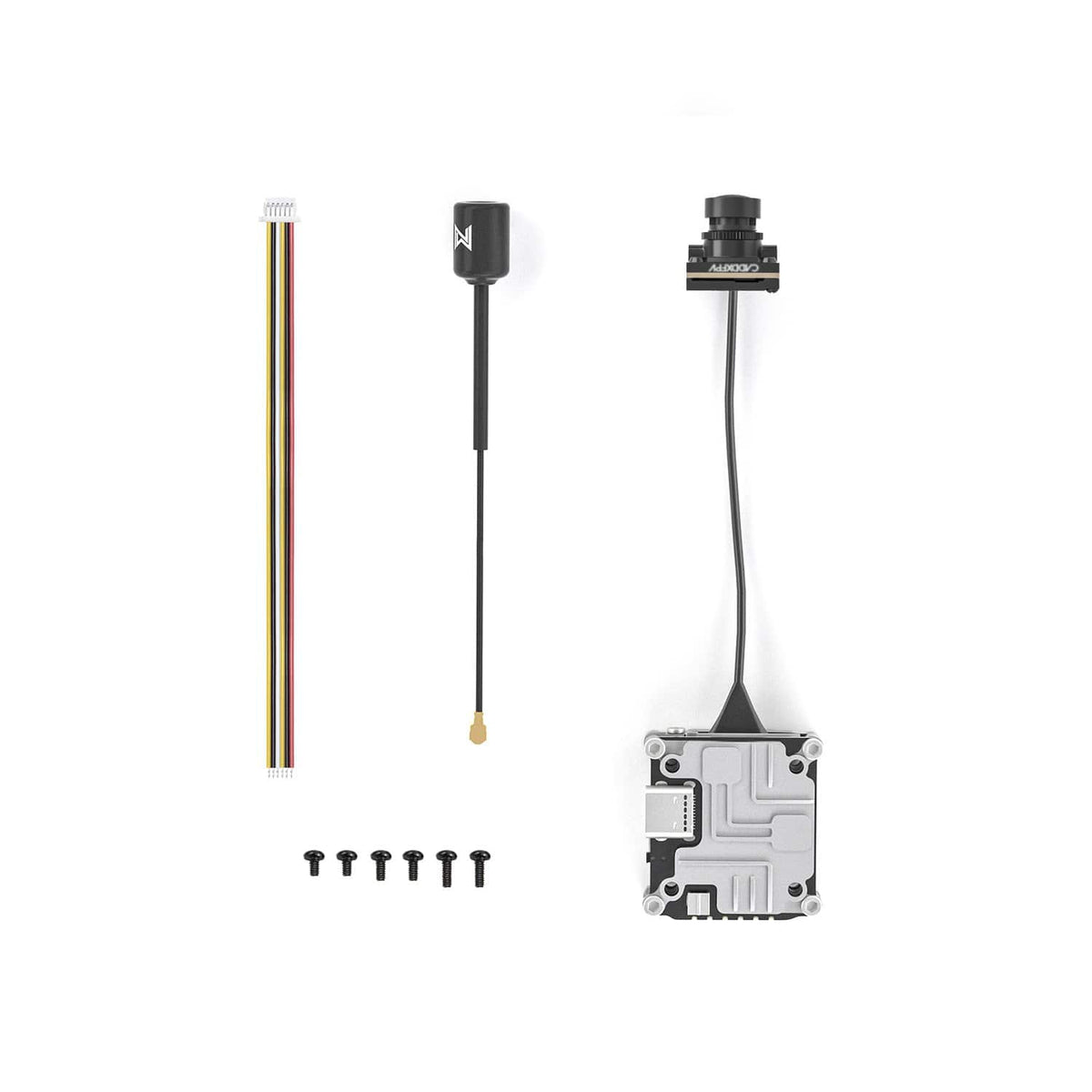

The package includes:
1 x Nebula Pro Nano Vista Kit
1x set of screws
1 x 3 in 1 cable
1 x User Manual
