Code: SKU:MN06-00S43
FPV Camera CaddxFPV Caddx Ant (Silver 4:3)
FPV Camera CaddxFPV Caddx Ant (Silver 4:3)
Brand: CaddxFPV
Regular price
€15,84
Regular price
€15,84
Sale price
€15,84
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

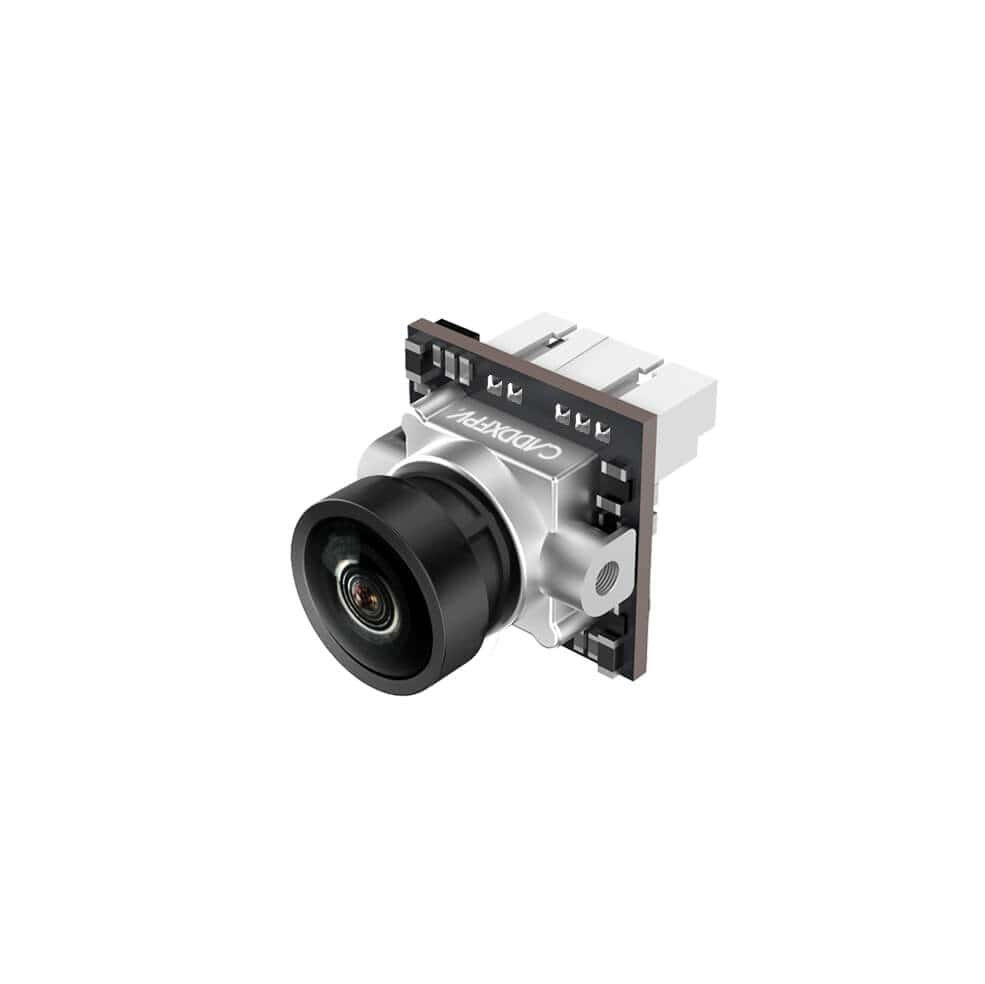

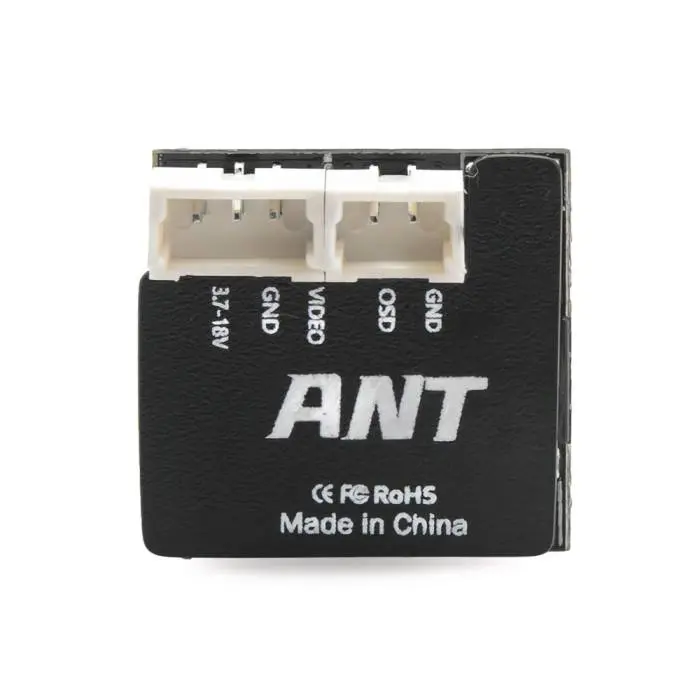

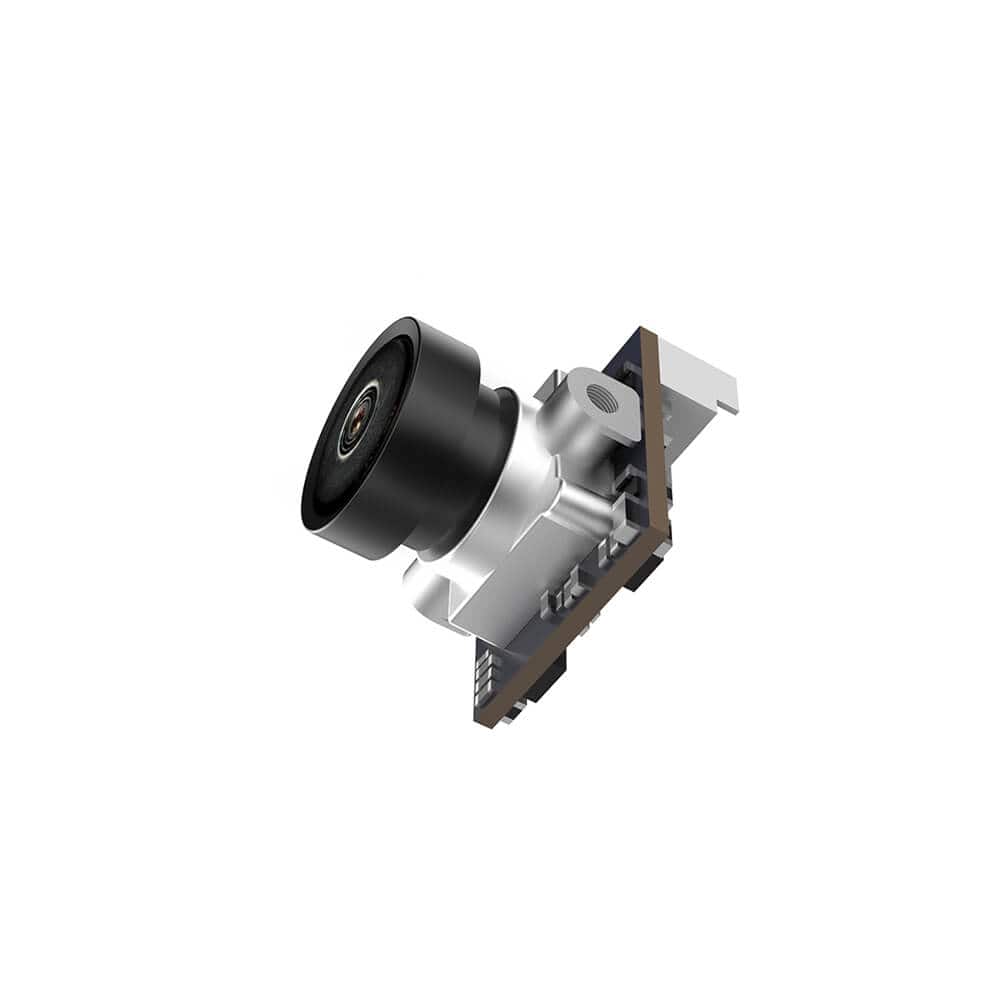

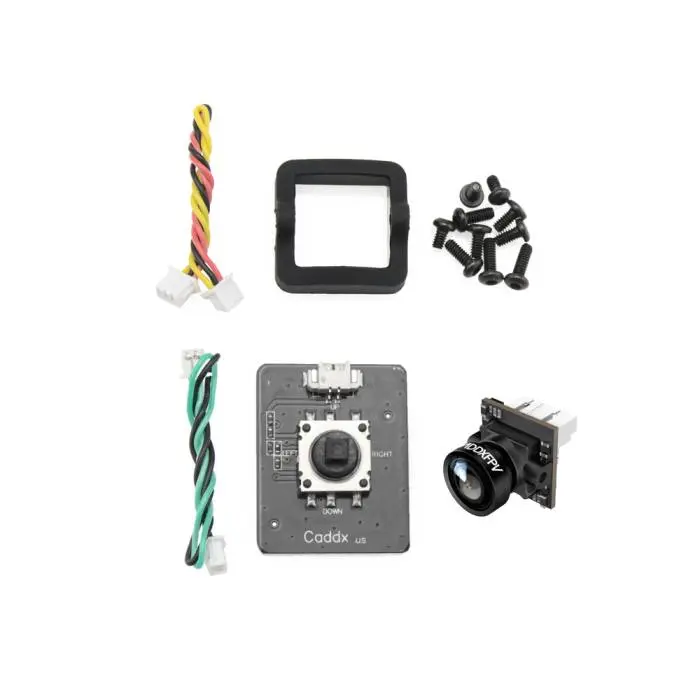

Caddx Ant (Silver 4:3) Caddx Ant Nano Camera is a 14x14mm ultra-light, affordable camera that weighs only 2g and supports OSD Menu, 3.7-18.V, Global WDR, NTSC or PAL and CVBS video output. A unique feature of this camera is that it includes 3D DNR, which gives you a completely clear image, so you don't have to worry about your image being grainy or noisy while flying. For larger setups, you can mount the Nano in a 19mm bracket (included). Specifications Model: Caddx Ant Nano Camera Image: 4:3 Color: Silver Electronic shutter: PAL: 1/50-100,000; NTSC: 1/60-1000,000 Dimensions: 14x14mm (with holder for 19x19mm) TV system: NTSC & PAL (variable) Image sensor: 1/3" CMOS sensor Min. Illumination: 0.001 Lux@F1.2 Horizontal resolution: 1200TVL Working temperature: -20°C +60°C Wide power input: DC 3.7-18V Radio S/N: >52dB (AGC OFF) Working humidity: 20% - 80% Synchronization: Internal Auto Gain Control: Yes Video output: CVBS WDR: Global WDR Weight: 2g (N.W.) Offer: Support DNR: 3D DNR Fove: 165° Lens: 1.8mm BLC: Yes The package includes: 1x Caddx Ant FPV Nano Camera 1x 3pin FPV silicone cable 1x 5D-OSD Menu Board 1x FPV silicone cable 1x Warranty card 1x 19mm holder 4x screws
