Code: SKU:MN01-3000B
FPV camera Caddx Ratel 2 (Night Version)
FPV camera Caddx Ratel 2 (Night Version)
Brand: CaddxFPV
Couldn't load pickup availability
- Description
- Related Files
- Discussion

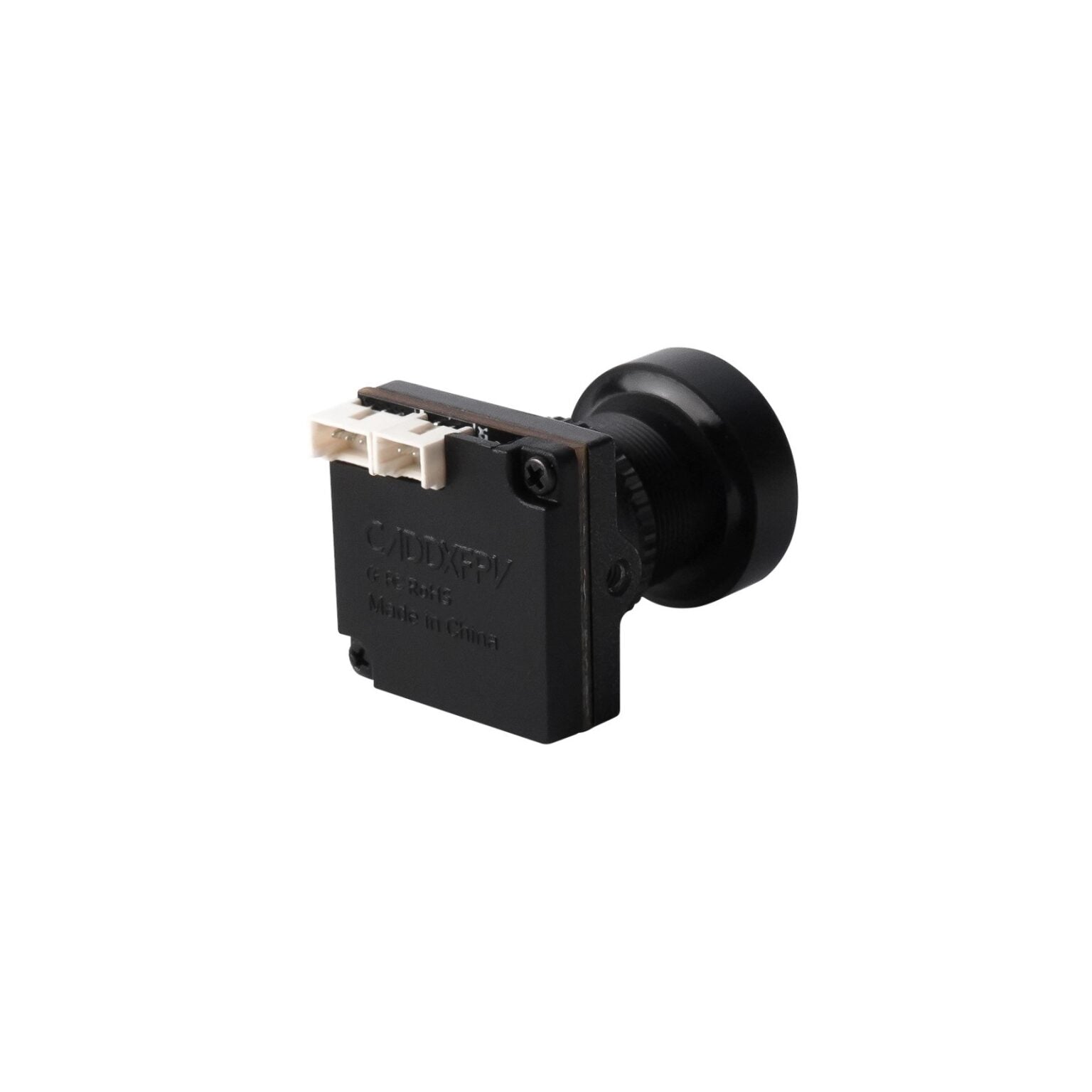

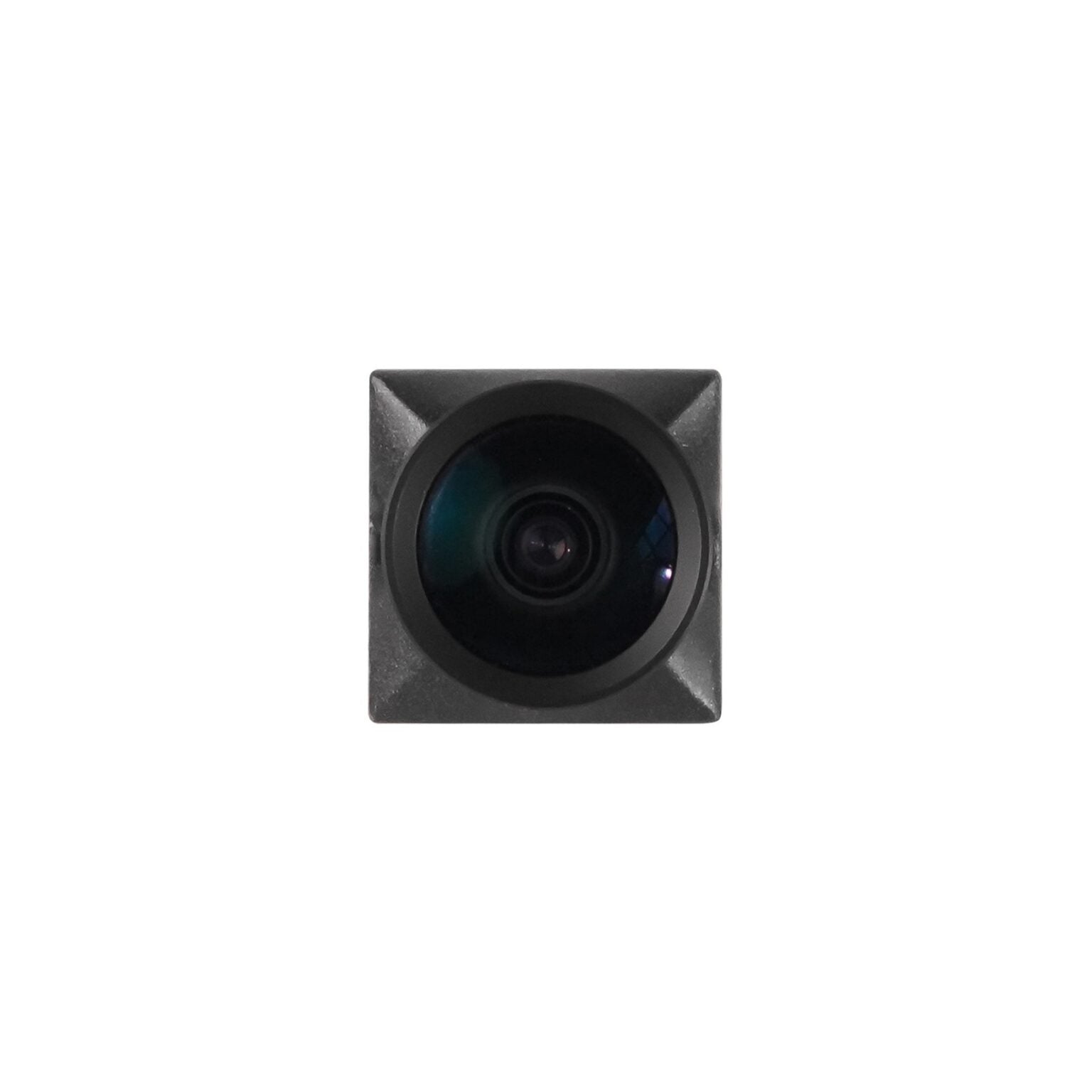

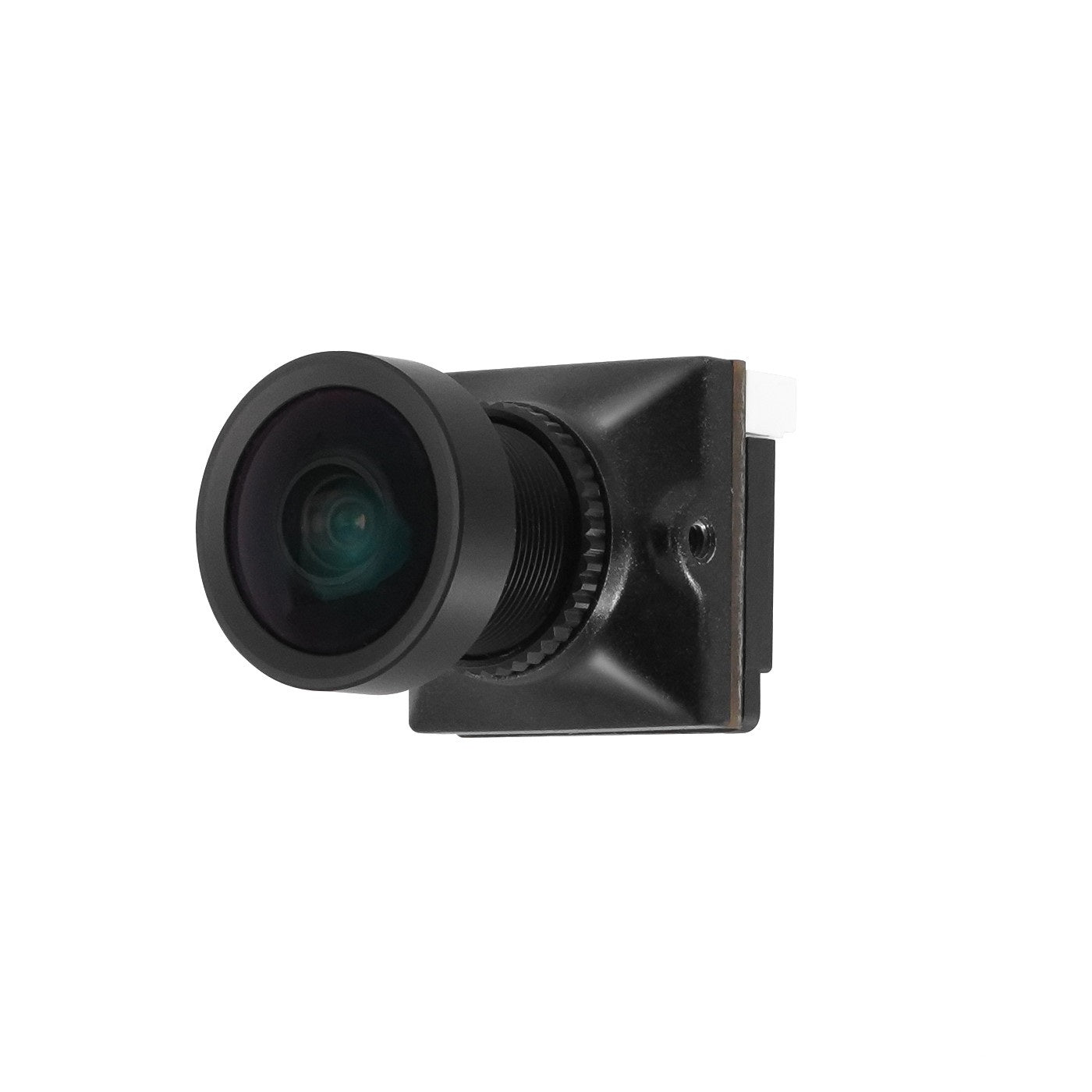

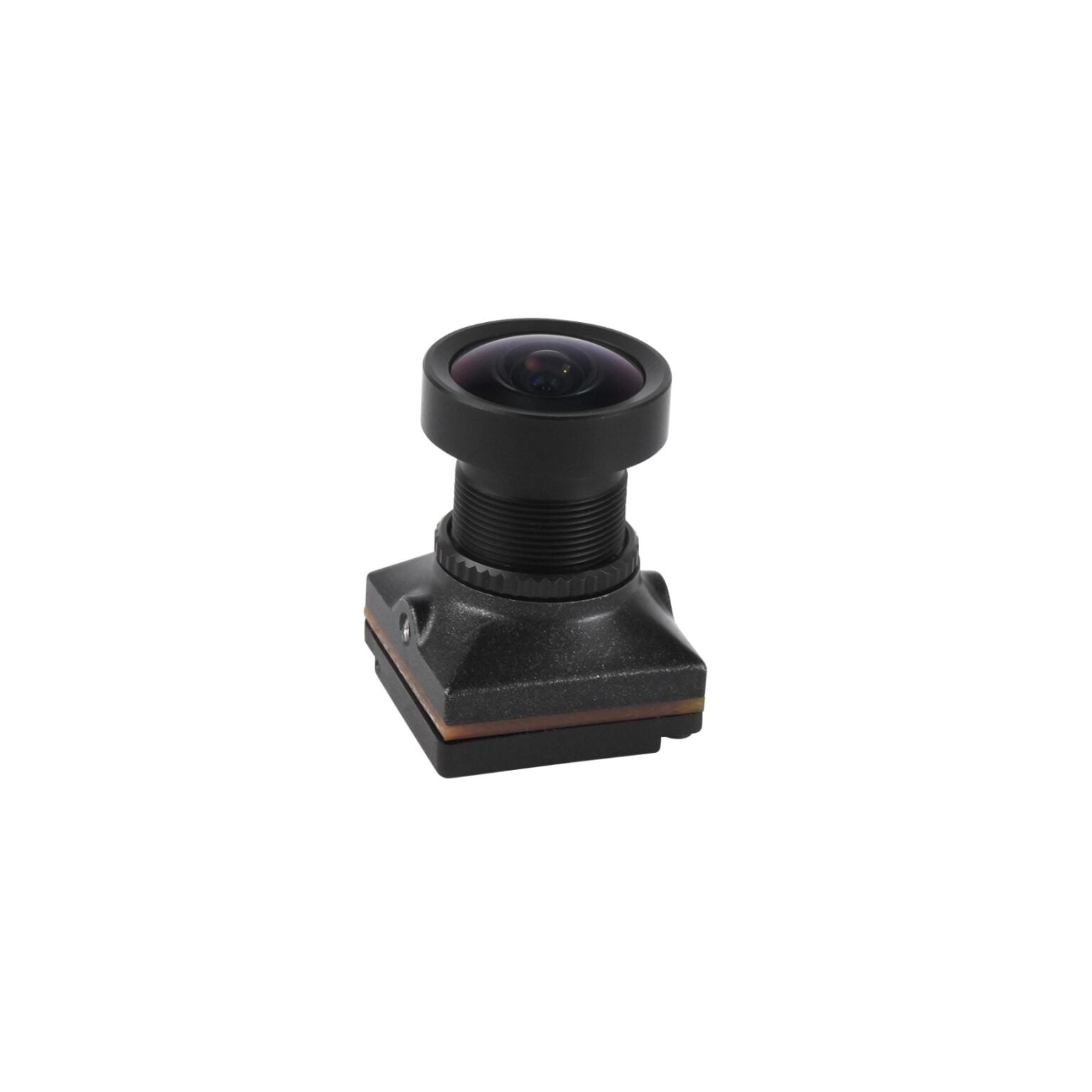

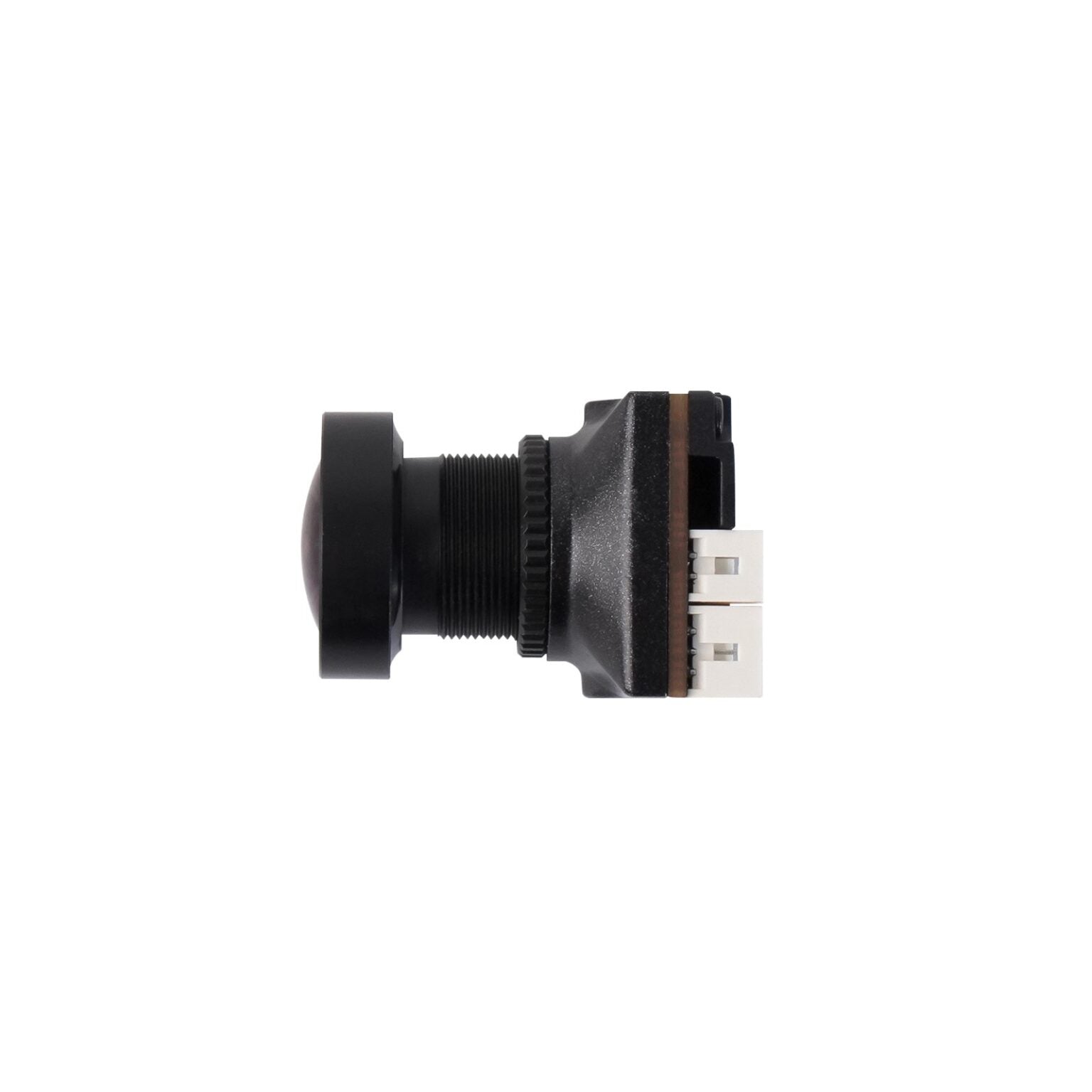

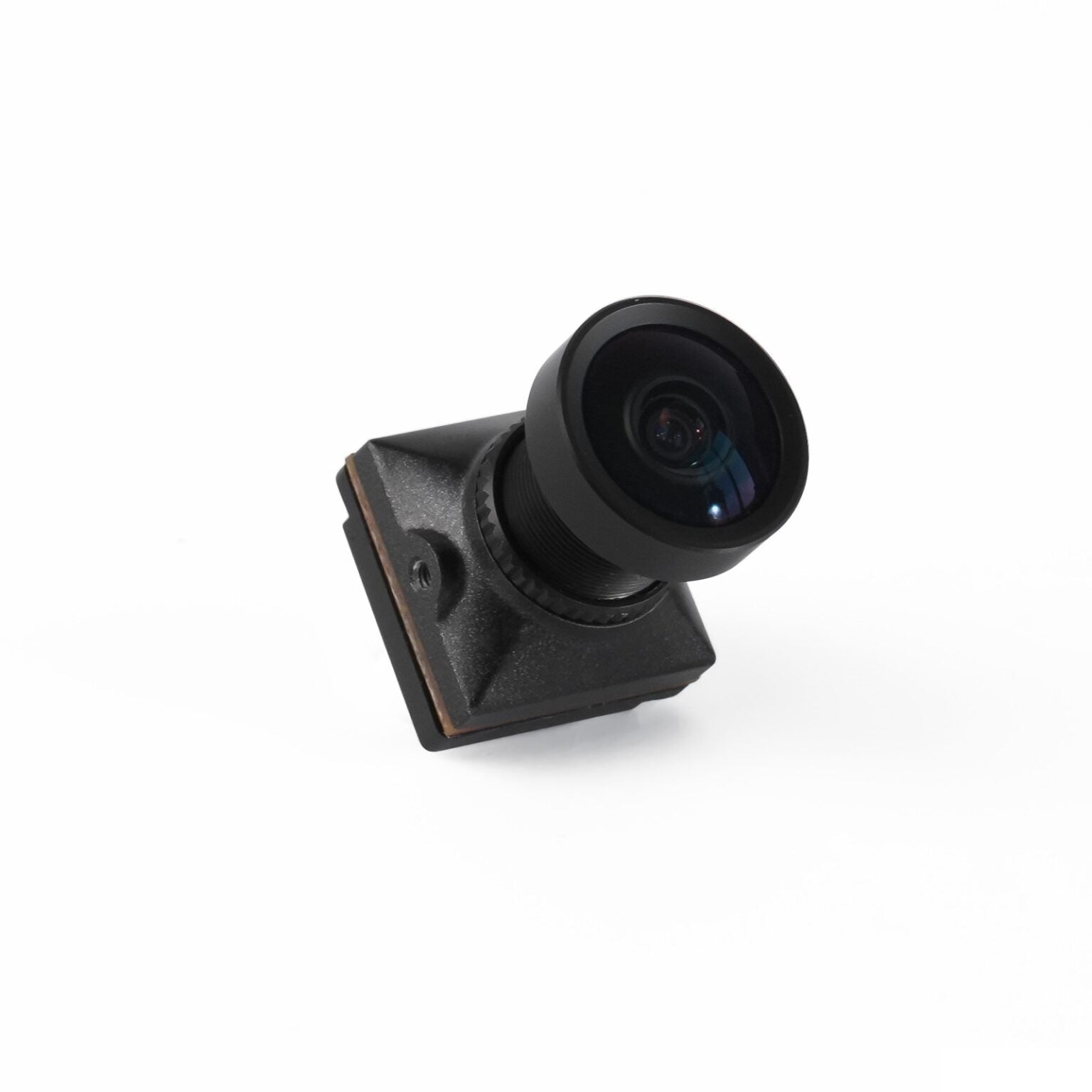

FPV camera Caddx Ratel 2 (Night Version)
CaddxFPV took as a basis the popular and time-tested Ratel 2 camera, designed in the Micro format with dimensions of 19x19 mm, and improved its features. The Ratel 2 Night version has a higher resolution of 1500TVL, HDR with a wider dynamic range of the image. This model also performs better in low light, thanks to Starlight technology, 0.0001 LUX and improved lenses that provide sharper images and better night vision.
Features:
- Higher resolution 1500TVL (compared to 1200TVL of normal Ratel 2 camera)
- Super WDR (HDR): improved HDR for wider dynamic range
- Starlight, 0.0001 LUX: better visibility in low light
- Better 8Mega / F1.2 lens, sharper image and better night vision effect
Specifications:
Sensor: 1/1.8″ Starlight HDR
Horizontal resolution: 1500TVL
Lens: 8Mega / F1.2
Aspect ratio: 16:9 / 4:3 (adjustable)
TV system: NTSC & PAL (Adjustable)
WDR: Super WDR (HDR)
DNR: 3-DNR
Minimum Illumination: Starlight, 0.0001 LUX
Sync: Internal
Electronic Shutter: PAL: 1/50 ~ 100,000; NTSC: 1/60 ~ 100,000
Signal to Noise Ratio: > 60dB (AGC Off)
OSD: Yes
Day/Night Mode: Auto / Color / Black & White / EXT
Video Output: CVBS
Power Supply: DC 5-40V
Dimension: 19 x 19 x 26.5mm
Weight: 5.9g
Package includes:
1x Caddx Ratel 2 Night
1x Menu board OSD 5D
1x FPV silicone cable A (3-pin bi-directional)
1x FPV silicone cable B (2-pin bi-directional)
1x hexagon wrench
