Code: SKU:5501
FC Pilotix H743 BMI270
FC Pilotix H743 BMI270
Brand: Pilotix
- Description
- Related Files
- Discussion

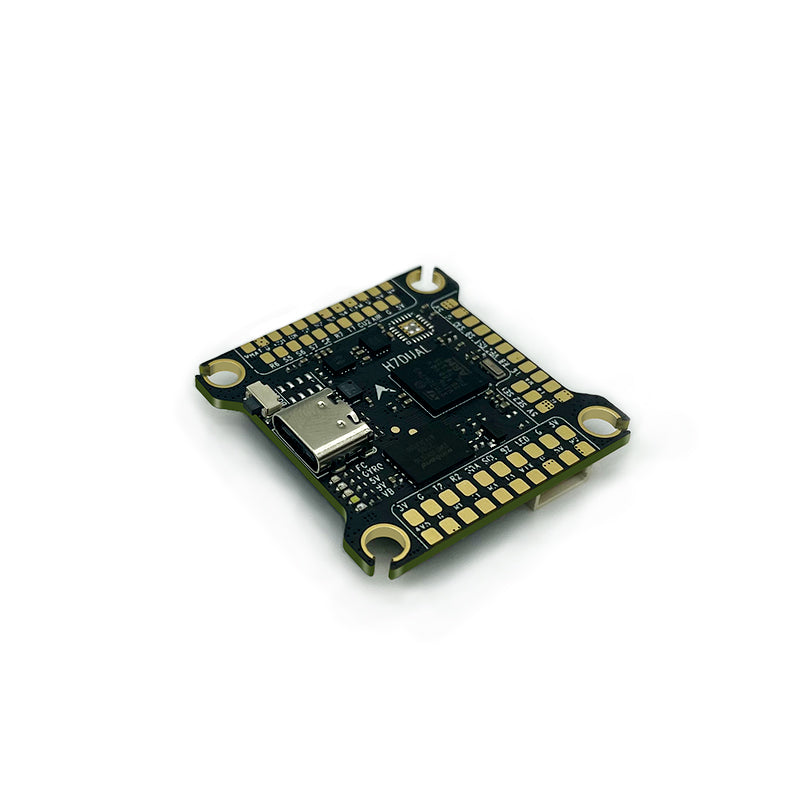

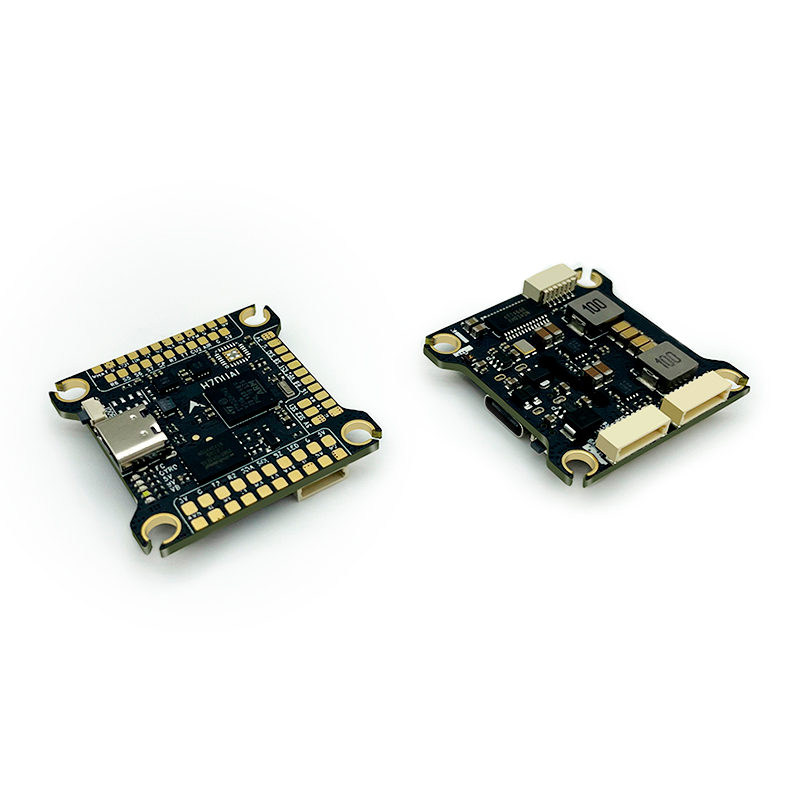

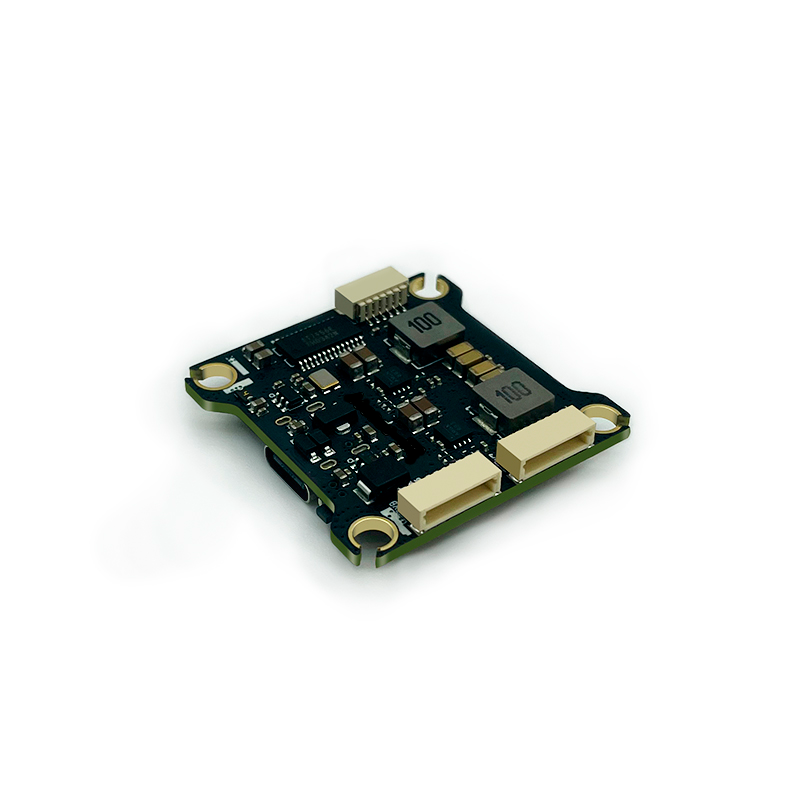

Pilotix H743 BMI270 Control Unit
The Pilotix H743 BMI270 is a high-performance controller designed for both professional and hobbyist drone pilots. Thanks to the powerful STM32H743VIH6 processor, it offers advanced stability and flight control, making it suitable for a wide range of drone applications.
Key Specifications:
- Processor: STM32H743VIH6
- Gyroscope: Dual BMI270 and MPU 6000 for accurate and reliable motion tracking
- Barometric sensors: BMP280, DPS310 or MS5611 for accurate height measurement
- Black Box: 128 MB memory for recording flight data
- Outputs for motors: Support up to 10 channels for multi-rotor systems
- Outputs for servos: 2 channels for additional control functions
- Universal serial ports: 8 channels for connecting peripherals
- Input power: Support 3S to 6S LiPo batteries
- Output power: 5V/2.5A and 9V/3A for reliable power distribution to connected components

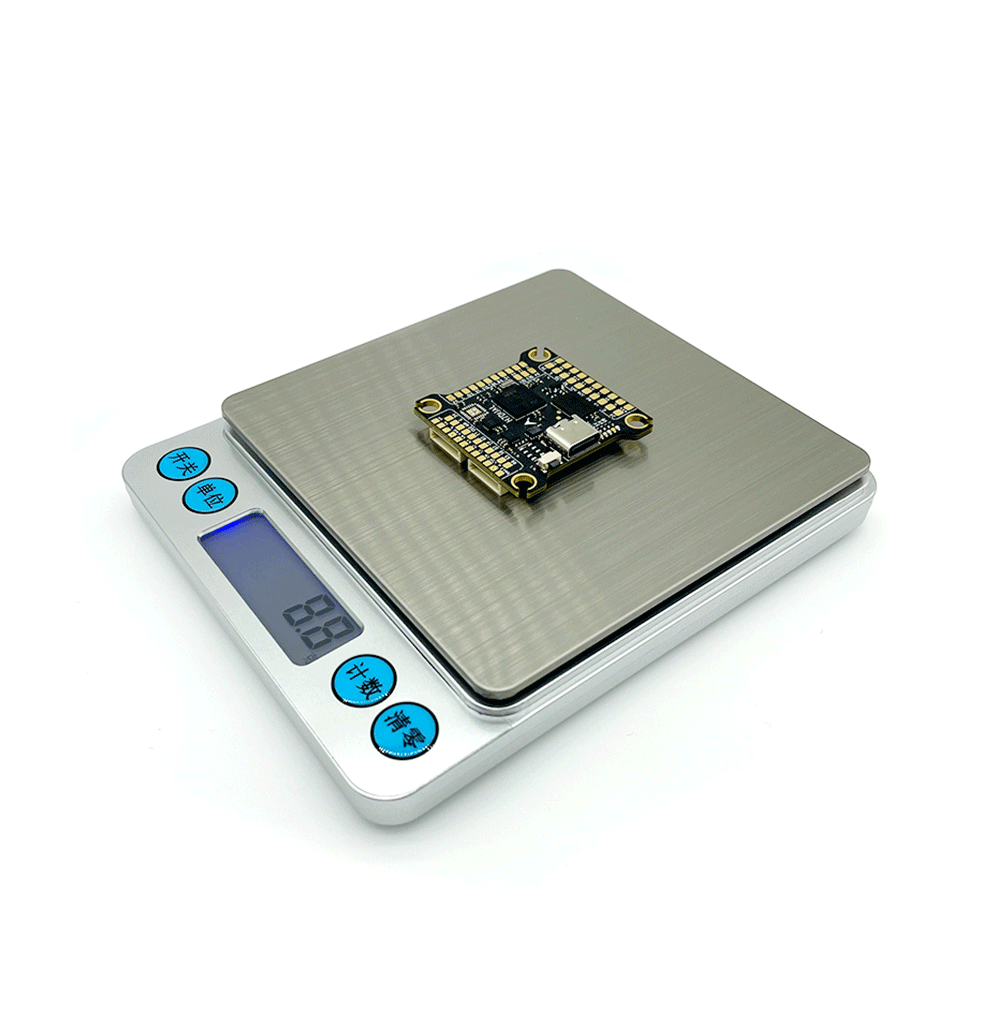

- Weight: Lightweight design weighing only 8.8g, ideal for compact and lightweight drones
- Dimensions: 37mm x 37mm for easy integration

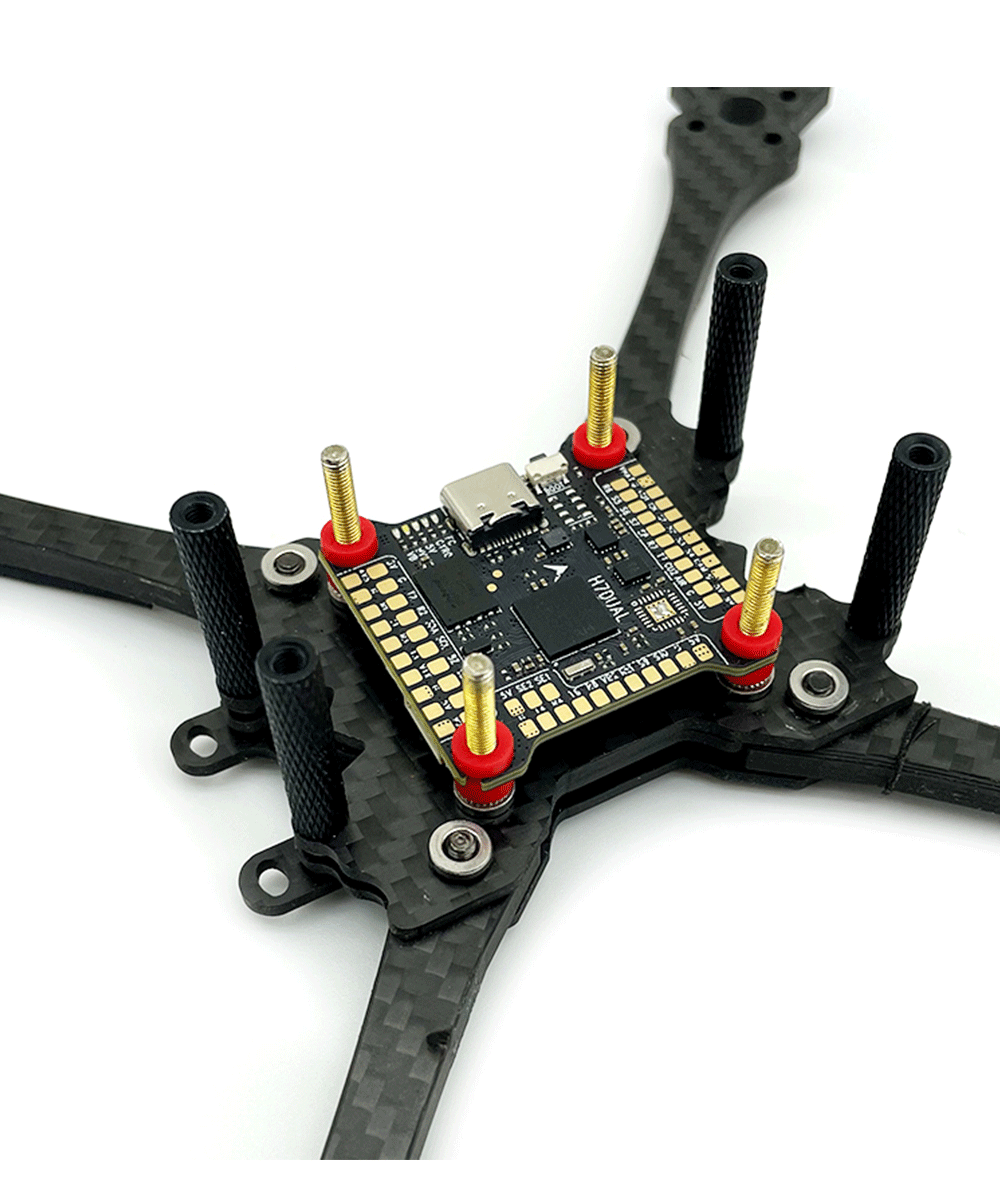

- Mounting hole spacing: 30.5mm x 30.5mm, standard for most frames
