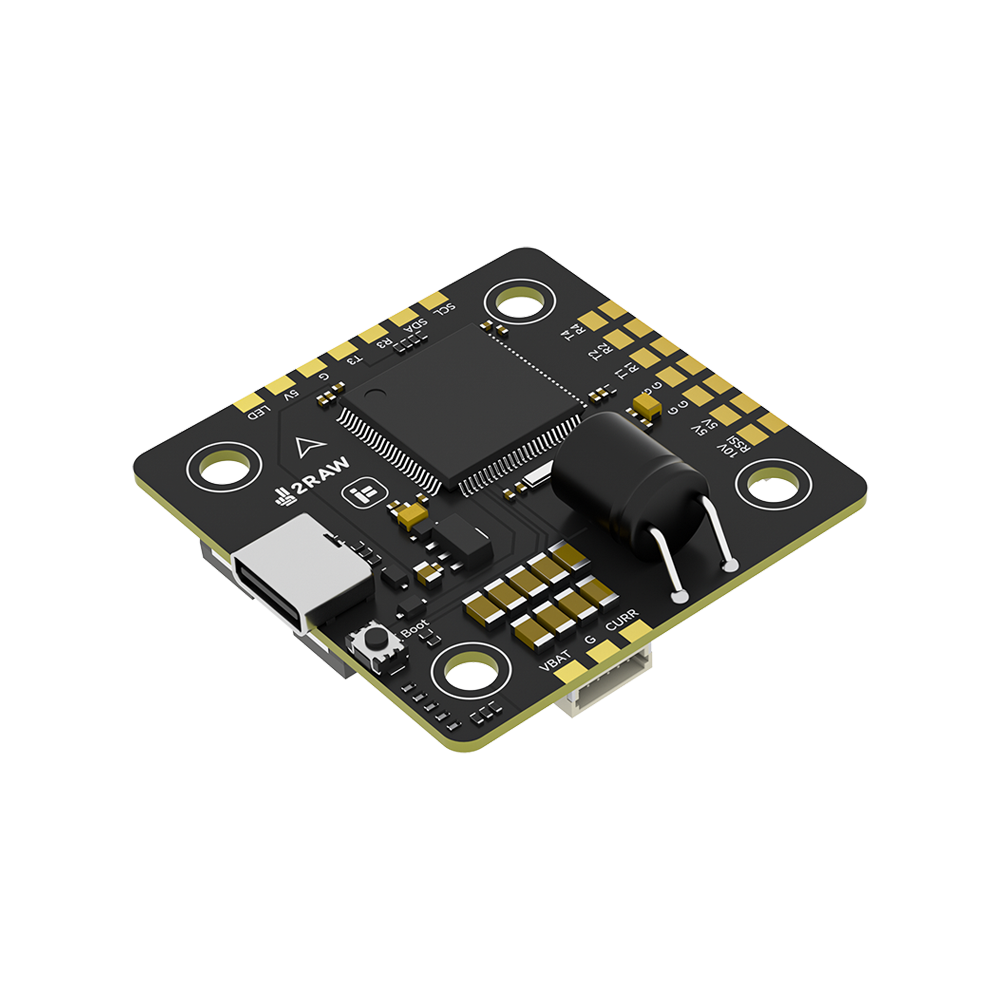

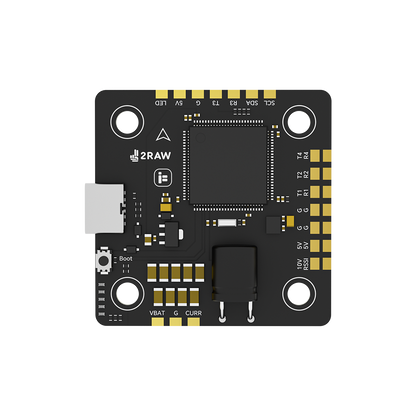

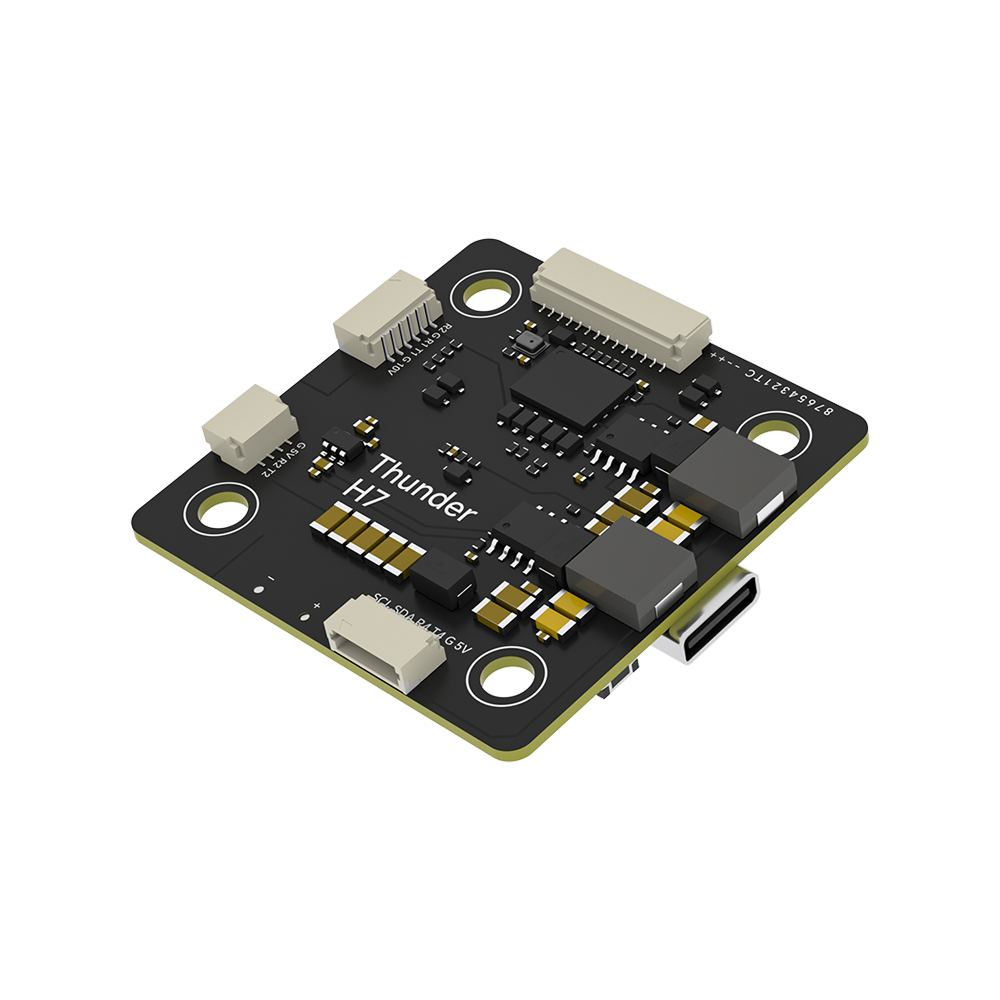

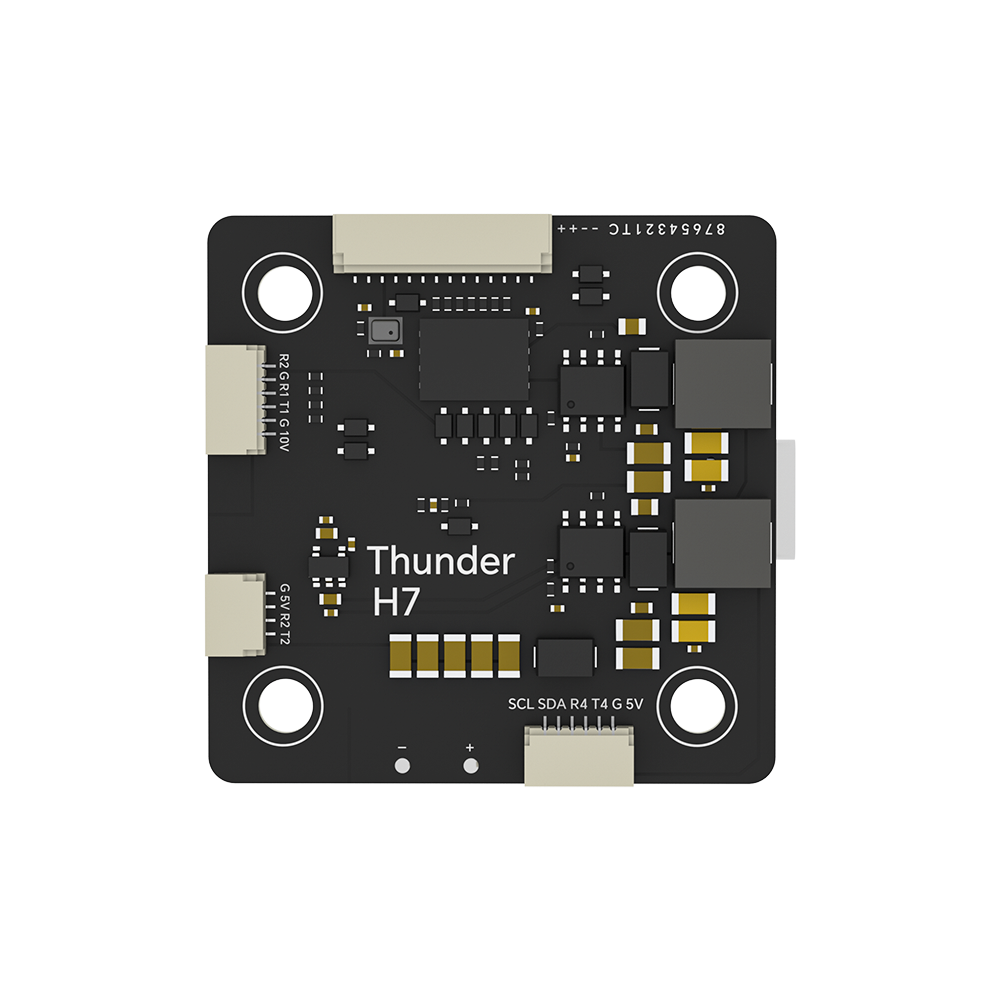

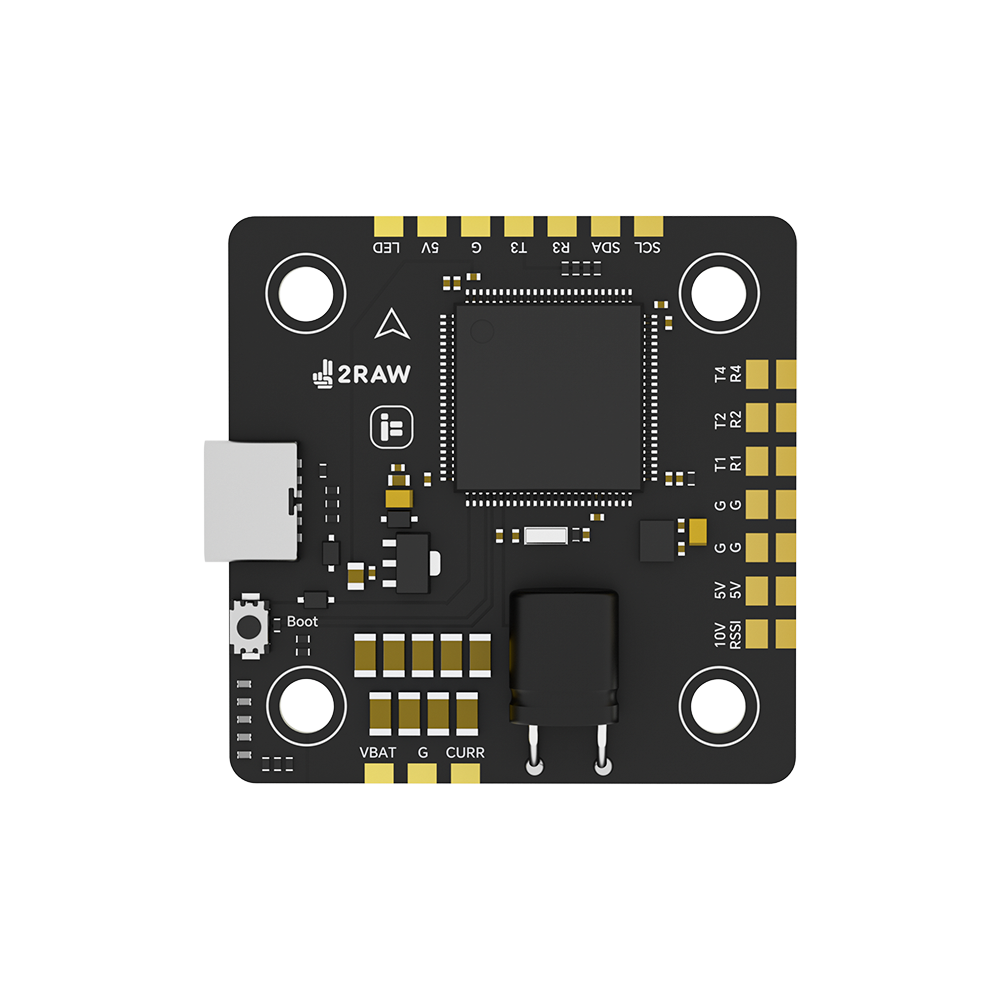

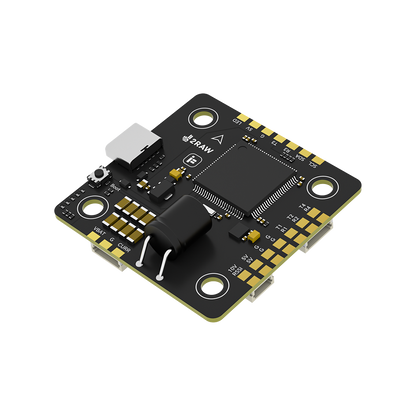

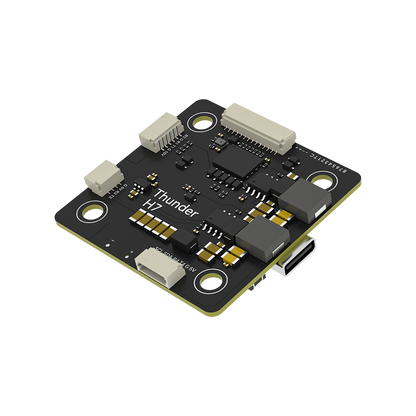

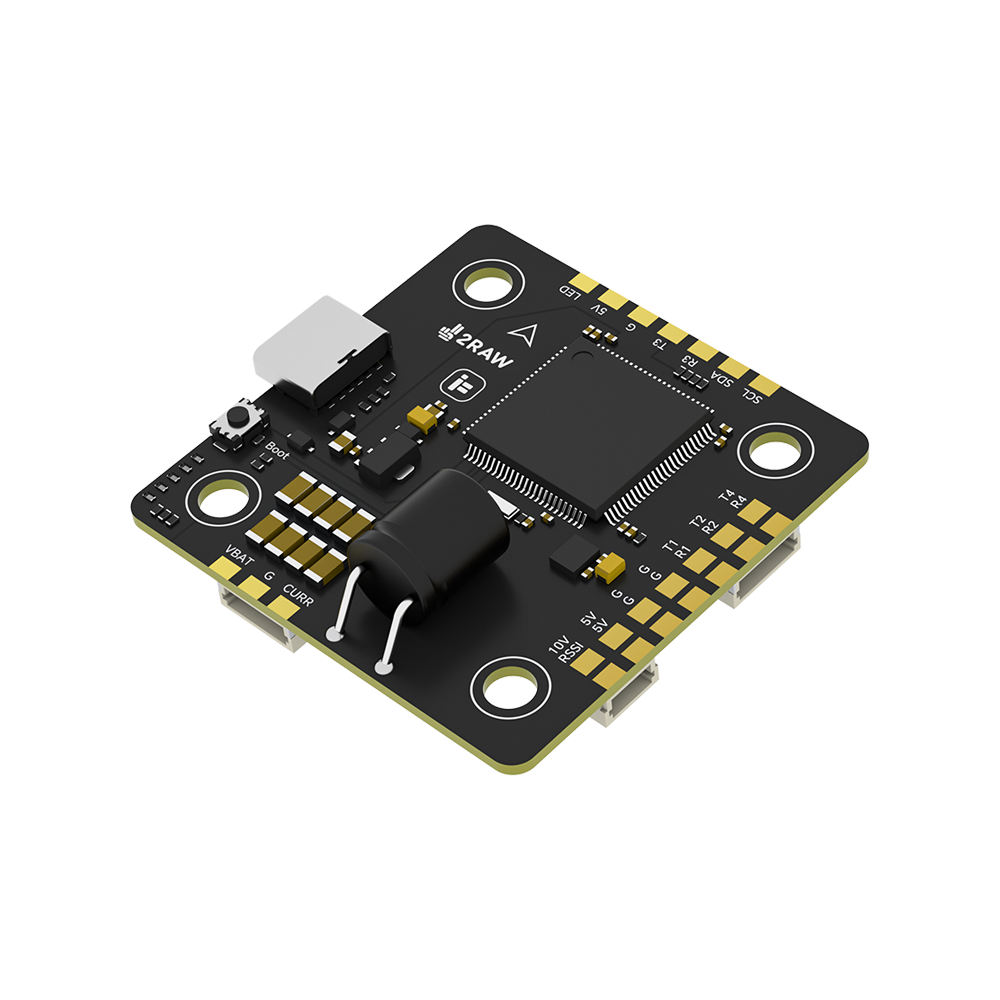

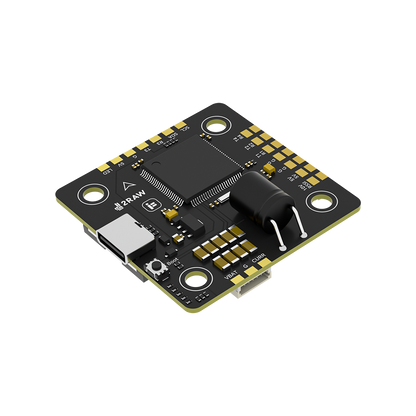

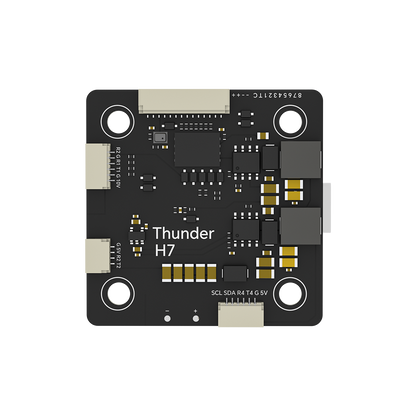

    Control unit iFlight Thunder H7

The iFlight Thunder H7 is a next generation controller designed for advanced pilots and high voltage applications. As the first FC designed for direct 12S input, it provides exceptional performance handling without compromising reliability or durability. Equipped with a fast STM32H743 processor and an ICM42688P gyroscope, it provides ultra-precise control and fast response even in demanding 8-motor setups. The modular design supports both plug-and-play and soldered assemblies, while a built-in filter capacitor slot ensures a clean power supply. Ideal for advanced FPV racers and heavy-duty drones, this controller redefines the possibilities in high-end drone systems.

Specifications:

MCU: STM32H743
Gyro: ICM42688P
Barometer: SPL06-001
OSD: Not included
Blackbox: 512MB built-in flash
UARTs: 6
Motor outputs: 4x SH1.0 connector
I2C: SDA/SCL pads
LED driver: Yes
Beeper pad: Yes
BEC output: 5V 1.5A / 10V 1.5A (Burst 2A after 120s)
Firmware: Betaflight & iNAV – 2RAW_THUNDER_H7
Mounting: 30.5 × 30.5mm / φ4mm
Dimensions: 42 x 42 mm
Weight: 14 g
Capacitor slot: 63V 100 µF built-in filtering

Package Contents:

1 x Thunder H7 Flight Controller
1 × FC connectors as above
1 × Silicone grommets
