Code: SKU:S009808
FC iFlight SucceX-E Mini F722 V1.4 2-6S
FC iFlight SucceX-E Mini F722 V1.4 2-6S
Brand: iFlight
Regular price
€58,19
Regular price
€58,19
Sale price
€58,19
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

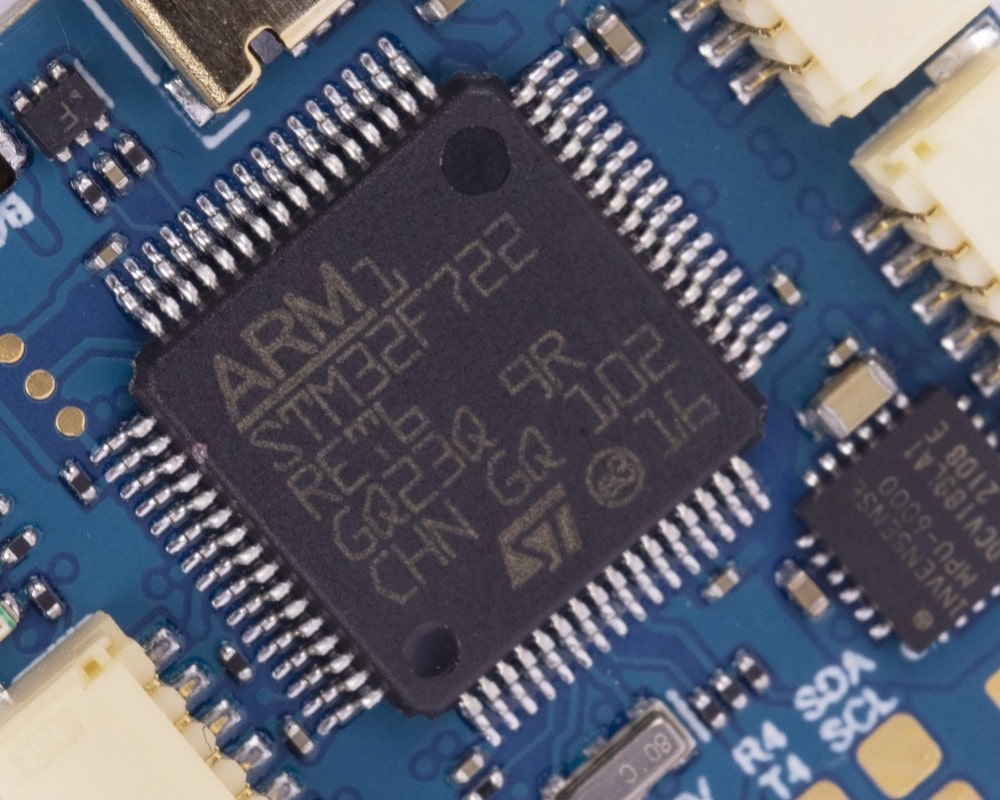

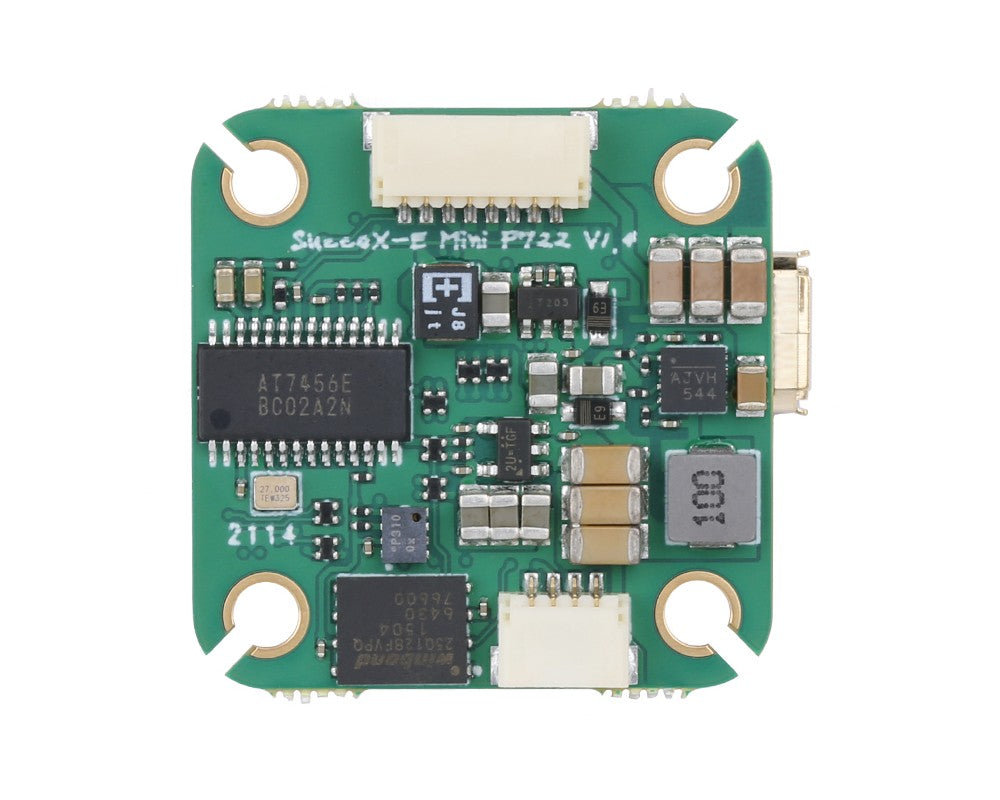

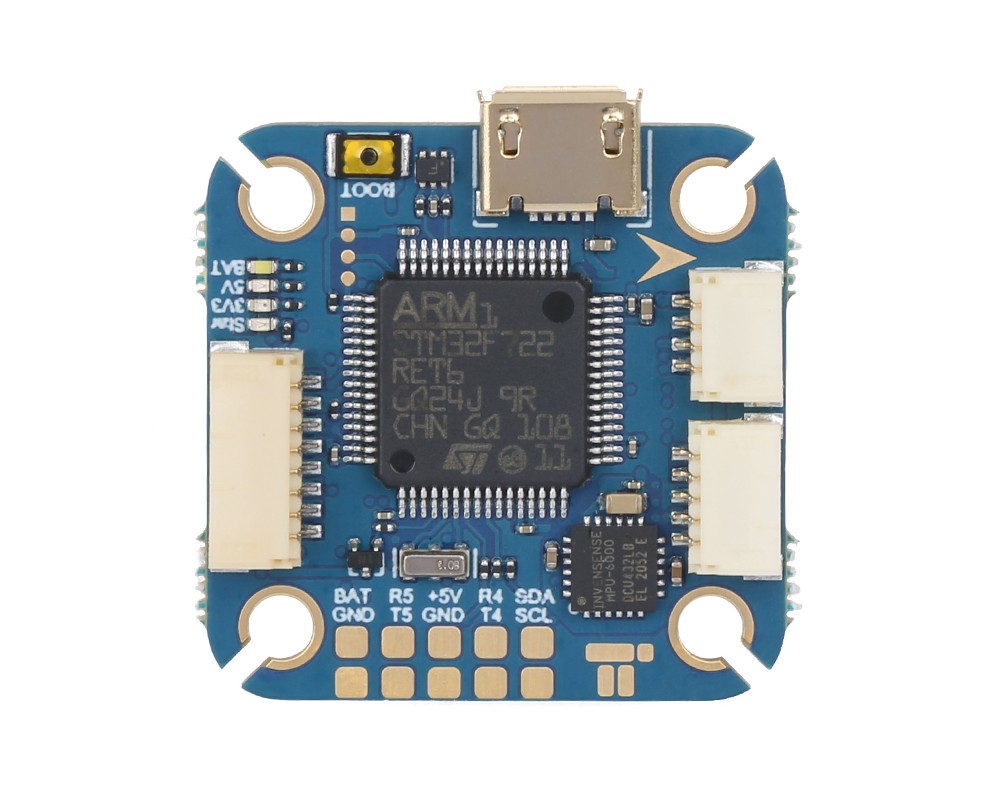

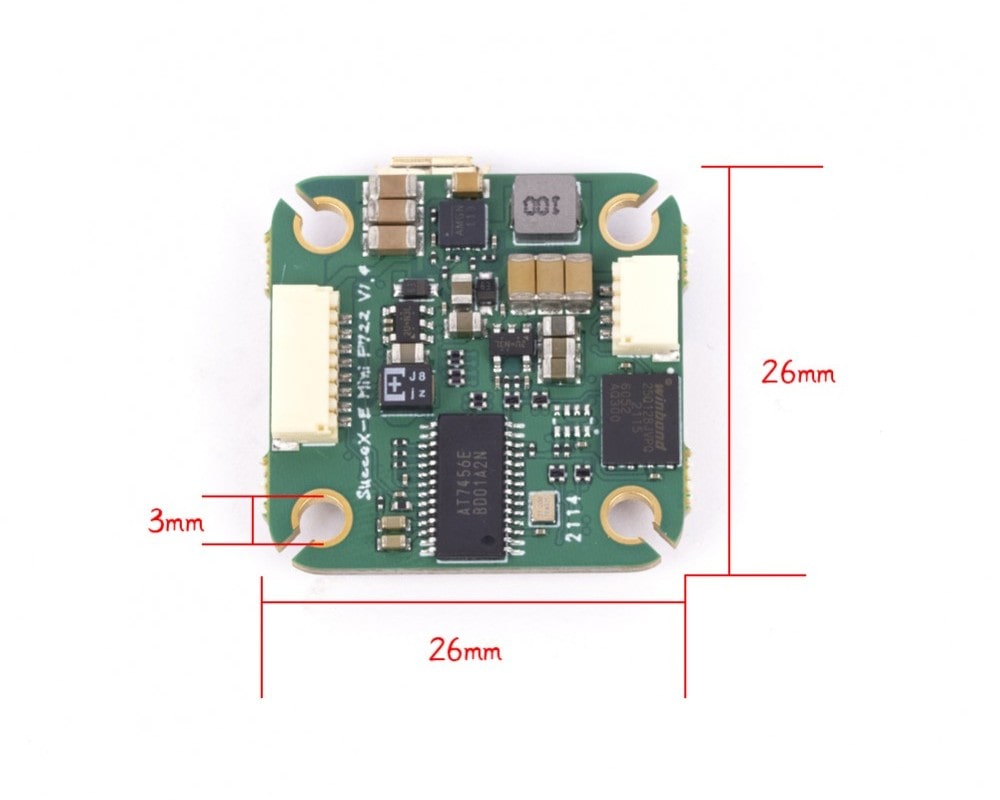

SucceX-E Mini F722 V1.4 2-6S Flight Controller Function: - Gold plated plug - BlackBox: 16 MB - Vista HD Plug-and-Play. No need to solder tiny wires. - BAT, +5V, 3.3, Start indicator - Smartaudio and IRC Tramp VTX protocol support Specifications: MCU: STM32F22RET6 216MHz Gyro: MPU 6000 Baro: NO OSD: IFLIGHT OSD (AT7456E) BEC: 5V 2.5A BlackBox: 16MB Uart: 4*UART(UART1, UART2, UART4, UART5) UART1 for VTX HD/analog telemetry UART2 for receiver UART4 for GPS UART4 for GPS or other sensors that require a serial port UART5 for ESC telemetry 4×Dshot/PWM outputs 1x12C 1× SH1.0 8-pin connector for ESC (GND/BAT/M1/M2/M3/M4/CUR/R5) 1 x SH1.0 8-pin connector for any receiver or VISTA (5V/T2/R2/GND/R1/T1/GND/BAT) 1 x SH1.0 4-pin connector for VTX（5V/VBAT/GND/VTX/T1) 1 x SH1.0 4-pin camera connector (5V/GND/CAM/CC) 1 x SH1.0 4-pin connector for LED&Buzzer (GND/BZ-/LED/5V) 4×0201 LED for FC STATUS (blue, red, orange) and 3.3V indicator (red) BAT/+5V/3.3V/start LED strip WS2812: Yes Smartaudio & IRC Tramp VTX protocol supported Beeper: Yes Firmware: IFLIGHT_SUCCEX_E_F7 4.2.9 Outer dimension: 27*27mm / 20*20mm φ3 mounting Weight: 6.0g The package includes: 1x flight controller SucceX-E mini F7 V1.4 1x Set x Wire Harness
