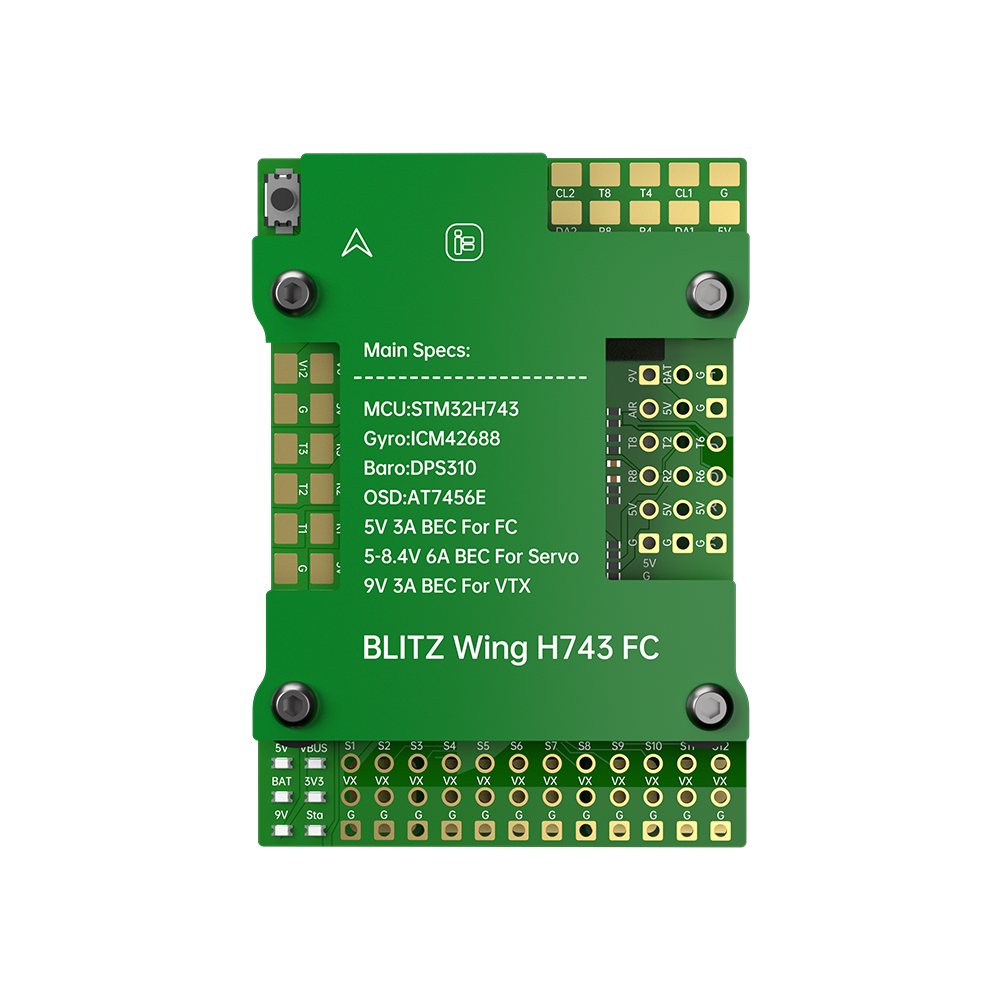

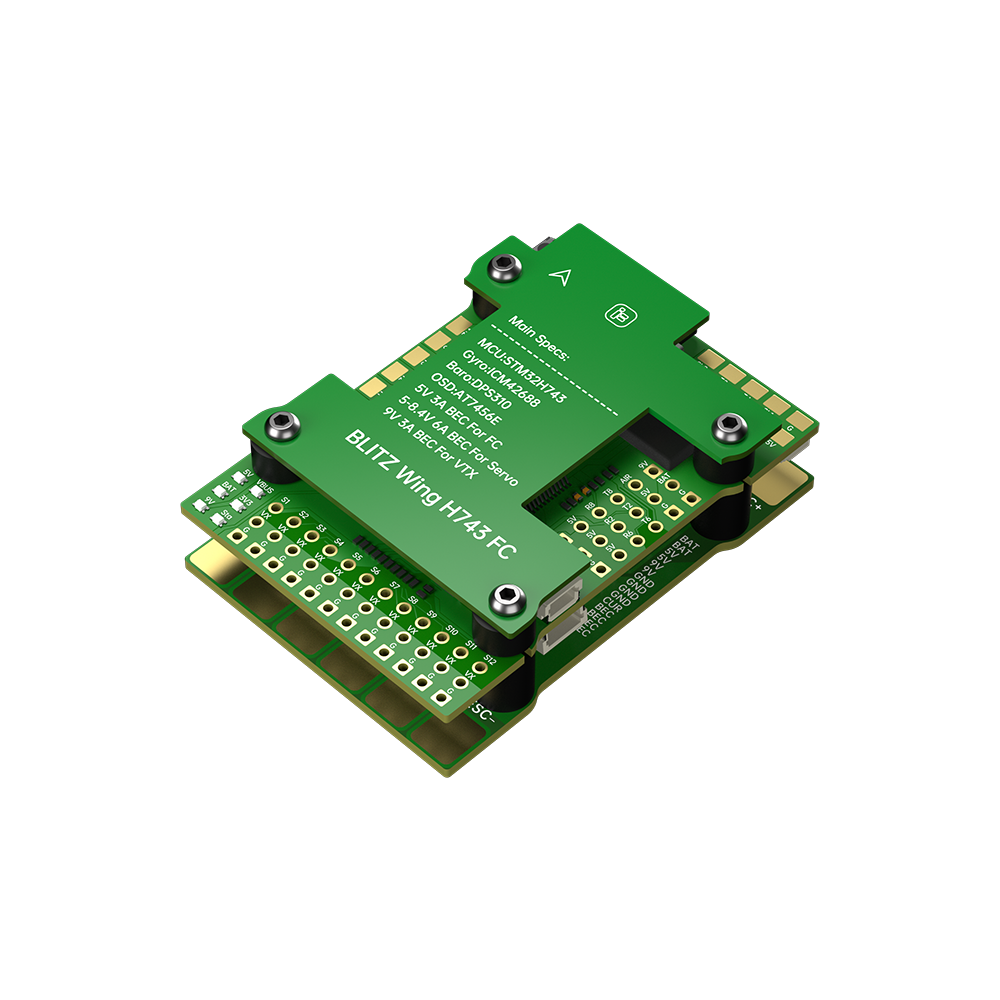

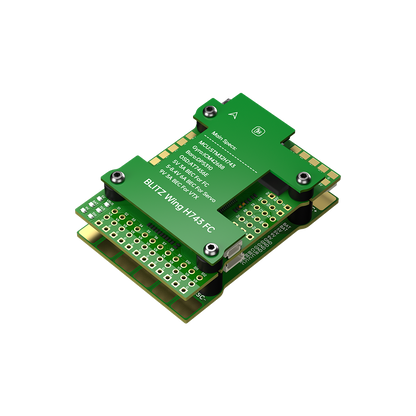

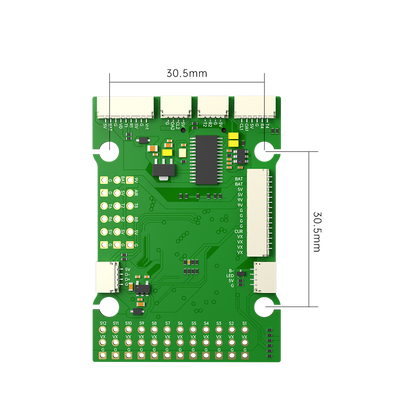

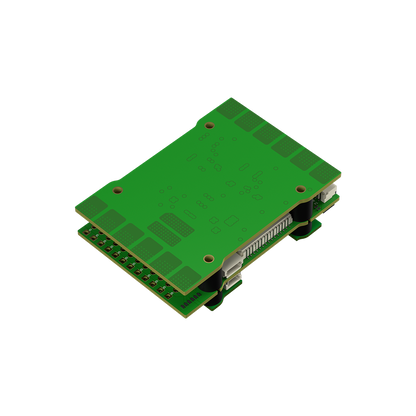

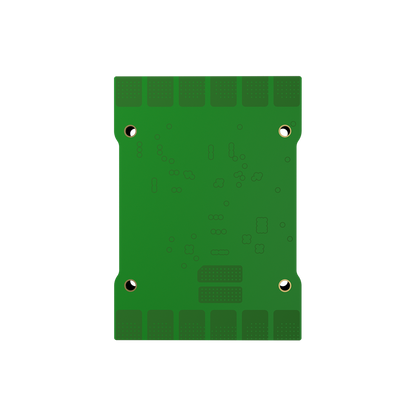

BLITZ Wing H743 Flight Controller

Designed specifically for Fixed Wing UAV enthusiasts, the high-quality flight controller is compatible with INAV and Ardupilot. With advanced features and compatibility with popular software platforms, the BLITZ Wing H743 flight controller offers an excellent flying experience and provides a reliable and efficient solution for the aircraft.

Function:

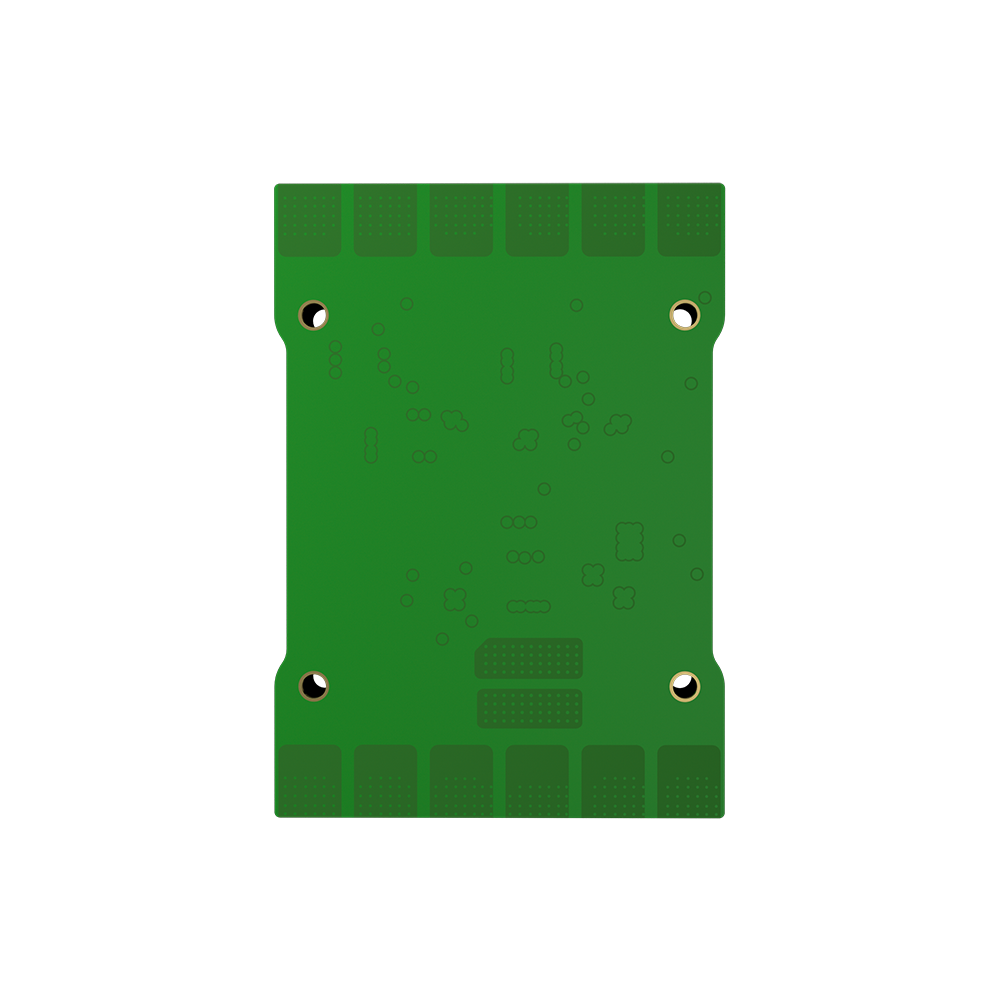

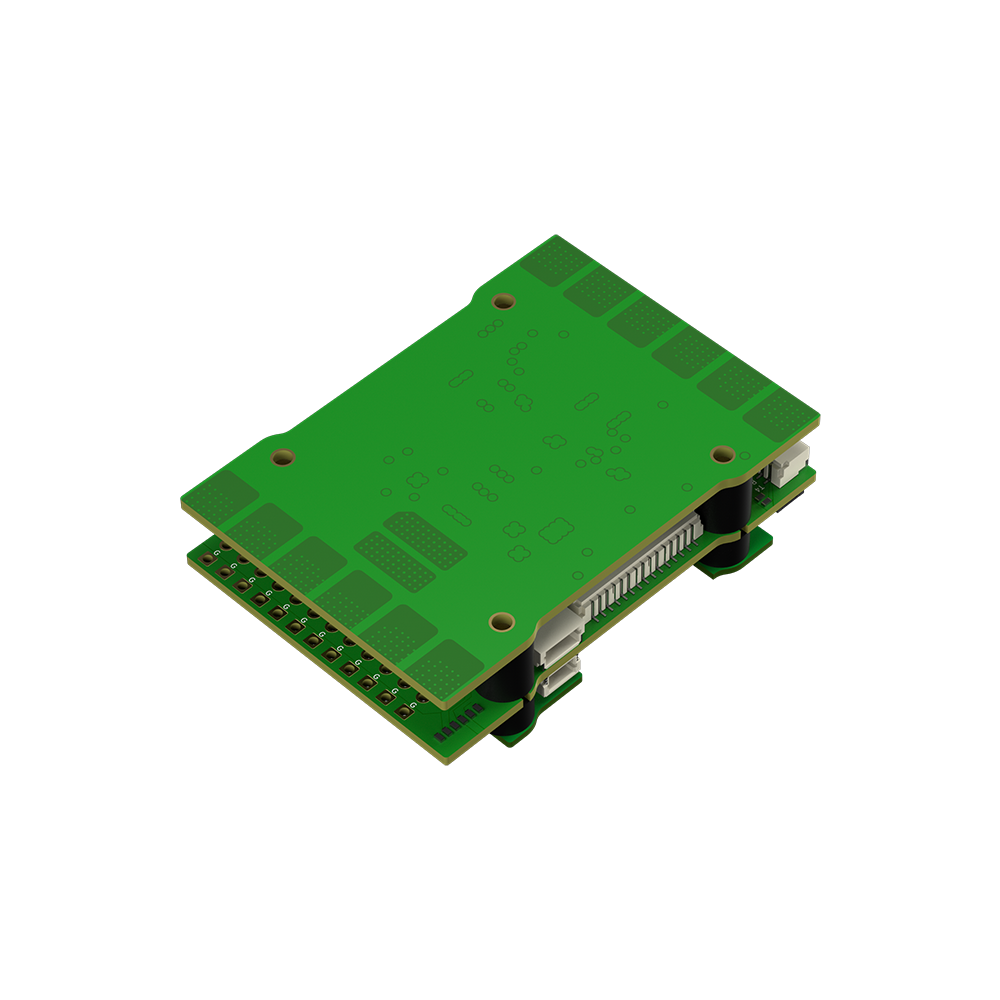

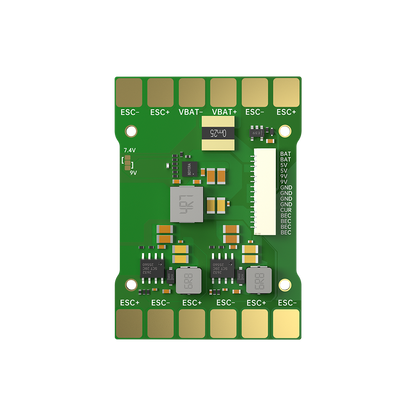

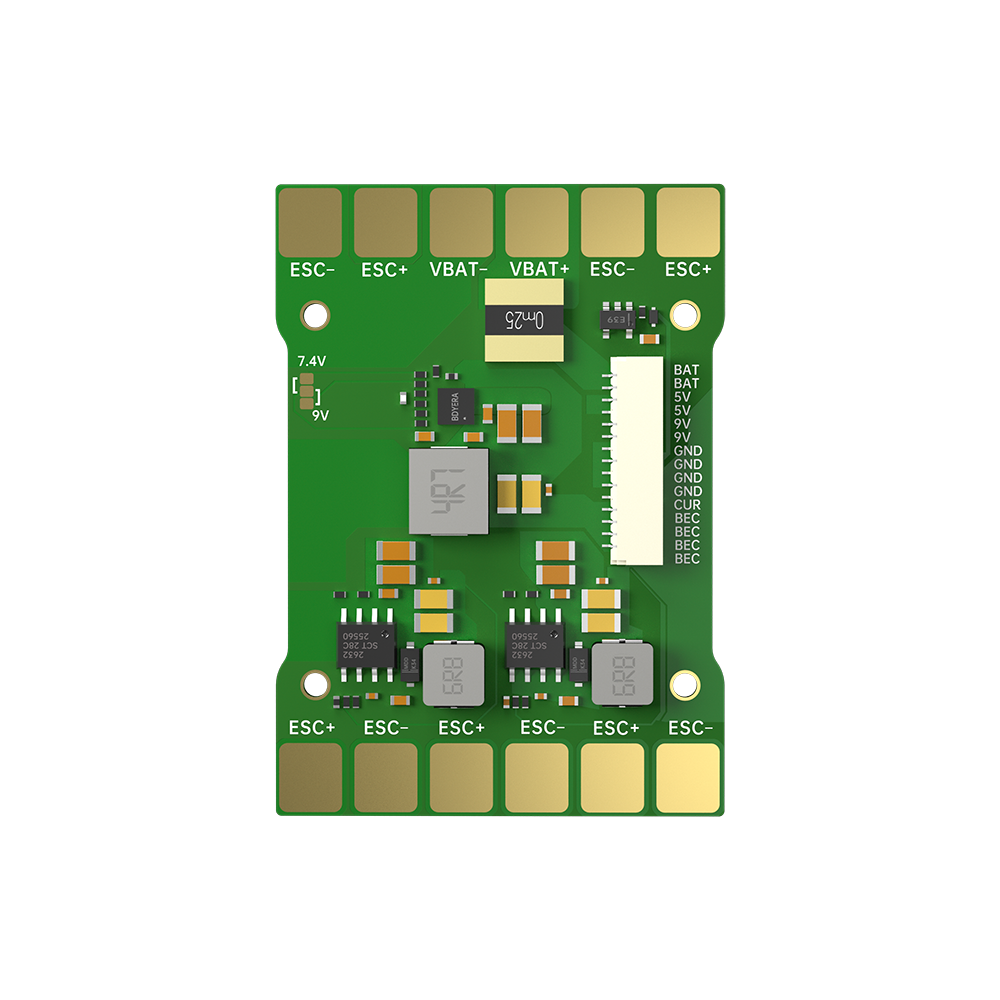

- Up to 5 groups of ESC power solder pads.
- Equipped with dual camera analog input function which can be switched by remote control.
- Independent 6A servo power supply BEC, providing powerful power protection for servos, compatible with servos of various voltages.

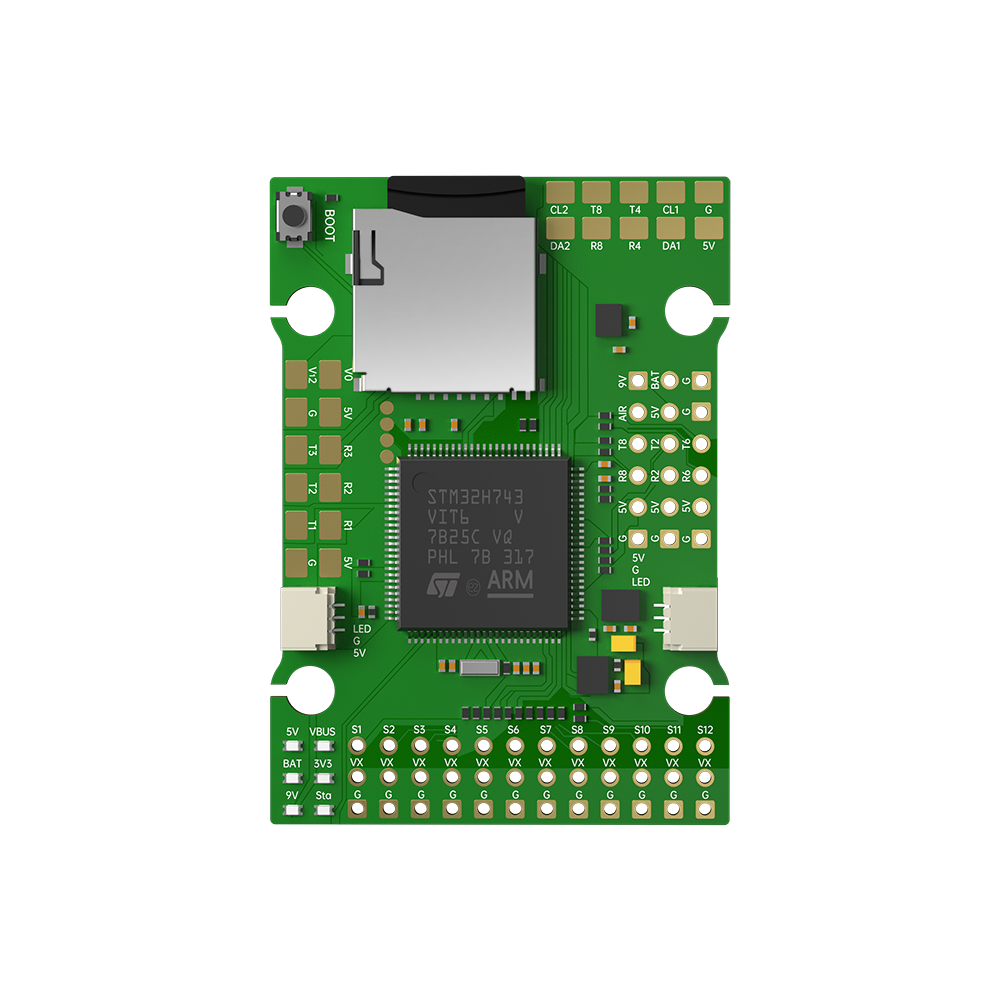

- Uses STM32H743 main MCU, which offers high processing power and function support.
- On-board SD card slot, providing large-capacity storage space for data recording.
- Dedicated soldering pad.
- On-board current meter, real-time flight current monitoring.
- Supports external air speed sensor for more accurate data.

FC Specifications:

MCU: STM32H743
Gyro: ICM42688P
Baro: DPS310
OSD: AT7456E
BlackBox: MicroSD card
UARTS: 8
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
WS2812ledStrip: Yes
Buzzer: Yes
Switchable dual camera inputs
Switchable 5V/7.4V/8. 4V outputs
7-36V DC IN (2-8S)
Mounting pattern: 30.5*30.5mm/φ4

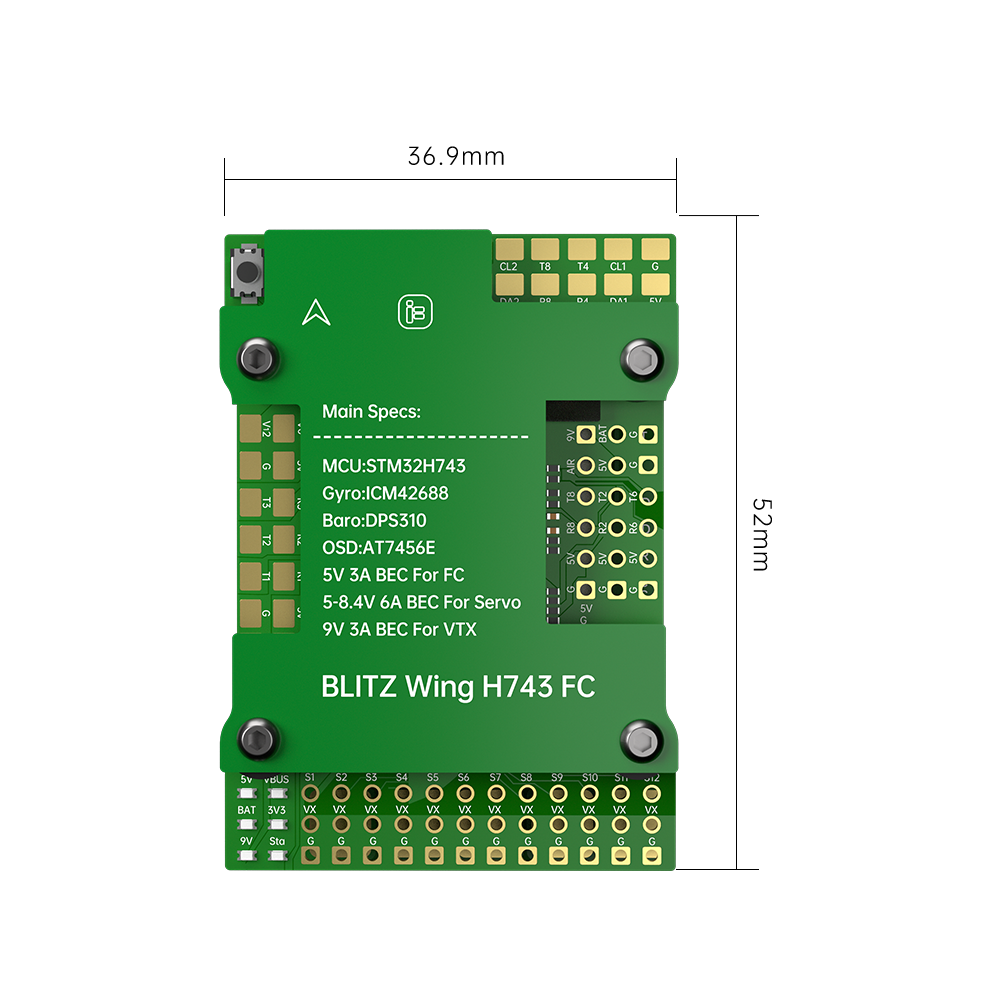

Dimensions: 36.9*52mm
Weight: 35g
INAV firmware: IFLIGHT_BLITZ_Wing_H743
Ardupilot firmware: IFLIGHT_BLITZ_Wing_H743
BEC: 5V 2.5A / 9V 2.5A / 5-8.4V 6A

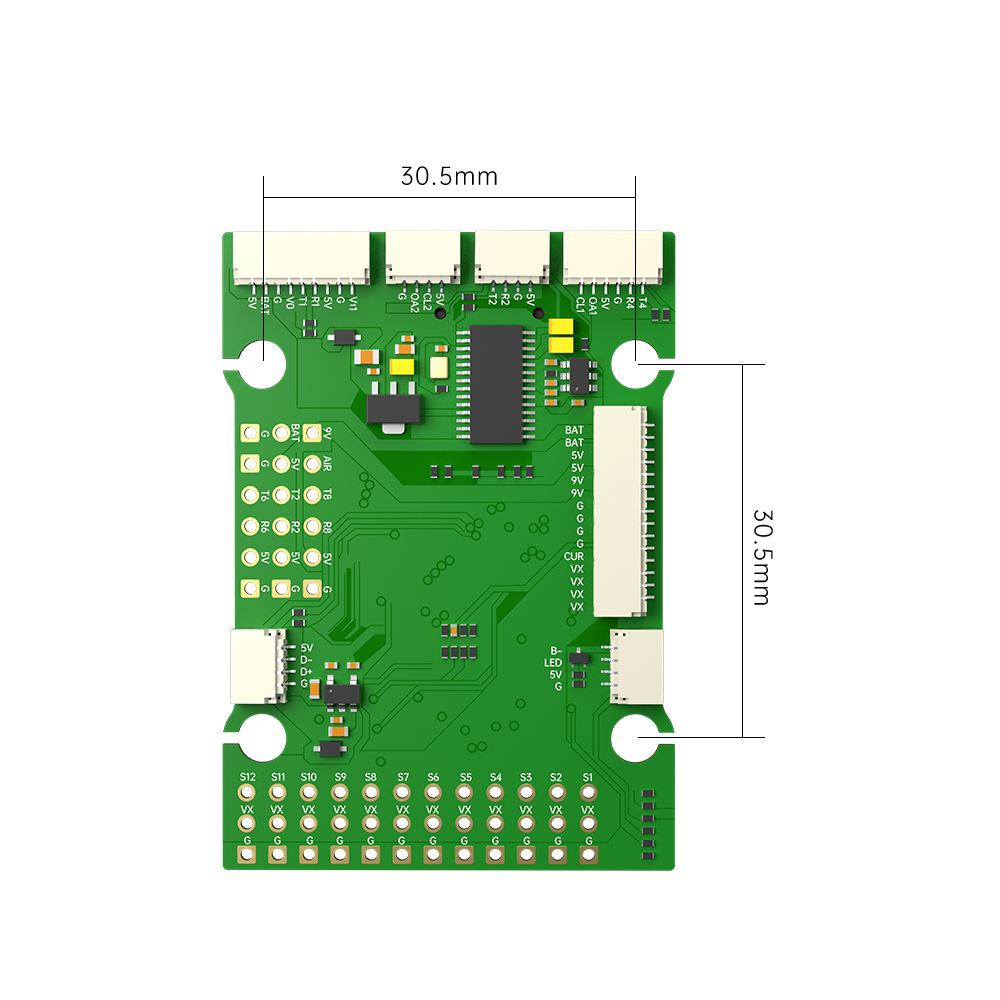

Wiring design:
UART1 for VTX HD/Analog
UART2 for receiver
UART4 for GPS
UART2, UART5, UART6, UART7 free
5V 2.5A BEC for FC
9V 2.5A BEC for VTX
5-8.4V 6A BEC for servo

The package contains
1 x BLITZ Wing H743 Flight Controller
1x silicone grommets
