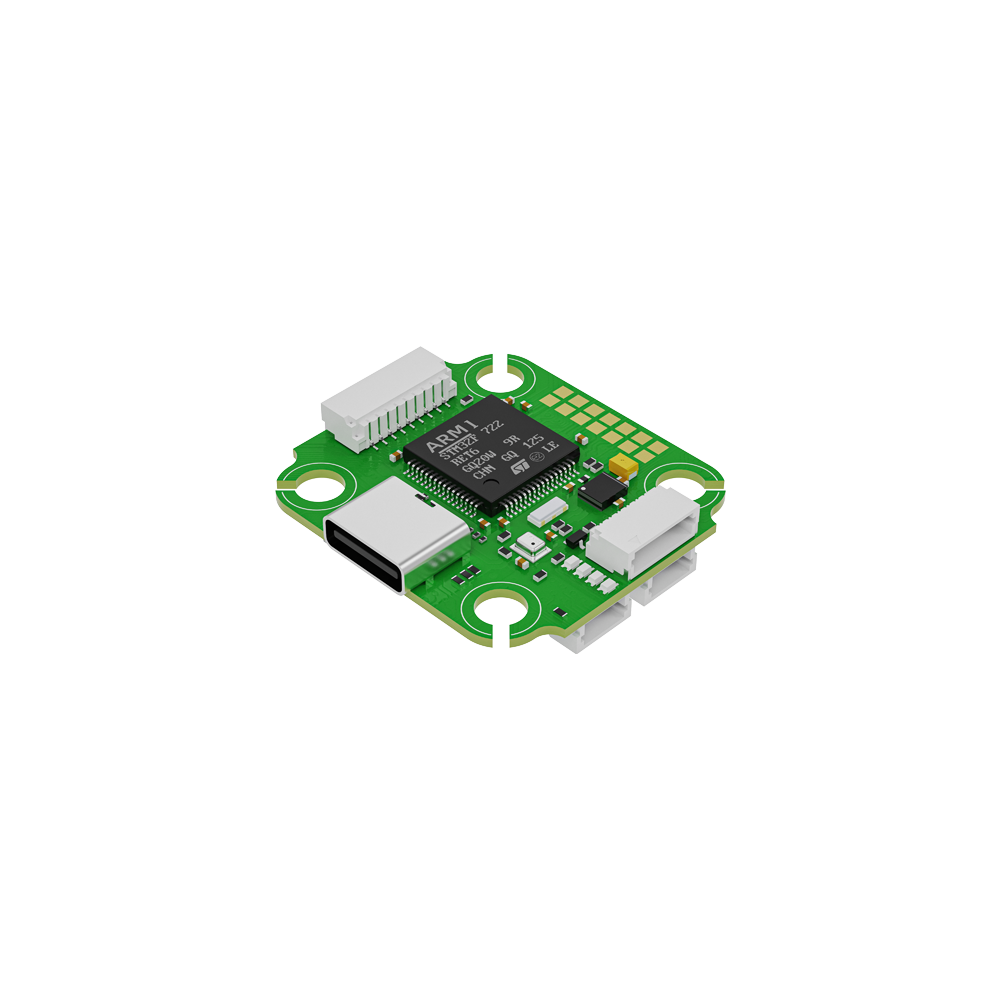

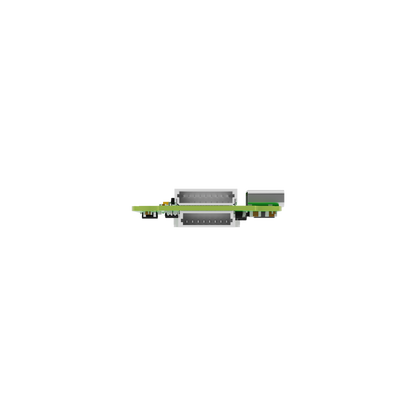

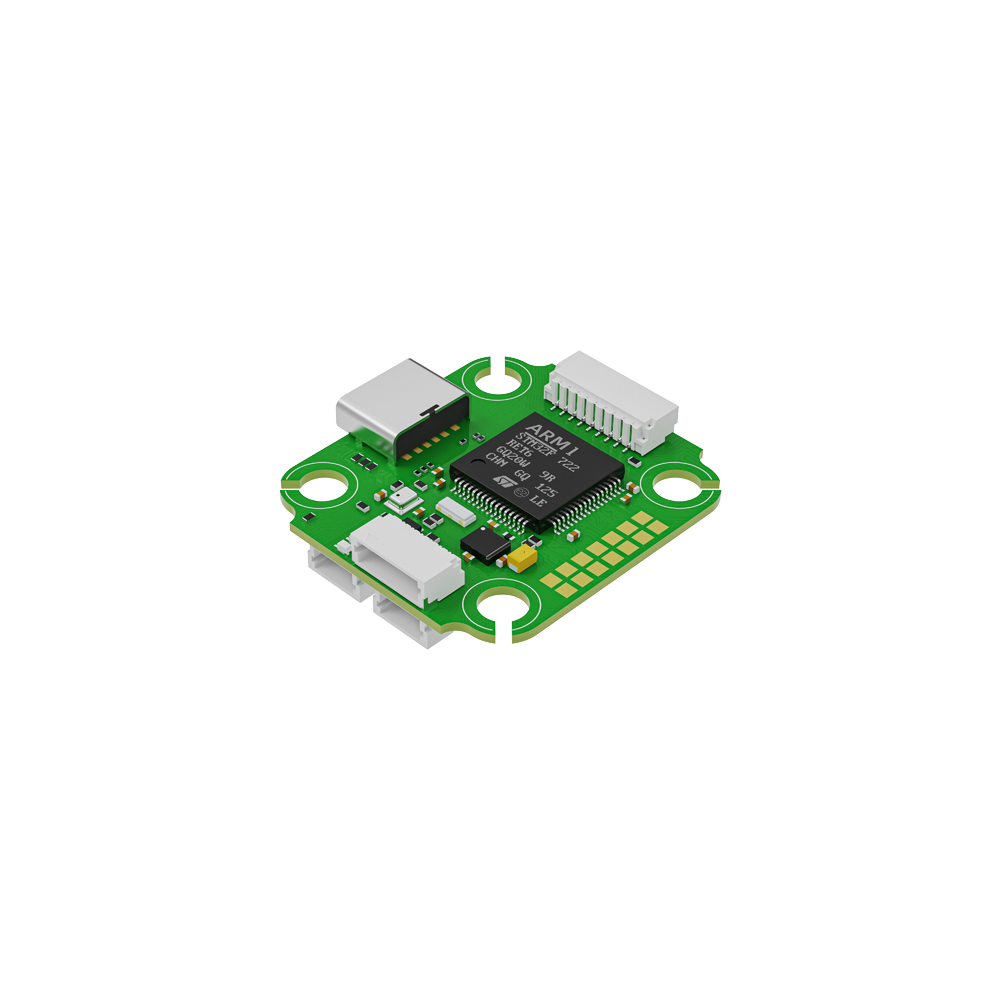

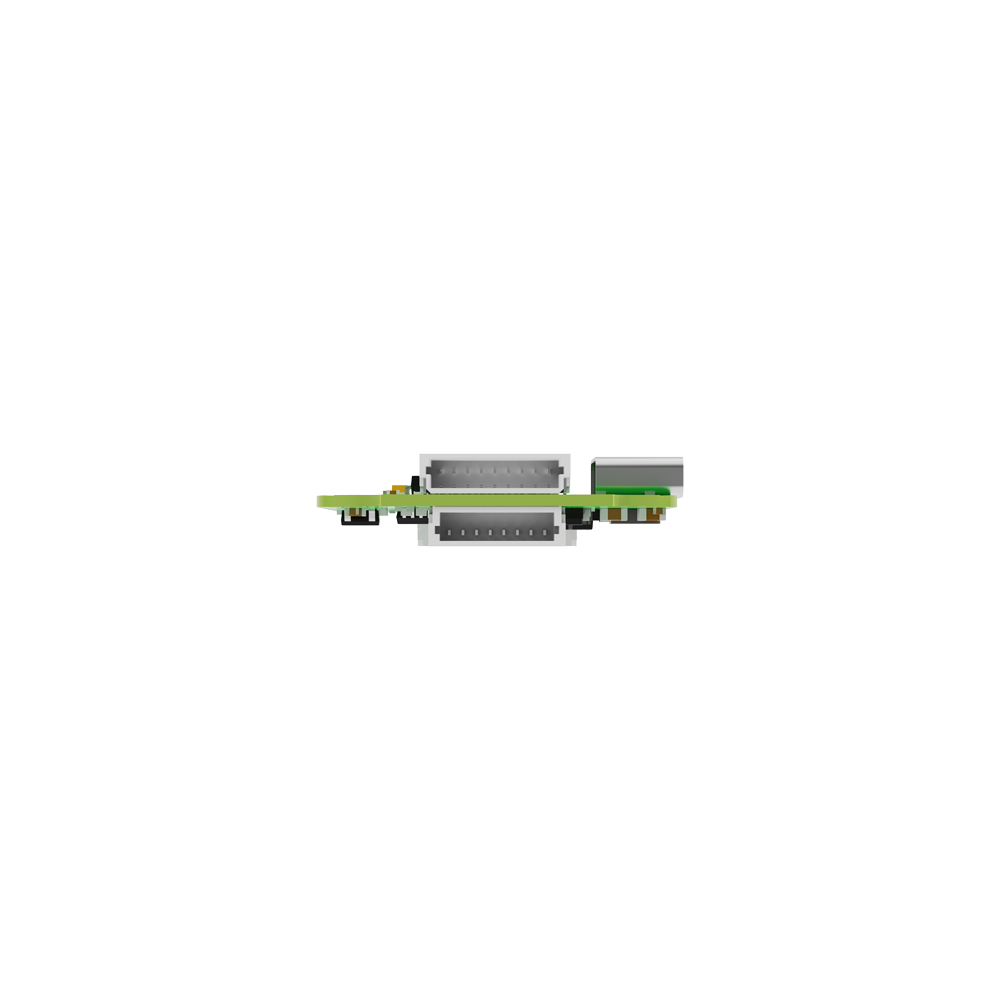

    BLITZ Mini F7 V1.1 Flight Controller

Function:
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX connector (Plug-and-Play / no soldering required)
- FC indicator LED for visual tuning
- With LC filter

Specifications:
MCU: STM32F722 (216MHz)
Gyroscope: BMI270
Baro: DPS310
OSD chip: AT7456
Flash: 16 MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Tramp VTX SmartAudio / IRC protocol supported
LED driver: Yes
Buzzer: Yes
Target firmware: IFRC-IFLIGHT_BLITZ_F722
Mounting pattern: 20x20mm / 4mm PCB hole diameter
Dimensions: 30.5x27 mm
Weight: 5g

Wiring design:
UART 1 for VTX HD / Analog
UART 2 for receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC telemetry

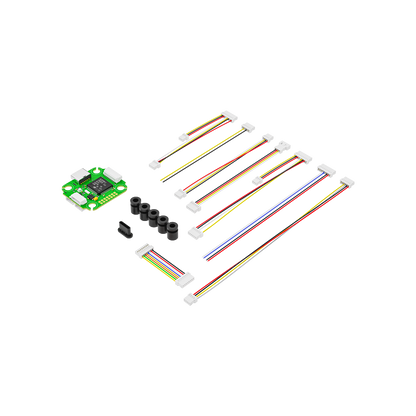

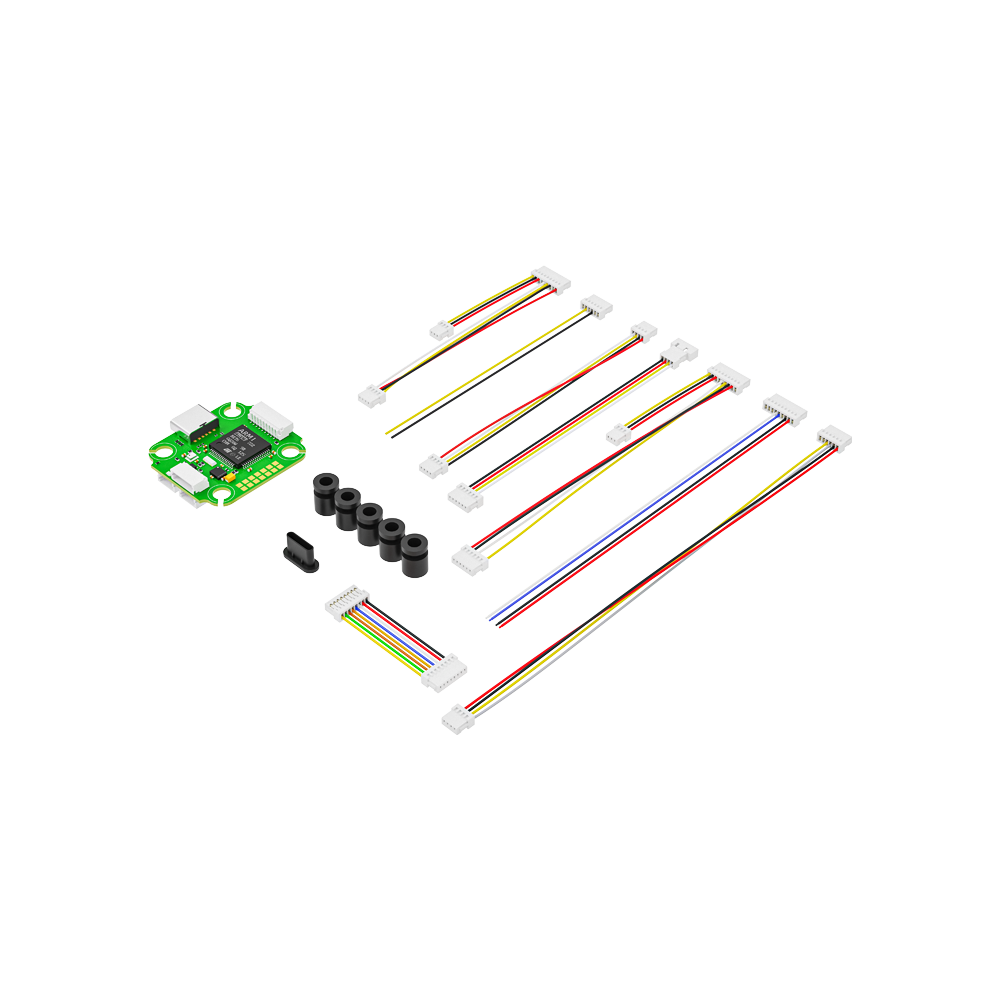

The package contains
1 x BLITZ F7 V1.2 Flight Controller
1 x set of FC connectors
1x silicone grommets
