• FC iFlight BLITZ Mini F4
    • 15168 fc iflight blitz mini f4
    • 15168 1 fc iflight blitz mini f4
    • 15168 2 fc iflight blitz mini f4
    1 3

    Code: BF11372

    FC iFlight BLITZ Mini F4

    FC iFlight BLITZ Mini F4

    Brand: iFlight

    €48,99
    €48,99 €48,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

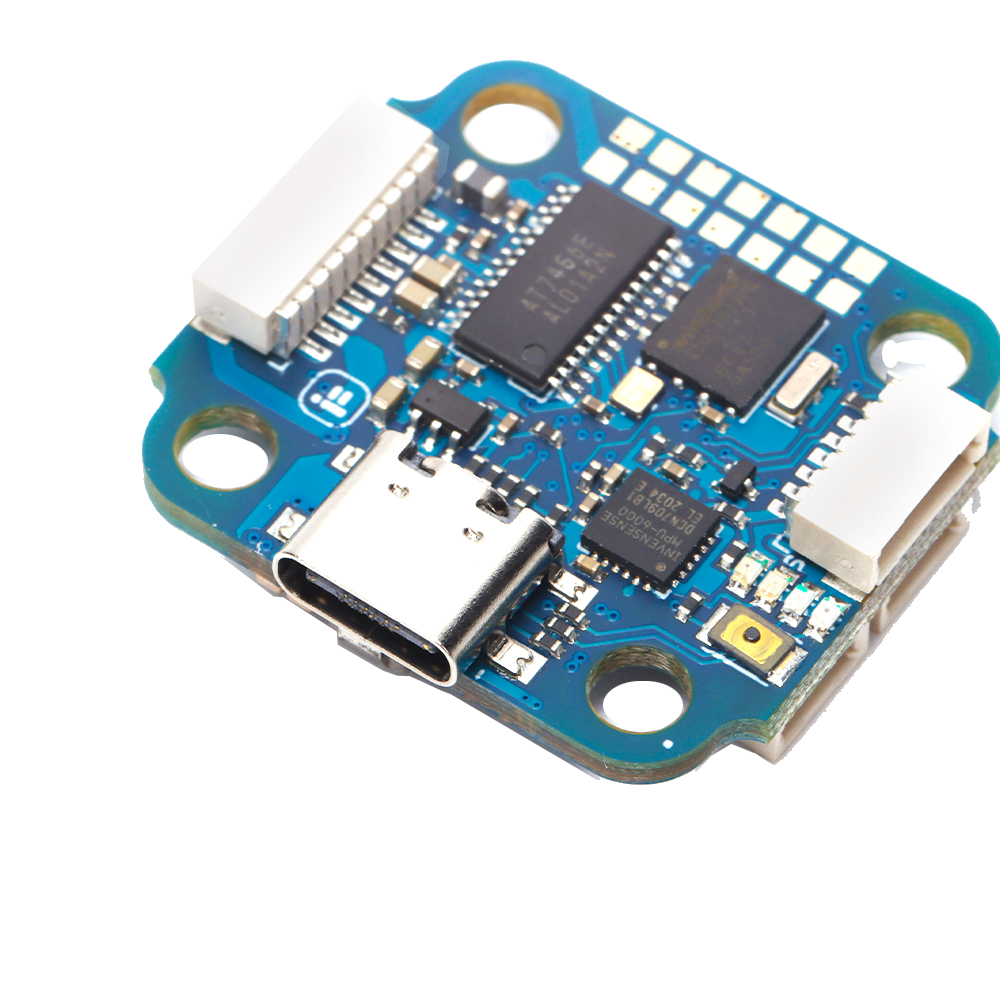

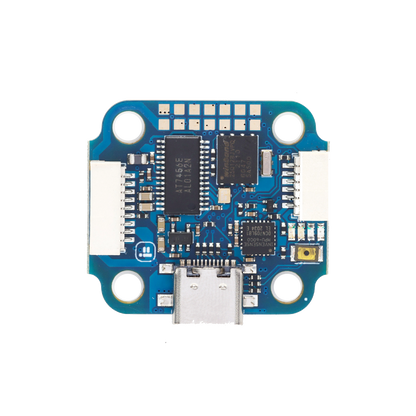

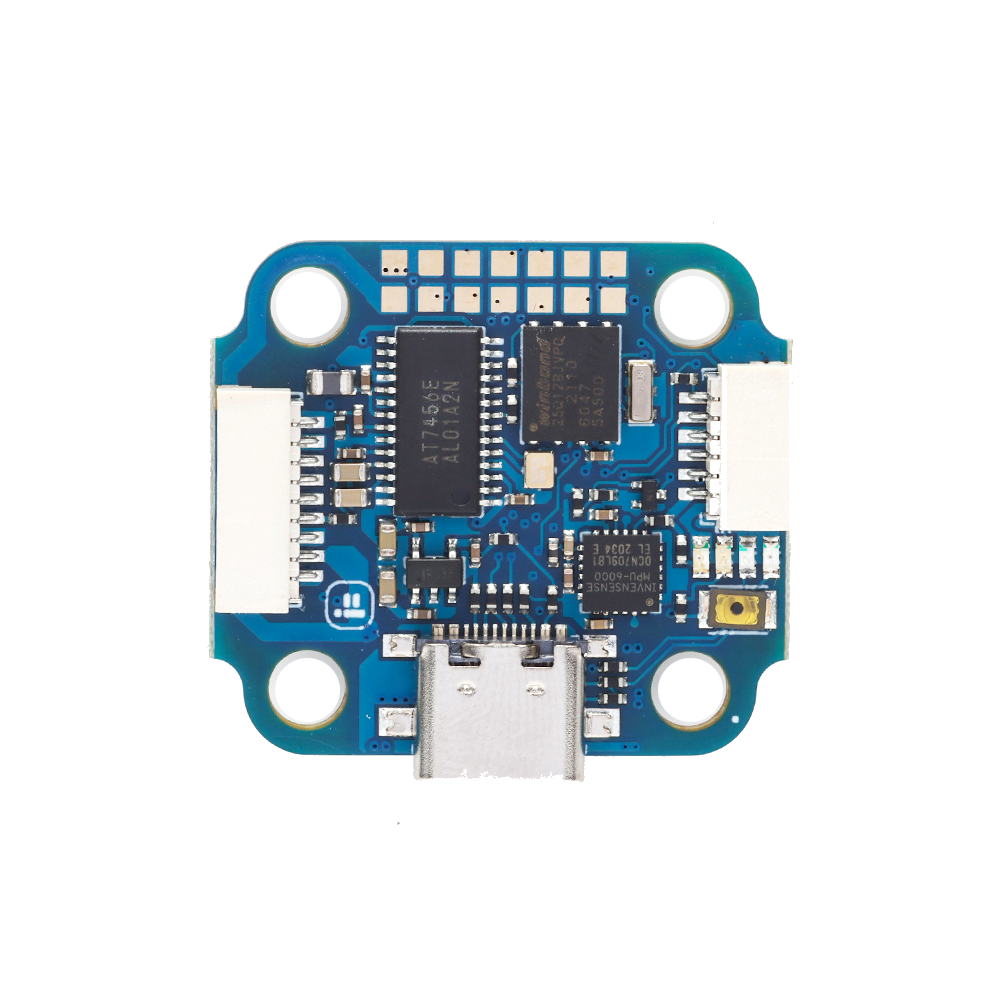

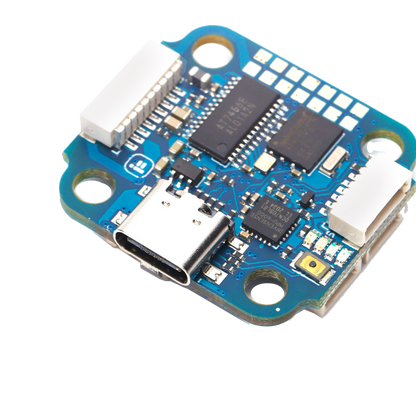

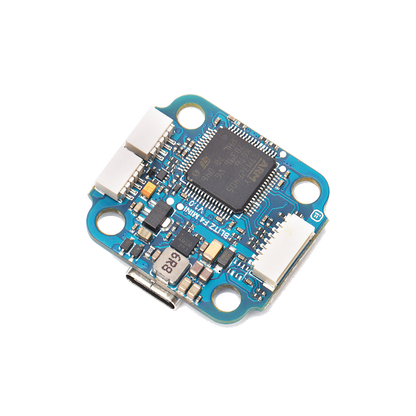

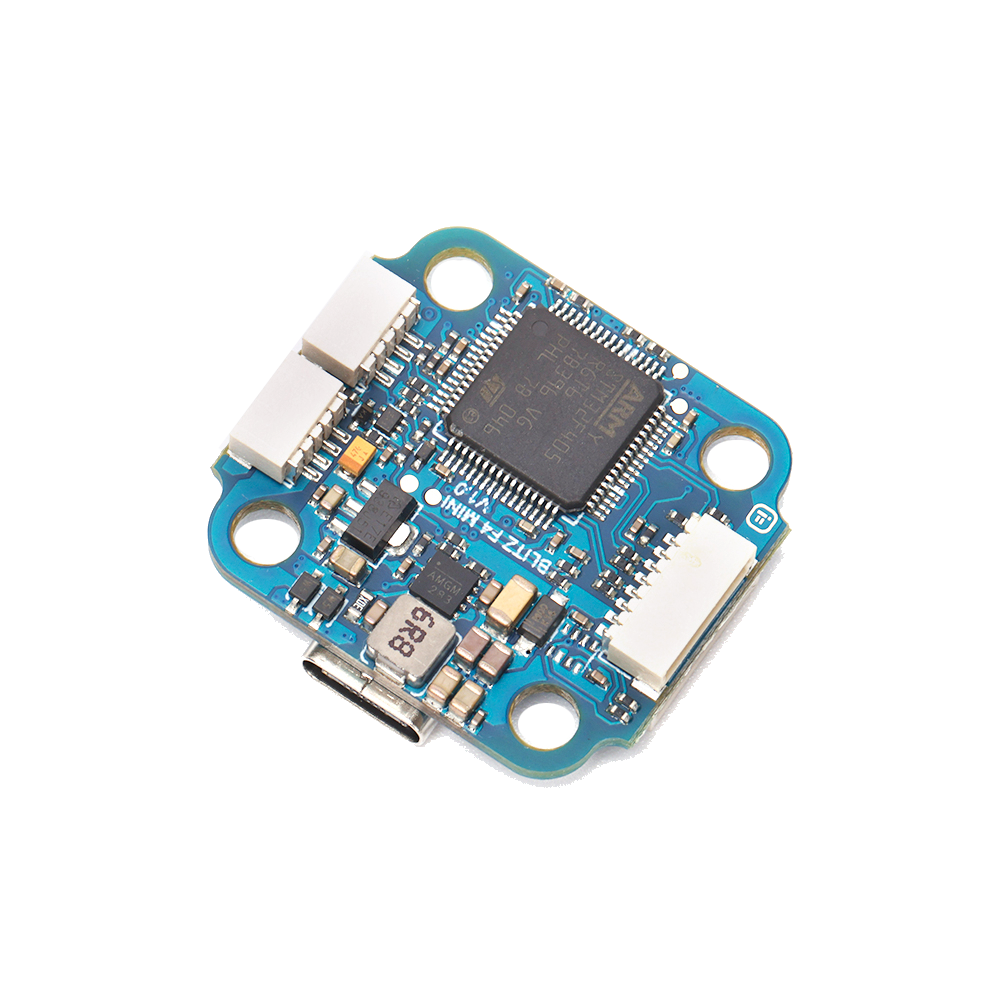

    BLITZ Mini F4 Flight Controller

Function:
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX connector (Plug-and-Play / no soldering required)
- FC indicator LED for visual tuning

Specifications:
MCU: STM32F405
Gyro: MPU 6000
Baro: NO
Betaflight OSD: IFLIGHT OSD (AT7456E)
Blackbox: 16 MB
UARTS: 6
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED driver: Yes
Buzzer: Yes
Target firmware: IFRC-IFLIGHT_BLITZ_F405
Mounting: 20*20mm/φ4
Dimensions: 30.5*27mm
Weight: 5.0g

Wiring design:
UART 1 for VTX HD / Analog
UART 2 for receiver
UART 3/4 for GPS or other sensors that require a serial port
UART 6 for ESC telemetry

The package contains
1 x BLITZ Mini F4 Flight Controller
1x FC connectors
1x silicone grommets
