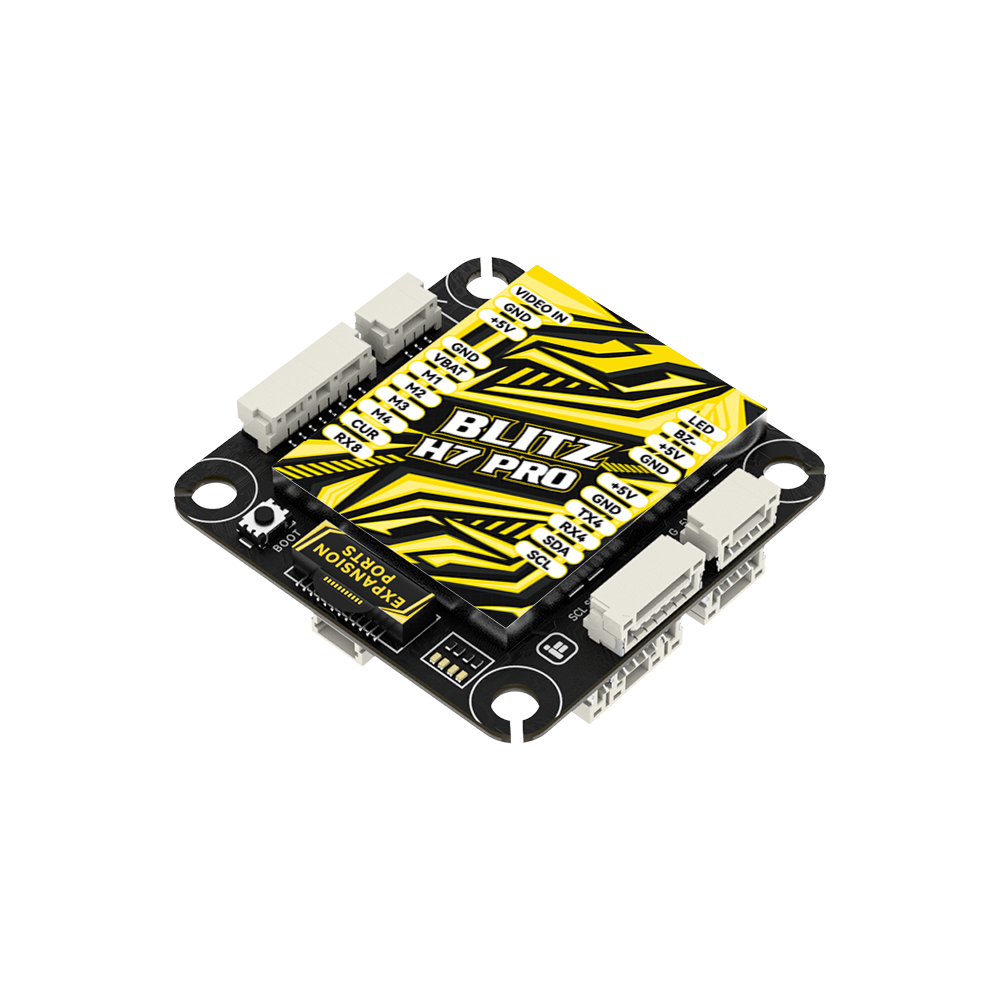

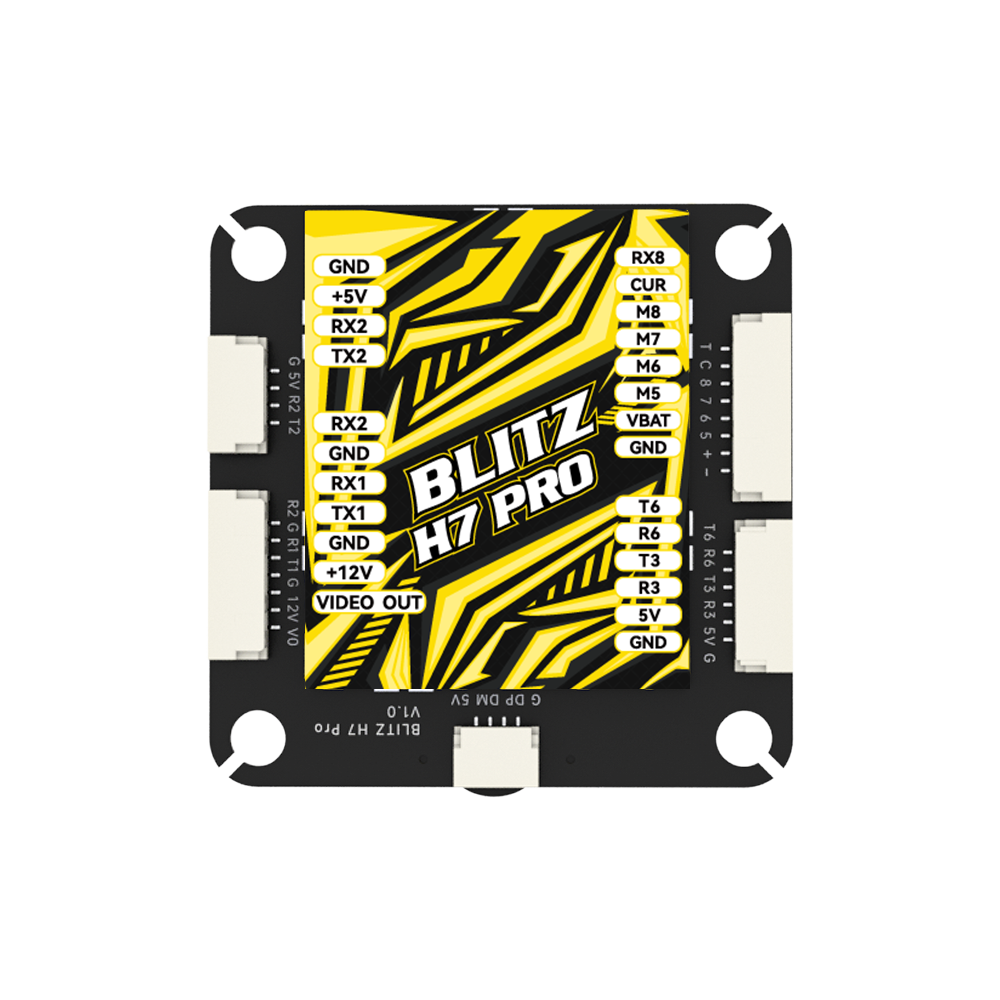

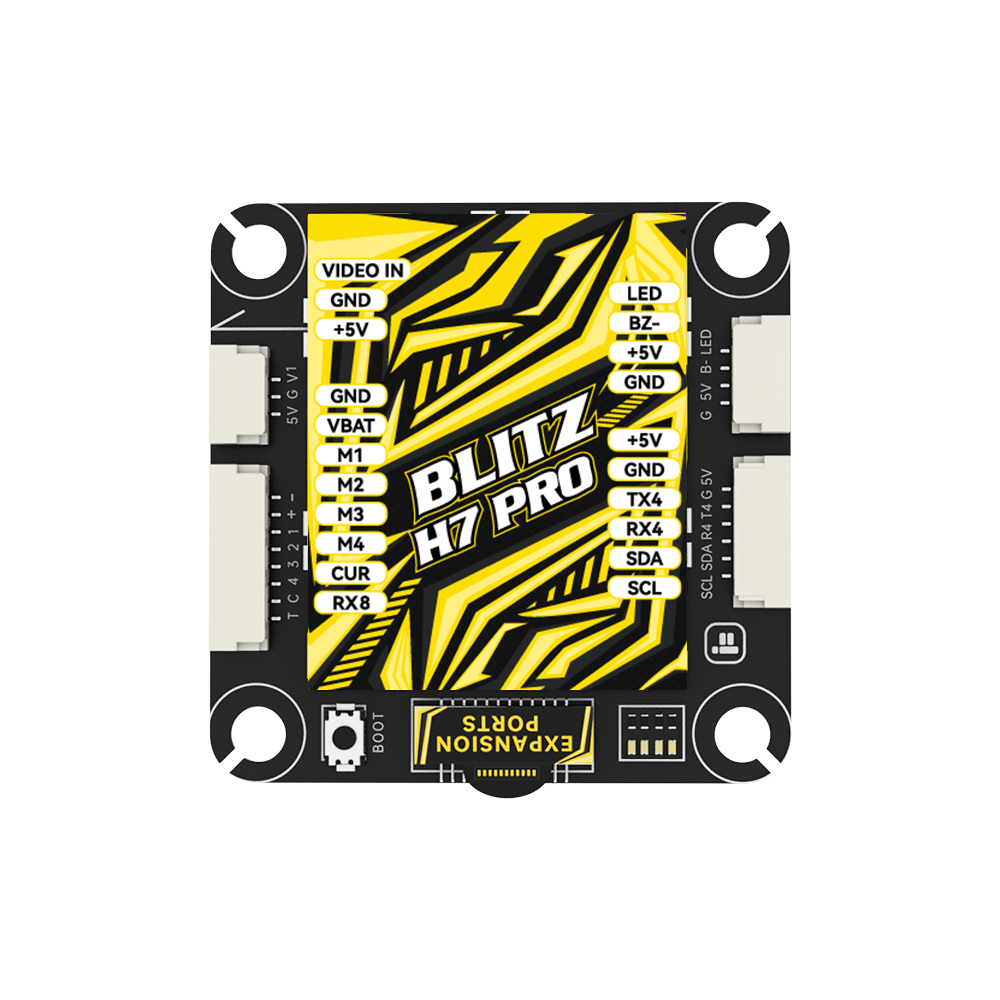

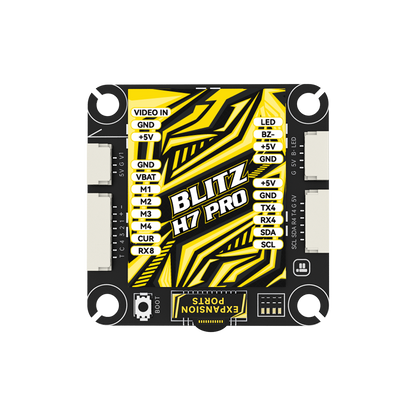

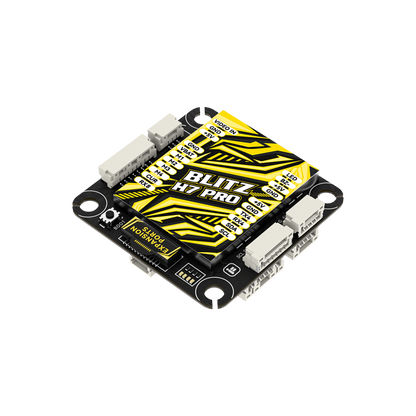

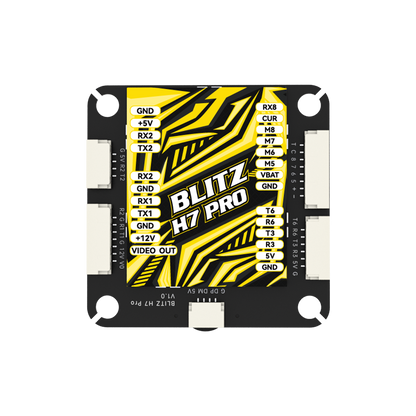

    iFlight BLITZ H7 Pro Flight Controller 35x35

    Introducing the BLITZ H7 Pro Flight Controller - a powerful control unit with double-sided shielding that not only protects against interference, but also secures the controller from dirt, ensuring trouble-free operation. The removable shield allows for easy replacement of the TF card. With the improved STM32H743 robust MCU, it supports input voltage up to 12S and is compatible with ArduPilot firmware, giving customers endless possibilities. Upgrade to BLITZ H7 Pro for unmatched performance.

    Features:

    • The 35x35 mm mounting holes provide more space to optimize the wiring of the control unit.
    • The GH1.25 connector increases connection reliability and facilitates assembly.
    • Uses an SD card for flight recording (black box), which provides higher capacity to store more flight data.
    • The double-sided shielding design offers protection against interference and protects the control unit from damage by foreign objects.

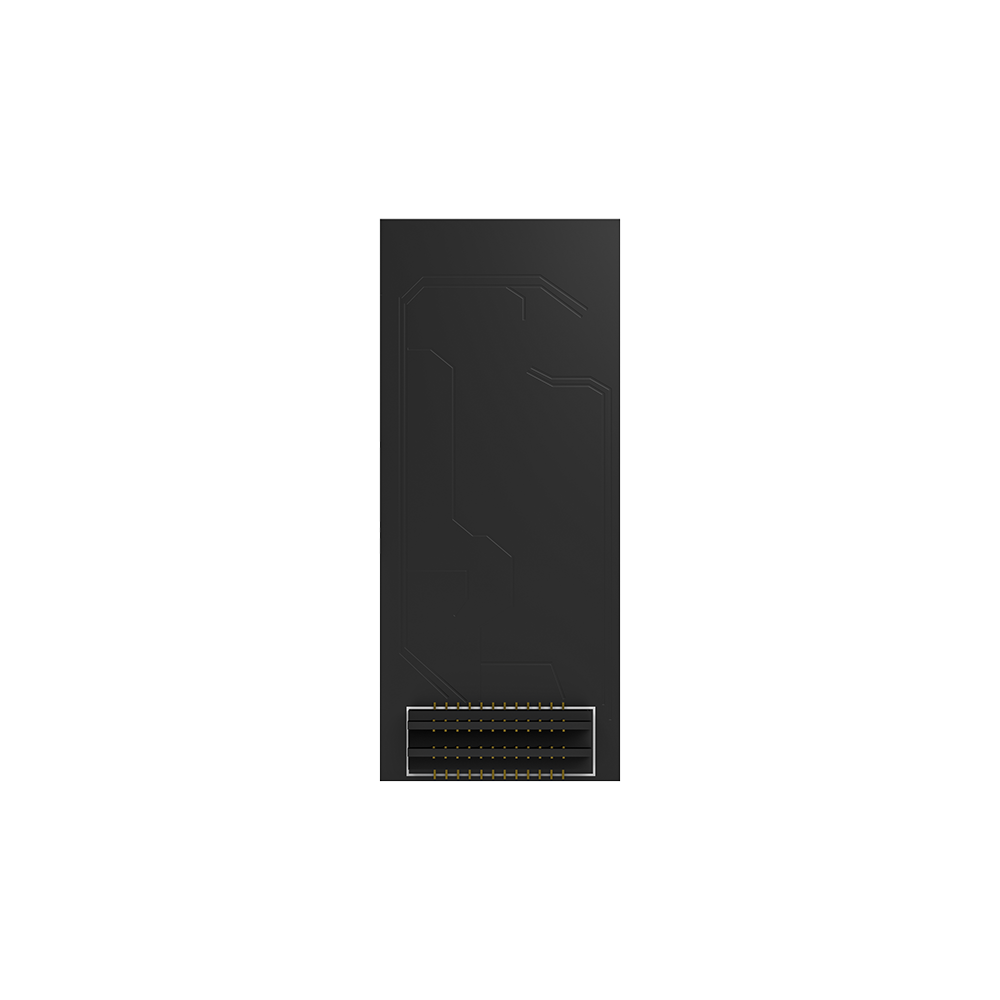

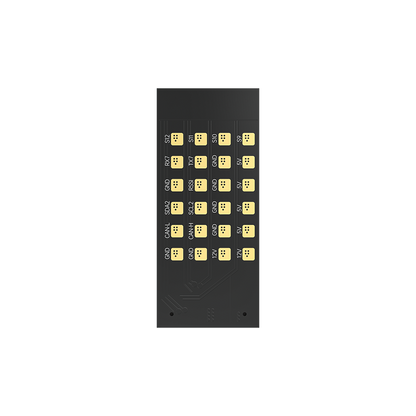

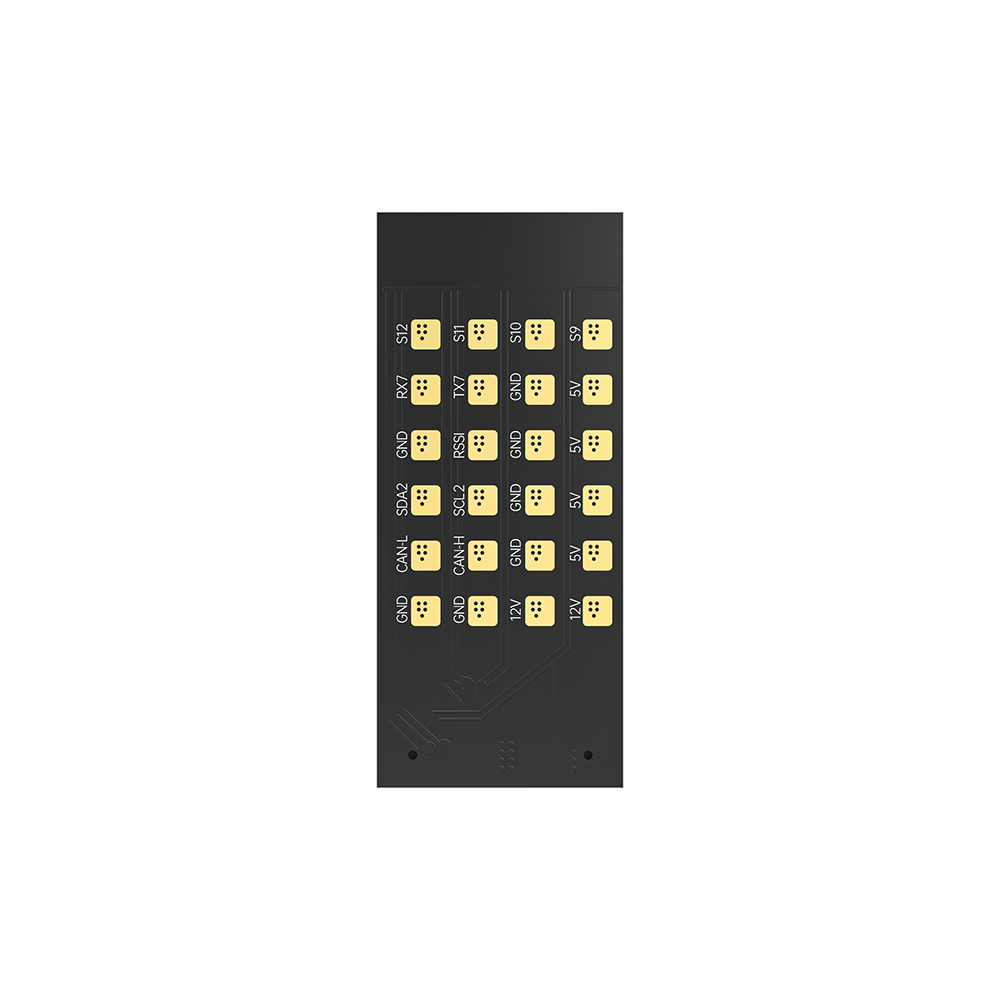

    • Removable expansion solder plate allows advanced users to easily connect additional peripherals.
    • Includes a high-voltage DC-DC converter with a voltage-resistant chip up to 100V, which provides a stable and reliable voltage for the control unit and video transmission.
    • Supports Betaflight and Ardupilot firmware.

    Specifications:

    • Product Name: BLITZ H7 Pro Flight Controller
    • MCU: STM32H743
    • Gyro: ICM42688
    • Barometer: DPS310
    • OSD: AT7456E
    • Input voltage: 14.8V-50.4V (4S-12S LIPO)
    • Blackbox: SD card
    • UARTS: 7
    • Smartaudio / IRC Tramp VTX protocol support
    • LED controller: Yes
    • Beeper pad: Yes
    • Mounting pattern: 35*35mm/φ4
    • Dimensions: 424211.3mm
    • Weight: 20g
    • BEC: 5V 3A, 12V 2.5A
    • BF Firmware target: IFLIGHT_BLITZ_H7_PRO (BF4.4.2)
    • Ardupilot Firmware: BlitzH743Pro

    Recommendations for involvement:

    • UART1 for VTX HD/Analog
    • UART2 for receiver
    • UART4 for GPS
    • UART5 for ESC telemetry
    • 8×Dshot/PWM outputs
    • 2×I2C for GPS Mag

    Package contents:

    • 1 x BLITZ H7 Pro Flight Controller
    • 1 x Cable Set
    • 1 x USB adapter board
