Code: SKU:BF12852

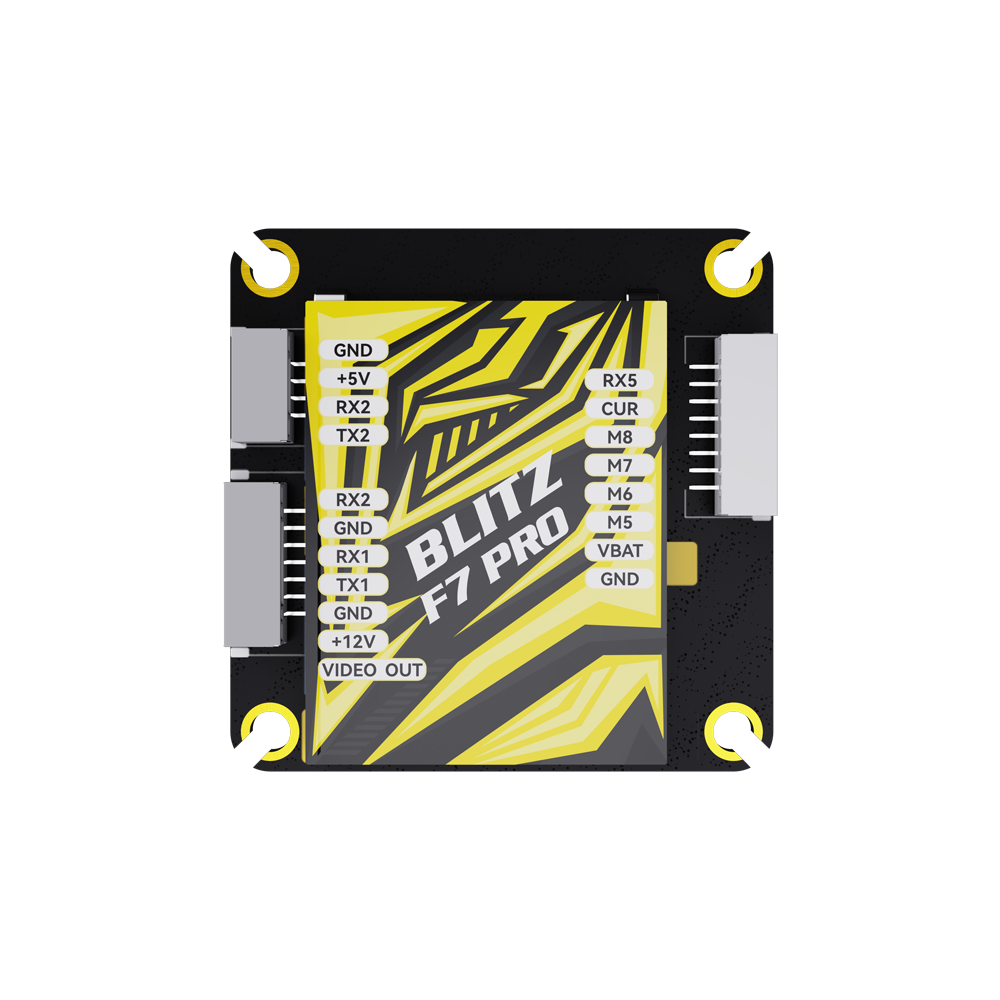

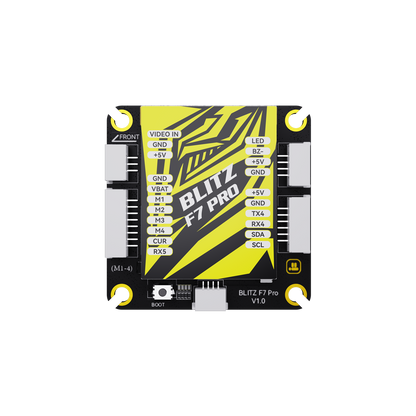

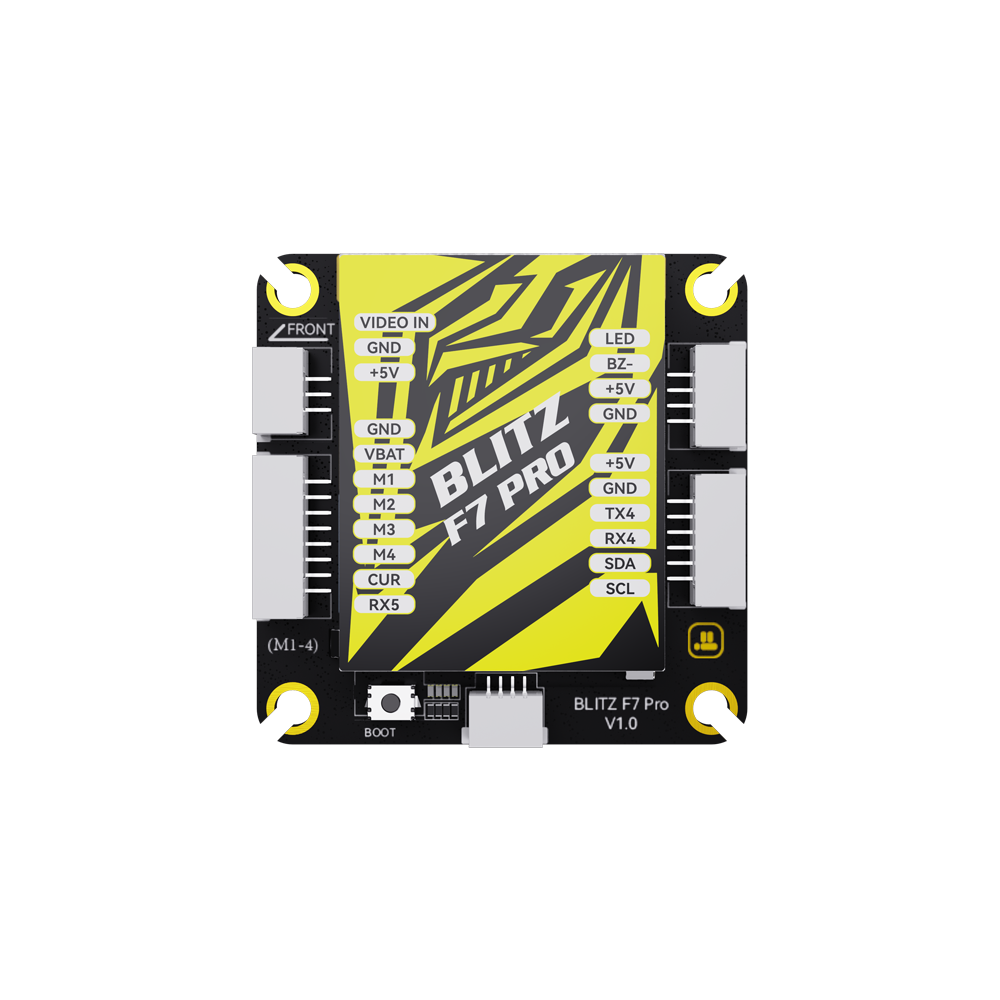

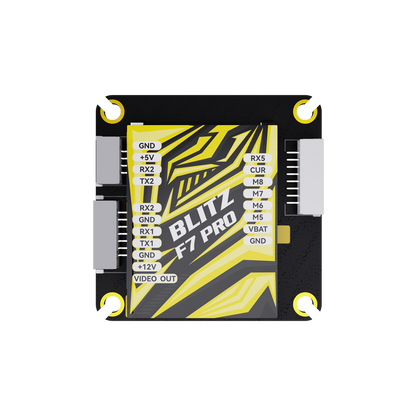

FC iFlight BLITZ F7 Pro V1.1 35x35
FC iFlight BLITZ F7 Pro V1.1 35x35
Brand: iFlight
Regular price
€87,29
Regular price
€87,29
Sale price
€87,29
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
BLITZ F7 Pro V1.1 Flight Controller 35x35 Function: - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning - 512 MB BlackBox - With LC filter Specifications: Mounting pattern: 35 * 35mm / 4mm PCB hole diameter Smartaudio / IRC Tramp VTX protocol supported Target firmware: IFLIGHT_BLITZ_F7_PRO Input voltage: 14.8V-34V (4S-8S LIPO) Motor outputs: 4x (SH1.25 connector) Flash: 512 MB (Blackbox flash) I2C serial: SDA / SLA pads Dimensions: 41*41.5mm Barometer: DPS310 OSD chip: AT7456E LED driver: Yes MCU: STM32 F722 Weight: 17g (±2) Buzzer: Yes Gyroscope: BMI270 UARTS: 4 Wiring design: UART1 for VTX HD/Analog UART2 for receiver UART4 for GPS UART5 for ESC telemetry 8×Dshot/PWM outputs 1×I2C for GPS Mag Tips 1. The F722 MCU has an internal inverter. 2. SBUS, CRSF, ELRS, IBUS, DSM ETC... can be connected to any unused UART_RX, we suggest you connect to Uart_RX2. 3. Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1. 4. F.port can be connected to any unused UART_TX, we suggest you connect to Uart_TX2. Electrical diagram https://drive.google.com/drive/folders/17Uf67I6ER_z-otviR0I7tSqO31W7S553
