• FC GEPRC SPAN-F722-BT-HD V2
    • 7587 fc geprc span f722 bt hd v2
    • 7587 1 fc geprc span f722 bt hd v2
    1 2

    Code: GP105638

    FC GEPRC SPAN-F722-BT-HD V2

    FC GEPRC SPAN-F722-BT-HD V2

    Brand: GEPRC

    €67,24
    €67,24 €67,24
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

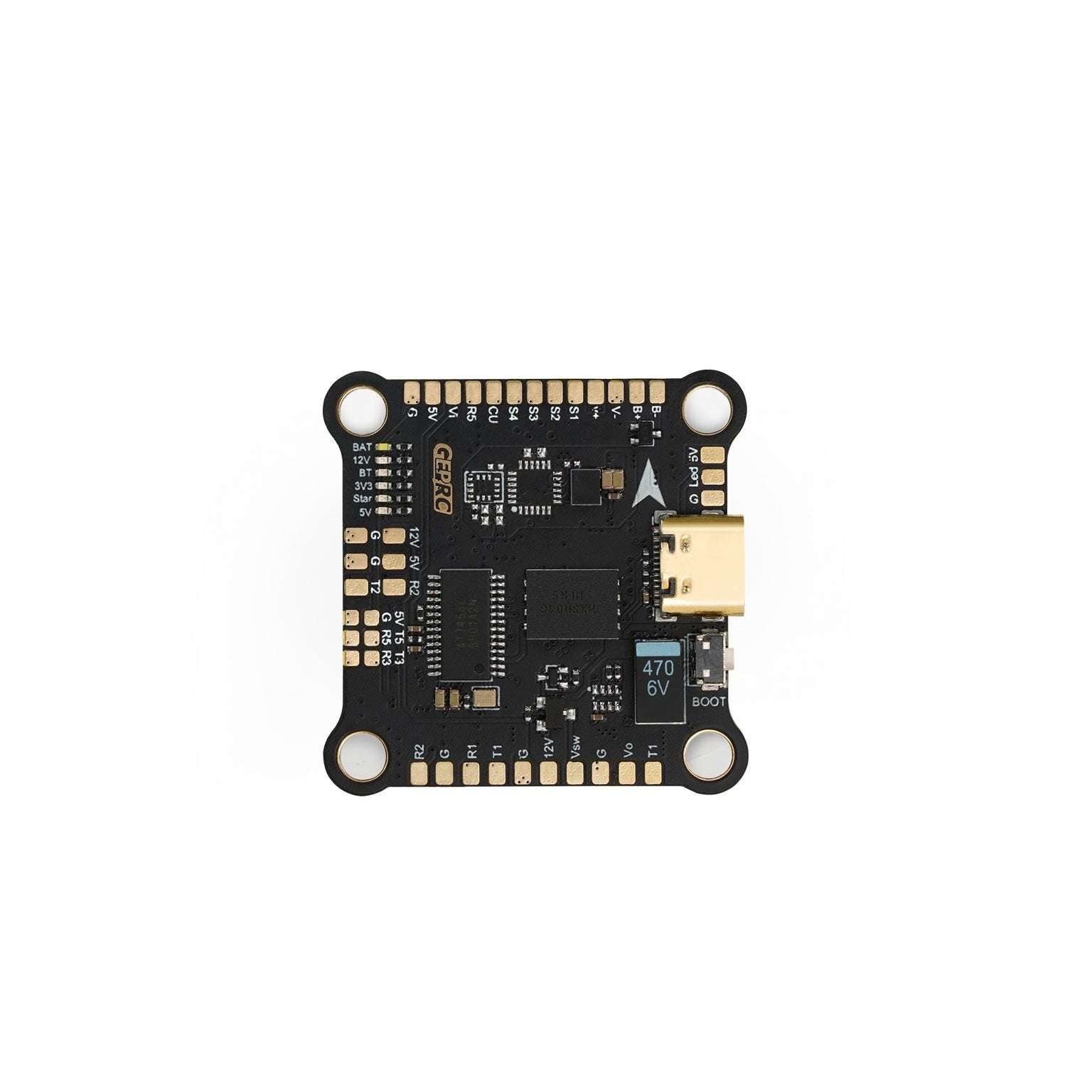

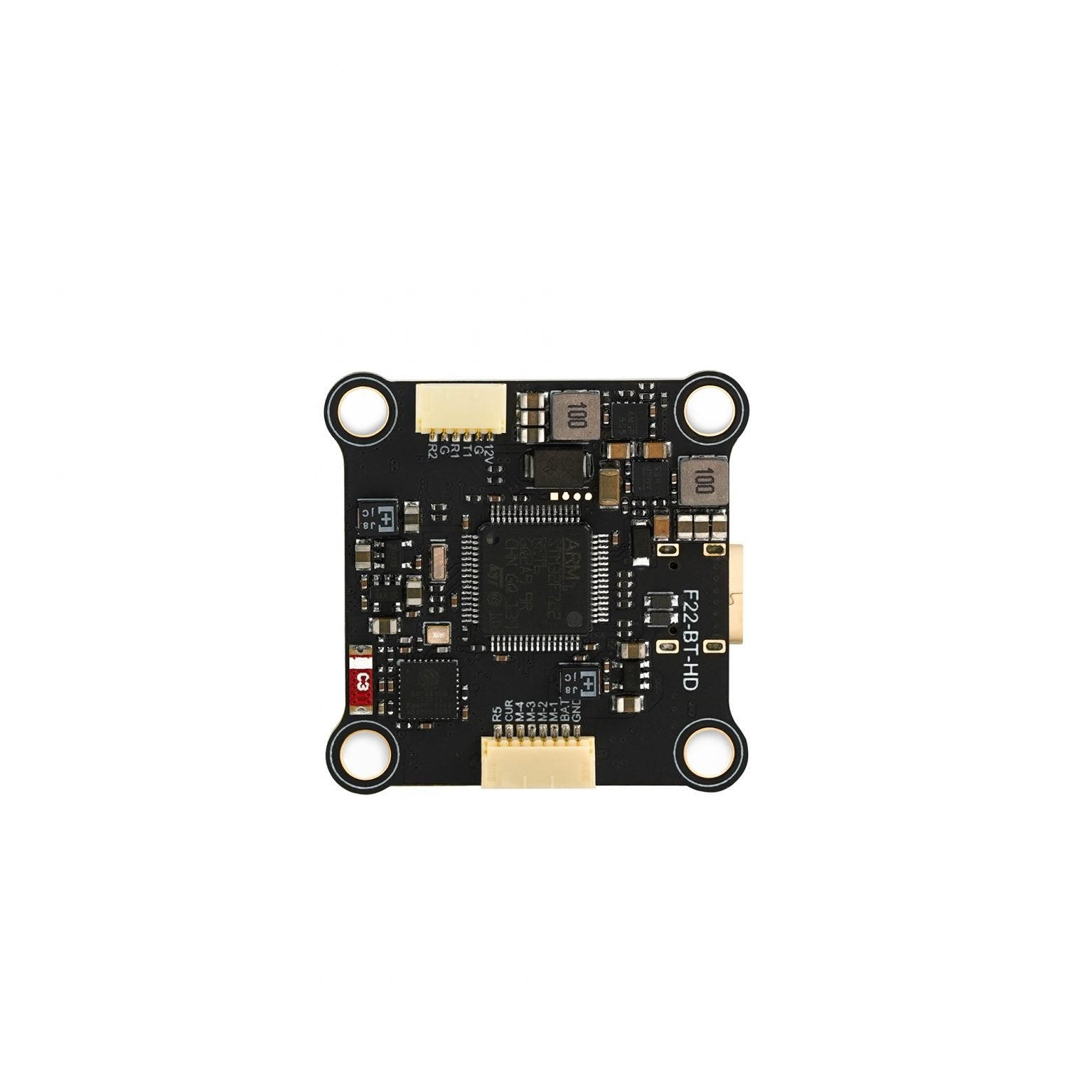

    SPAN-F722-BT-HD V2 FC

The SPAN F722-BT-HD v2 flight controller is designed for compatibility with the DJI air unit, allowing direct connection without the need for soldering. The flight controller features an improved USB Type-C connector to increase durability and reduce the risk of poor contact. Well suited for pairing with BLheli_32 50A 96K 4-in-1 32-bit ESC.

Specifications:

Model: SPAN F722-BT-HD v2 flight controller
MCU: STM32F722RET6
IMU: 42688-P (SPI)
Black Box: 512 MB built-in SD card
USB connector: Type-C
OSD: BetaFlight OSD with AT7456E chip
BEC Output: 5V 3A / 12V 3A
Integrated LC filtering
Firmware: GEPRCF722-BT-HD
Size: 36 x 36mm, with 4mm mounting holes (when using 3mm silicone grommets)
Input voltage: LiPo 3-6S
UART ports: 5
