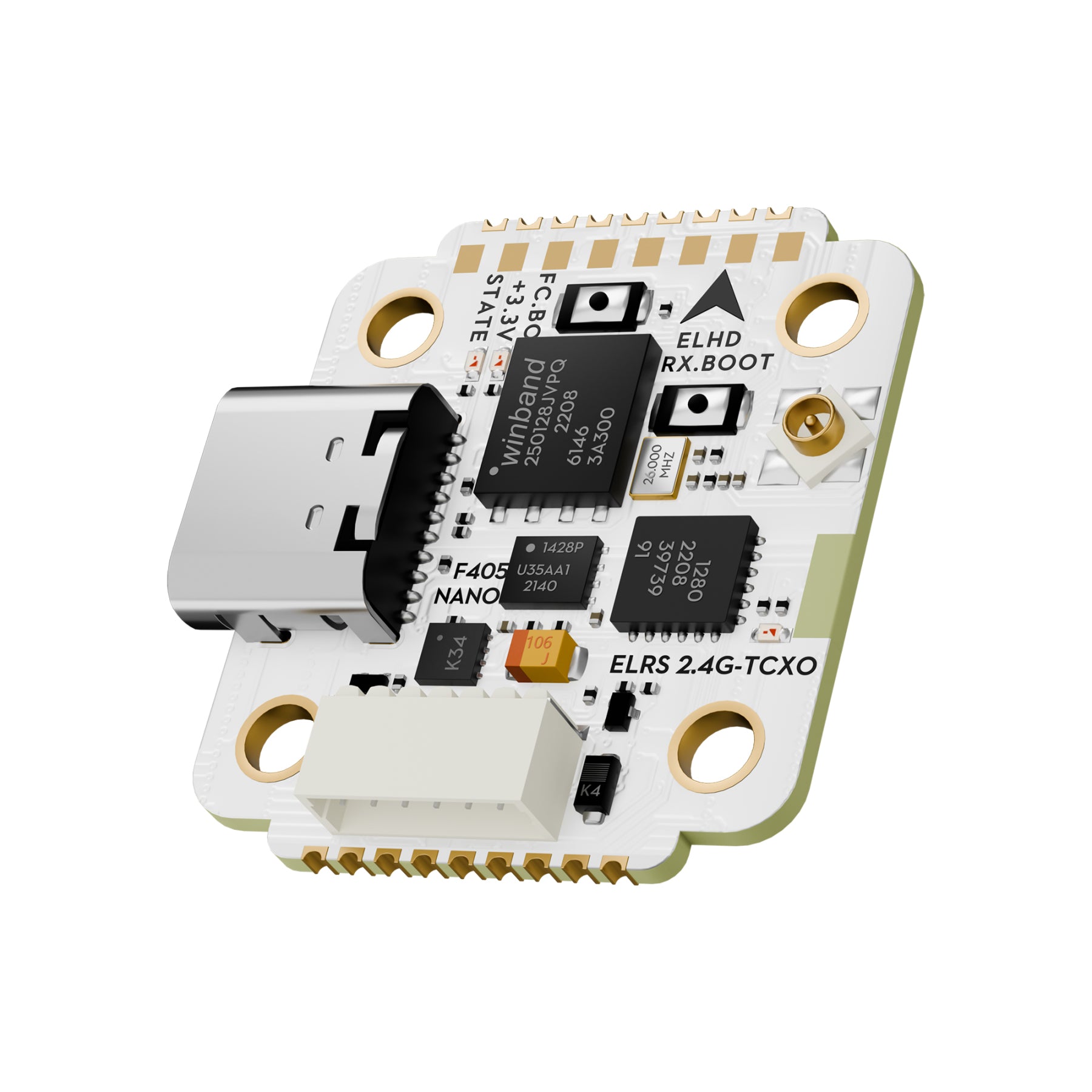

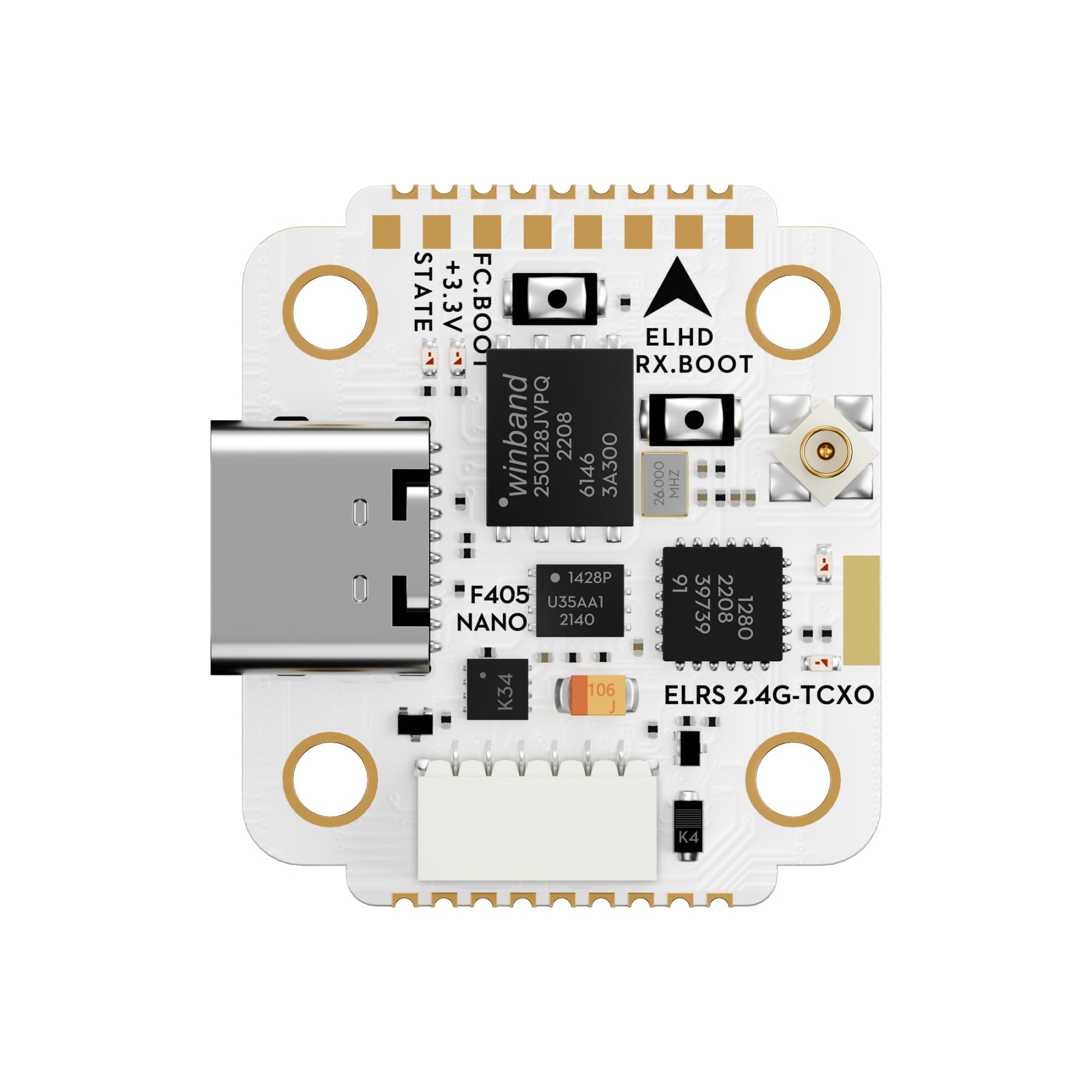

    Flywoo GOKU GN405 Nano HD FC V3 flight controller with ELRS (16x16)

Flywoo GOKU GN405 Nano HD FC V3 is a compact and powerful flight controller adapted for micro FPV drones. It is equipped with an STM32F405 BGA MCU processor for fast processing and an ICM-42688P SPI gyroscope for smooth and responsive flight control. The built-in ELRS ensures reliable long-range communication, while the 16MB of built-in blackbox memory enables detailed flight analysis. This controller supports 2-6S LiPo input and provides 5V/2A and 3.3V/0.5A via dual BECs, making it versatile and efficient. With a lightweight and space-saving 16 x 16 mm mounting configuration, the GN405 Nano HD FC is ideal for digital construction and high-performance micro drones.

Specifications:

MCU: STM32F405 BGA
Gyroscope: ICM-42688P (SPI)
OSD: Not included
Barometer: DP310
Black box: 16 MB built-in memory

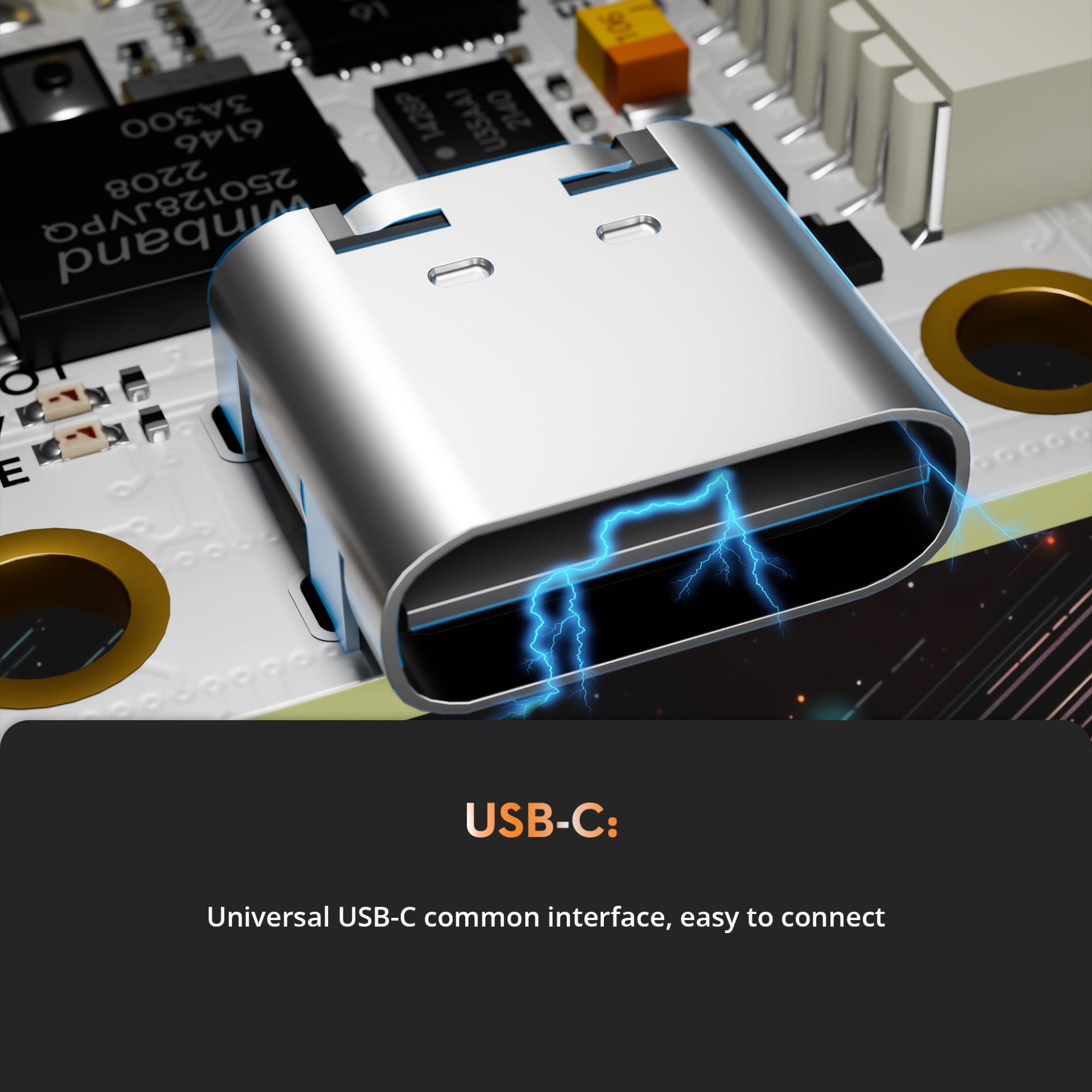

USB port: Type C
UART: 6 (UART1-UART6)
Input Voltage: 7.4V-24V (2-6S LiPo)
BEC output: 5V @ 2A, 3.3V @ 0.5A
Dimensions: 25 x 23 x 8 mm
Mounting layout: 16 x 16 mm

The package contains:

1 x Flywoo GOKU GN405 Nano HD FC V3 Flight Controller with ELRS (16x16)
