Flywoo GOKU F7 PRO MINI V2 flight controller (20x20) (ICM42688)

Flywoo GOKU F7 PRO Mini V2 is a new generation 20x20mm flight controller developed for high performance FPV setups. Powered by an STM32 F722 microcontroller and an extremely low noise ICM42688 gyroscope, it provides stability and fast loops for racing, freestyle or film drones. Eight motor outputs and dual 4-in-1 ESC sockets give pilots the freedom to configure X8 or hex builds. Each port features both a solder pad and a plug-and-play key socket, ideal for quick assembly, clean wiring and easy maintenance. With an integrated 16MB black box recorder, dual 10V/5V BEC, barometer and special DJI O3 Air Unit cable, the GOKU F7 PRO Mini V2 is a versatile performance device for modern digital or analog setups.

Specifications:

MCU: STM32 F722
Gyroscope: ICM42688 (SPI)
OSD: AT7456E
Barometer: DPS310 / SPL06
Black box storage: 16 MB
UART ports: UART1 – UART6
Input voltage: 7.4 - 26 V (2 - 6 S Li-Po)
BEC Outputs: 10V @ 2A / 5V @ 2A
Motor outputs: 8 (dual sockets 4 in 1 ESC or solder pads)
Firmware Targets: Betaflight FLYWOO F722PROV2 / INAV FLYWOO F722PRO

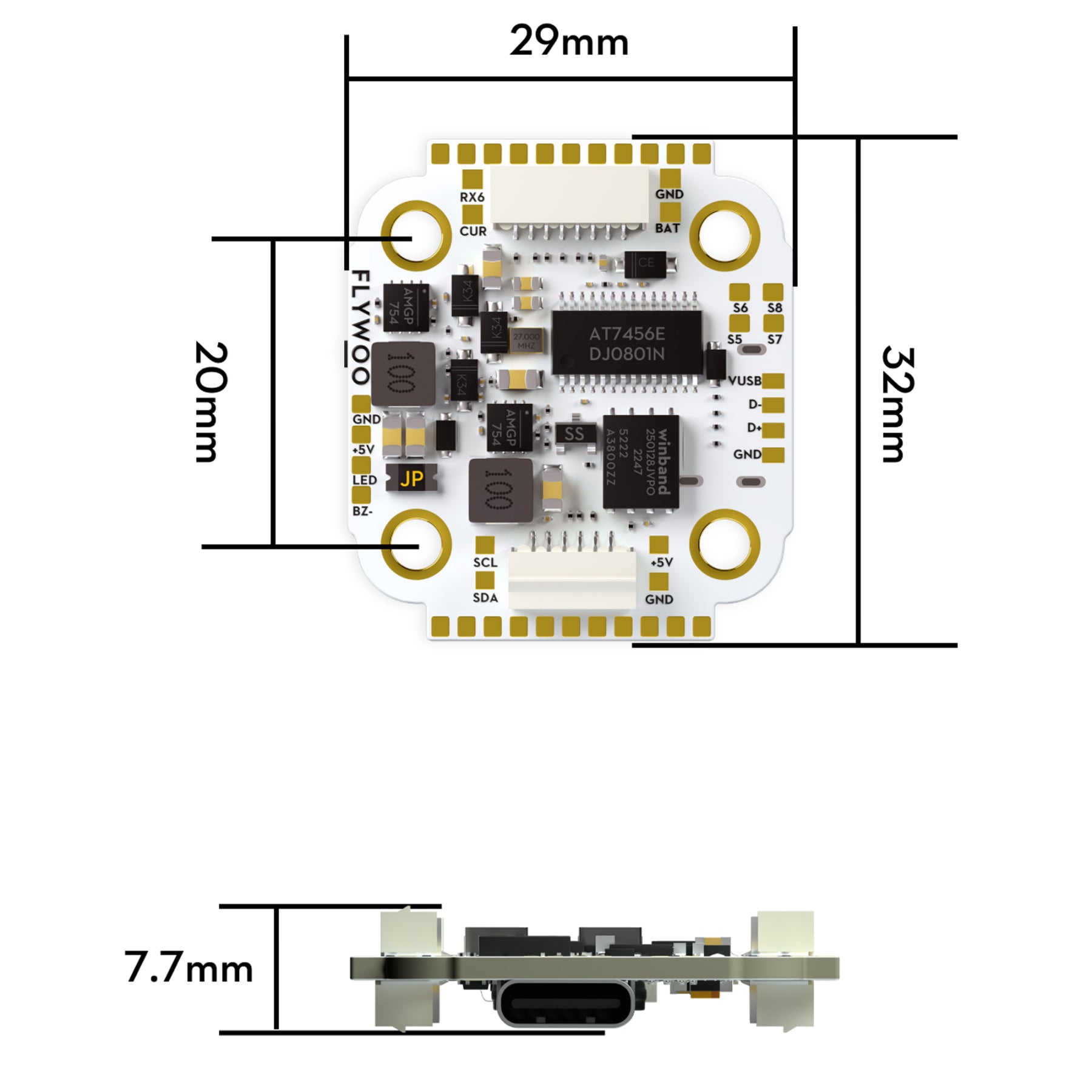

Dimensions: 32 x 29 x 20 mm
Mounting: 20 × 20 mm (M2)
Weight: 9.9 g

The package contains:

1 x GOKU F7 PRO Mini V2 Flight Controller
1 x FC-ESC flat cable
1 x buzzer cable
1 x GPS cable
1 x DJI O3 Air Unit Cable
1 x receiver cable
5 x M3 shock absorber
5 x M2 shock absorber
1 x Analog camera cable
