• FC Diatone MAMBA MK4 F722 APP 30mm/M3 (GYRO 42688)
    • 999 fc diatone mamba mk4 f722 app 30mm m3 gyro 42688
    • 999 1 fc diatone mamba mk4 f722 app 30mm m3 gyro 42688
    • 999 2 fc diatone mamba mk4 f722 app 30mm m3 gyro 42688
    1 3

    Code: JH60906

    FC Diatone MAMBA MK4 F722 APP 30mm/M3 (GYRO 42688)

    FC Diatone MAMBA MK4 F722 APP 30mm/M3 (GYRO 42688)

    Brand: Diatone Mamba System

    €71,87
    €71,87 €71,87
    -0% View Product
    Taxes included.
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

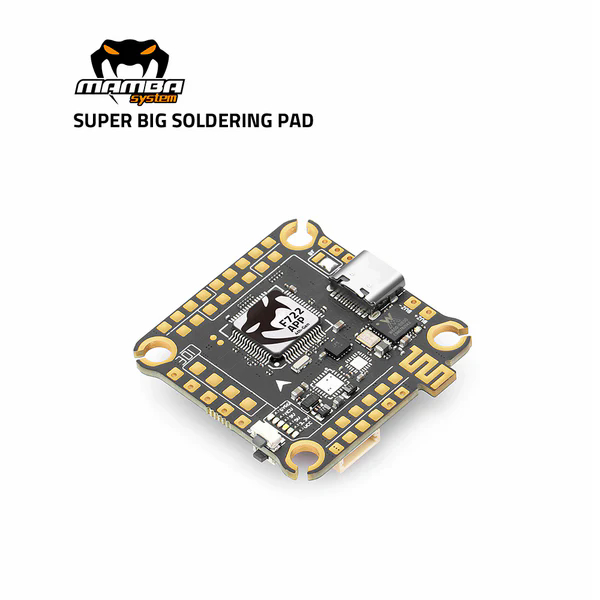

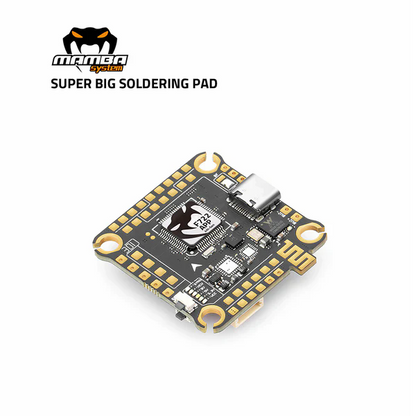

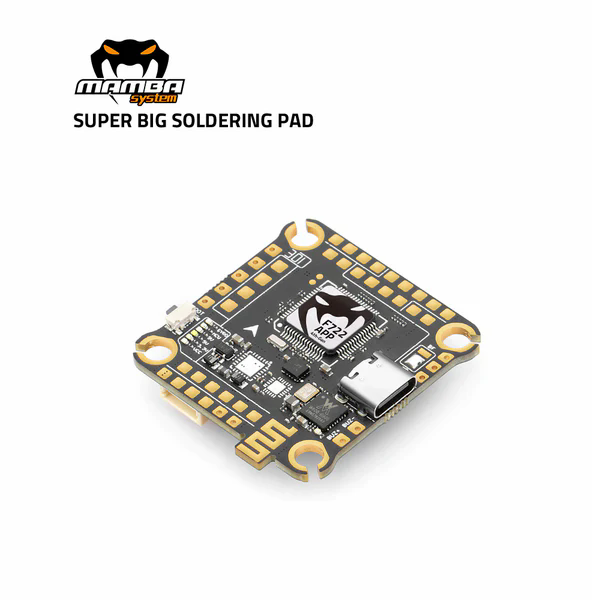

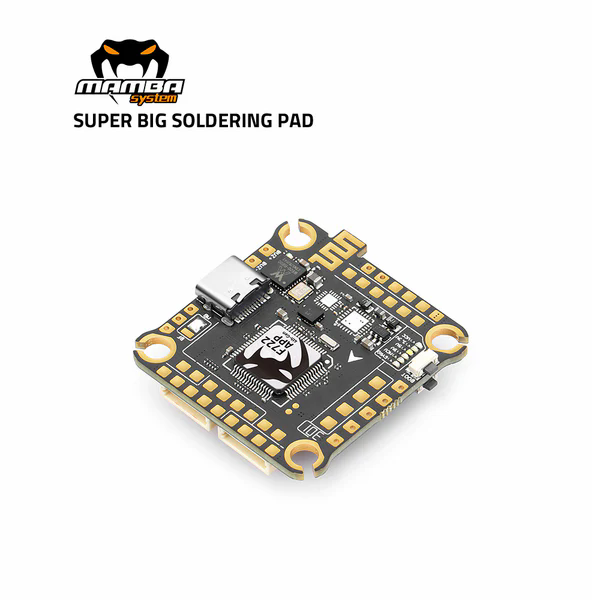

    MAMBA MK4 F722APP FC

MCU: 216MHz STM32F722
GYRO: CM42688P
Target: MAMBA F722_2022B
OSD: Yes
Blacbox: 16M Flash memory
Barometer: SPL06
Uarts: 6 sets
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer: Yes
CURR Pad: Yes
ESC signal: 8 Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power LED: Yes
LED driver: BF LED/MB LED
AIR UNIT Port: Yes
WIFI: SpeedyBee APP
VTX Switch: Yes
Receiver protection: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A & 5V 3A & 9V 3A
Input: 3~6S Lipo (12.6~25.2V)
Mounting dimension: 30.5 mm, M3
DELIVERIES ONLY:
8pin sh1.0×1
AIR UNIT sh1.0 ×1
