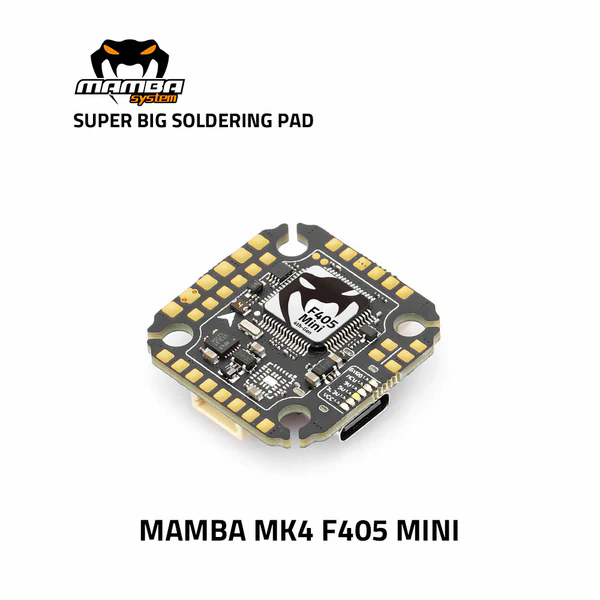

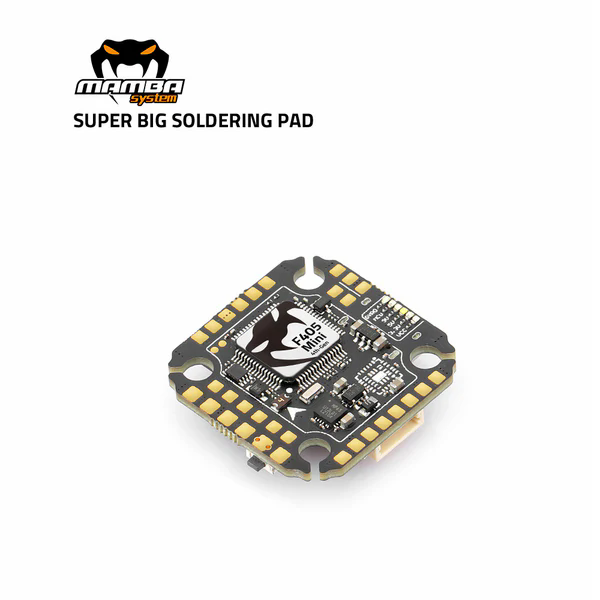

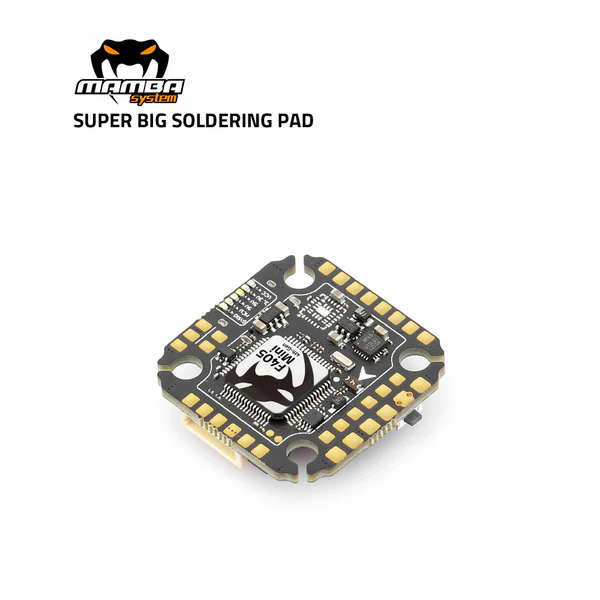

    MAMBA MK4 F405MINI FC MPU6000

MCU: 168MHz STM32F405
GYRO: MPU6000
Target: MAMBA F405_2022A
OSD: Yes
Blacbox: 16M Flash memory
Barometer: SPL06
Uarts: 6 hundred
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer: Yes
CURR Pad: Yes
ESC signal: 6 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power LED: Yes
LED driver: BF LED
AIR UNIT Port: Yes
WIFI: No
VTX Switch: Yes
Receiver protection: Yes
BEC protection: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
Input: 3~6S Lipo (12.6~25.2V)
Mounting dimension: 20mm, M2/M3

DELIVERIES ONLY:
8pin sh1.0×1
AIR UNIT sh1.0 ×1
