    Code: JH61763

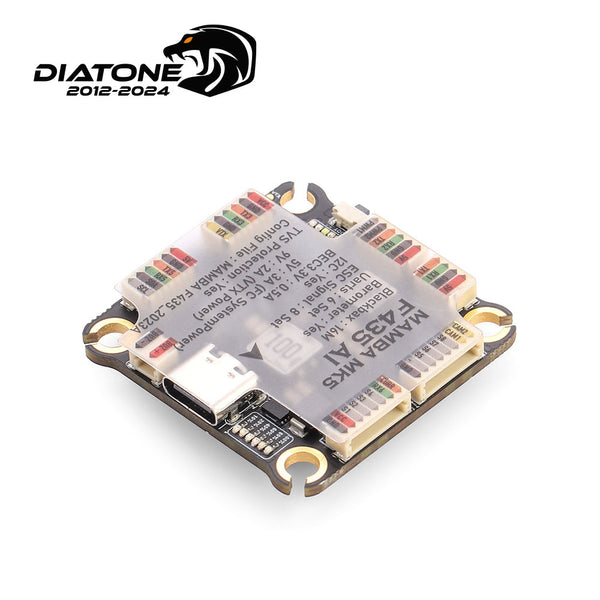

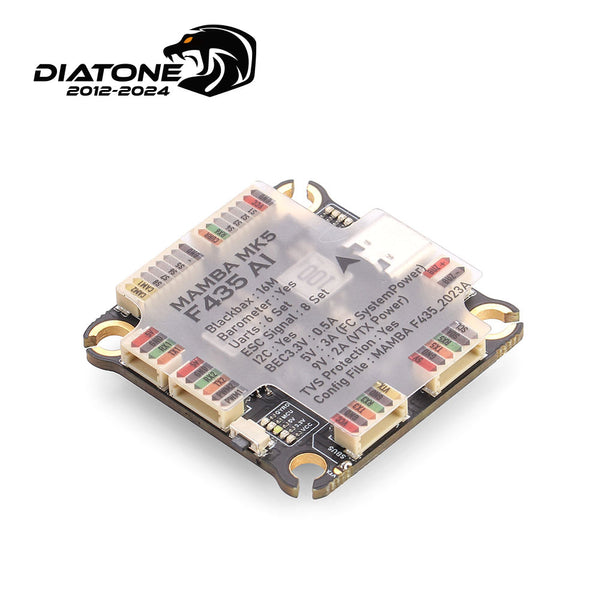

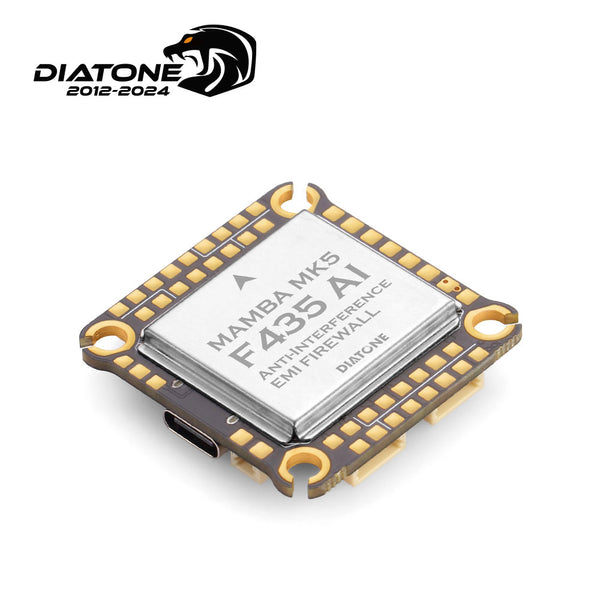

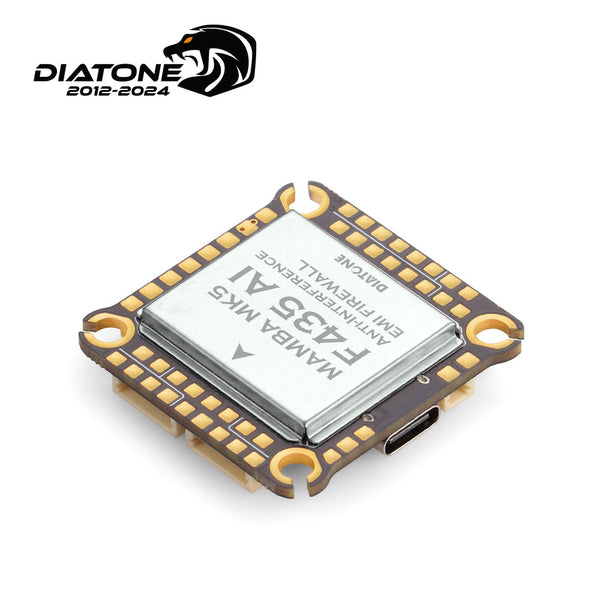

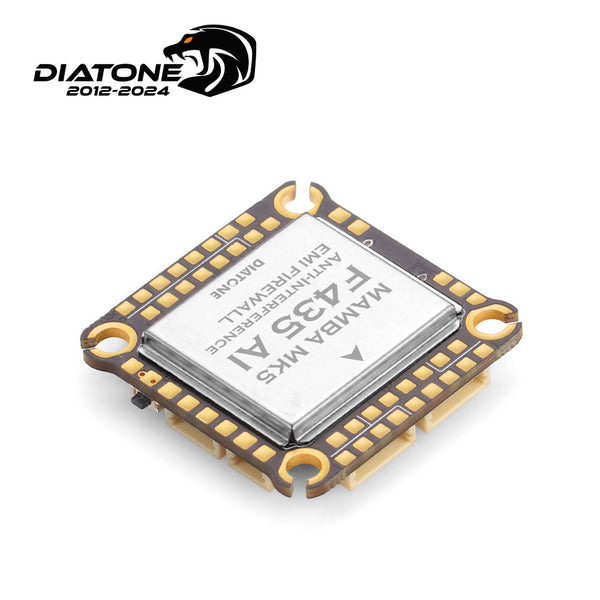

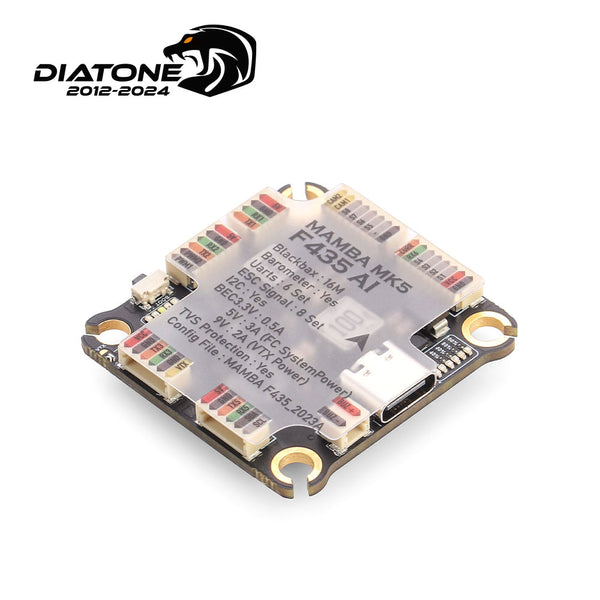

    FC Diatone MAMBA F435 AI

    FC Diatone MAMBA F435 AI

    Brand: DIATONE

    €33,80
    €33,80 €33,80
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

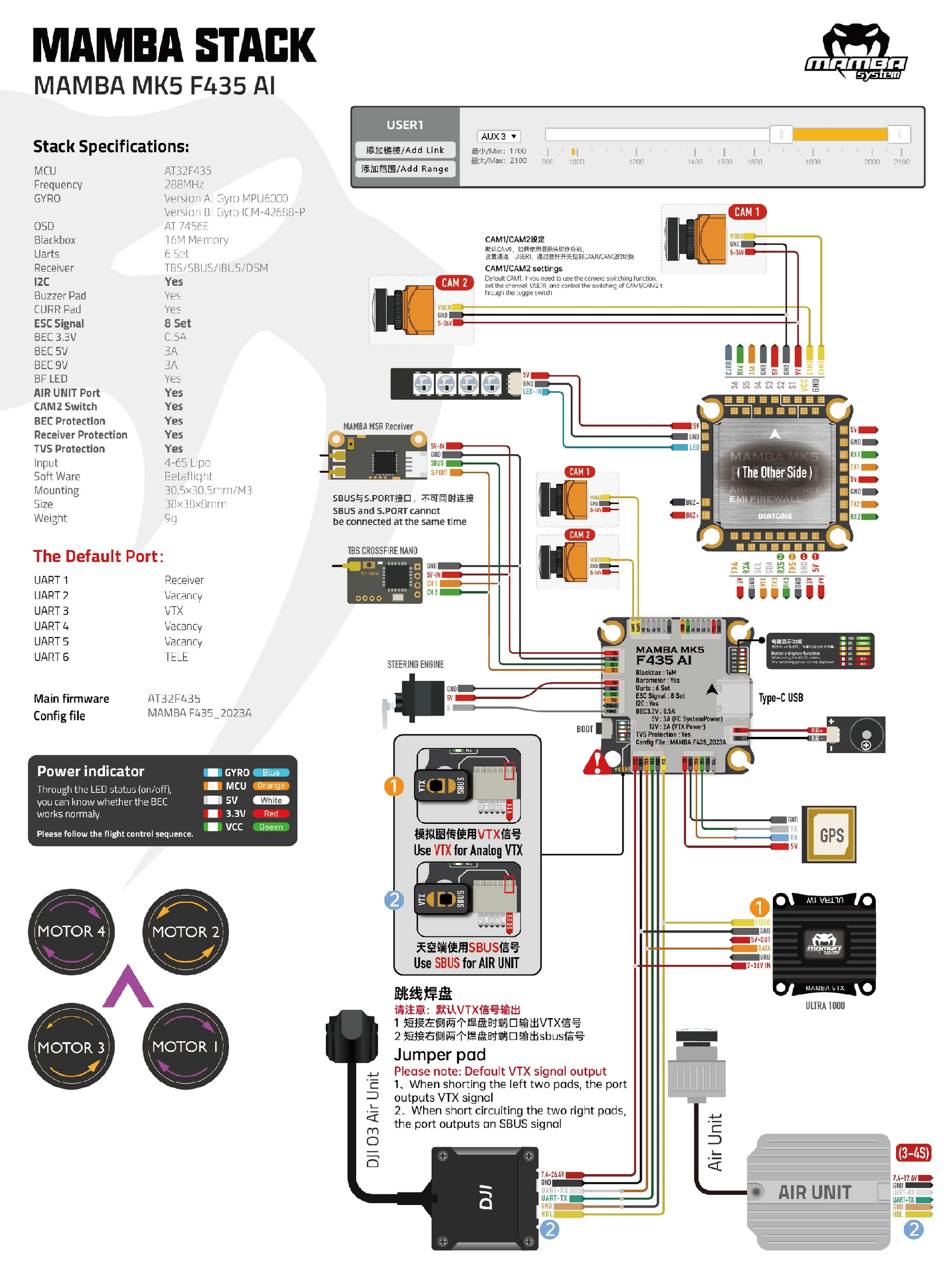

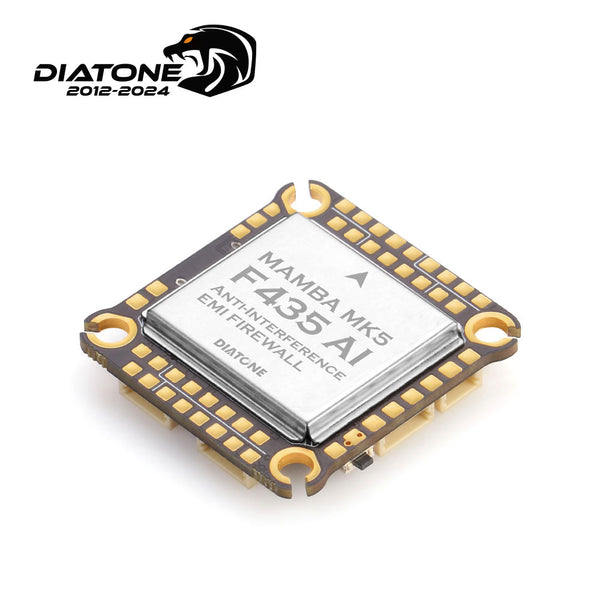

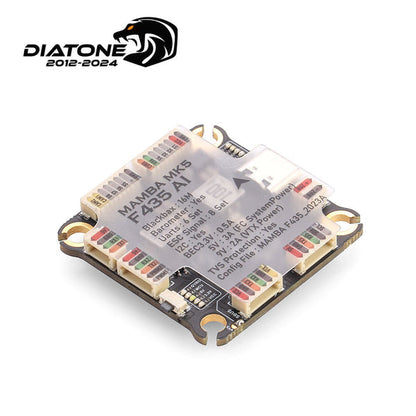

    MAMBA F435 AI FC

Specifications:

Item: F435 AI Flight Controller 30.5MM/M3
MCU: AT32F435
Frequency: 288 MHz
GYRO: ICM-42688-P
Target: MAMBA F435_2023A
OSD: Yes
Blacbox: 16M Flash memory
Barometer: SPL06
Uarts: 5 sets
I2C: Yes
RSSI: No
Buzzer: Yes
CURR Pad: Yes
ESC signal: 8 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power LED: Yes
LED driver: BF LED
AIR UNIT Port: Yes
CAM2 port: Yes
Receiver protection: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A & 5V 3A & 12V 2A
Input voltage: 4~6S Lipo (14.8~25.2V)
Mounting dimension: 30.5 mm, M3

DELIVERIES ONLY:
8pin sh1.0×1
AIR UNIT sh1.0 ×1
