    Code: JH61220

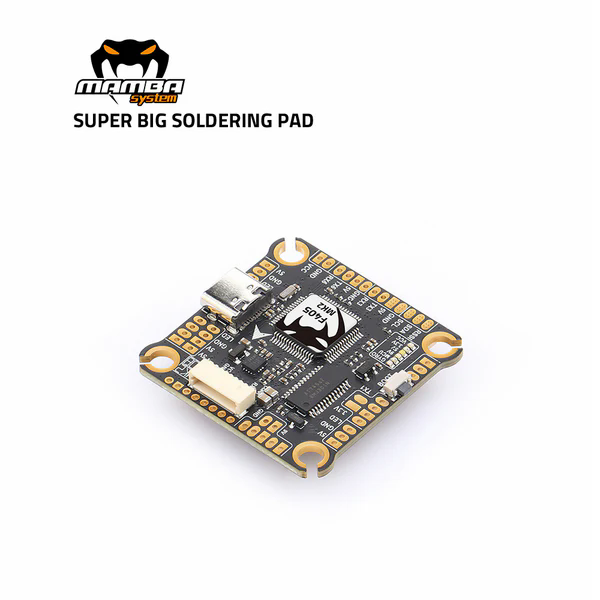

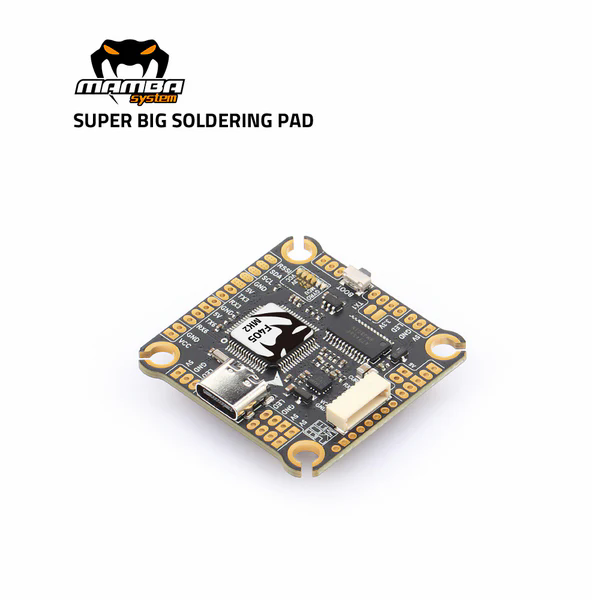

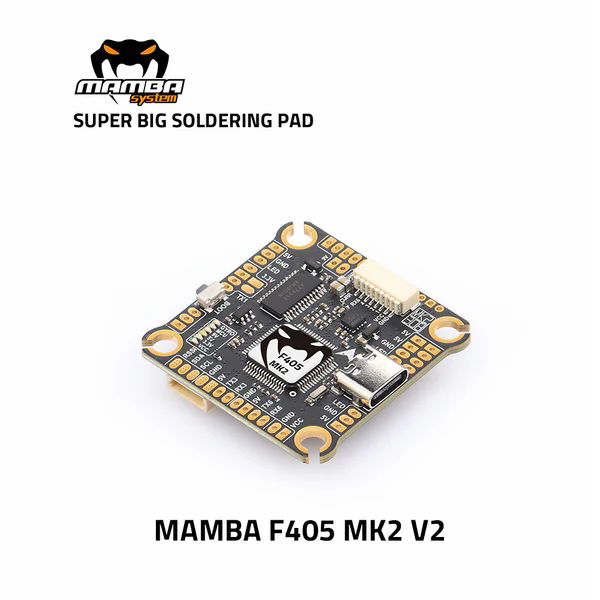

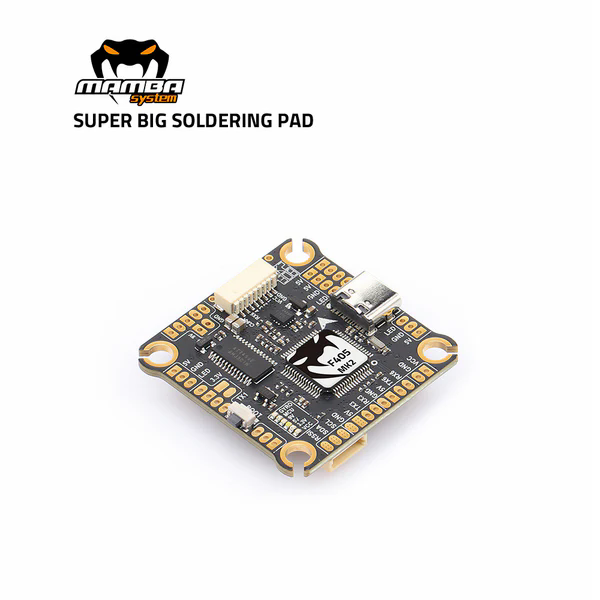

    FC Diatone MAMBA F405MK2 V2 MPU6000

    FC Diatone MAMBA F405MK2 V2 MPU6000

    Brand: Diatone Mamba System

    €46,00
    €46,00 €46,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    MAMBA F405MK2 V2 FC MPU6000

MCU: 168MHz STM32F405
GYRO: MPU6000
Target: FURYF4OSD
OSD: Yes
Blacbox: 16M Flash memory
Barometer: No
Uarts: 3 sets
I2C: Yes
F.Port: No
RSSI: Yes
Buzzer: Yes
CURR Pad: Yes
ESC signal: 4 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power LED: Yes
LED driver: BF LED
AIR UNIT Port: Yes
WIFI: No
VTX Switch: No
Receiver protection: Yes
BEC protection: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A & 5V 3A & 9V 3A
Input: 3~6S Lipo (12.6~25.2V)
Mounting dimension: 30.5mm/M3

DELIVERIES ONLY:
8pin sh1.0×1
AIR UNIT sh1.0 ×1
