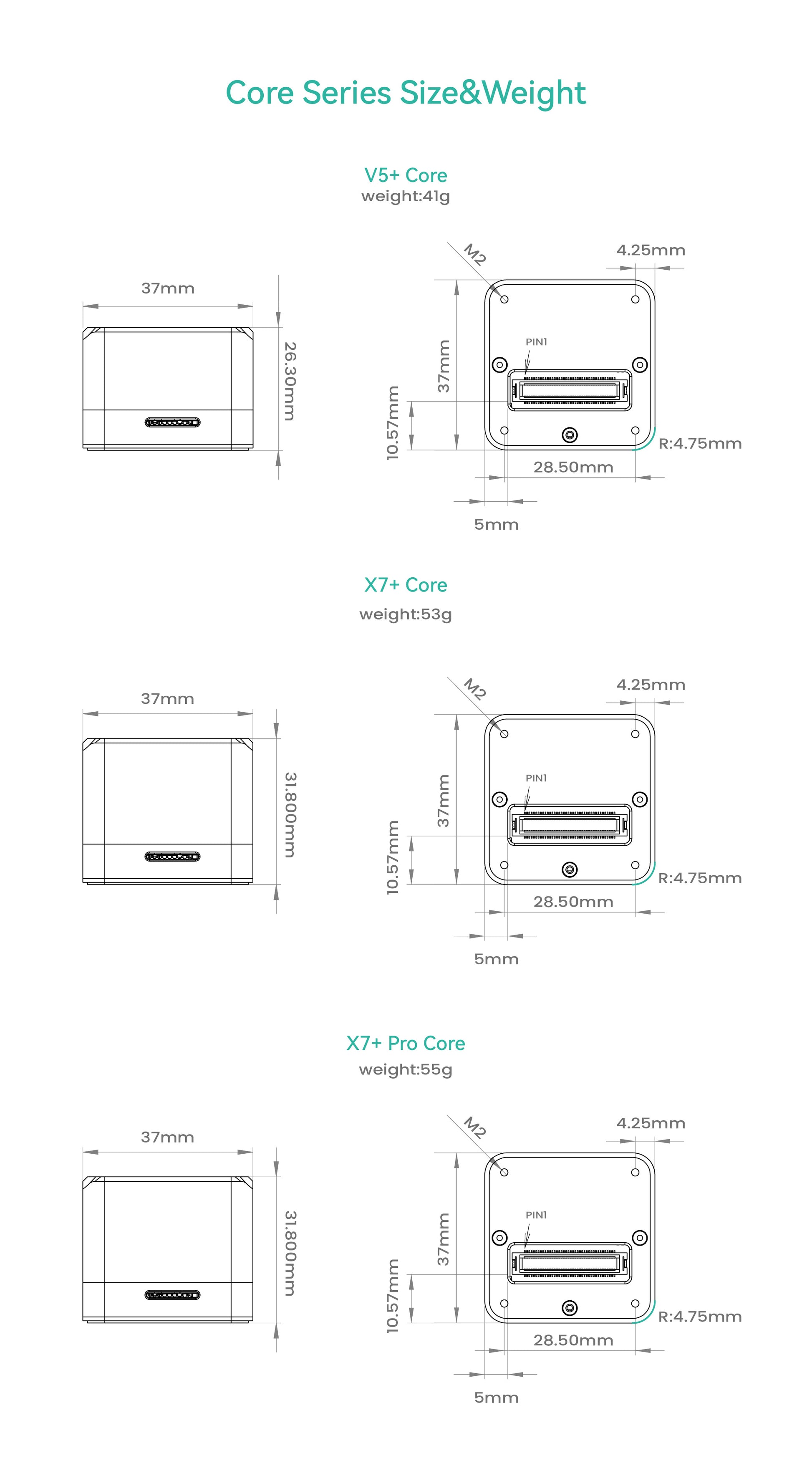

    • Core系列产品尺寸重量图EN
    1 6

    Code: A0811

    FC CUAV X7+ Pro

    FC CUAV X7+ Pro

    Brand: CUAV

    €889,00
    €889,00 €889,00
    -0% View Product
    In stock
    Limited stock available. Order soon!
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

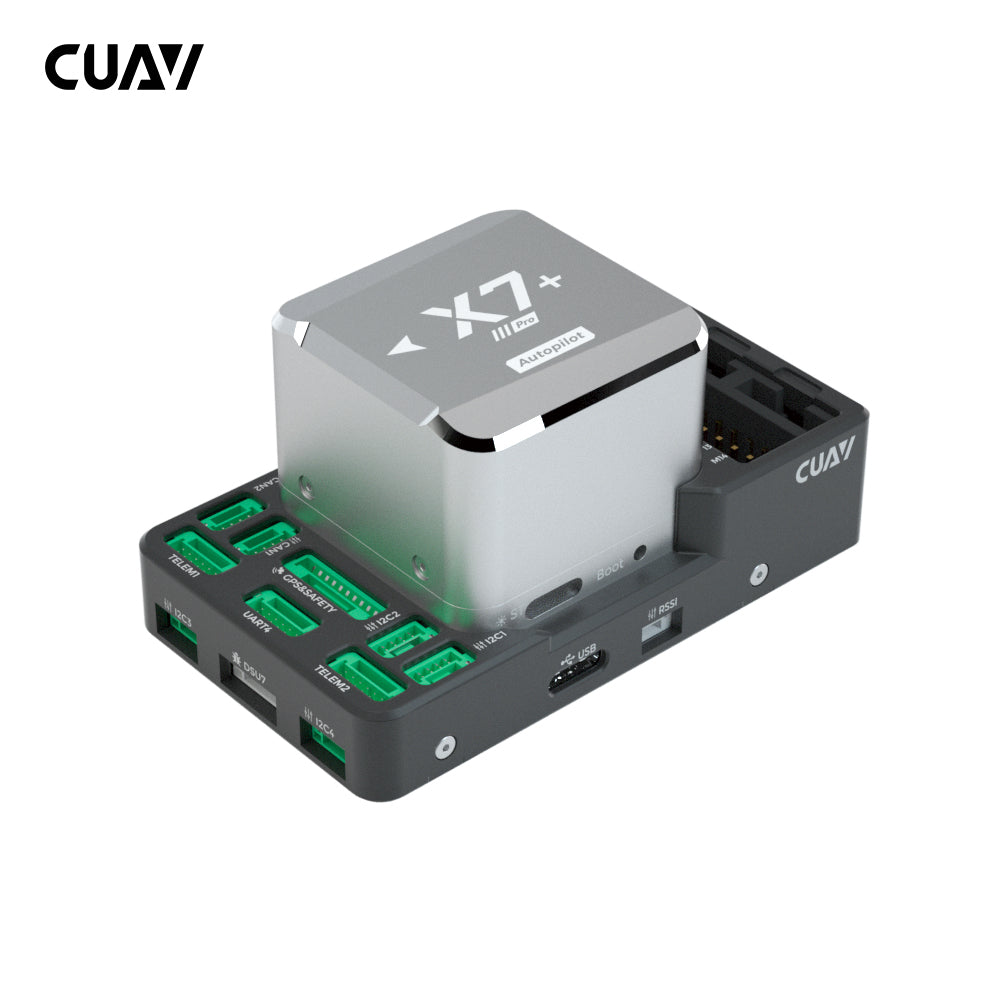

    CUAV X7 PRO flight controller

    The CUAV X7 PRO flight controller is an advanced autopilot developed by CUAV. It uses a more powerful STM32H7 processor and combines industrial sensors with extremely low temperature drift. Compared to previous versions of flight controllers, it offers better performance and higher reliability. ArduPilot firmware works fine on this board. X7 PRO is ideal for industrial drones.

    Features:

    • Internal damping
    • Modular construction, possibility to create your own support plate
    • USB_HS support for faster downloads
    • Support multiple outputs with DShot support
    • INS heating support for better sensor performance
    • Dedicated battery port
    • 3 sets of INS sensors
    • Support for multiple receivers
    • High precision industrial sensor (ADIS16470+RM3100)
    • Triple power backup (Power A, Power C, USB)

    Specifications:

    • Manufacturer: CUAV
    • Main controller: STM32H743
    • Accelerometer/Gyroscope: ICM-20649
    • Accelerometer/Gyroscope: ADIS16470
    • Accelerometer/Gyroscope: BMI088
    • Compass: RM3100
    • Barometer: MS5611 x2
    • Frequency: 480 MHz
    • Flash memory: 2048K
    • Power supply module: Digital CAN PMU SE
    • Interface for receivers: S.BUS/PPM/DSM
    • Peripheral interface: PWM x14 (12 with DShot support)
    • RSSI: Analog / PWM
    • UART ports for GPS: 2 (GPS and UART4)
    • I2C bus: 4 (2 dedicated ports)
    • CAN bus: 2
    • ADC: 2
    • USB port: Type-C
    • Power lines: 2 (Power A combined with current measurement interface, Power C with CAN bus)
    • Power supply: Power A/C: 4.3-5.4 V, USB: 4.75-5.25 V
    • Voltage on servo line: 0-36 V
    • Dimensions: 77 x 45.5 x 39 mm (19.5 mm expansion plate only)
    • Weight: 101g

    Package contents:

    • Flight Controller Core Module - 1 Piece
    • Expansion plate - 1 piece
    • I2C/CAN cable - 1 piece
    • ADC 3.3 cable – 1 piece
    • RSSI cable – 1 piece
    • CAN PMU Lite power supply module – 1 piece
    • CAN expansion board - 1 piece
    • PW-LINK telemetry module – 1 piece
    • USB Type-C cable - 1 piece
    • Memory card – 1 piece
