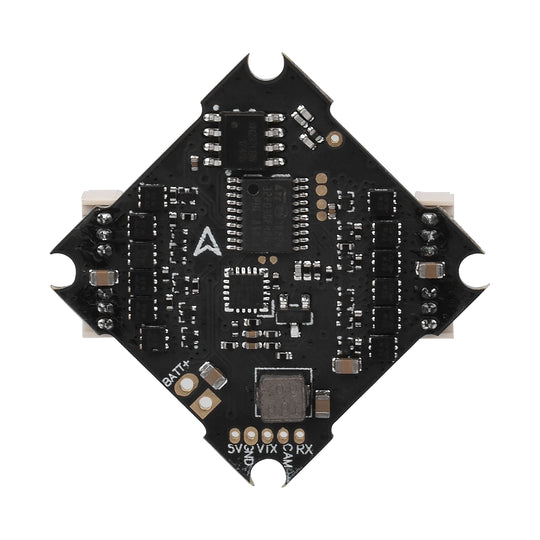

Lite 2S Brushless Flight Controller (Silverware Firmware) SPI Bayang RX

The 2S Brushless FC board with Silverware firmware is designed to support 2S brushless motors and provides a simple and affordable entry into the FPV racing hobby. This versatile board supports Acromode, Levelmode, Racemode_Angle, Racemode_Horizon, Horizonmode and Turtle modes. The OSD menu allows options such as battery voltage, flight time, flight mode and setup menu to be displayed including PID tuning, motor rotation change and channel mapping through the OSD. The board also features convenient operation for switching receiver communication protocols (SBUS/DSMX) using a direct push-button switch. It is equipped with Silverware firmware and comes with a pre-soldered 55mm power cable with XT30 cable for added convenience.

Specifications:
CPU: STM32F031F6P6 (Bayang Version)
Six axis: MPU6050
Size: 26x26mm, attachment pattern
Firmware Version: BETAFPV LiteSilverware Firmware
OSD: BETAFPV LiteOSD
Built-in receiver: SPI Bayang
Supported external receiver: DSMX protocol
Power cable: 55mm, with XT30 cable
Weight: 5.39g with XT30 cable
Built-in BB21 ESC with 5A continuous and 6A peak current
Input voltage: 2S lipo
Programmable BLHeliSuite support
Motor connectors: 1.25mm pin connector
Factory firmware: S_H_50_REV16_7.HEX
Signal support: D-shot150, D-shot300, D-shot600 (default), Oneshot125
