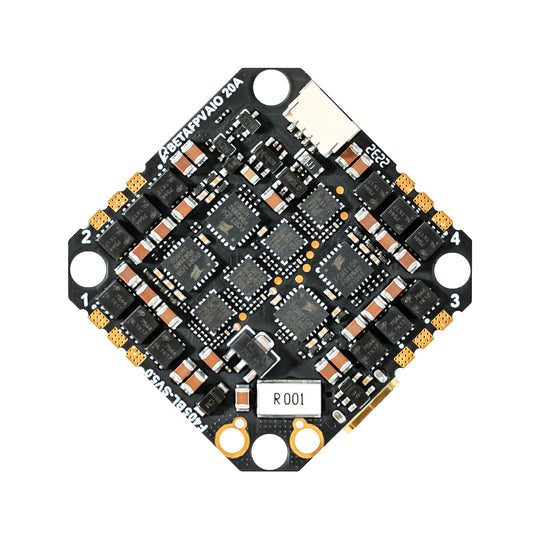

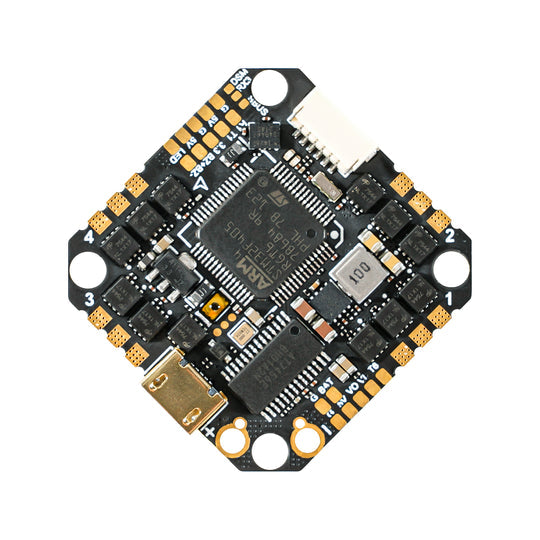

F405 4S 20A Brushless Flight Controller with Toothpick V5 BLHeli_S (ICM42688)

F405 4S 20A Toothpick Brushless Flight Controller V5, based on F405 2-4S 20A Brushless Flight Controller V4, uses the new ICM42688 gyroscope and ESC chip, which comes with BLUEJAY ESC firmware, so it supports bi-directional D-shot. In addition to the plug&play ports for the receiver and HD Digital VTX same as the V4 board, the V5 board is made with a rational layout for easy soldering and preventing solder from jumping to another pad and shorting components. Fits 4 inch X-Knight Toothpick, TWIG MUTANT Toothpick, 95X V3.

Specifications:

Flight controller
CPU: STM32F405RGT6
Six-axis: ICM42688 (SPI connection)

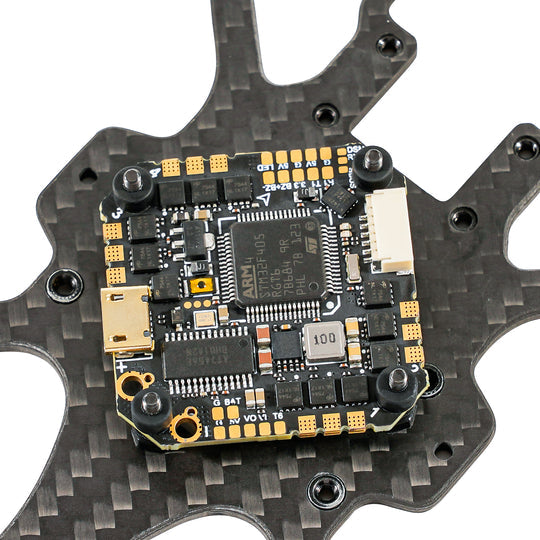

Mounting dimension: 25.5 x 25.5 mm (M2 Anti-vibration rubber damper available)
FC firmware: betaflight_4.3.1_BETAFPVF405
OSD: Built-in Betaflight OSD (OSD chip: AT7456E)
Receiver: SBUS/CRSF/DSMX receiver
BEC: 5V 3A
Built-in current sensor

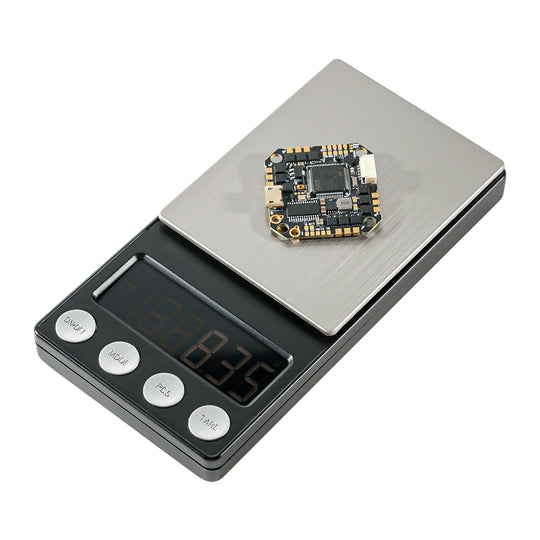

Weight: 8.35g

ESC chip: SILABS EFM8BB21F16G-C
Support D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 25A
Firmware: G_H_20_48_v0.16.HEX (default BLUEJAY), BLHeli_S (optional)
