    Code: WN02-FP007

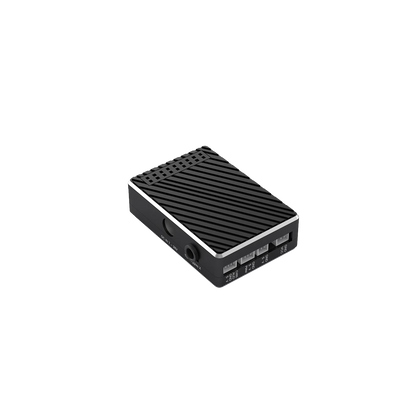

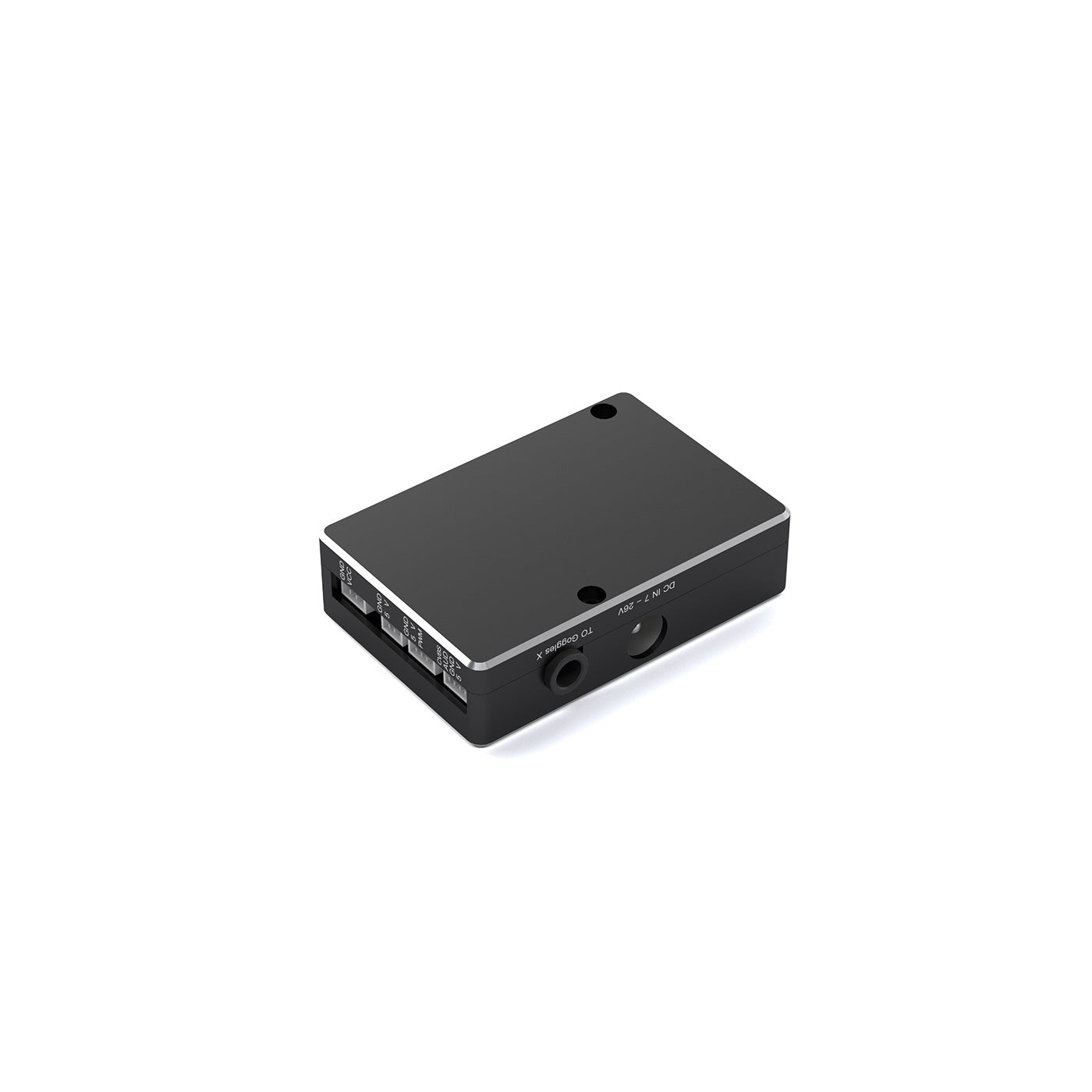

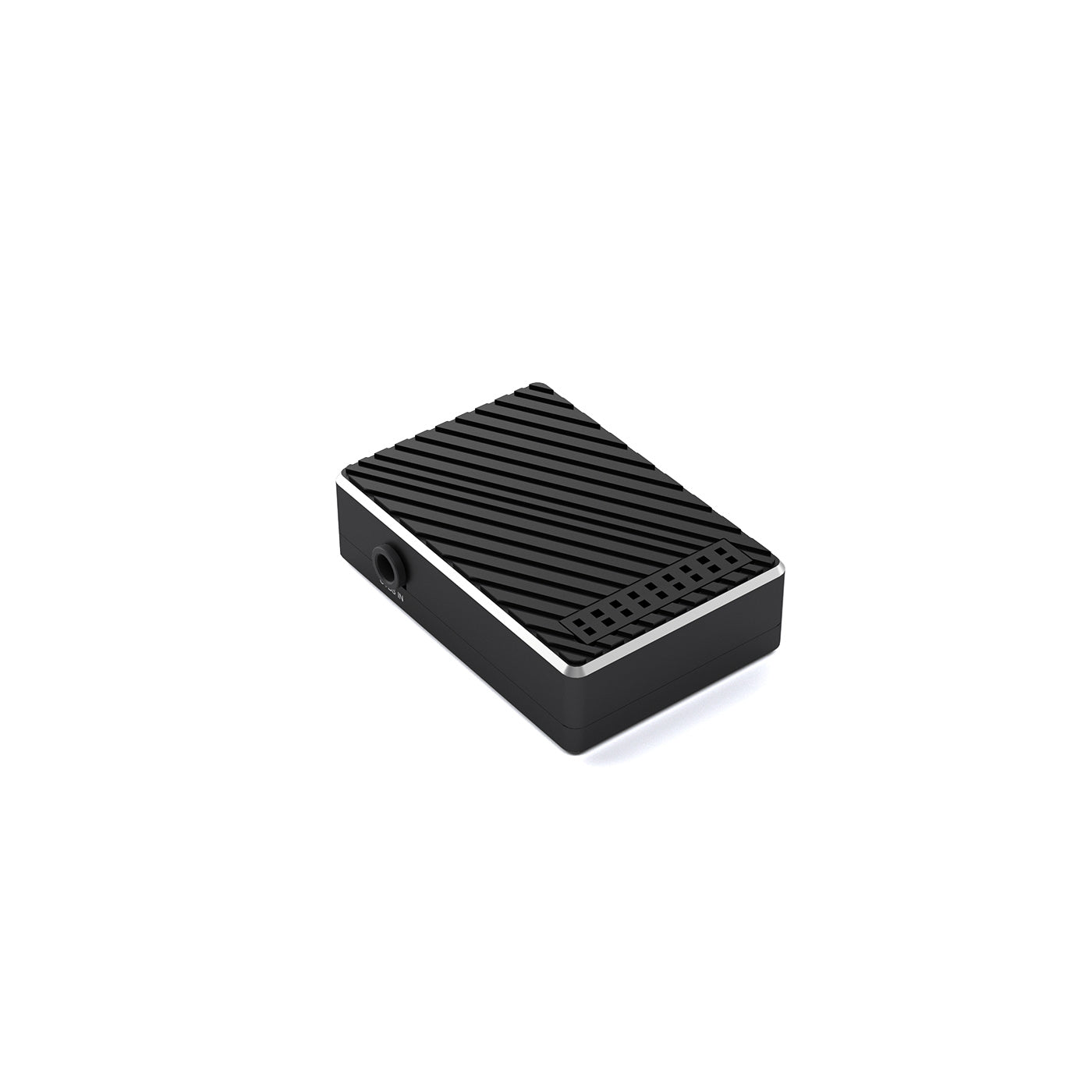

    Extension Board Walksnail for Goggles X

    Extension Board Walksnail for Goggles X

    Brand: Walksnail

    €23,00
    €23,00 €23,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Walksnail board extension for X glasses

This expansion module is only compatible with Avatar Goggles X models that do not have built-in head tracking.

Key Features:

- Integrated Head Tracking: Adds head tracking functionality to Goggles X.
- Analog receiver compatibility fix: Improves compatibility with some analog receivers.

Installation instructions:

- When installing, make sure the white connector is facing forward.

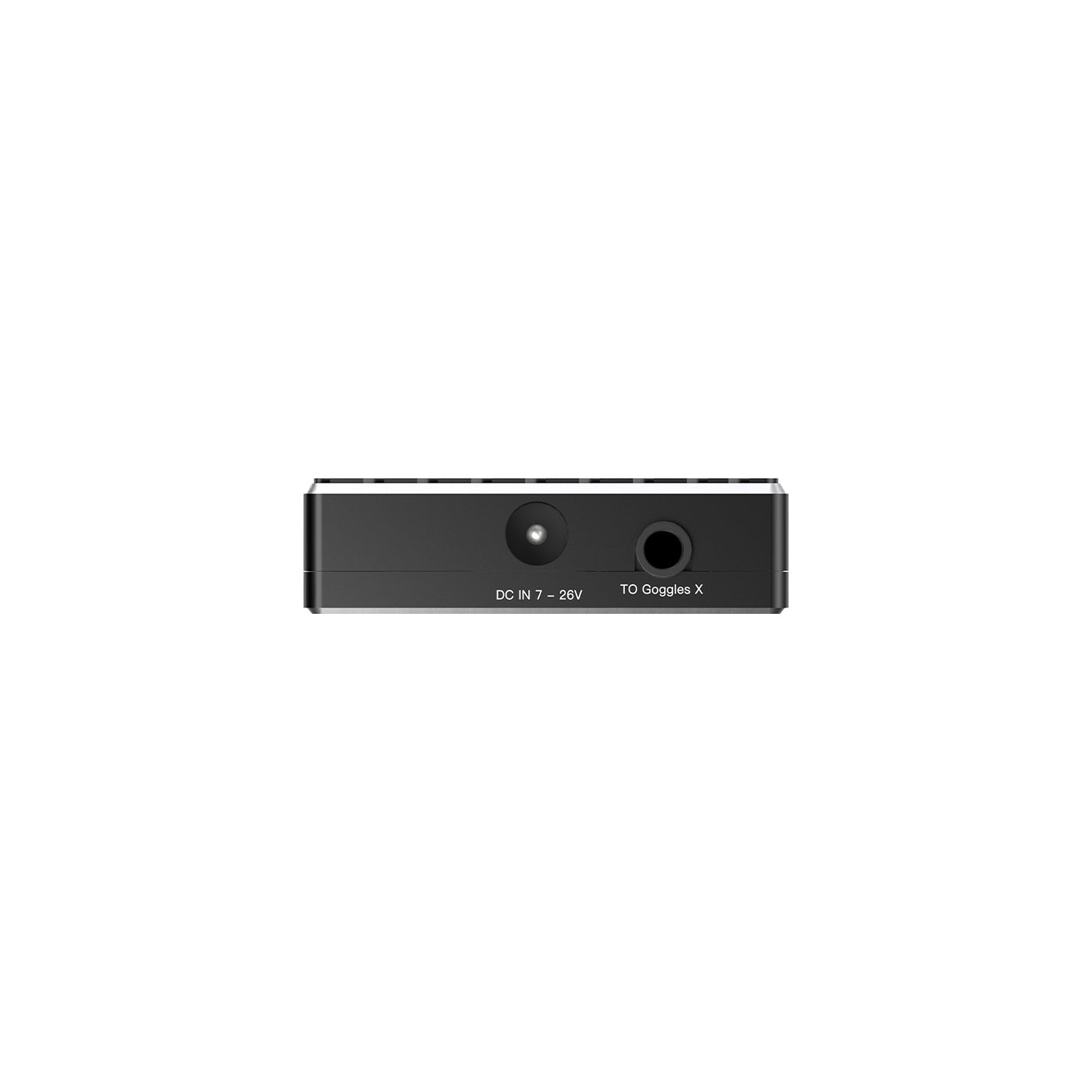

- A shorter power cable connects to the glasses.
- A longer power cable connects to the expansion module.

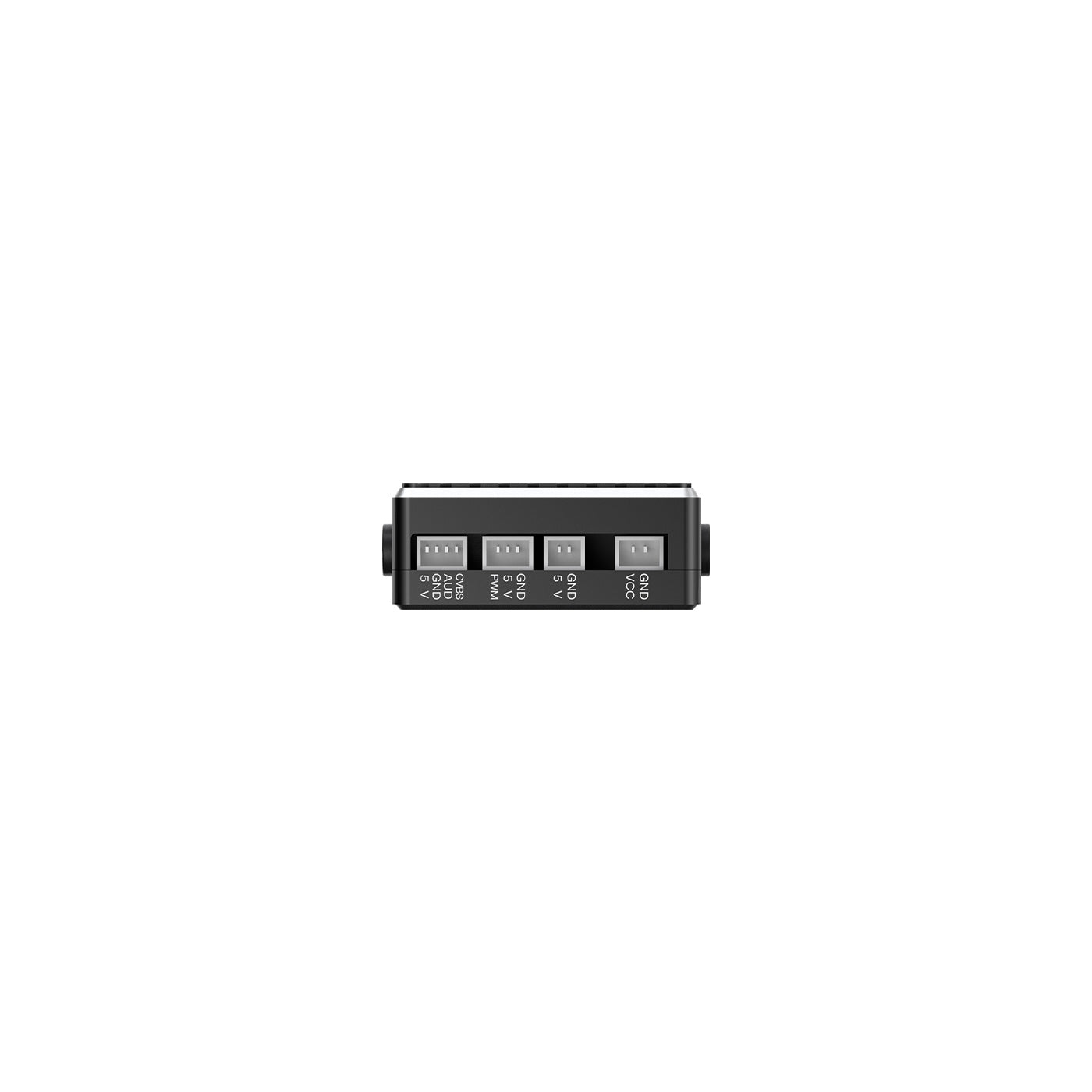

- The five-pin end connects to the glasses, while the four-pin end to the module.
- Analog receiver pins can be inserted into any row of module connector pins.

Analog signal input mode:

- Turn on the X glasses.
- Press and hold the Return button for 5 seconds to enter analog input mode.
- Goggles X will now be able to receive analog video signals.

Head tracking with Avatar Moonlight VTX and GM Gimbal:

- The extension module also enables head tracking when used with Avatar Moonlight VTX and GM gimbals.
- To activate this feature, make sure Goggles X and Moonlight VTX firmware is updated to version 38.43.4 or higher.
- In the Goggles menu, select PTZ mode and activate head tracking.
- After setting, the gimbal will follow the movement of the glasses.
- To refocus the gimbal, quickly press the Return button three times.

This module is essential for users who want to expand the functionality of their Goggles X, especially for analog FPV integration and immersive head tracking experiences.

The package contains:

1 x Walksnail Extension Plate for Goggles
